Abstract

The utility model discloses a water-soluble fertilizer feeding and blending device, which relates to the field of water-soluble fertilizer feeding and blending. The second mixing device on the inner ring side, the second mixing device is fixedly arranged on the side of the first mixing device, and the first mixing device includes a rotating shaft movably connected inside the mixing box, and a roller fixed at the end of the rotating shaft. The drum and the stirring shaft fixedly installed on the side of the roller, the second mixing device includes a mounting frame that is fixedly connected to the side of the stirring shaft, a first stirring blade and a second stirring blade that are fixedly installed at the end of the mounting frame, and the first stirring blade and the second stirring blade is distributed alternately. In the utility model, after the water-soluble fertilizer feeding is multi-mixed in different ways in the device, the final mixing is uniform, so that the mixing efficiency of the water-soluble fertilizer feeding is high, and the water-soluble fertilizer feeding is uniformly dispersed, so that the mixing is more uniform and efficient. full.

Description

A water-soluble fertilizer feeding and mixing device

technical field

The utility model relates to the field of water-soluble fertilizer feeding and mixing, in particular to a water-soluble fertilizer feeding and mixing device.

Background technique

Water-soluble fertilizer is a multi-component compound fertilizer that can be completely dissolved in water. It can be quickly dissolved in water and is more easily absorbed by crops, and its absorption and utilization rate is relatively high. More importantly, it can be applied to drip irrigation And other facility agriculture, realize the integration of water and fertilizer, and achieve the efficiency of saving water, fertilizer and labor.

A mixing device is usually used when water-soluble fertilizer is mixed. The existing mixing device usually has low stirring efficiency for water-soluble fertilizer during the mixing process, and the mixing is not sufficient.

Therefore, the existing blending device has the problems of low stirring efficiency and insufficient mixing for the water-soluble fertilizer feed. Therefore, we propose a water-soluble fertilizer feed blending device.

Utility model content

The main purpose of the utility model is to provide a water-soluble fertilizer feeding mixing device, which can effectively solve the problems of low stirring efficiency and insufficient mixing of water-soluble fertilizer feeding existing in the existing mixing device proposed in the background technology .

In order to achieve the above purpose, the technical solution adopted by the utility model is: a water-soluble fertilizer feeding and mixing device, including a mixing box, a first mixing device that is movable in the center of the mixing box, and a first mixing device that is movable in the mixing box. A second mixing device on the side of the inner ring, the second mixing device is fixedly arranged on the side of the first mixing device;

The first mixing device includes a rotating shaft movably connected inside the mixing box, a roller fixedly installed at the end of the rotating shaft, and a stirring shaft fixedly installed on the side of the roller; the rotating shaft drives the stirring shaft to rotate through the roller during rotation , during the rotation of the stirring shaft, it is convenient to stir the water-soluble fertilizer feed materials, and facilitate the preliminary mixing between the water-soluble fertilizer feed materials.

The second mixing device includes a mounting frame fixedly connected to the side of the stirring shaft, a first stirring piece and a second stirring piece fixedly installed at the end of the mounting frame, and the first stirring piece and the second stirring piece are alternately arranged. Distribution, the inside of the first stirring plate is provided with a material distribution port. During the rotating process, the rotating shaft drives the first stirring piece and the second stirring piece to rotate through the mounting frame. During the rotation of the first stirring piece and the second stirring piece, it is convenient to further stir and mix the water-soluble fertilizer supply. Part of the water-soluble fertilizer supply leaks from the distribution port of the feeder, and is mixed with the water-soluble fertilizer supply in other places, which facilitates the further mixing of the water-soluble fertilizer supply. The water-soluble fertilizer supply on the first stirring plate and the second stirring plate is conveying When it reaches a high place, it will fall due to the inclination of the first stirring blade and the second stirring blade. The water-soluble fertilizer feed falls between the roller and the stirring shaft, and falls disorderly from the gap between the roller and the stirring shaft. After the feed is repeatedly mixed in the mixing box, it is finally mixed evenly. The above is the mixing process of the first mixing device and the second mixing device rotating one cycle. The water-soluble fertilizer feed is mixed in different ways, so that The mixing efficiency of water-soluble fertilizer is high, and the water-soluble fertilizer is evenly dispersed, so that the mixing is more uniform and sufficient.

Preferably, the stirring shafts are evenly spaced on the side of the roller. It is convenient to make the stirring of the water-soluble fertilizer supply better, and the dispersion effect of the water-soluble fertilizer supply is better, so that the mixing effect of the water-soluble fertilizer supply is better.

Preferably, the first stirring pieces are not less than two, and the number is the same as that of the second stirring pieces, the first stirring pieces are evenly spaced on the mounting frame, and the second stirring pieces are evenly spaced on the mounting frame distributed. It is convenient to make the dispersion effect of water-soluble fertilizer supply better.

Preferably, both the first stirring piece and the second stirring piece are inwardly concave arc-shaped sheet structures.

Preferably, a motor for driving the rotating shaft is fixedly installed on the outer end of the mixing box. Facilitates powering the unit.

Preferably, one end of the mixing box is provided with a closing door, the bottom of the closing door is movably connected with the mixing box, and the upper end of the closing door is engaged with the mixing box. It is convenient for the material in and out of the device.

Preferably, the ends of the first stirring piece and the second stirring piece away from the first mixing device are both attached to the inner wall of the mixing box. It facilitates the mixing of water-soluble fertilizer feed at the bottom, making the mixing of water-soluble fertilizer feed more fully.

Compared with the prior art, the utility model has the following beneficial effects:

1. In the utility model, the rotating shaft drives the stirring shaft to rotate through the roller during the rotating process. During the rotating process of the stirring shaft, it is convenient to stir the water-soluble fertilizer feed and facilitate the preliminary mixing between the water-soluble fertilizer feed.

2. In the utility model, the rotating shaft drives the first stirring piece and the second stirring piece to rotate through the mounting frame during the rotation process, and it is convenient to further stir the water-soluble fertilizer supply during the rotation process of the first stirring piece and the second stirring piece and mixing, part of the water-soluble fertilizer feed leaks from the feeding port on the first stirring piece, and is mixed with the water-soluble fertilizer supply from other places, so as to facilitate the further mixing of the water-soluble fertilizer supply, the first stirring piece and the second stirring piece When the water-soluble fertilizer feed is transported to a high place, it will fall due to the inclination of the first stirring blade and the second stirring blade. The water-soluble fertilizer feed will fall between the roller and the stirring shaft, and will flow After the water-soluble fertilizer supply is repeatedly mixed in the mixing box, it is finally mixed evenly. The above is the mixing process of the first mixing device and the second mixing device rotating for one week, and the water-soluble fertilizer supply is carried out. Multiple mixing in different ways makes the mixing efficiency of water-soluble fertilizers high, and the water-soluble fertilizers are evenly dispersed, so that the mixing is more uniform and sufficient.

Description of drawings

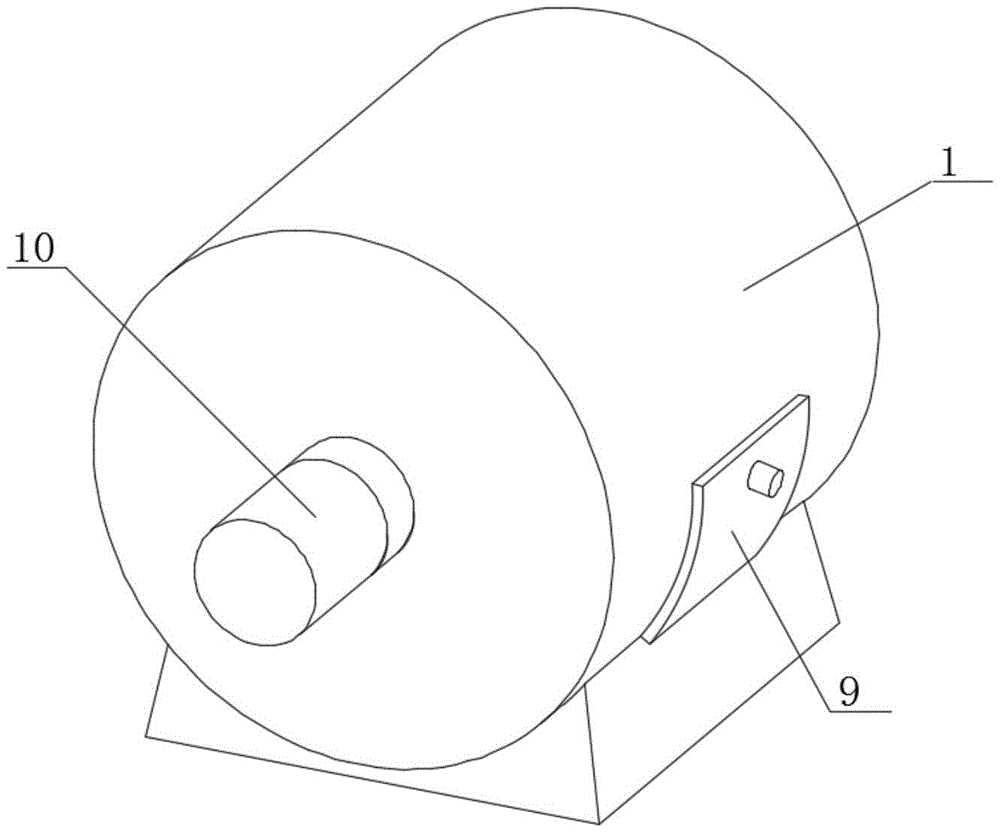

Fig. 1 is the perspective view of a kind of water-soluble fertilizer feed mixing device of the present utility model;

Fig. 2 is the front view of a water-soluble fertilizer feeding and mixing device of the utility model;

Fig. 3 is a rear view sectional structural schematic diagram of a water-soluble fertilizer feeding and mixing device of the utility model;

Fig. 4 is a perspective view of the first mixing device and the second mixing device of a water-soluble fertilizer feeding and mixing device of the present utility model;

Fig. 5 is a side view of a water-soluble fertilizer feeding and mixing device of the present invention.

In the figure: 1. Mixing box; 2. Rotating shaft; 3. Roller; 4. Stirring shaft; 5. Mounting frame; 6. The first stirring piece; 7. The second stirring piece; Close the door; 10, motor.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

In the description of the present utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "another end" The orientation or positional relationship indicated by ", etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, so as to Specific orientation configurations and operations, therefore, should not be construed as limitations on the invention. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless otherwise specified and limited, the terms "installed", "set with", "connected", etc. should be understood in a broad sense, such as "connected", which can be a fixed The connection can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Please refer to Figures 1-5, the utility model is a water-soluble fertilizer feeding and mixing device, including a mixing box 1, a first mixing device that is movably arranged in the center of the mixing box 1, and a first mixing device that is movably arranged in the mixing The second mixing device on the inner ring side of the box 1, the second mixing device is fixedly arranged on the side of the first mixing device;

The first mixing device includes a rotating shaft 2 movably connected to the inside of the mixing box 1, a roller 3 fixedly installed on the end of the rotating shaft 2, and a stirring shaft 4 fixedly installed on the side of the roller 3; the rotating shaft 2 passes through the roller during rotation. The cylinder 3 drives the stirring shaft 4 to rotate. During the rotation of the stirring shaft 4, it is convenient to stir the water-soluble fertilizer feed and facilitate the preliminary mixing between the water-soluble fertilizer feed.

The second mixing device comprises a mounting frame 5 fixedly connected to the side of the stirring shaft 4, a first stirring piece 6 and a second stirring piece 7 fixedly installed on the end of the mounting frame 5, the first stirring piece 6 and the second stirring piece 7 Distributed alternately, the inside of the first stirring blade 6 is provided with a material distribution port 8 . The rotating shaft 2 drives the first stirring piece 6 and the second stirring piece 7 to rotate through the mounting frame 5 during the rotation process, and the first stirring piece 6 and the second stirring piece 7 are convenient to further stir and mix the water-soluble fertilizer supply during the rotation process. Mixing, part of the water-soluble fertilizer feed is leaked from the feeding port 8 on the first stirring blade 6, and mixed with the water-soluble fertilizer feed in other places, so as to make the water-soluble fertilizer feed mix further, the first stirring blade 6 and The water-soluble fertilizer supply on the second stirring blade 7 will drop due to the inclination of the first stirring blade 6 and the second stirring blade 7 when it is transported to a high place, and the water-soluble fertilizer supply will fall between the roller 3 and the stirring shaft 4 Between the roller 3 and the stirring shaft 4, the water-soluble fertilizer feed material is mixed repeatedly in the mixing box 1, and finally mixed evenly. The above is the first mixing device and the second mixing device. During the mixing process of one rotation, the water-soluble fertilizer supply is mixed in different ways, so that the mixing efficiency of the water-soluble fertilizer supply is high, and the water-soluble fertilizer supply is evenly dispersed, so that the mixing is more uniform and sufficient.

Wherein, the stirring shafts 4 are evenly spaced on the side of the roller 3 . It is convenient to make the stirring of the water-soluble fertilizer supply better, and the dispersion effect of the water-soluble fertilizer supply is better, so that the mixing effect of the water-soluble fertilizer supply is better.

Wherein, the first stirring piece 6 is not less than two, and the number is the same as the second stirring piece 7, the first stirring piece 6 is evenly spaced on the mounting frame 5, and the second stirring piece 7 is evenly spaced on the mounting frame 5. . It is convenient to make the dispersion effect of water-soluble fertilizer supply better.

Wherein, the first stirring piece 6 and the second stirring piece 7 are both arc-shaped sheet structures concave inward.

Wherein, a motor 10 for driving the rotating shaft 2 is fixedly mounted on an outer end of the mixing box 1 . Facilitates powering the unit.

Wherein, one end of the mixing box 1 is provided with a closing door 9 , the bottom of the closing door 9 is movably connected with the mixing box 1 , and the upper end of the closing door 9 is engaged with the mixing box 1 . It is convenient for the material in and out of the device.

Wherein, the ends of the first stirring piece 6 and the second stirring piece 7 away from the first mixing device are attached to the inner wall of the mixing box 1 . It facilitates the mixing of water-soluble fertilizer feed at the bottom, making the mixing of water-soluble fertilizer feed more fully.

The working principle of the utility model:

Please refer to Figures 1-5, the utility model is a water-soluble fertilizer feeding and mixing device. When working, the rotating shaft 2 drives the stirring shaft 4 to rotate through the roller 3 during the rotation process, and the stirring shaft 4 rotates for water-soluble fertilizers. Fertilizer feeding is stirred, and the rotating shaft 2 drives the first stirring piece 6 and the second stirring piece 7 to rotate through the mounting frame 5 during the rotation process, and the first stirring piece 6 and the second stirring piece 7 rotate during the rotation of the water-soluble fertilizer. Further agitation and mixing are carried out in between, part of the water-soluble fertilizer supply material leaks out from the feeding port 8 on the first stirring blade 6, and is mixed with the water-soluble fertilizer supply material at other places, and the water-soluble fertilizer supply material is further mixed, the first stirring The water-soluble fertilizer on the sheet 6 and the second stirring sheet 7 falls between the roller 3 and the stirring shaft 4 when it is transported to a high place, and falls disorderly from between the roller 3 and the stirring shaft 4, after multiple After mixing, the water-soluble fertilizer feed is mixed evenly.

The basic principles and main features of the present invention and the advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A water-soluble fertilizer feed mixing device is characterized in that: it comprises a mixing box (1), the first mixing device which is movably arranged in the inner center of the mixing box (1) and is movably arranged in the mixing box (1) ) the second mixing device on the inner ring side, the second mixing device is fixedly arranged on the side of the first mixing device; The first mixing device includes a rotating shaft (2) movably connected inside the mixing box (1), a roller (3) fixedly installed at the end of the rotating shaft (2), and a roller (3) fixedly installed on the side of the roller (3). stirring shaft (4); The second mixing device comprises a mounting frame (5) fixedly connected to the side of the stirring shaft (4), a first stirring blade (6) and a second stirring blade (7) fixedly mounted on the end of the mounting frame (5) , the first stirring piece (6) and the second stirring piece (7) are distributed alternately, and the inside of the first stirring piece (6) is provided with a material distribution port (8). 2. A water-soluble fertilizer feeding and mixing device according to claim 1, characterized in that: the stirring shafts (4) are evenly spaced on the side of the roller (3). 3. A water-soluble fertilizer feeding and mixing device according to claim 1, characterized in that: the first stirring blades (6) are not less than two, and have the same number as the second stirring blades (7), The first stirring pieces (6) are evenly spaced on the mounting frame (5), and the second stirring pieces (7) are evenly spaced on the mounting frame (5). 4. A water-soluble fertilizer feeding and mixing device according to claim 1, characterized in that: the first stirring piece (6) and the second stirring piece (7) are both concave arc-shaped pieces structure. 5. A water-soluble fertilizer feeding and mixing device according to claim 1, characterized in that: the outer end of the mixing box (1) is fixedly installed with a motor (10) for driving the rotating shaft (2) . 6. A kind of water-soluble fertilizer feeding and mixing device according to claim 1, characterized in that: one end of the mixing box (1) is provided with a closed door (9), and the bottom of the closed door (9) It is movably connected with the mixing box (1), and the upper end of the closed door (9) is engaged with the mixing box (1). 7. A water-soluble fertilizer feeding and mixing device according to claim 1, characterized in that: the first stirring piece (6) and the second stirring piece (7) are evenly mixed at one end far away from the first mixing device The inner wall of the mixing box (1) is fitted.
