Abstract

The utility model relates to the technical field of building construction, and discloses a slope measuring device for building construction. The limit grooves arranged on the inner sidewall of the through hole are respectively arranged in the storage groove and the installation groove in the length direction of the rectangular frame. A circular ring is slidably inserted in the limit groove, and a single-chip microcomputer is fixedly arranged in the storage groove. A battery is fixed in the storage slot, a pressure sensor is arranged on one side of the limit slot, the sensing end of the pressure sensor is exposed in the limit slot, and the other side of the limit slot extends toward the storage slot. There is an installation hole, a position sensor is arranged in the installation hole, an LED display screen is arranged on the outer surface of the storage tank, and the position sensor, the pressure sensor, the LED display screen and the single-chip microcomputer are all electrically connected with the battery.

Description

A kind of slope measuring device for building construction

technical field

The utility model relates to the technical field of measuring devices, in particular to a slope measuring device for building construction.

Background technique

At present, the slope is the steepness of the surface unit. Usually, the ratio between the vertical height h of the slope and the distance l in the horizontal direction is called the slope (or slope ratio), which is represented by the letter i, and each slope needs to be measured frequently during construction. The slope of the location provides construction data for construction users. The slope measuring device can effectively facilitate the user to measure the slope. However, in practical applications, the slope measuring device in the prior art still has the following shortcomings in the operation process:

When the slope measuring device in the prior art is installed and measured on a slope with a relatively large gradient, the installation position is not firm enough, which increases the difficulty of measurement and cannot meet the requirements of the prior art.

Utility model content

The present application provides a slope measuring device for building construction to solve the problem that the installation position of the existing slope measuring device is not firm enough and the difficulty of measuring is very likely to occur when the existing slope measuring device is placed and measured on a slope with a large slope.

In order to solve the above-mentioned technical problems, the present application provides a slope measuring device for building construction, comprising: a measuring mechanism and a fixing mechanism connected to the measuring mechanism; the measuring mechanism includes a rectangular frame, and a through hole arranged in the middle of the rectangular frame is provided. The limit grooves on the inner sidewall of the through hole are respectively arranged in the storage groove and the installation groove in the length direction of the rectangular frame. A circular ring is slidably inserted into the limit groove, and a single-chip microcomputer is fixedly arranged in the installation groove. A battery is fixed in the storage slot, a pressure sensor is arranged on one side of the limit slot, the sensing end of the pressure sensor is exposed in the limit slot, and the other side of the limit slot extends toward the storage slot with a An installation hole, a position sensor is arranged in the installation hole, an LED display screen is arranged on the outer surface of the storage tank, and the position sensor, the pressure sensor, the LED display screen and the single-chip microcomputer are all electrically connected with the battery.

In some embodiments of the present application, the through hole has a quadrangular prism-shaped structure, the limiting groove has a mouth-shaped structure, and the ring and the limiting groove are in clearance fit.

In some embodiments of the present application, the fixing mechanism includes a bracket arranged symmetrically up and down with respect to the measuring mechanism, a fixing plate arranged on the side of the bracket away from the measuring mechanism, bumps arranged at both ends of the fixing plate in the length direction, and two For the stabilization mechanism between the bumps, the bracket and the fixing plate are fixedly connected by screws, and the bumps extend to the outside of the fixing plate to form a plurality of saw teeth.

In some embodiments of the present application, the stabilizing mechanism includes a guide rod disposed in the middle of both ends of the fixed plate, a positioning block connected to one end of the guide rod, a plug plate connected to the other end of the guide rod, and a positioning block and a fixed plate. The spring between the plates, the guide rod vertically penetrates the fixed plate, the two ends of the spring are fixedly connected to the positioning block and the fixed plate respectively, and the outer surface of the plug plate away from the guide rod is provided with an adhesive layer.

In some embodiments of the present application, the output terminal of the pressure sensor is electrically coupled to the input of the single-chip microcomputer, and the output terminal of the battery is electrically connected to the input terminal of the single-chip microcomputer, the input terminal of the pressure sensor, the input terminal of the position sensor and the input terminal of the LED display screen respectively. sexual connection.

In some embodiments of the present application, a cover plate is fixedly disposed on the installation groove through a clip, and a sealing ring is disposed on the contact edge of the cover plate and the installation groove.

In some embodiments of the present application, the length of the fixing mechanism and the measuring mechanism are the same.

Compared with the prior art, the utility model has the following characteristics and beneficial effects:

In the present invention, a ring is provided in the limit groove in the through hole opened in the middle of the front of the measuring mechanism, so that the user can manually adjust the position of the ring in the limit groove, so that the user can fix the measuring mechanism by means of a fixed ring. When the bump on the board is placed on the ramp to be measured, it can effectively obtain a stable support, so that the ring can effectively use the position sensor and the pressure sensor to perform data detection when sliding by gravity, so that the measurement mechanism The single-chip microcomputer can effectively implement data calculation and processing, so that the user can read the slope data through the LED display screen, which effectively improves the flexibility and stability of the user to measure the slope. Effectively adjust the adhesive layer on one side of the plug board, so that the user can obtain sufficient strength of the adhesive stability when measuring each ramp, and effectively solve the uneven placement during the measurement process to reduce the measurement. The difficulty thus effectively makes up for the deficiencies in the prior art.

Description of drawings

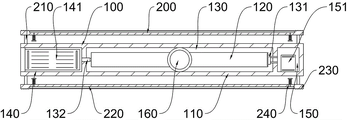

Fig. 1 is the overall half-section structure schematic diagram of the embodiment of the present utility model;

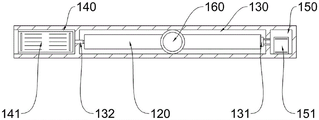

Fig. 2 is a schematic view of the half-section structure of the measuring mechanism according to the embodiment of the present invention;

FIG. 3 is a schematic view of the half-section structure of the fixing plate according to the embodiment of the present invention;

Fig. 4 is the enlarged schematic diagram of "A" place in Fig. 3 in the embodiment of the present utility model;

FIG. 5 is a schematic structural diagram of the front view of the embodiment of the present invention.

In the figure, 100, measuring mechanism; 110, rectangular frame; 120, through hole; 130, limit slot; 131, pressure sensor; 132, position sensor; 140, storage slot; 141, battery; 142, LED display screen; 150 , installation slot; 151, single chip; 152, cover plate; 160, ring; 200, fixing mechanism; 210, bracket; 220, fixing plate; 230, bump; 240, stabilization mechanism; 241, guide rod; 242, positioning block; 243, plug board; 244, spring; 245, adhesive layer.

Detailed ways

The specific embodiments of the present utility model will be described in further detail below with reference to the accompanying drawings and embodiments. The following examples are used to illustrate the present invention, but are not intended to limit the scope of the present invention.

In the description of this application, it should be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", The orientation or positional relationship indicated by "top", "bottom", "inner", "outer", etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present application and simplifying the description, rather than indicating or implying The device or element referred to must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as a limitation of the present application.

The terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of this application, unless stated otherwise, "plurality" means two or more.

In the description of this application, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; can be mechanical connection, can also be electrical connection; can be directly connected, can also be indirectly connected through an intermediate medium, can be internal communication between two elements. For those of ordinary skill in the art, the specific meanings of the above terms in this application can be understood in specific situations.

As shown in Figures 1-5, according to some embodiments of the present application, a slope measurement device for building construction includes: a measurement mechanism 100 and a fixing mechanism 200 connected to the measurement mechanism 100; the measurement mechanism 100 includes a rectangular frame 110, The through hole 120 disposed in the middle of the rectangular frame 110, the limit slot 130 disposed on the inner sidewall of the through hole 120, the storage slot 140 and the installation slot 150 in the length direction of the rectangular frame 110, respectively, are slidably inserted into the limit slot 130 There is a ring 160, a single-chip microcomputer 151 is fixedly arranged in the installation slot 150, a battery 141 is fixedly arranged in the storage slot 140, a pressure sensor 131 is arranged on one side of the limit slot 130, and the sensing end of the pressure sensor 131 is exposed to the limit slot 130. Inside, the other side of the limit slot 130 is provided with an installation hole extending toward the storage slot 140, and a position sensor 132 is arranged in the installation hole, and an LED display screen 142 is arranged on the outer surface of the storage slot 140. Both the LED display screen 142 and the single-chip microcomputer 151 are electrically connected to the battery 141 .

It should be noted here that the ring 160 is slid along the limit groove 130 by the slope, the ring 160 slides along one end of the limit groove 130 to the pressure sensor 131, touches the pressure sensor 131 to obtain data, and stores it in the microcontroller 151. The process is displayed to the user by the LED display 142 .

According to some embodiments of the present application, the through hole 120 has a quadrangular prism structure, the limiting groove 130 has a mouth-shaped structure, and the ring 160 and the limiting groove 130 are in clearance fit, so that the movement of the ring 160 is not affected by the movement of the ring 160 . Limit, improve the measurement accuracy, if the ring 160 and the limiting groove 130 fit tightly, when measuring a relatively gentle slope, the ring 160 may not be able to slide.

According to some embodiments of the present application, the fixing mechanism 200 includes a bracket 210 symmetrically arranged up and down with respect to the measuring mechanism 100 , a fixing plate 220 arranged on the side of the bracket 210 away from the measuring mechanism 100 , and bumps arranged at both ends of the fixing plate 220 in the length direction. 230, and a stabilizing mechanism 240 disposed between the two bumps 230, the bracket 210 and the fixing plate 220 are fixedly connected by screws, and the bumps 230 extend to the outside of the fixing plate 220 to form a plurality of saw teeth.

According to some embodiments of the present application, the stabilization mechanism 240 includes a guide rod 241 disposed in the middle of both ends of the fixing plate 220 , a positioning block 242 connected to one end of the guide rod 241 , a plug plate 243 connected to the other end of the guide rod 241 , and The spring 244 is arranged between the positioning block 242 and the fixing plate 220. The guide rod 241 vertically penetrates the fixing plate 220. The two ends of the spring 244 are fixedly connected to the positioning block 242 and the fixing plate 220 respectively. The outer surface of the side is provided with an adhesive layer 245 .

It should be noted here that the spring 244 is in an extended state. When the measuring device is placed on the slope, the spring 244 is compressed, the adhesive layer 245 is attached to the bottom surface, and the spring 244 has an outward elastic force, which squeezes the adhesive layer. 245, strengthen the overall stability.

According to some embodiments of the present application, the output terminal of the pressure sensor 131 is electrically coupled to the input terminal of the single-chip microcomputer 151 , and the output terminal of the battery 141 is respectively connected to the input terminal of the single-chip microcomputer 151 , the input terminal of the pressure sensor 131 , the input terminal of the position sensor 132 and the LED display screen. 142 The input terminal is electrically connected.

According to some embodiments of the present application, a cover plate 152 is fixedly disposed on the installation groove 150 through a clip, and a sealing ring is disposed on the contact edge of the cover plate 152 and the installation groove 150 .

According to some embodiments of the present application, the length of the fixing mechanism 200 is the same as that of the measuring mechanism 100 .

According to some embodiments of the present application, a ring 160 is provided in the limiting groove 130 in the through hole 120 opened in the middle of the front of the measuring mechanism 100 during use, so that the user can manually adjust the ring 160 in the limit The position in the groove 130 enables the user to effectively obtain a stable support when placing the measuring mechanism 100 on the ramp to be measured by means of the bump 230 on the fixing plate 220, so that the ring 160 can be slid by gravity. The data detection can be effectively carried out by means of the position sensor 132 and the pressure sensor 131, so that the single-chip microcomputer 151 in the measuring mechanism 100 can effectively carry out data calculation and processing, thereby enabling the user to read the slope data through the LED display screen 142, thereby effectively improving This improves the flexibility and stability of the user to measure the slope, and at the same time, the spring 244 provided on the guide rod 241 on the fixed plate 220 can effectively adjust the adhesive layer 245 on the side of the insert plate 243, so that the user can adjust the slope of each slope. Adhesive stability with sufficient strength can be obtained during the placement measurement, which effectively solves the situation that the placement position is not stable during the measurement process.

In summary, the present utility model relates to the technical field of measuring devices, and discloses a slope measuring device for building construction, comprising: a measuring mechanism and a fixing mechanism connected to the measuring mechanism; the measuring mechanism comprises a rectangular frame, and a A through hole, a limit slot arranged on the inner side wall of the through hole, a storage slot and an installation slot in the length direction of the rectangular frame, respectively, a circular ring is slidably inserted in the limit slot, and a storage slot is fixed in the storage slot. Single chip microcomputer, a battery is fixed in the storage slot, a pressure sensor is arranged in one side of the limit slot, the sensing end of the pressure sensor is exposed in the limit slot, and the other side of the limit slot stores storage The slot is extended with an installation hole, a position sensor is arranged in the installation hole, an LED display screen is arranged on the outer surface of the storage slot, and the position sensor, the pressure sensor, the LED display screen and the single-chip microcomputer are all electrically connected to the battery.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the technical principles of the present invention, several improvements and replacements can be made. These improvements And replacement should also be regarded as the protection scope of the present invention.

Claims (7)

1. A slope measuring device for building construction, comprising: a measuring mechanism (100) and a fixing mechanism (200) connected to the measuring mechanism (100); characterized in that the measuring mechanism (100) comprises a rectangular frame (110) , a through hole (120) arranged in the middle of the rectangular frame (110), a limit slot (130) arranged on the inner side wall of the through hole (120), and a storage slot (140) arranged in the length direction of the rectangular frame (110) respectively and an installation groove (150), a ring (160) is slidably inserted in the limit groove (130), a single chip (151) is fixedly arranged in the installation groove (150), and a single chip (151) is fixed in the storage groove (140) A battery (141) is fixedly arranged, a pressure sensor (131) is arranged on the inner side of the limit slot (130), and the sensing end of the pressure sensor (131) is exposed in the limit slot (130). The other side of the position slot (130) is provided with an installation hole extending toward the storage slot (140), a position sensor (132) is arranged in the installation hole, and an LED display (132) is arranged on the outer surface of the storage slot (140). 142), the position sensor (132), the pressure sensor (131), the LED display screen (142) and the microcontroller (151) are all electrically connected to the battery (141). 2 . The slope measuring device for building construction according to claim 1 , wherein the through hole ( 120 ) is in a quadrangular prism-shaped structure, and the limiting groove ( 130 ) is in a mouth-shaped structure, so the The annular ring (160) and the limiting groove (130) are in clearance fit. 3. A kind of slope measuring device for building construction according to claim 1, wherein the fixing mechanism (200) comprises a bracket (210) symmetrically arranged up and down with respect to the measuring mechanism (100), and is arranged on the bracket (210) ) the fixing plate (220) on the side away from the measuring mechanism (100), the projections (230) arranged at both ends of the fixing plate (220) in the length direction, and the stabilization mechanism (240) arranged between the two projections (230) ), the bracket (210) and the fixing plate (220) are fixedly connected by screws, and the protrusions (230) extend to the outside of the fixing plate (220) to form a plurality of saw teeth. 4. A building construction slope measuring device according to claim 3, wherein the stabilizing mechanism (240) comprises a guide rod (241) arranged in the middle of both ends of the fixing plate (220), and is connected to the guide rod (241). A positioning block (242) at one end of the rod (241), an insert plate (243) connected to the other end of the guide rod (241), and a spring (244) arranged between the positioning block (242) and the fixing plate (220), The guide rod (241) vertically penetrates the fixing plate (220), the two ends of the spring (244) are respectively fixedly connected with the positioning block (242) and the fixing plate (220), and the inserting plate (243) is away from the guide An adhesive layer (245) is provided on the outer surface of one side of the rod (241). 5. A building construction slope measuring device according to claim 1, characterized in that the output end of the pressure sensor (131) is electrically coupled to the input of the single-chip microcomputer (151), and the battery (141) outputs The terminals are respectively electrically connected with the input terminal of the single chip (151), the input terminal of the pressure sensor (131), the input terminal of the position sensor (132) and the input terminal of the LED display screen (142). 6 . The slope measuring device for building construction according to claim 1 , wherein a cover plate ( 152 ) is fixedly arranged on the installation groove ( 150 ) by a clip, and the cover plate ( 152 ) is connected with the cover plate ( 152 ). 7 . The contact edge of the mounting groove (150) is provided with a sealing ring. 7. A slope measuring device for building construction according to any one of claims 1-6, characterized in that the fixing mechanism (200) and the measuring mechanism (100) have the same length.
