The utility model discloses a tobacco bale loading attachment relates to cigarette production equipment technical field. The tobacco bale pushing device is characterized by comprising a feeding channel, a pushing mechanism and a pushing block, wherein the pushing mechanism outputs power to the pushing block to drive the pushing block to move linearly and reciprocally, a feeding hole is formed in the upper end of the feeding channel, a discharging hole is formed in the lower end of the feeding channel, the pushing block is arranged at the discharging hole in the lower end of the feeding channel, the feeding channel is vertically installed, and the width of the feeding channel is equivalent to the thickness of a tobacco bale. The utility model discloses hold the tobacco bale of a process to on carrying tobacco bale dry output device with the orderly regular material loading of tobacco bale, replace manual operation, the practicality is strong.

Description

A cigarette pack feeding device

technical field

The utility model relates to the technical field of cigarette production equipment, in particular to a cigarette pack feeding device.

Background technique

With the arrival of Made in China 2025, the reform of industrial automation is becoming more and more important. At present, the main equipment for the production of slim cigarettes is the ZB45 packaging unit. The cigarette pack drying output device of this unit mainly completes the drying of cigarette pack glue, the rejection of unqualified cigarette packs, and the reversing of cigarette packs. Specifically, the working process is to undertake the cigarette packs launched by the No. 8 wheel. After a certain distance is transported to dry the cigarette packs, the cigarette packs are sent to the steering gear to rotate 90°, and then sent to the downstream equipment for transparent paper packaging outside the box.

As shown in Figure 2, the cigarette pack drying output device of the existing ZB45 packaging unit is essentially a belt conveying device. The belt conveying device is provided with conveyor belts at the top and bottom, and a transmission channel is formed between the upper and lower conveyor belts. When the cigarette packs enter the belt conveying device, the upper and lower conveyor belts run synchronously to make the cigarette packs move along the conveying channel. However, once the running speed of the upper and lower conveyor belts is inconsistent or the tension of the upper and lower conveyor belts is inconsistent, it will cause the cigarette packs to tilt and overturn in the transmission channel and block the transmission channel; in addition, the cigarette packs themselves enter the wrong posture, and they will also enter the transmission channel. Blockage will occur.

Contents of the invention

The utility model provides a cigarette bale feeding device, which accepts the cigarette bale from the previous process, and delivers the cigarette bale orderly and regular feeding to the cigarette bale drying output device, so as to solve the above-mentioned technical problems.

The technical solution of the present invention to solve the above-mentioned problems is to provide a cigarette pack feeding device, including a feeding channel, a pushing mechanism, and a pushing block. The upper end of the feeding channel is provided with a material inlet, and the lower end is provided with a material outlet. The push block is arranged at the lower end of the feeding channel, and the feeding channel is installed vertically. quite.

Further, it also includes a feeding guide plate disposed at the feeding port of the feeding channel, and the feeding guide plate is inclined to form a gentle descending ramp that facilitates the movement of the cigarette pack.

Further, it also includes a feeding platform horizontally arranged at the discharge port, the feeding platform is arranged under the feeding channel, the pushing block and the pushing mechanism are installed on the feeding platform, and the upper The edge of the material platform extends to the material inlet of the cigarette packet drying output device.

Further, it also includes discharge guide plates arranged at the discharge port of the feeding channel, the discharge guide plates are arranged in pairs and parallel to both sides of the discharge port, and the discharge guide plates are also fixed on the The loading platform, and the discharging guide plate also extends to the material inlet of the cigarette pack drying output device.

Further, the pushing mechanism includes a driving motor, a crankshaft, and a connecting rod group, the crankshaft is fixedly connected with the output rotating shaft of the driving motor, and the connecting rod group is simultaneously connected to the connecting rod journal and the push block of the crankshaft.

Further, the connecting rod set includes a first connecting rod and a second connecting rod, the first connecting rod and the second connecting rod are hingedly connected, and the other end of the first connecting rod is rotatably connected to the pin neck of the crankshaft , the other end of the second connecting rod is connected to the push block.

Further, it also includes a limit guide base, and a limit guide hole for the second connecting rod to be inserted into is horizontally and horizontally opened on the limit guide base, and the second connecting rod is movably inserted into the limit guide. in the hole.

Further, the push block is set as a "冂"-shaped push plate body, and the width of the upper horizontal plate body of the push block is larger than the width of the feeding channel.

Beneficial effects of the present invention:

A cigarette bale feeding device of the utility model is installed at the feed port of the cigarette bale drying output device. The feeding channel in the device can arrange the cigarette bale in an orderly manner. Under the control of the pushing mechanism, the push block can circularly push the orderly arranged cigarette packs into the cigarette pack drying output device one by one, so as to realize the automatic loading operation of the cigarette packs and replace the manual loading operation.

Moreover, when the device is loading cigarette packs, it can correct the entering posture of the cigarette packs, the feeding channel restricts the entering posture of the cigarette packs, and the push block pushes the cigarette packs into the delivery device without changing the arrangement posture of the cigarette packs, which can ensure that the cigarette packs Enter the cigarette bale drying output device in a standard sideways posture, so as to avoid the clogging of the cigarette bale during the transportation process.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of the specification, illustrate embodiments of the invention and, together with the description, serve to explain the principles of the invention. In the figures, like reference numerals are used to refer to like elements. The drawings in the following description are some, but not all, embodiments of the invention. For those of ordinary skill in the art, other drawings can be obtained from these drawings without creative effort.

Fig. 1 is the structural representation of the specific embodiment of the utility model;

Fig. 2 is the installation structure schematic diagram of the specific embodiment of the utility model;

Fig. 3 is the structural representation of the feeding channel of the specific embodiment of the utility model;

Fig. 4 is the structural representation of the push mechanism of the specific embodiment of the utility model;

1- Feeding channel, 2- Push mechanism, 3- Push block, 4- Discharge port, 5- Feed port, 6- Feed guide plate, 7- Slow down ramp, 8- Feed platform, 9- Discharge guide plate, 10- drive motor, 11- crankshaft, 12- connecting rod group, 13- first connecting rod, 14- second connecting rod, 15- limit guide base, 16- cigarette pack feeding device, 17 - Cigarette pack drying output device.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the drawings in the embodiments of the present invention. Obviously, the described embodiments It is a part of embodiments of the present invention, but not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention. It should be noted that, in the case of no conflict, the embodiments in the present application and the features in the embodiments can be combined arbitrarily with each other.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or apparatus. Without further limitations, an element defined by the phrase "comprising a" does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Please refer to FIG. 1 , a cigarette pack feeding device according to a specific embodiment of the present invention includes a feeding channel 1, a pushing mechanism 2, and a pushing block 3. The feeding channel 1 is used for feeding, and the pushing mechanism 2 and the pushing block 3 are used for feeding materials. The blocks 3 cooperate with each other to push the cigarette packs from the outlet 4 of the feeding channel 1 into the cigarette pack drying output device in sequence. The feeding channel 1 is installed vertically, the upper end is the feeding port 5, and the lower end is the discharging port 4. The width of the feeding channel 1 is equal to the thickness of the cigarette packs, so that the cigarette packs can only have one after another. It enters the feeding channel 1 in order, and exits from the discharge port 4 of the feeding channel 1 in an orderly manner. The push block 3 is fixedly installed at the output shaft end of the push mechanism 2 , and the push block 3 and the push mechanism 2 are integrally installed horizontally at the discharge port 4 at the lower end of the feeding channel 1 . Whenever a cigarette pack comes out from the discharge port 4, the pushing mechanism 2 can control the push to move horizontally, so as to push the cigarette pack from the feeding channel 1 horizontally to the transmission channel of the cigarette pack drying output device, In order to make the cigarette packs enter the cigarette pack drying output device in an orderly and orderly manner, to avoid the blockage of the cigarette pack transportation.

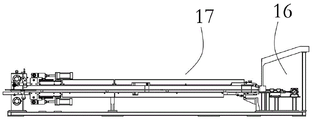

Please refer to Fig. 2, a kind of cigarette bale feeding device of the present utility model is installed in the right end of cigarette bale drying output device in Fig. . It can be shown from Fig. 2 that the device is installed at the feed port 5 of the cigarette packet drying output device.

Please refer to FIG. 3 , when the feeding channel 1 is installed vertically, a feeding guide plate 6 is connected and installed at the feeding port 5 . 7. The two sides of the feeding guide plate 6 are also integrally provided with protective plates. When the feeding guide plate 6 is arranged at the upper end of the feeding channel 1, the technician can put the cigarette packs on the feeding guide plate 6, and the cigarette packets can enter the feeding channel 1 slowly through the slow descending ramp 7, and further. Avoid blockage of cigarette packs at the connection between the feeding guide plate 6 and the feeding channel 1 .

In addition, with reference to FIG. 1 , the lower end of the feeding channel 1 is provided with a discharge port 4 , and a feeding platform 8 is horizontally arranged below the discharge port 4 , and a removable space is reserved between the feeding platform 8 and the feeding channel 1 . The gap for the push block 3 and the cigarette pack to pass through; the discharge guide plates 9 are arranged side by side on both sides of the discharge port 4, the upper end of the discharge guide plate 9 is fixedly connected to the discharge port 4 of the feeding channel 1, and the lower end is fixedly connected to the upper On the feeding platform 8; the discharging guide plate 9 and the main body of the feeding platform 8 both extend to the cigarette pack drying output device. When the cigarette packs come out from the discharge port 4 of the feeding channel 1, the pushing mechanism 2 controls the push block 3 to move on the feeding platform 8, and pushes the moving to push out the cigarette packs on the discharging guide plate 9 and the feeding platform 8. It moves in the enclosed discharge channel, and the discharge guide plate 9 and the loading platform 8 are both connected to the cigarette pack drying output device, so the cigarette packets can directly enter the cigarette pack drying output device without obstacles.

Please refer to accompanying drawing 4, in the present embodiment, push mechanism 2 adopts crankshaft 11 connecting rod driving mechanism, and it comprises drive motor 10, crankshaft 11, connecting rod group 12, and connecting rod group 12 comprises first connecting rod 13 and second Connecting rod 14, first connecting rod 13 and second connecting rod 14 ends are hingedly connected, and second connecting rod 14 is inserted on the limit guiding base 15, and limiting guiding base 15 limits second connecting rod 14 can only axial direction Move, the other end of the first connecting rod 13 is hinged with the connecting rod neck of the crankshaft 11. When the crankshaft 11 rotates axially under the driving of the drive motor 10, the first connecting rod 13 moves reciprocatingly under the drive of the crankshaft 11, and the motion of the first connecting rod 13 is a compound motion of linear reciprocating movement and reciprocating swing. When the first connecting rod 13 reciprocates, it will also drive the second connecting rod 14 to move, but the second connecting rod 14 only moves back and forth in a straight line under the restriction of the guide limit base, so as to push and be fixed on the second connecting rod 14. The push block 3 at one end moves linearly back and forth.

Please refer to accompanying drawing 4, in this embodiment, the push block 3 is set as a "冂" shaped push plate body, the upper end of the push block 3 has a supporting end surface for supporting the cigarette pack, the push block 3 has push plates at the front and back, and the push block 3 Block 3 is hollow inside, and its manufacturing materials are greatly reduced, and when pushing block 3 pushes out cigarette pack, the upper end surface of pushing block 3 can also support the undischarged cigarette pack at the discharge port 4 end of feeding passage 1.

Everything not mentioned above is applicable to the prior art.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present invention, rather than to limit them. Although the present invention has been described in detail with reference to the aforementioned embodiments, those skilled in the art should understand that: they can still modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features; and these The modification or replacement does not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions of the various embodiments of the present invention.

Claims (8)

1. A cigarette pack feeding device, characterized in that it comprises a feeding channel (1), a push mechanism (2), and a push block (3), and the push mechanism (2) outputs power to the push block (3) to The push block (3) is driven to reciprocate and linearly move. The upper end of the feeding channel (1) is provided with a feeding port (5), and the lower end is provided with a discharging port (4). At the discharge port (4) at the lower end of the channel (1), the feeding channel (1) is installed vertically, and the width of the feeding channel (1) is equal to the thickness of the cigarette pack. 2. A cigarette packet feeding device according to claim 1, characterized in that it further comprises a feeding guide plate (6) arranged at the feeding port (5) of the feeding channel (1), and the feeding The material guide plate (6) is arranged obliquely to form a slow-down ramp (7) that facilitates the movement of the cigarette package. 3. A cigarette pack feeding device according to claim 1, characterized in that it further comprises a feeding platform (8) horizontally arranged at the discharge port (4), the feeding platform (8) ) is arranged below the feeding channel (1), the push block (3) and the pushing mechanism (2) are both installed on the feeding platform (8), and the edge of the feeding platform (8) extends to the cigarette pack At the material inlet of the drying output device. 4. A cigarette packet feeding device according to claim 3, characterized in that it further comprises a discharge guide plate (9) arranged at the discharge port (4) of the feeding channel (1), the The discharge guide plates (9) are arranged in pairs and parallel on both sides of the discharge port (4), and the discharge guide plates (9) are also fixedly connected to the loading platform (8), and the discharge guide plates ( 9) It also extends to the material inlet of the cigarette package drying output device. 5. The cigarette pack feeding device according to claim 1, wherein the pushing mechanism (2) comprises a drive motor (10), a crankshaft (11), a connecting rod group (12), and the crankshaft (12) (11) is fixedly connected to the output rotating shaft of the drive motor (10), and the connecting rod group (12) is simultaneously connected to the connecting rod journal of the crankshaft (11) and the push block (3). 6. A cigarette packet feeding device according to claim 5, characterized in that, the connecting rod group (12) comprises a first connecting rod (13) and a second connecting rod (14), the first The connecting rod (13) and the second connecting rod (14) are hingedly connected, the other end of the first connecting rod (13) is rotatably connected to the pin neck of the crankshaft (11), and the second connecting rod (14) is in addition One end is connected to the push block (3). 7. A cigarette packet feeding device according to claim 6, characterized in that it further comprises a limit guide base (15), and the limit guide base (15) is provided horizontally and transversely for the second connection. The limit guide hole where the rod (14) is inserted, and the second connecting rod (14) is movably inserted into the limit guide hole. 8. A cigarette packet feeding device according to claim 1, characterized in that, the push block (3) is set as a "冂"-shaped push plate body, and the upper end of the push block (3) is a horizontal plate The width of the body is greater than the width of the feeding channel (1).
