Abstract

The utility model discloses a cardboard cutting device for carton processing, comprising a processing table. A first L-shaped fixing plate, a mounting plate, a cutting table and a U-shaped fixing frame are respectively fixedly installed on the top outer wall of the processing table. One side of the first L-shaped fixed plate, the cutting table is located on one side of the installation plate, the U-shaped fixed frame is located on one side of the cutting table, one side wall of the first L-shaped fixed plate is provided with a transmission component, and the top of the installation plate A first fixing plate is arranged on the outer wall, a groove is opened inside the first fixing plate, a first automatic telescopic rod is arranged inside the groove, and the second L-shaped fixing plate is driven by the first automatic telescopic rod arranged inside the groove. It is lowered so that it presses the cardboard to be cut, so that the cardboard will not be displaced, slipped and fixed unevenly during cutting, so that the efficiency of carton processing and cutting is greatly improved, the degree of automation is high, and the production is reduced. cost.

Description

A kind of cardboard cutting equipment for carton processing

technical field

The utility model relates to the technical field of paper boxes, in particular to a cardboard cutting device for processing paper boxes.

Background technique

The carton is a three-dimensional shape, which is composed of a polyhedron formed by moving, stacking, folding, and enclosing several surfaces. Faces are cut, rotated, and folded, and the resulting faces have different emotional expressions.

The carton processing needs to cut the finished cardboard, which is convenient for the use of different sizes of cardboard. The current cardboard will slide and shift when it is cut, and it is not convenient to clamp different sizes of cardboard. Fixed, so that the cardboard cutting is not smooth and the cutting efficiency is slower.

Utility model content

The purpose of this utility model is to provide a cardboard cutting device for carton processing, so as to solve the phenomenon of sliding displacement during cutting and processing proposed in the above-mentioned background art, and it is inconvenient to clamp and fix cardboards of different sizes. question.

In order to achieve the above purpose, the utility model provides the following technical solutions: a cardboard cutting device for carton processing, including a processing table, the top outer wall of the processing table is respectively fixed and installed with a first L-shaped fixing plate, an installation plate, a cutting board, and a cutting board. A table and a U-shaped fixing frame, the mounting plate is located on one side of the first L-shaped fixing plate, the cutting table is located on one side of the mounting plate, and the U-shaped fixing frame is located on one side of the cutting table. A transmission assembly is provided on one side wall of the first L-shaped fixing plate, a first fixing plate is arranged on the top outer wall of the mounting plate, and a groove is opened in the inside of the first fixing plate. The inside of the groove is provided with a first automatic telescopic rod, the top of the first automatic telescopic rod is fixedly connected with a second L-shaped fixing plate, and a distance adjustment component is arranged on one side outer wall of the mounting plate, and the U-shaped A cutting assembly is arranged on the top inner wall of the fixing frame.

Preferably, the transmission assembly includes a first motor, the first L-shaped fixing plate is connected with a first rotating stick through a bearing, and the output end of the first motor passes through the first L-shaped fixing plate and is connected to the The first rotating rods are connected, a second automatic telescopic rod is fixedly installed on the top inner wall of the first L-shaped fixed plate, and a mounting block is fixedly installed on the bottom outer wall of the second automatic telescopic rod. One side is connected with a second rotating rod through a bearing.

Preferably, rubber rings are respectively provided on the side walls of the first rotating stick and the second rotating stick.

Preferably, the distance adjustment assembly includes a second motor, a threaded rod and a sliding rod are respectively provided on the inner wall of one side of the mounting plate, and a second fixing plate is provided on the side wall of the threaded rod and the sliding rod, so A connection block is fixedly installed on the top outer wall of the second fixing plate, and the output end of the second motor is connected to the threaded rod through the installation plate.

Preferably, the number of the threaded rod and the second fixing plate is two, and the thread directions of the two threaded rods are opposite, and the two threaded rods are connected by a rotating belt.

Preferably, the first fixing plate is connected to the distance adjusting assembly through a connection block fixedly installed on the top outer wall of the second fixing plate.

Preferably, the cutting assembly includes an air cylinder, and the output end of the air cylinder is fixedly connected with a cutting knife.

Preferably, a collection frame is provided on one side of the processing table, an outer wall of one side of the collection frame is provided with an elongated opening, and a movable frame is arranged inside the elongated opening.

Technical effects and advantages of the present utility model:

1. The second L-shaped fixed plate is driven down by the first automatic telescopic rod set inside the groove, so that it presses the cardboard to be cut, so that the cardboard will not be displaced, slipped and fixed unevenly during cutting. Therefore, the efficiency of carton processing and cutting is greatly improved, the degree of automation is high, and the production cost is reduced.

2. The threaded rod is driven to rotate by the second motor, and then another threaded rod with the opposite thread is driven to rotate by the rotating belt connected to the side wall of one end of the threaded rod, so that the threaded rod and the side wall of the sliding rod are provided with a No. The two fixed plates move, so that the first fixed plate fixedly connected by the connecting block is close to each other, so that the cardboards of different sizes can be easily clamped and fixed, so that the cutting is convenient.

Description of drawings

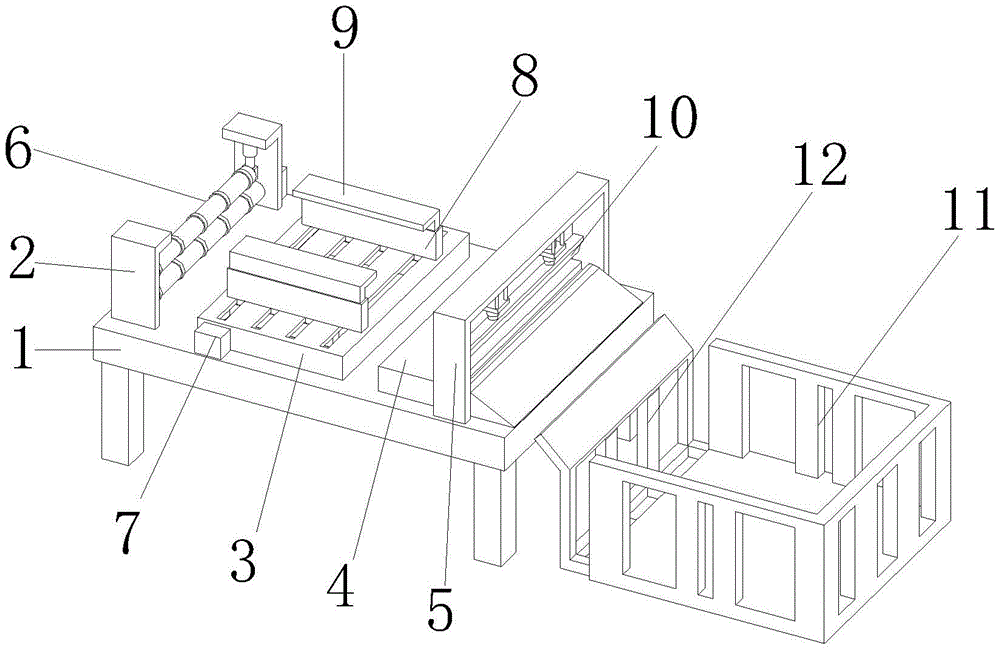

FIG. 1 is a schematic diagram of the overall structure of the utility model.

FIG. 2 is a schematic three-dimensional structure diagram of the transmission assembly of the present invention.

FIG. 3 is a schematic three-dimensional structure diagram of the distance adjusting assembly of the present invention.

FIG. 4 is a schematic diagram of the internal three-dimensional structure of the first fixing plate of the present invention.

FIG. 5 is a schematic three-dimensional structure diagram of the cutting assembly of the present invention.

FIG. 6 is a schematic three-dimensional structure diagram of the collecting frame of the present invention.

In the figure: 1. Processing table; 2. First L-shaped fixing plate; 3. Mounting plate; 4. Cutting table; 5. U-shaped fixing frame; 6. Transmission assembly; 61. First motor; 62. First rotation stick; 63, the second automatic telescopic rod; 64, the second rotating stick; 65, the rubber ring; 7, the distance adjustment assembly; 71, the second motor; 72, the threaded rod; 73, the sliding rod; 74, the second fixing plate ; 8, the first fixing plate; 9, the second L-shaped fixing plate; 10, the cutting assembly; 1001, the cylinder; 1002, the cutting knife; 11, the collecting frame; 12, the movable frame; 13, the first automatic telescopic rod; 14 , groove.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The utility model provides a cardboard cutting device for carton processing as shown in Figures 1-6, comprising a processing table 1, and a first L-shaped fixing plate 2 and a mounting plate 3 are respectively fixed on the top outer wall of the processing table 1. , Cutting table 4 and U-shaped fixing frame 5, the mounting plate 3 is located on one side of the first L-shaped fixing plate 2, the cutting table 4 is located on one side of the mounting plate 3, and the U-shaped fixing frame 5 is located on one side of the cutting table 4, One side wall of the first L-shaped fixing plate 2 is provided with a transmission assembly 6, which has a high degree of automation and facilitates the transmission of the cardboard. The top outer wall of the installation plate 3 is provided with a first fixing plate 8. A groove 14 is opened, a first automatic telescopic rod 13 is arranged inside the groove 14, and a second L-shaped fixing plate 9 is fixedly connected to the top of the first automatic telescopic rod 13. The rod 13 drives the second L-shaped fixing plate 9 to descend, so that it presses the cardboard to be cut, which is conducive to the phenomenon that the cardboard will not be displaced and slipped during cutting. One side of the outer wall of the mounting plate 3 is provided with a distance The adjustment assembly 7 is convenient to drive the first fixing plate 8 to clamp and fix cardboards of different sizes, and a cutting assembly 10 is provided on the top inner wall of the U-shaped fixing frame 5 .

In this embodiment, the transmission assembly 6 includes a first motor 61, the first L-shaped fixing plate 2 is connected with a first rotating roller 62 through a bearing, and the output end of the first motor 61 passes through the first L-shaped fixing plate 2 and the first rotating roller 62. A rotating rod 62 is connected, a second automatic telescopic rod 63 is fixedly installed on the top inner wall of the first L-shaped fixed plate 2, and a mounting block is fixedly installed on the bottom outer wall of the second automatic telescopic rod 63, and one side of the installation block passes through The bearing is connected with a second rotating stick 64. First, the second rotating stick 64 is driven by the second automatic telescopic rod 63 to adjust the height according to the thickness of the cardboard, and then the first rotating stick 62 is driven by the first motor 61 to rotate, and finally the cardboard is moved. It is placed in the middle of the first rotating stick 62 and the second rotating stick 64 for transmission, so that the cutting process of the cardboard is highly automated, and the cutting efficiency is greatly improved. The side walls of the first rotating stick 62 and the second rotating stick 64 are respectively set There is a rubber ring 65, which is beneficial to increase the friction force and facilitate the transmission of the cardboard.

In this embodiment, the distance adjustment assembly 7 includes a second motor 71 , a threaded rod 72 and a sliding rod 73 are respectively provided on one inner wall of the mounting plate 3 , and a second motor is provided on the side walls of the threaded rod 72 and the sliding rod 73 The fixing plate 74, a connecting block is fixedly installed on the top outer wall of the second fixing plate 74, the first fixing plate 8 is connected with the distance adjusting assembly 7 through the connecting block fixedly installed on the top outer wall of the second fixing plate 74, and the second fixing plate 8 is connected to the distance adjusting assembly 7. The output end of the motor 71 is connected to the threaded rod 72 through the mounting plate 3. The number of the threaded rod 72 and the second fixing plate 74 is two, and the thread directions of the two threaded rods 72 are opposite, and the two threaded rods 72 are in the opposite direction. Connected by a rotating belt, the second motor 71 drives the threaded rod 72 to rotate, so that the threaded rod 72 and the side wall of the sliding rod 73 are provided with a second fixing plate 74 to drive the first fixing plate 8 to move closer to each other, which is convenient for different size cardboard for clamping and fixing.

In this embodiment, the cutting assembly 10 includes an air cylinder 1001, the output end of the air cylinder 1001 is fixedly connected with a cutting knife 1002, and the air cylinder 1001 drives the cutting knife 1002 to cut the cardboard, which is convenient for later processing of the cardboard.

In this embodiment, a collection frame 11 is provided on one side of the processing table 1, a long opening is opened on one side of the outer wall of the collecting frame 11, and a movable frame 12 is arranged inside the elongated opening. By moving the movable frame 12, the The cardboards in the collecting frame 11 are arranged to make it convenient for workers to take out and use.

The working principle of the utility model: The utility model is a cardboard cutting device for carton processing. First, according to the thickness of the cardboard, the second rotating rod 64 is driven by the second automatic telescopic rod 63 for adjustment, and then the first motor 61 is activated. It drives the first rotating stick 62 to rotate, then the cardboard is placed between the first rotating stick 62 and the second rotating stick 64 for transmission, and then the second motor 71 drives the threaded rod 72 to rotate, so that the threaded rod 72 and the sliding rod 72 are rotated. A second fixing plate 74 is provided on the side wall of the rod 73 to drive the first fixing plate 8 to move closer to each other, so as to facilitate clamping and fixing of cardboards of different sizes.

The second L-shaped fixing plate 9 is driven down by the first automatic telescopic rod 13 arranged inside the groove 14, so that it presses the cardboard to be cut, so that the cardboard will not be displaced and slipped during cutting, and then The cutting knife 1002 is driven by the air cylinder 1001 to cut the cardboard on the cutting table 4, and finally the cut cardboard is slid into the collecting frame 11, and then the cardboard in the collecting frame 11 is arranged by moving the movable frame 12. It is convenient for workers to take out and use.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of its technical features, any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present invention.

Claims (8)

1. A cardboard cutting device for carton processing, comprising a processing table (1), characterized in that: a first L-shaped fixing plate (2), a mounting plate are respectively fixedly installed on the top outer wall of the processing table (1) (3), a cutting table (4) and a U-shaped fixing frame (5), the mounting plate (3) is located on one side of the first L-shaped fixing plate (2), and the cutting table (4) is located at the One side of the mounting plate (3), the U-shaped fixing frame (5) is located on one side of the cutting table (4), and a transmission is provided on one side wall of the first L-shaped fixing plate (2). Assembly (6), a first fixing plate (8) is provided on the top outer wall of the mounting plate (3), a groove (14) is opened inside the first fixing plate (8), and the groove ( 14) is provided with a first automatic telescopic rod (13) inside, the top of the first automatic telescopic rod (13) is fixedly connected with a second L-shaped fixing plate (9), one side of the mounting plate (3) A distance adjusting assembly (7) is arranged on the outer wall, and a cutting assembly (10) is arranged on the top inner wall of the U-shaped fixing frame (5). 2. A cardboard cutting device for carton processing according to claim 1, characterized in that: the transmission assembly (6) comprises a first motor (61), and the first L-shaped fixing plate (2) passes through The bearing is connected with a first rotating stick (62), and the output end of the first motor (61) is connected with the first rotating stick (62) through the first L-shaped fixing plate (2). A second automatic telescopic rod (63) is fixedly installed on the top inner wall of the first L-shaped fixing plate (2), and a mounting block is fixedly installed on the bottom outer wall of the second automatic telescopic rod (63). One side is connected with a second rotating rod (64) through a bearing. 3. A cardboard cutting device for carton processing according to claim 2, characterized in that: rubbers are respectively provided on the side walls of the first rotating stick (62) and the second rotating stick (64). circle (65). 4. A cardboard cutting device for carton processing according to claim 1, characterized in that: the distance adjustment assembly (7) comprises a second motor (71), and one inner wall of the mounting plate (3) A threaded rod (72) and a sliding rod (73) are respectively provided on the threaded rod (72) and the side walls of the sliding rod (73) are provided with a second fixing plate (74), and the second fixing plate ( A connecting block is fixedly mounted on the top outer wall of 74), and the output end of the second motor (71) is connected to the threaded rod (72) through the mounting plate (3). 5. A cardboard cutting device for carton processing according to claim 4, characterized in that: the number of the threaded rod (72) and the second fixing plate (74) is two, and two of the threads The thread directions of the rods (72) are opposite, and the two threaded rods (72) are connected by a rotating belt. 6. A cardboard cutting device for carton processing according to claim 4, wherein the first fixing plate (8) is fixedly installed on the top outer wall of the second fixing plate (74). A block is connected to the distance adjustment assembly (7). 7. A cardboard cutting device for carton processing according to claim 1, characterized in that: the cutting assembly (10) comprises an air cylinder (1001), and the output end of the air cylinder (1001) is fixedly connected with a cutting Knife (1002). 8 . The cardboard cutting device for carton processing according to claim 1 , wherein a collecting frame ( 11 ) is provided on one side of the processing table ( 1 ), and one side of the collecting frame ( 11 ) is provided. 9 . A long opening is opened on the side outer wall, and a movable frame (12) is arranged inside the long opening.
