CN217613784U - Dust treatment device for sand produced by transportation machine - Google Patents

Abstract

The utility model discloses a dust processing device for transporting machine-made sand, comprising a dust removal box, a water washing cavity is arranged in the dust removal box, a spray head is arranged on the top of the water washing cavity, and flowing water is alternately and fixedly installed in the water washing cavity The flow plate is provided with a sedimentation chamber and a circulation chamber at the bottom of the washing chamber, the sedimentation chamber and the lower half of the circulation chamber are separated, and the sand and dust enter the dust removal box and merge into the water, and It is left continuously along the stepped flow plate, and some solids are left on the way until it flows into the sedimentation chamber for precipitation. The relatively clear water in the upper layer of the sedimentation chamber flows into the circulation chamber, and then is pumped to the top by the water pump for spraying. While solving the problem of dust pollution, it also saves water resources.

Description

A dust treatment device for transporting machine-made sand

technical field

The utility model relates to the field of sand making, in particular to a dust processing device produced by transporting machine-made sand.

Background technique

In the dry sand making process, a large amount of sand and dust will be scattered into the air, especially when materials are transferred between the conveyor belt and the conveyor belt and between the conveyor belt and the sand making equipment, the sand and gravel collide violently, causing a large amount of dust If it is spread into the air, it will have a certain impact on the environment of the production site and on-site staff. If water is used to absorb sand and dust, water needs to be continuously sprayed on the sand and gravel, and the used water is difficult to recover, resulting in a lot of waste of water resources. .

SUMMARY OF THE INVENTION

In view of the deficiencies in the prior art, the purpose of the present invention is to provide a device for processing machine-made sand to generate dust, which solves the current pain points in this field.

The above-mentioned technical purpose of the present utility model is achieved through the following technical solutions:

A dust processing device for transporting machine-made sand, comprising a dust removal box, a water washing chamber is arranged in the dust removal box, a sprinkler head is arranged on the top of the water washing chamber, and flowing water plates are alternately and fixedly installed in the water washing chamber, and the flowing water The bottom of the washing chamber is provided with a sedimentation chamber and a circulation chamber, the sedimentation chamber and the lower half of the circulation chamber are separated, and a filter plate is arranged between the sedimentation chamber and the circulation chamber. For filtering, the end of the flow plate at the bottom is inserted into the sedimentation chamber and is lower than the lowest water level in the water washing chamber.

The dust removal box is arranged on one side of the discharge port, and a conveyor belt is located below the discharge port. A blocking frame is arranged between the discharge port and the conveyor belt. The interior of the blocking frame is communicated with the washing chamber, and the blocking frame is connected to the A screen with an inclined surface facing downward is arranged at the connection of the washing chamber, a receiving plate is fixedly installed under the screen, and a fan is arranged on the side of the shielding frame away from the dust box.

A water pump is arranged at the bottom of the circulation cavity, and a water guide pipe is connected to the outside of the water pump, and the water guide pipe is connected to the shower head.

The bottom of the sedimentation chamber is provided with a sewage outlet.

To sum up, the beneficial effects of the present utility model compared with the prior art are: the device is arranged at the position where the stone material falls from the discharge port to the conveyor belt, the shielding frame closes the surrounding of the falling point, leaving only one opening in the conveying direction of the conveyor belt , There is a fan at this opening, which can blow the sand and dust generated here into the dust box to avoid leakage. After entering the dust box, the sand and dust merge into the sprayed water, and continue to stay along the stepped flow plate, passing by on the way. Some solids are left until it flows into the sedimentation chamber for precipitation. The relatively clear water in the upper layer of the sedimentation chamber flows into the circulation chamber, and then is pumped to the top by the water pump for spraying, which not only solves the problem of dust pollution, but also saves money. water resources.

Description of drawings

The above and other objects, features and advantages of exemplary embodiments of the present invention will become readily understood by reading the following detailed description with reference to the accompanying drawings. In the accompanying drawings, several embodiments of the present invention are shown by way of example and not limitation, wherein:

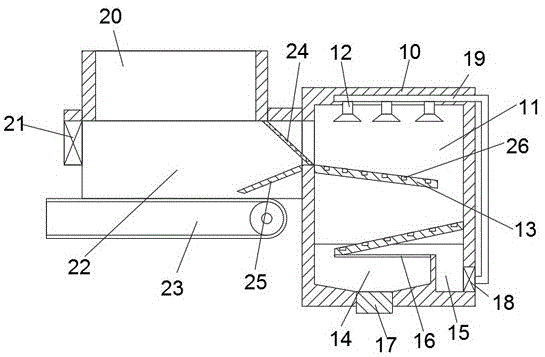

FIG. 1 is a schematic structural diagram of a dust processing device for transporting machine-made sand.

Description of reference numerals: 10, dust removal box; 11, water washing chamber; 12, spray head; 13, flow plate; 14, sedimentation chamber; 15, circulation chamber; 16, filter plate; 17, sewage outlet; 18, water pump; 19. Water conduit; 20. Outlet; 21. Fan; 22. Blocking frame; 23. Conveyor belt; 24. Screen; 25. Receiving plate.

Detailed ways

The utility model is described in further detail below in conjunction with the accompanying drawings.

A dust processing device for transporting machine-made sand includes a dust removal box 10, a water washing chamber 11 is arranged in the dust removal box 10, and a sprinkler head 12 is arranged on the top of the water washing chamber 11, and the sprinkler head 12 can prevent the entry of the dust. The sand and dust gas in the washing chamber 11 is sprayed, and a plurality of flow plates 13 are alternately and fixedly installed in the washing chamber 11. The flow plate 13 is provided with 26, and the sand and dust are mixed with the spray head 12 and sprayed out. After the water is washed, it flows along the flow plate 13, and the 26 can leave some sediments when the muddy water flows through. The bottom of the washing chamber 11 is provided with a sedimentation chamber 14 and a circulation chamber 15. The sedimentation chamber 14 and the circulation chamber The lower half of 15 is separated, a filter plate 16 is arranged between the sedimentation chamber 14 and the circulation chamber 15 for filtering, and the end of the flow plate 13 at the bottom is inserted into the sedimentation chamber 14 and is lower than the The lowest water level in the washing chamber 11 is set to prevent water from flowing into the sedimentation chamber 14 and destabilizing it.

The dust removal box 10 is arranged on one side of the discharge port 20. Below the discharge port 20 is a conveyor belt 23. A shielding frame 22 is arranged between the discharge port 20 and the conveyor belt 23 to seal the space between the discharge port 20 and the conveyor belt 23 on three sides. , the interior of the shielding frame 22 is communicated with the washing chamber 11, and a screen 24 with an inclined surface facing downward is provided at the connection between the shielding frame 22 and the washing chamber 11, and the screen 24 can filter sand with larger particles. A receiving plate 25 is fixedly installed below the screen 24, and a fan 21 is provided on the side of the shielding frame 22 away from the dust box 10, and the fan 21 can blow the dust raised to the screen 24. After blowing, it enters the washing chamber 11 after being filtered through the screen 24 .

A water pump 18 is disposed at the bottom of the circulation cavity 15 , and a water conduit 19 is connected to the outside of the water pump 18 , and the water conduit 19 is connected to the shower head 12 .

A sewage outlet 17 is provided at the bottom of the sedimentation chamber 14 so as to clean out the sediment in the sedimentation chamber 14 .

The above descriptions are only exemplary embodiments of the present invention, and are not intended to limit the protection scope of the present invention, which is determined by the appended claims.

Claims (4)

1. The utility model provides a mechanism of transportation sand produces dust processing apparatus which characterized by: including dust removal case (10), be provided with washing chamber (11) in dust removal case (10), washing chamber (11) top is provided with shower head (12), alternative fixed mounting has drain board (13) in washing chamber (11), be provided with on drain board (13), washing chamber (11) bottom is provided with precipitation chamber (14) and circulation chamber (15), precipitation chamber (14) with circulation chamber (15) lower half is separated, precipitation chamber (14) with be provided with filter (16) between circulation chamber (15) and filter, be located the bottommost drain board (13) end is inserted in precipitation chamber (14) and be less than minimum water level in washing chamber (11).

2. The handling device of dust generated by sand in a transportation mechanism of claim 1, wherein: dust removal case (10) set up in discharge gate (20) one side, discharge gate (20) below is conveyer belt (23), is provided with between discharge gate (20) and conveyer belt (23) and shelters from frame (22), shelter from frame (22) inside with washing chamber (11) intercommunication, shelter from frame (22) with washing chamber (11) junction is provided with inclined plane screen cloth (24) down, screen cloth (24) below fixed mounting has accept board (25), shelter from frame (22) and keep away from dust removal case (10) one side is provided with fan (21).

3. The apparatus of claim 1, wherein the apparatus comprises: the water circulating spray-head device is characterized in that a water pump (18) is arranged at the bottom of the circulating cavity (15), a water guide pipe (19) is connected to the outer side of the water pump (18), and the water guide pipe (19) is connected with the spray head (12).

4. The apparatus of claim 1, wherein the apparatus comprises: and a sewage draining outlet (17) is formed in the bottom of the sedimentation cavity (14).
