本实用新型公开了一种新型的低压变频器柜，包括变频器柜主体，所述变频器柜主体的顶部安装有安装箱，所述安装箱的内部安装有第一散热风扇，所述变频器柜主体的内侧活动安装有安装架，所述安装架的内侧壁安装有多个分隔板，多个所述分隔板的顶部均活动安装有安装板，所述安装板的内部安装有第二散热风扇。本实用新型通过第一散热风扇运行可将变频器柜主体内部的热量排出，从而对变频器柜主体的内部进行降温，通过第二散热风扇与通风滤网的搭配使用，可对安装板上方的电子元件进行散热，从而提高第一散热风扇的散热效果，使得变频器柜主体内部的热量能够及时排出，防止变频器柜主体内部的温度过高，导致变频器柜主体内部的电子元件损坏。
The utility model discloses a novel low-voltage frequency converter cabinet, which comprises a frequency converter cabinet main body, an installation box is installed on the top of the frequency converter cabinet main body, a first cooling fan is installed inside the installation box, and the frequency converter A mounting frame is movably installed on the inner side of the cabinet main body, and a plurality of partition plates are installed on the inner side wall of the installation frame, and a mounting plate is movably installed on the top of the plurality of the partition plates, and a first plate is installed inside the installation plate. Two cooling fans. The utility model can discharge the heat inside the main body of the inverter cabinet through the operation of the first cooling fan, thereby cooling the inside of the main body of the inverter cabinet. The electronic components dissipate heat, thereby improving the heat dissipation effect of the first cooling fan, so that the heat inside the inverter cabinet body can be discharged in time, preventing the temperature inside the inverter cabinet body from being too high and causing damage to the electronic components inside the inverter cabinet body.
Description
Technical Field
The utility model relates to a low-voltage inverter cabinet technical field specifically is a novel low-voltage inverter cabinet.
Background
The low-voltage frequency conversion cabinet adopts the frequency converter to drag the control cabinet of the power device, and the control cabinet becomes a power dragging mode which is popularized at present due to good starting performance, speed regulation performance and energy-saving effect, and the existing low-voltage frequency conversion cabinet still has certain defects when in use.
The prior art medium-low voltage inverter cabinet has the following defects:
when the existing low-voltage inverter cabinet is used, most of the heat in the low-voltage inverter cabinet cannot be effectively dissipated, so that the heat in the low-voltage inverter cabinet cannot be timely discharged, the temperature in the low-voltage inverter cabinet is too high, and the electronic elements in the low-voltage inverter cabinet are damaged.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel low-voltage inverter cabinet to solve the problem that proposes among the above-mentioned background art.
In order to achieve the purpose, the utility model provides a novel low-voltage inverter cabinet, which comprises an inverter cabinet main body, wherein the top of the inverter cabinet main body is provided with an installation box, and a first cooling fan is arranged in the installation box;
the inboard movable mounting of converter cabinet main part has the mounting bracket, a plurality of division boards are installed to the inside wall of mounting bracket, and is a plurality of the equal movable mounting in top of division board has the mounting panel, the ventilation filter screen is installed at the top of mounting panel, the internally mounted of mounting panel has second radiator fan.
Preferably, vibration damping bases are installed at the bottom of the frequency converter cabinet main body, universal wheels are installed at the bottom of the vibration damping bases, a plurality of first limiting guide rails are installed on the inner side wall of the frequency converter cabinet main body, and the front face of the frequency converter cabinet main body is connected with an opening and closing door through hinges.
Preferably, the inside of install bin installs the battery, and the battery is connected with first radiator fan electricity, and the top of install bin is fixed with the access panel through the bolt.
Preferably, a first limiting block is installed on the outer wall of the mounting frame, and the first limiting block is embedded on the inner side of the first limiting guide rail.
Preferably, the mounting bracket is provided with a mounting groove on the inner side, and the inner side of the mounting groove is movably provided with a dustproof filter screen.
Preferably, the top of the partition plate is provided with a second limit guide rail.
Preferably, the bottom of mounting panel is installed the second stopper, and the gomphosis of second stopper is in the inboard of second spacing guide rail.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a first radiator fan operation can be with the inside heat discharge of converter cabinet main part, thereby cool down the inside of converter cabinet main part, use through the collocation of second radiator fan with the ventilation filter screen, thereby can dispel the heat to the electronic component of mounting panel top, thereby improve first radiator fan's radiating effect, make the inside heat of converter cabinet main part can in time discharge, prevent the inside high temperature of converter cabinet main part, lead to the inside electronic component of converter cabinet main part to damage.
2. The utility model discloses a first stopper gomphosis is in first limit guide's inboard for the mounting bracket can remove in the inside of converter cabinet main part, through the inboard of second stopper gomphosis at second limit guide, make the mounting panel can remove at the top of division board, the staff of being convenient for takes out the mounting panel from converter cabinet main part is inside, and the staff of being convenient for overhauls converter cabinet main part internally mounted's electronic component, improves the work efficiency that the staff overhauld converter cabinet main part.
Drawings

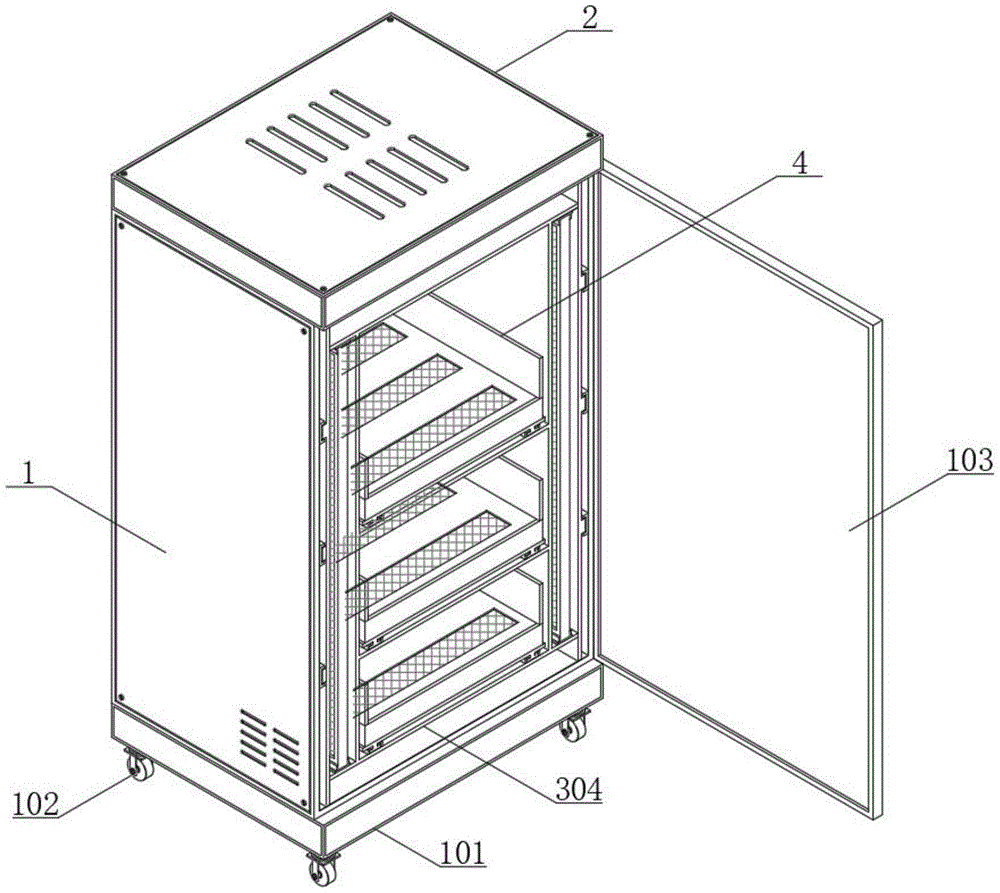

FIG. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic structural view of the mounting frame of the present invention;
FIG. 3 is a schematic view of the main structure of the frequency converter cabinet of the present invention;
fig. 4 is a schematic view of the sectional structure of the mounting plate of the present invention.
In the figure:
1. a frequency converter cabinet main body; 101. a damping mount; 102. a universal wheel; 103. opening and closing the door; 104. a first limit guide rail; 2. installing a box; 201. a storage battery; 202. a first heat dissipation fan; 203. an access panel; 3. a mounting frame; 301. a first stopper; 302. mounting grooves; 303. a dustproof filter screen; 304. a partition plate; 305. a second limit guide rail; 4. mounting a plate; 401. a ventilation filter screen; 402. a second heat dissipation fan; 403. and a second limiting block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, 2 and 3, a novel low voltage inverter cabinet;
the mounting box 2 is installed at the top of the frequency converter cabinet main body 1, the storage battery 201 is installed inside the mounting box 2, the storage battery 201 is electrically connected with the first cooling fan 202, the maintenance board 203 is fixed at the top of the mounting box 2 through bolts, the first cooling fan 202 is installed inside the mounting box 2, the plurality of partition plates 304 are installed on the inner side wall of the mounting frame 3, the mounting plates 4 are movably installed at the tops of the plurality of partition plates 304, the ventilation filter screen 401 is installed at the top of the mounting plate 4, the second cooling fan 402 is installed inside the mounting plate 4, the mounting box 2 can provide mounting positions for the storage battery 201 and the first cooling fan 202, the maintenance board 203 can cover the top of the mounting box 2, and the storage battery 201 can supply power to the first cooling fan 202, guarantee the operation that first radiator fan 202 can be normal, can discharge the inside heat of converter cabinet main part 1 through the operation of first radiator fan 202, thereby cool down the inside of converter cabinet main part 1, can provide the mounted position for mounting panel 4 through division board 304, can provide the mounted position for electronic component through mounting panel 4, use through the collocation of second radiator fan 402 with ventilation filter screen 401, thereby can dispel the heat to the electronic component of mounting panel 4 top, thereby improve the radiating effect of first radiator fan 202, make the inside heat of converter cabinet main part 1 can in time discharge, prevent that the inside high temperature of converter cabinet main part 1, lead to the inside electronic component of converter cabinet main part 1 to damage.
Referring to fig. 1, fig. 2 and fig. 4, a novel low voltage inverter cabinet;
the shock absorption base 101 is installed at the bottom of the frequency converter cabinet main body 1, the universal wheels 102 are installed at the bottom of the shock absorption base 101, the first limit guide rails 104 are installed on the inner side wall of the frequency converter cabinet main body 1, the opening and closing door 103 is connected to the front side of the frequency converter cabinet main body 1 through hinges, the mounting frame 3 is movably installed on the inner side of the frequency converter cabinet main body 1, the first limit block 301 is installed on the outer wall of the mounting frame 3, the first limit block 301 is embedded in the inner side of the first limit guide rails 104, the mounting groove 302 is formed in the inner side of the mounting frame 3, the dustproof filter screen 303 is movably installed on the inner side of the mounting groove 302, external dust can be prevented from entering the frequency converter cabinet main body 1 through the dustproof filter screen 303, the mounting position can be provided for the dustproof filter screen 303 through the mounting groove 302, the stability of the dustproof filter screen 303 is guaranteed, and workers take out the dustproof filter screen 303 for cleaning, a second limit guide rail 305 is installed at the top of the separation plate 304, a second limit block 403 is installed at the bottom of the installation plate 4, the second limit block 403 is embedded inside the second limit guide rail 305, the frequency converter cabinet main body 1 can have a damping effect through the damping base 101, the stability of the frequency converter cabinet main body 1 in use is ensured, the frequency converter cabinet main body 1 can be conveniently moved by a worker through the universal wheels 102, the front face of the frequency converter cabinet main body 1 can be covered through the opening and closing door 103, so that the stability of the installation frame 3 inside the frequency converter cabinet main body 1 is ensured, the installation frame 3 can be moved inside the frequency converter cabinet main body 1 by embedding the first limit block 301 inside the first limit guide rail 104, the installation frame 4 can be moved at the top of the separation plate 304 by embedding the second limit block 403 inside the second limit guide rail 305, the staff of being convenient for takes out mounting panel 4 from converter cabinet main part 1 is inside, and the staff of being convenient for overhauls the electronic component of 1 internally mounted of converter cabinet main part, improves the work efficiency that the staff overhauld converter cabinet main part 1.
The working principle is that the installation box 2 can provide installation positions for the storage battery 201 and the first cooling fan 202, the storage battery 201 can supply power for the first cooling fan 202, heat inside the frequency converter cabinet main body 1 can be discharged through the operation of the first cooling fan 202, the temperature of the inside of the frequency converter cabinet main body 1 can be reduced, the installation positions can be provided for the installation plates 4 through the separation plates 304, the installation positions can be provided for electronic elements through the installation plates 4, the second cooling fan 402 and the ventilation filter screen 401 are matched for use, the electronic elements above the installation plates 4 can be cooled, the heat dissipation effect of the first cooling fan 202 is improved, external dust can be prevented from entering the inside of the frequency converter cabinet main body 1 through the dustproof filter screen 303, the installation positions can be provided for the dustproof filter screen 303 through the installation grooves 302, the installation plates 4 can be moved inside the first limiting guide rail 104 through the embedding of the first limiting block 301, the installation frame 3 can be moved inside the frequency converter cabinet main body 1, the second limiting block 403 is embedded inside the second limiting guide rail 305, the installation plates 4 can be moved at the top of the separation plates 304, and workers can conveniently take the installation plates 4 out the electronic elements inside the frequency converter cabinet main body 1 for maintenance.
