CN217589887U - High-voltage switch equipment convenient to heat dissipation

Info

Publication number: CN217589887U
Application number: CN202221658226.7U
Authority: CN
Inventors: 孙腾; 王建
Original assignee: Wuhan Ziyan Electric Technology Co ltd
Current assignee: Beijing Tengda Lixin Technology Development Co.,Ltd.
Priority date: 2022-06-30
Filing date: 2022-06-30
Publication date: 2022-10-14
Anticipated expiration: 2032-06-30

Abstract

The utility model discloses a high-voltage switchgear that facilitates heat dissipation, and relates to the technical field of high-voltage switchgear. The bottom of the outer box is fixedly connected to the top of the base, the bottom of the base is provided with a notch, the interior of the base is provided with a storage box, the left and right sides of the front of the storage box are provided with grooves, the storage box is The front of the box is provided with a slot, the interior of the storage box is provided with a connecting rod, one end of the connecting rod is fixedly connected with a handle through the slot, the other end of the connecting rod is sleeved with a connecting plate, and the bottom of the connecting plate is Gear rods are evenly distributed, the top of the gear rod is welded with the bottom of the connecting plate, and the top of the outer box is fixedly connected with a protective top. The utility model relates to a high-voltage switchgear that is convenient for heat dissipation and has enhanced heat dissipation function.

Description

High-voltage switch equipment convenient to heat dissipation

Technical Field

The utility model relates to a high tension switchgear technical field, in particular to high tension switchgear convenient to heat dissipation.

Background

The high-voltage switch equipment is used for power generation, power transmission, power distribution, electric energy conversion and consumption of an electric power system to play roles of on-off, control or protection and the like, has functions of overhead incoming and outgoing lines, cable incoming and outgoing lines, bus connection and the like, is mainly suitable for various different places such as power plants, transformer substations, petrochemical industry, metallurgical steel rolling, light industrial textile, industrial and mining enterprises, residential districts, high-rise buildings and the like, and usually contains more electrical elements; these electronic device during operation can distribute more heat, when the inside temperature of equipment surpassed safe temperature, cause the damage of the inside device of internal plant easily, and current equipment only dispels the heat through the louvre of seting up, and the effect is very little, and the inside component of equipment needs to carry out work under dry environment.

SUMMERY OF THE UTILITY MODEL

A primary object of the present invention is to provide a high voltage switchgear with heat dissipation capability, which can effectively solve the problems of the prior art.

In order to achieve the above purpose, the utility model adopts the technical proposal that:

a high-voltage switch device convenient for heat dissipation comprises an outer box body, wherein a dehumidification assembly is arranged at the bottom of the outer box body;

the dehumidification assembly comprises a base arranged at the bottom of an outer box body, the bottom of the outer box body is fixedly connected with the top of the base, a notch is formed in the bottom of the base, a storage box is arranged inside the base, grooves are formed in the left side and the right side of the front of the storage box, and a groove is formed in the front of the storage box;

the inside of receiver is provided with the connecting rod, the one end of connecting rod runs through fluting fixedly connected with handle, the connecting plate has been cup jointed to the other end of connecting rod, the bottom evenly distributed of connecting plate has the ratch, the top of ratch and the bottom welding of connecting plate.

Preferably, the top of the outer box is fixedly connected with a protective top, the front of the outer box is movably connected with a box door, the left surface of the outer box is fixedly connected with an air cooler, the right side of the air cooler is fixedly connected with an air inlet, and the other end of the air inlet penetrates through the left side of the outer box.

Preferably, the ventilation window has been seted up on the right side of outer box, the inboard joint of ventilation window has dustproof blade, the left side of outer box inner chamber is provided with the cold air chamber, the right side fixedly connected with ventilation net of cold air chamber, the air vent has been seted up to the inner chamber bottom of outer box, the top that the air vent is located the receiver communicates with each other with the receiver.

Preferably, the inside of cold wind room is provided with driving motor, driving motor's top and outer box inner chamber's bottom fixed connection, driving motor's bottom is rotated and is connected with the pivot, the bottom of pivot is rotated with the inner chamber bottom of outer box and is connected, the fixed surface of pivot is connected with the driving gear.

Preferably, the quantity of driving gear is three, the left side inner wall fixedly connected with fixing base of outer box, the quantity of fixing base is three, and is three the right-hand member of fixing base is rotated and is connected with the dwang, and is three the right side fixedly connected with driven gear of dwang, it is three driven gear's below is hugged closely, and is three with the right side of three driving gear driven gear meshes, and is three the right-hand member of dwang is rotated and is connected with the heat dissipation fan.

Compared with the prior art, the utility model discloses following beneficial effect has:

1. this high tension switchgear convenient to heat dissipation, can protect outer box through the protection top that sets up, can avoid the rainwater directly to drench the surface of box outside in rainy day, accelerate the ageing of outer box, the life of the outer box of extension, the base of setting can keep apart outer box and ground, keep apart the moisture on ground with outer box, can place the drier in the containing box of setting, the bottom of outer box sets up same air vent, the top of base is provided with the fluting equally, and then make the air in the outer box can get into in the containing box.

2. This high tension switchgear convenient to heat dissipation, handle through setting up utilizes connecting rod and connecting plate to drive the ratch and removes at the receiver, the environment of outer box internal portion need keep dry, thereby avoid the part to wet and lead to damaging, can place the drier in the inside of receiver this moment, utilize the inside drier of receiver to absorb the moisture of outer box internal portion, the caking can wet in long-term back top drier of using, lead to the bottom drier can't use well, utilize the handle to drive the ratch to carry out reciprocating motion this moment, utilize the ratch to break up the drier, make things convenient for the drier can make full use of.

3. This high tension switchgear convenient to heat dissipation adds the cold air to the cold wind indoor through the air-cooler that sets up, and driving motor drive pivot rotates, utilizes driving gear and driven gear to make the dwang rotate, and then realizes the rotation of heat dissipation fan for the heat dissipation fan is with even blowing of air conditioning to the equipment body, helps the group equipment to dispel the heat, drives three heat dissipation fan through a driving motor and rotates, can save the electric energy.

Drawings

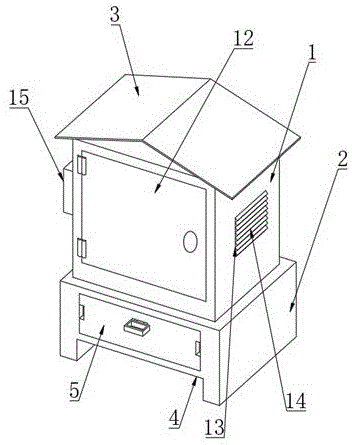

FIG. 1 is a schematic view of the present invention;

FIG. 2 is a schematic view of the internal structure of the present invention;

fig. 3 is a schematic view of the internal structure of the storage box of the present invention;

FIG. 4 is a schematic structural view of the cross section of the present invention;

fig. 5 is an enlarged schematic structural diagram of the utility model a.

In the figure: 1. an outer case; 2. a base; 3. protecting the roof; 4. a recess; 5. a storage box; 6. a groove; 7. grooving; 8. a handle; 9. a connecting rod; 10. a connecting plate; 11. a rack bar; 12. a box door; 13. a ventilation window; 14. a dust-proof blade; 15. an air cooler; 16. a cold air chamber; 17. a ventilation net; 18. a vent hole; 19. a drive motor; 20. an air inlet; 21. a rotating shaft; 22. a driving gear; 23. a fixed seat; 24. rotating the rod; 25. a driven gear; 26. a heat dissipating fan.

Detailed Description

In order to make the utility model realize, the technical means, the creation characteristics, the achievement purpose and the efficacy are easy to understand and understand, the utility model is further explained by combining the specific implementation mode.

As shown in figures 1-5, a high voltage switch device convenient for heat dissipation comprises an outer box 1, a dehumidification component is arranged at the bottom of the outer box 1, the dehumidification component comprises a base 2 arranged at the bottom of the outer box 1, the bottom of the outer box 1 is fixedly connected with the top of the base 2, a notch 4 is arranged at the bottom of the base 2, a storage box 5 is arranged inside the base 2, grooves 6 are arranged at the left side and the right side of the front of the storage box 5, a slot 7 is arranged at the front of the storage box 5, a connecting rod 9 is arranged inside the storage box 5, one end of the connecting rod 9 is fixedly connected with a handle 8 through the slot 7, the other end of the connecting rod 9 is sleeved with a connecting plate 10, toothed bars 11 are uniformly distributed at the bottom of the connecting plate 10, the top of the toothed bars 11 is welded with the bottom of the connecting plate 10, a top protection top of the outer box 1 is fixedly connected with a protection top 3, a front of the outer box 1 is movably connected with a box door 12, a left side surface of the outer box 1 is fixedly connected with an air cooler 15, a right side of the air inlet 20 is fixedly connected with the left side of the outer box 1, an inner cavity of the outer box 1 is connected with an air vent 16, a left side of a rotating motor, a rotating inner cavity of the outer box 21, and a rotating inner cavity of the outer box 21 is connected with a rotating motor, a rotating inner cavity of the outer box 21, the quantity of driving gear 22 is three, the left side inner wall fixedly connected with fixing base 23 of outer box 1, the quantity of fixing base 23 is three, the right-hand member of three fixing base 23 rotates and is connected with dwang 24, the right side fixedly connected with driven gear 25 of three dwang 24, the below of three driven gear 25 is hugged closely with three driving gear 22's right side, three driven gear 25 and the meshing of three driving gear 22, the right-hand member of three dwang 24 rotates and is connected with heat dissipation fan 26.

It should be noted that, the utility model relates to a high tension switchgear convenient to heat dissipation, can place the drier in the receiver 5 that sets up during the use, the bottom of outer box 1 sets up same air vent 18, the top of base 2 is provided with the fluting equally, and then make in the outer box 1 air can get into the receiver 5, utilize the inside drier of receiver 5 to absorb the inside moisture of outer box 1, the top drier can wet the caking after long-term the use, lead to the bottom drier can't use well, the handle 8 of setting utilizes connecting rod 9 and connecting plate 10 to drive ratch 11 and removes at receiver 5, break up the drier, make things convenient for the drier to make full use of, the air-cooler 15 of setting adds the cold air to cold air chamber 16 in, driving motor 19 drive pivot 21 rotates, utilize driving gear 22 and driven gear 25 to make dwang 24 rotate, and then realize the rotation of heat dissipation fan 26, make heat dissipation fan 26 evenly blow to the equipment body with air conditioning, group equipment dispels the heat.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited to the above embodiments, and the above embodiments and descriptions are only illustrative of the principles of the present invention, and that various changes and modifications may be made without departing from the spirit and scope of the present invention, and all such changes and modifications fall within the scope of the present invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a high tension switchgear convenient to heat dissipation, includes outer box (1), its characterized in that: a dehumidification component is arranged at the bottom of the outer box body (1);

the dehumidification assembly comprises a base (2) arranged at the bottom of an outer box body (1), the bottom of the outer box body (1) is fixedly connected with the top of the base (2), a notch (4) is formed in the bottom of the base (2), a storage box (5) is arranged inside the base (2), grooves (6) are formed in the left side and the right side of the front face of the storage box (5), and a groove (7) is formed in the front face of the storage box (5);

the inside of receiver (5) is provided with connecting rod (9), fluting (7) fixedly connected with handle (8) is run through to the one end of connecting rod (9), connecting plate (10) have been cup jointed to the other end of connecting rod (9), the bottom evenly distributed of connecting plate (10) has ratch (11), the top of ratch (11) and the bottom welding of connecting plate (10).

2. A high voltage switchgear for facilitating heat dissipation according to claim 1, wherein: the top fixedly connected with protection top (3) of outer box (1), the front swing joint of outer box (1) has chamber door (12), the left side fixed surface of outer box (1) is connected with air-cooler (15), the right side fixedly connected with air intake (20) of air-cooler (15), the other end of air intake (20) runs through the left side of outer box (1).

3. A high voltage switchgear for facilitating heat dissipation according to claim 2, characterized in that: ventilation window (13) have been seted up on the right side of outer box (1), the inboard joint of ventilation window (13) has dustproof blade (14), the left side of outer box (1) inner chamber is provided with cold air chamber (16), the right side fixedly connected with ventilation net (17) of cold air chamber (16), air vent (18) have been seted up to the inner chamber bottom of outer box (1), air vent (18) are located the top of receiver (5) and communicate with each other with receiver (5).

4. A high voltage switchgear for facilitating heat dissipation according to claim 3, characterized in that: the inside of cold wind room (16) is provided with driving motor (19), the top of driving motor (19) and the bottom fixed connection of outer box (1) inner chamber, the bottom of driving motor (19) is rotated and is connected with pivot (21), the bottom of pivot (21) is rotated with the inner chamber bottom of outer box (1) and is connected, the fixed surface of pivot (21) is connected with driving gear (22).

5. The high voltage switchgear for facilitating heat dissipation of claim 4, wherein: the quantity of driving gear (22) is three, the left side inner wall fixedly connected with fixing base (23) of outer box (1), the quantity of fixing base (23) is three, and is three the right-hand member of fixing base (23) rotates and is connected with dwang (24), and is three the right side fixedly connected with driven gear (25) of dwang (24), it is three the below of driven gear (25) is hugged closely, three with the right side of three driving gear (22) driven gear (25) and three driving gear (22) meshing, and is three the right-hand member of dwang (24) is rotated and is connected with heat dissipation fan (26).
