Abstract

The utility model discloses a mounting seat for a high-speed meter, which relates to the field of high-speed meters. The sliders, the upper ends of the two sets of sliders are provided with a leveling mechanism, the upper ends of the bases are provided with a rotation mechanism near one side, a rotation column is installed inside the cylindrical column, and a sliding block is arranged on the outer side of the rotation column. The inner side wall of the circular column is provided with a ring groove that fits with the sliding block, a telescopic rod is installed on the upper end of the rotating column, and the leveling mechanism includes a vertical plate, and the upper end of the vertical plate is provided with a groove one, and the other group of the There are two grooves at the top of the vertical plate, and a long board is installed inside the first groove; the high-speed camera mounting seat can make the surface of the paper more flat and not easy to move, so that the scanning is clearer and the installation can be reduced. The space occupied by the seat is convenient for users to store the mounting seat.

Description

A high-speed camera mount

technical field

The utility model relates to the field of high-speed meters, in particular to a high-speed meter mounting seat.

Background technique

Gaopai is a newly developed ultra-portable low-carbon office product. It is also an innovative product in the office field. It can complete high-speed scanning in one second, and can recognize and convert scanned images into editable documents. It can also Take photos, videos, photocopying, network paperless faxing, making e-books, trimming and straightening.

Most of the common mounts for high-speed cameras on the market cannot fix and level the paper, resulting in poor scanning results, and the mounts take up a lot of space, which is not convenient for users to store them. Therefore, we propose a high-speed camera. Camera mount.

Utility model content

The purpose of the present invention is to provide a high-speed camera mounting seat to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a high-speed meter mounting seat, including a base and a circular column, both sides of the base are provided with chute, and the interior of the chute is inserted near the middle position. Two sets of sliders, the upper ends of the two sets of sliders are provided with a leveling mechanism, the upper end of the base is provided with a rotating mechanism near one side, a rotating column is installed inside the circular column, and a sliding block is arranged on the outer side of the rotating column The inner side wall of the circular column is provided with a ring groove that fits with the sliding block, and a telescopic rod is installed on the upper end of the rotating column.

As a further solution of the present invention, the leveling mechanism includes a vertical plate, a groove 1 is formed on the upper end of the vertical plate, and a groove 2 is formed on the upper end of the other set of vertical plates, and the groove 1 is installed inside the groove 1. The long board is fixedly installed with a pressing board on the bottom surface of the long board.

As a further solution of the present invention, short shafts are installed between the two sides of the long plate and the inner side wall of the groove one, the bottom surface of the long plate is provided with an insert block at one end of the bottom surface away from the groove one, and the groove two The inner bottom end is provided with a slot that fits with the insert block.

As a further solution of the present utility model, one end of the long plate is movably installed with the vertical plate through the short shaft matching groove 1, and the other end of the long plate is movably installed through the insertion block matching the slot and the groove 2, and the inner side wall of the chute is provided with There are several groups of screw holes one, a fixing screw is inserted on the outer side of the slider, and one end of the fixing screw is movably installed inside the screw hole one through the slider.

As a further solution of the present invention, the rotating mechanism includes a connecting plate, an upper surface of the connecting plate is provided with a movable groove, a rotating plate is installed inside the movable groove, and two sides of the connecting plate are inserted near the upper end. An adjusting bolt is provided with a nut on the outside of the adjusting bolt.

As a further solution of the present invention, the two sides of the rotating plate are provided with two screw holes near the bottom end, the outer side of the adjusting bolt is provided with several sets of thread one, and the inner side wall of the screw hole two is provided with a screw hole matching the thread one. Thread two, one end of the rotating plate is movably installed with the movable groove through the adjusting bolt and the nut.

As a further solution of the present invention, a horizontal plate is fixedly arranged at one end of the base away from the connecting plate, a horizontal groove is formed on the upper surface of the horizontal plate near both sides, a connecting shaft is installed inside the horizontal groove, and two sets of connecting shafts are arranged. The outer sleeve has elastic straps.

Compared with the prior art, the beneficial effect of the present utility model is: in the high-speed meter mounting seat, one end of the long plate is rotated through the short shaft matching the groove 1, so that the other end is inserted into the inner bottom end of the groove 2 through the insert block. Inside the opened slot, the pressure plate rotates with the long plate until its bottom surface is close to the upper surface of the paper. Similarly, rotating another set of long plates drives the other set of pressure plates to rotate until the bottom surface is also close to the upper surface of the paper. Move two sets of vertical plates along the chute, drive the long plate and the pressure plate installed on its bottom to move, smooth the paper, move the long plate to the edge of the paper, and rotate one end of the fixing screw through the slider to the inside of the corresponding screw hole, By fixing the position of the pressure plate, the edge of the paper can be fixed, and the other edge of the paper can be fixed in the same way. Through the above operations, the surface of the paper can be made smoother and not easy to move, so that the scanning is clearer.

In the mounting seat of the altimeter, the nut in the rotating mechanism is turned out, and then the adjusting bolt is rotated to make one end loose in the second screw hole. At this time, the rotating plate can be rotated 90° clockwise by the adjusting bolt and the movable slot. Drive the telescopic rod to rotate 90° clockwise, so that the end of the telescopic rod away from the rotating mechanism rotates to the upper surface of the horizontal plate. At this time, the elastic band is sleeved on the outside of the telescopic rod, and the position between one end of the telescopic rod and the horizontal plate can be fixed. Therefore, the occupied space of the mounting seat can be reduced, and it is convenient for the user to store the mounting seat.

Description of drawings

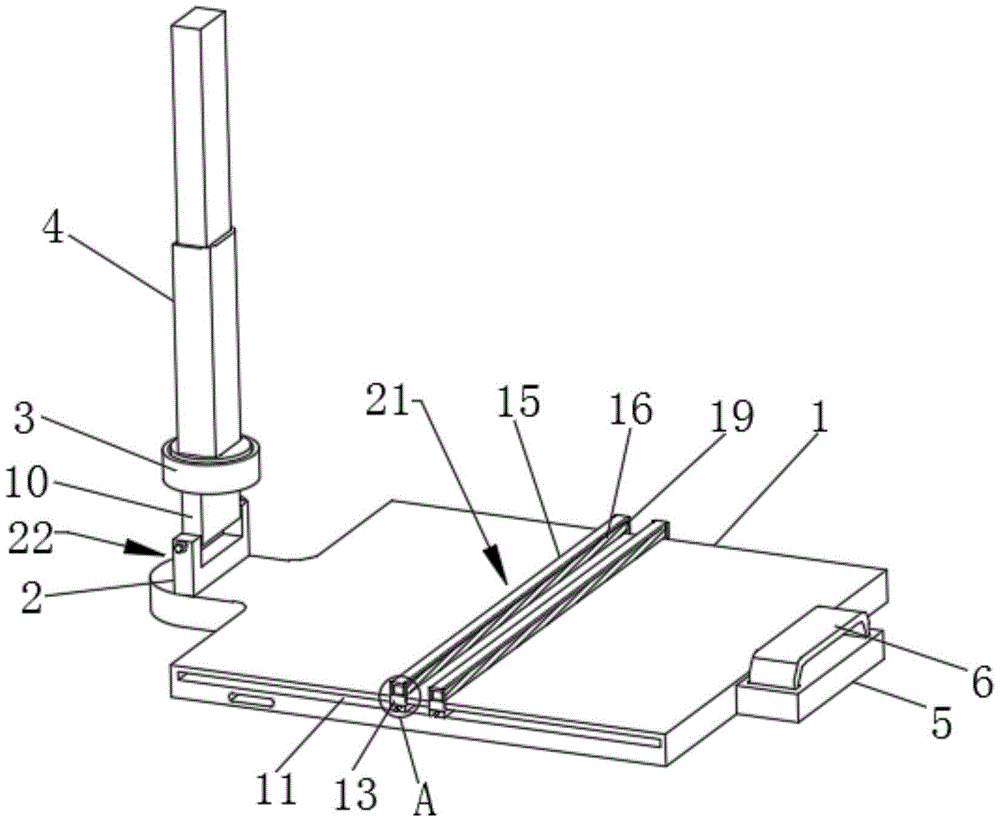

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the enlarged view of the place A in Fig. 1 in the utility model;

3 is a schematic diagram of the structure of the rotating mechanism and the cylindrical column in the utility model;

Fig. 4 is the partial structure schematic diagram of the leveling mechanism in the utility model;

In the figure: 1. Base; 2. Connecting plate; 3. Round column; 4. Telescopic rod; 5. Horizontal plate; 6. Elastic band; 7. Active groove; 8. Adjusting bolt; 9. Nut; 10. Rotation plate; 11, chute; 12, slider; 13, vertical plate; 14, groove one; 15, long plate; 16, pressure plate; 17, fixing screw; 18, insert block; 19, groove two; 20, Slot; 21. Leveling mechanism; 22. Rotating mechanism.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

Example 1

Please refer to FIGS. 1-4, the present utility model provides a technical solution: a high-speed meter mounting seat, including a base 1 and a cylindrical column 3, and a chute 11 is provided on both sides of the base 1, and the interior of the chute 11 is close to the middle Two sets of sliding blocks 12 are inserted at the positions, the upper ends of the two sets of sliding blocks 12 are provided with a leveling mechanism 21, the upper end of the base 1 is provided with a rotating mechanism 22 near one side, a rotating column is installed inside the circular column 3, and the outer side of the rotating column is installed A sliding block is provided, the inner side wall of the circular column 3 is provided with a ring groove that fits with the sliding block, and a telescopic rod 4 is installed on the upper end of the rotating column.

1, 2 and 4, the leveling mechanism 21 includes a vertical plate 13, the upper end of the vertical plate 13 is provided with a groove 1 14, and the upper end of the other set of vertical plates 13 is formed with a groove 2 19. The long board 15, the bottom surface of the long board 15 is fixedly installed with the pressure plate 16, the short shafts are installed between the two sides of the long board 15 and the inner side wall of the groove one 14, the bottom surface of the long board 15 is away from the groove one end position is provided with a plug 18 , the inner bottom end of the second groove 19 is provided with a slot 20 that fits with the insert block 18 .

One end of the long plate 15 is movably installed with the vertical plate 13 through the short shaft matching the groove one 14, and the other end of the long plate 15 is movably installed through the insertion block 18 in cooperation with the slot 20 and the groove two 19. , a fixed screw 17 is inserted on the outer side of the slider 12, and one end of the fixed screw 17 is movably installed inside the screw hole through the slider 12.

When in use, install the altimeter on the telescopic rod 4 near the upper end, and the telescopic rod 4 can be rotated by the rotating column and the circular column 3, thereby driving the altimeter to rotate, and the orientation of the altimeter can be adjusted. Adjust the height of the high-speed camera, and then place the paper to be scanned on the surface of the upper end of the base 1. At this time, the short axis is matched with the groove 14 opened on the vertical plate 13 to rotate one end of the long plate 15, so that the other end passes through the plug. 18 is inserted into the slot 20 opened at the bottom end of the groove 2 19, and one end of the long plate 15 in the leveling mechanism 21 can be fixed, and the pressing plate 16 rotates with the long plate 15 to the position where its bottom surface is close to the upper surface of the paper. Similarly Rotating the other set of long boards 15 drives the other set of pressing boards 16 to rotate until the bottom surface is also close to the upper end surface of the paper, and then the two sets of vertical boards 13 are moved along the chute 11 by the slider 12 to drive the long boards 15 and the bottom surface of the set of vertical boards 13. The pressing plate 16 moves to smooth the paper. When the long plate 15 is moved to the edge of the paper, one end of the fixing screw 17 is rotated through the slider 12 to the inside of the corresponding screw hole, the slider 12 can be fixed, and the pressing plate 16 can be fixed. The position is fixed, the edge of the paper can be fixed, and the other edge of the paper can be fixed in the same way, so that the paper is not easy to move. Through the above operations, the surface of the paper can be made smoother and not easy to move, so that the scanning is clearer.

Example 2

Please refer to FIGS. 1-4, the present utility model provides a technical solution: a high-speed meter mounting seat, including a base 1 and a cylindrical column 3, and a chute 11 is provided on both sides of the base 1, and the interior of the chute 11 is close to the middle Two sets of sliding blocks 12 are inserted at the positions, the upper ends of the two sets of sliding blocks 12 are provided with a leveling mechanism 21, the upper end of the base 1 is provided with a rotating mechanism 22 near one side, a rotating column is installed inside the circular column 3, and the outer side of the rotating column is installed A sliding block is provided, the inner side wall of the circular column 3 is provided with a ring groove that fits with the sliding block, and a telescopic rod 4 is installed on the upper end of the rotating column.

Please refer to FIG. 3 , the rotating mechanism 22 includes a connecting plate 2, a movable groove 7 is formed on the upper end surface of the connecting plate 2, a rotating plate 10 is installed inside the movable groove 7, and adjustment bolts 8 are inserted on both sides of the connecting plate 2 near the upper end position, A nut 9 is sleeved on the outside of the adjusting bolt 8, and two screw holes are provided on both sides of the rotating plate 10 near the bottom end. Thread 2, one end of the rotating plate 10 is movably installed with the movable slot 7 through the adjusting bolt 8 and the nut 9, the base 1 is fixedly provided with a horizontal plate 5 at one end of the base 1 away from the connecting plate 2, and the upper surface of the horizontal plate 5 is close to both sides. , a connecting shaft is installed inside the horizontal groove, and an elastic band 6 is sleeved outside the two sets of connecting shafts.

Specifically, after using the altimeter, turn out the nut 9 in the rotating mechanism 22, and then turn the adjusting bolt 8 to make one end loose inside the second screw hole. The plate 10 is rotated 90° clockwise to drive the telescopic rod 4 to rotate 90° clockwise, so that the end of the telescopic rod 4 away from the rotating mechanism 22 is rotated to the upper end surface of the horizontal plate 5. At this time, the elastic band 6 is sleeved on the outside of the telescopic rod 4, The position between one end of the telescopic rod 4 and the horizontal plate 5 can be fixed, so that the occupied space of the mounting seat can be reduced, and it is convenient for the user to store the mounting seat.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. The utility model provides a high appearance mount pad of clapping, includes base (1) and circular post (3), its characterized in that, spout (11) have all been seted up to base (1) both sides, spout (11) are inside to be close to the intermediate position and to be inserted and be equipped with two sets of slider (12), and are two sets of slider (12) upper end is provided with levelling mechanism (21), base (1) upper end is close to one side position and is provided with slewing mechanism (22), circular post (3) internally mounted has the rotation post, and the rotation post lateral surface is provided with the sliding block, circular post (3) inside wall is seted up the annular that agrees with mutually with the sliding block, rotates post upper end and installs telescopic link (4).

2. The mounting seat for the high-speed scanner according to claim 1, wherein the leveling mechanism (21) comprises a first vertical plate (13), a first groove (14) is formed in the upper end of the first vertical plate (13), a second groove (19) is formed in the upper end of the other vertical plate (13), a long plate (15) is mounted inside the first groove (14), and a pressing plate (16) is fixedly mounted on the bottom surface of the long plate (15).

3. The mounting base for the high-speed photographing instrument according to claim 2, wherein short shafts are arranged between the two side surfaces of the long plate (15) and the inner side walls of the first groove (14), an insertion block (18) is arranged at one end of the bottom surface of the long plate (15) far away from the first groove (14), and a slot (20) matched with the insertion block (18) is formed in the bottom end of the inner portion of the second groove (19).

4. The mounting base for the high-speed shooting instrument according to claim 3, wherein one end of the long plate (15) is movably mounted with the vertical plate (13) through a short shaft matching groove I (14), the other end of the long plate is movably mounted with a groove II (19) through an insertion block (18) matching insertion groove (20), a plurality of screw holes I are formed in the inner side wall of the sliding groove (11), a fixing screw (17) is inserted into the outer side surface of the sliding block (12), and one end of the fixing screw (17) penetrates through the sliding block (12) and is movably mounted in the screw holes I.

5. The mounting base for the high-speed shooting instrument according to claim 1, wherein the rotating mechanism (22) comprises a connecting plate (2), a movable groove (7) is formed in the upper end surface of the connecting plate (2), a rotating plate (10) is mounted inside the movable groove (7), adjusting bolts (8) are inserted into positions, close to the upper end, of two side surfaces of the connecting plate (2), and nuts (9) are sleeved outside the adjusting bolts (8).

6. The mounting seat for the high-speed scanner according to claim 5, wherein two side surfaces of the rotating plate (10) close to the bottom end are provided with a second screw hole, the outer side surface of the adjusting bolt (8) is provided with a first plurality of sets of threads, the inner side wall of the second screw hole is provided with a second thread engaged with the first thread, and one end of the rotating plate (10) is movably mounted with the movable groove (7) through the adjusting bolt (8) in cooperation with the nut (9).

7. The mounting seat for the high-speed scanner according to claim 1, wherein a transverse plate (5) is fixedly arranged at one end of the base (1) far away from the connecting plate (2), transverse grooves are formed in the positions, close to the two sides, of the upper end surface of the transverse plate (5), connecting shafts are arranged in the transverse grooves, and elastic bands (6) are sleeved outside the two groups of connecting shafts.
