Abstract

The utility model relates to a retention enema device for children, which is accurate in medication and not easy to be blocked. The utility model comprises an enema syringe, an extension tube and an air intake assembly, the extension tube is connected with the enema syringe, the extension tube is inserted into the anus of children, and the extension tube is provided with a scale, which is convenient for medical staff to measure the length of the extension tube during operation. Insertion length, the medicinal liquid in the enema syringe is injected into the body of the child through an extension tube; the air intake assembly includes a trachea, an air bag and a one-way air valve, the trachea is set in the piston of the enema syringe, and the trachea is One end of the trachea is provided with a one-way air valve, the trachea is one-way air in the cylinder of the enema syringe through the one-way air valve, and the other end of the trachea extends out of the piston and is connected to the airbag, and the airbag can be squeezed through the trachea to the enema syringe. The delivery gas is used to push the liquid medicine remaining in the enema syringe, so that the liquid medicine can be injected completely.

Description

Pediatric Retention Enema

technical field

The utility model relates to the technical field of medical appliances, in particular to a children's retention enema device with accurate medication and not easy to block.

Background technique

Retention enema is an operation method that injects medicines from the anus into the intestines and makes them stay in the intestines to achieve the purpose of treatment. It is mostly used for medicine in children. At present, the pediatric enema used clinically is packaged separately from the syringe barrel and the extension tube, and the extension tube needs to be manually installed on the syringe barrel when in use, which delays the medication time in emergencies. In addition, the patient is too young to cooperate well, which makes it difficult to grasp the depth of the extension tube inserted into the anus of the child. The amount of liquid medicine for pediatric medicine is relatively small, and part of the medicine is often left in the extension tube during administration, which affects the accuracy of medicine. The clinically used pediatric enema also has the situation that the extension tube is easy to block, which affects the medication.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a kind of children's retention enema that does not block and completes medication, aiming at the inconvenience of the existing children's enema.

The utility model is accomplished in the following manner: a pediatric retention enema device comprises an enema syringe, an extension tube and an air intake assembly, the extension tube is connected with the enema syringe, and the extension tube is inserted into the baby In the anus, the extension tube is provided with a scale, which is convenient for medical staff to measure the insertion length of the extension tube when operating, and the medicinal liquid in the enema syringe is injected into the body of the child through the extension tube; To the air valve 1, the trachea is set in the piston of the enema syringe, one end of the trachea is provided with a one-way air valve, the trachea passes through the one-way air valve to one-way air in the cylinder of the enema syringe, and the other side of the trachea is unidirectional. One end extends out of the piston and is connected to the air bag, and the air bag can be squeezed to deliver gas into the enema syringe through the trachea to push the medicinal liquid remaining in the enema syringe, so that the medicinal liquid can be injected completely.

In the described pediatric retention enema, one end of the trachea penetrates the rubber stopper of the piston, the one-way air valve is set on the rubber stopper and is connected with the trachea, and the other end of the trachea passes through the piston rod of the piston, from the handle Extend to communicate with the air bag.

In the children's retention enema, the air bag is provided with a one-way air valve 2, the external air enters the air bag through the one-way air valve 2, and the air in the air bag flows into the trachea in one direction when squeezed, and no gas leakage occurs. It is safer and more reliable; after the medication is completed, the air pressure in the air bag is lower than the external air pressure, and the external air is supplemented into the air bag from the second one-way valve.

In the described children's retention enema, the end of the extension tube 2 is provided with a number of side holes, which can effectively prevent the part of the extension tube inserted into the anus from being blocked by foreign bodies and cause medication not to be smooth.

The air intake assembly in the utility model forms a one-way air passage in the enema syringe. After the piston is injected, the airbag is squeezed, so that the gas in the airbag enters the barrel of the enema syringe through the trachea and the one-way air valve. In the body, the air pressure is used to push the medicinal liquid remaining in the cylinder into the rectum or colon of children, which greatly improves the accuracy of medication. The one-way air valve at the end of the trachea prevents the gas in the barrel of the enema syringe from carrying the medicinal liquid back into the trachea, and the operation is safe and reliable. The second one-way air valve set on the airbag is used for supplementing the gas in the airbag, which is simple and convenient. The scale on the extension tube makes it easy to observe the depth of insertion during intubation operation. The enema syringe and the extension tube are connected together to reduce the time for installing the extension tube. For example, it has a significant effect when using sedatives for convulsive patients.

Compared with the existing retention enema, the utility model has the characteristics of complete and accurate medication and convenient operation.

Description of drawings

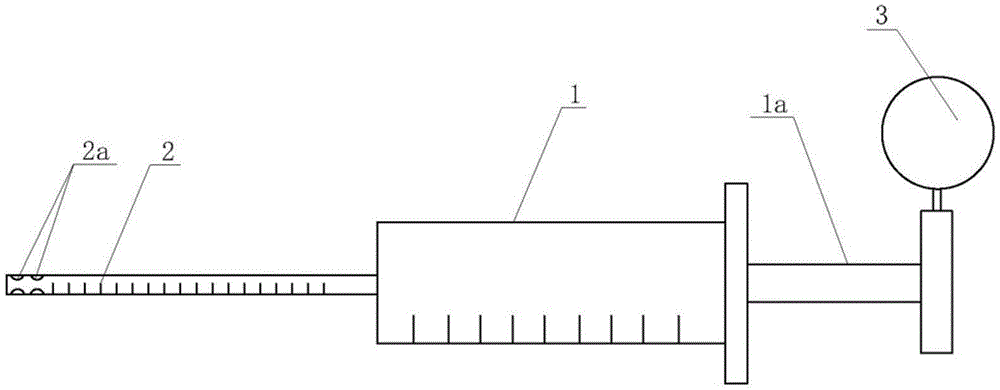

Figure 1 is a schematic structural diagram of the utility model.

FIG. 2 is a partial cross-sectional view of the utility model.

1a represents a piston; 1a1 represents a rubber stopper; 1a2 represents a piston rod; 1a3 represents a handle; 2 represents an extension tube; 2a represents a hole; 3 represents an air intake assembly; 3a represents a trachea ; 3b means air bag; 3b1 means one-way valve two; 3c means one-way valve one.

Detailed ways

Below with reference to the accompanying drawings, the present utility model will be further described through embodiments.

Referring to Figures 1 to 2, a pediatric retention enema device includes an enema syringe 1, an extension tube 2 and an air intake assembly 3. The piston 1a of the enema syringe 1 includes a rubber stopper 1a1, a piston Rod 1a2 and handle 1a3, one end of the extension tube 2 is connected with the enema syringe 1, the medicinal liquid in the enema syringe 1 is injected into the body of the child through the extension tube 2, and the other end of the extension tube 2 is inserted into the anus of the child, There is a scale on one end of the extension tube 2 inserted into the anus, which is convenient for medical staff to measure the insertion length of the extension tube 2; the side wall of one end of the extension tube 2 inserted into the anus is provided with several side holes 2a, effectively preventing the extension tube 2 from being inserted into the anus part Medication is not smooth due to foreign body blockage;

The air intake assembly 3 includes a trachea 3a, an air bag 3b and a one-way air valve 3c. The trachea 3a is arranged in the piston 1a of the enema syringe 1. Specifically, one end of the trachea 3a penetrates the rubber of the piston 1a. Plug 1a1, a one-way air valve 3c is arranged on the rubber plug 1a1 and is connected with the trachea 3a, the other end of the trachea 3a passes through the piston rod 1a2 of the piston 1a, extends from the handle 1a3 and communicates with the air bag 3b, and the trachea 3a passes through the one-way The air valve 1 3c inhales air in one direction into the barrel of the enema syringe 1, and the squeeze airbag 3b can deliver gas into the enema syringe 1 through the trachea 3a, and is used to push the medicinal liquid remaining in the enema syringe 1, so that the medicine can be discharged. The liquid injection is complete; the airbag 3b is provided with a one-way air valve 2 3b1, the external air enters the airbag 3b through the one-way air valve 2 3b1, and the gas in the airbag 3b flows into the trachea 3a in one direction when squeezed, and no gas will be generated. It is safer and more reliable; after the medication is completed, the air pressure in the airbag 3b is lower than the external air pressure, and the external air is supplemented into the airbag 3b from the one-way air valve 2 3b1.

In the utility model, the trachea 3a forms a one-way air path with the cylinder of the enema syringe 1 through the one-way air valve-3c, which is used for air intake to push the residual medicinal liquid in the cylinder. The one-way air valve-3c can also avoid the internal The gas or liquid medicine is reversely injected into the trachea 3a to improve the safety of use. When in use, the medicinal liquid is inhaled into the enema syringe 1 through the extension tube 2, and then the extension tube 2 is inserted into the anus of the child, and the insertion length is estimated according to the scale observation on the extension tube 2 until it reaches the appropriate position, and then push the enema syringe 1 first. The piston 1a pushes the liquid medicine in the cylinder into the body of the child through the extension tube 2, and then squeezes the airbag 3b, the gas in the airbag 3b enters the cylinder body and the extension tube 2 from the trachea 3a and the one-way valve-3c, and the residual The medicinal liquid in the cylinder body and the extension tube 2 is completely pushed to improve the accuracy of medication.

Claims (4)

1. An enemator for children is characterized by comprising an enema syringe, an extension tube and an air inlet assembly, wherein the extension tube is connected with the enema syringe and is provided with scales; the air inlet assembly comprises an air pipe, an air bag and a one-way air valve I, the air pipe is arranged in a piston of the enema needle cylinder, one end of the air pipe is provided with the one-way air valve I, the air pipe can supply air into a cylinder of the enema needle cylinder in one way through the one-way air valve, the other end of the air pipe extends out of the piston to be connected with the air bag, and the air bag can be extruded to convey air into the enema needle cylinder through the air pipe.

2. An infant retention enemator as claimed in claim 1 wherein one end of the air tube extends through the rubber plug of the piston, a one-way air valve is provided on the rubber plug and connected to the air tube, and the other end of the air tube extends through the piston rod of the piston and out of the handle to communicate with the air bag.

3. The pediatric retention enemator according to claim 1 or 2, wherein the air bag is provided with a second one-way air valve, and external air enters the air bag through the second one-way air valve.

4. An enemator as claimed in claim 1 or 2 wherein the end of the extension tube is provided with side holes.
