The utility model belongs to the technical field of sports socks, in particular to a sports socks with high heat dissipation performance, comprising a sock body and a sock tube; the top of the sock body is knitted and connected with the bottom of the sock tube; Breathable area for heat dissipation; the sock is made of elastic fiber and bamboo fiber cross-woven in warp and weft; among them, the breathable area covers all toe grooves. The moisture and heat generated by the feet are discharged to the outside of the sports socks with high heat dissipation performance through the breathable area. The sock knitted by the warp and weft of elastic fiber and bamboo fiber has good comfort and breathability, which is conducive to the discharge of heat. , so that the heat dissipation performance is greatly improved.

Description

Sports socks with high heat dissipation

technical field

The utility model belongs to the technical field of sports socks, in particular to a sports socks with high heat dissipation performance.

Background technique

Sports socks are a type of socks that can provide professional protection for the user's foot movement, thereby providing a more comfortable sports experience. Therefore, the comfort of wearing sports socks is particularly important. When exercising, the human body will generate a lot of heat, which will increase the body temperature and expel a lot of sweat. When wearing traditional sports socks, it can even wrap the feet and part of the calves. However, the too tight package makes the calf part unable to dissipate heat better when people exercise, and the heat dissipation performance is lower, thus causing various foot problems.

Utility model content

The purpose of the utility model is to provide a sports socks with high heat dissipation performance, which aims to solve the technical problem of the low heat dissipation performance of the sports socks in the prior art.

In order to achieve the above purpose, the embodiment of the present invention provides a sports sock with high heat dissipation performance, which includes a sock body and a sock tube; the top of the sock body is knitted and connected to the bottom of the sock tube; the sock body corresponds to the toes The position of the groove is provided with a ventilation area for heat dissipation; the sock is made of elastic fiber and bamboo fiber cross-woven in warp and weft; wherein, the ventilation area covers all the toe grooves.

Optionally, the sock tube is provided with several ventilation channels; the several ventilation channels all extend along the length direction of the socks tube; and the several ventilation channels are arranged at intervals along the circumference of the socks tube.

Optionally, the ventilation area is composed of several ventilation meshes arranged at intervals, and all the ventilation meshes located at the edges are knitted and connected to the sock body.

Optionally, the cross-sections of several of the ventilation meshes are all regular hexagons.

Optionally, the sock body is provided with a relaxation ring; the relaxation ring is annularly arranged and extends from the sock body corresponding to the sole of the foot to the sock body corresponding to the instep, so as to prevent expansion and strain of the sole.

Optionally, the sock body includes a toe, a top, a sole and a heel; the toe, the top, the bottom and the heel are woven into an integrated structure by connecting yarns; The bottom of the sock tube, the heel and the sock surface are woven into an integrally formed structure by connecting yarns; the ventilation area is arranged at one end of the sock surface close to the toe.

Optionally, a first anti-slip group and a second anti-slip group are arranged on the outer surface of the sole; the first anti-slip group is arranged near the toe, and the second anti-slip group is arranged near the heel.

Optionally, the inner surfaces of the toe and the sole are provided with a first loop layer.

Optionally, the first loop layer is woven from Coolmax fibers and tactel fibers.

Optionally, a cushion pad is provided on the outer surface of the heel.

The above one or more technical solutions in the sports socks with high heat dissipation provided by the embodiments of the present invention have at least one of the following technical effects: It is not difficult to understand that the top of the sock body refers to the end of the sock body with an opening. On the top, the sock tube has a channel for the human foot to pass through, and the channel runs through the top and bottom ends of the sock tube. The above descriptions are common sense. The sock tube and the sock body are connected by boneless suture technology, so that the sock tube and the sock body are connected smoothly, eliminating the bumpy feeling and greatly improving the comfort. When wearing, the moisture and heat generated by the feet are discharged to the outside of the sports socks with high heat dissipation performance through the breathable area. The discharge of hot air, thus, greatly improves the heat dissipation performance. In addition, bamboo fiber has strong water absorption and antibacterial effect. Greatly improved usability.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the drawings in the following description are only for the present utility model. For some novel embodiments, for those of ordinary skill in the art, other drawings can also be obtained according to these drawings without any creative effort.

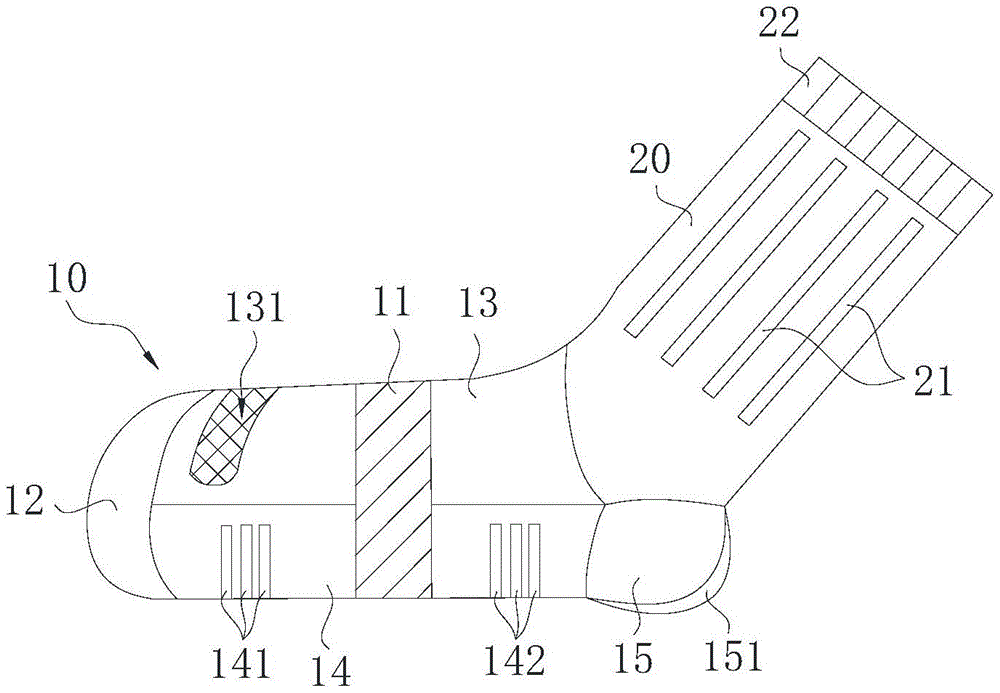

FIG. 1 is a schematic structural diagram of a sports socks with high heat dissipation performance provided by an embodiment of the present invention.

Among them, each reference sign in the figure:

10—Sock body 20—Sock tube 11—Diastolic ring

12—Sock top 13—Sock surface 14—Sock bottom

15—heel 131—breathable area 141—first anti-slip strip

142—Second anti-skid strip 151—Cushion pad 21—Ventilation channel

22—High elastic Lycra elastic cuff.

Detailed ways

The following describes in detail the embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary, and are intended to be used to explain the embodiments of the present invention, but should not be construed as a limitation of the present invention.

In the description of the embodiments of the present invention, it should be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical" The orientation or positional relationship indicated by "straight", "horizontal", "top", "bottom", "inside", "outside", etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the embodiments of the present invention and simplified description, rather than indicating or implying that the device or element referred to must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as limiting the invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first", "second" may expressly or implicitly include one or more of that feature. In the description of the embodiments of the present invention, "a plurality" means two or more, unless otherwise expressly and specifically defined.

In the embodiments of the present utility model, unless otherwise explicitly specified and limited, terms such as "installation", "connected", "connected", "fixed" should be understood in a broad sense, for example, it may be a fixed connection or a Detachable connection or integration; mechanical connection or electrical connection; direct connection or indirect connection through an intermediate medium, internal communication between two elements or interaction between two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the embodiments of the present invention can be understood according to specific situations.

In one embodiment of the present invention, as shown in FIG. 1 , a sports socks with high heat dissipation performance are provided, including a sock body 10 and a sock tube 20 ; the top of the sock body 10 and the bottom of the sock tube 20 are provided. Knitted connection; the sock body 10 is provided with a ventilation area 131 for heat dissipation at the position corresponding to the toe groove; the sock 20 is made of elastic fiber and bamboo fiber warp and weft cross-knitting; wherein, the ventilation area 131 covers all the toes ditch.

Specifically, it is not difficult to understand that the top of the sock body 10 refers to the top of the sock body 10 having an open end, and the sock tube 20 has a channel for the human foot to pass through, and the channel runs through the top and bottom of the sock tube 20 On the other hand, the above explanations are common sense. The sock tube 20 and the sock body 10 are connected by a boneless suture technology, so that the sock tube 20 and the sock body 10 are connected smoothly, which eliminates the uneven feeling and greatly improves the comfort. When wearing, the moisture and heat generated by the feet are discharged to the outside of the sports socks with high heat dissipation performance through the ventilation area 131. It is conducive to the discharge of hot air, thus greatly improving the heat dissipation performance. In addition, bamboo fiber has strong water absorption and antibacterial effect. Greatly improved usability.

In another embodiment of the present invention, as shown in FIG. 1 , a plurality of ventilation channels 21 are provided on the stocking tube 20; Several of the ventilation channels 21 are arranged at intervals along the circumference of the sock 20 .

Specifically, in this embodiment, the direction from the bottom of the sock 20 to the top of the sock 20 is the length direction of the sock 20 . The direction of rotation around the length direction of the sock 20 is the circumferential direction of the sock 20 . Several ventilation channels 21 are arranged around the sock 20 , the tops of the several ventilation channels 21 are arranged on the top of the sock 20 , and the bottom ends of the several ventilation channels 21 are arranged close to the top of the sock body 10 . This arrangement increases the cross-sectional area of the ventilation channel 21, that is, the heat dissipation area, thereby greatly improving the heat dissipation effect. In addition, with this arrangement, part of the hot air at the sole and the instep can be exhausted to the outside through the ventilation channel 21, thereby further improving the heat dissipation effect.

In another embodiment of the present invention, the ventilation area 131 is composed of several ventilation meshes arranged at intervals, and all the ventilation meshes located at the edges are knitted and connected with the sock body 10 .

Further, the cross-sections of several of the ventilation meshes are all regular hexagons.

Specifically, the moisture and heat inside the sock body 10 are exhausted to the outside of the sock body 10 through several air-permeable mesh holes. The breathable mesh with a regular hexagonal cross-section is easy to weave and has a large ventilation area, so it has good breathability. In addition, it is beneficial to accelerate perspiration, keeping feet dry and comfortable at all times.

In another embodiment of the present invention, as shown in FIG. 1 , the sock body 10 is provided with a relaxation ring 11 ; the relaxation ring 11 is annularly arranged and extends from the sock body 10 corresponding to the sole of the foot to the The sock body 10 corresponds to the instep, so as to prevent expansion and strain of the sole of the foot. Specifically, the relaxation ring 11 is composed of elastic threads arranged at intervals and surrounds the sock body 10 , and the relaxation ring 11 corresponds to the sole of the foot of the human body. When wearing, the relaxation ring 11 can make the part of the sock body 10 corresponding to the sole of the foot tight and close to the sole of the human body, so as to prevent the sole of the foot from expanding and straining, and greatly improve the safety performance.

In another embodiment of the present invention, as shown in FIG. 1 , the sock body 10 includes a toe 12 , a top 13 , a sole 14 and a heel 15 ; the top 12 and the top 13 , The sole 14 and the heel 15 are woven into an integral structure by connecting yarns; the bottom of the sock 20 is woven into an integral structure with the heel 15 and the sock surface 13 by connecting yarns ; The breathable area 131 is arranged at one end of the sock surface 13 close to the toe 12 .

Specifically, the toe 12 corresponds to the toes, the top 13 corresponds to the instep, the sole 14 corresponds to the sole of the foot, the heel 15 corresponds to the back heel, and the sock 20 corresponds to the calf. The relaxation loop 11 spans the sole 14 and the upper 13 . In this embodiment, the connecting yarn includes a Coolmax yarn bundle, and the Coolmax yarn bundle includes a plurality of Coolmax yarns. The toe 12 is connected with the top 13 and the sole 14 by using boneless stitching technology. In this way, the toe 12 is connected smoothly with the top 13 and the bottom 14, eliminating the bumpy feeling and preventing the user from putting on the shoes. Feel the slap in the feet, greatly improving the comfort. In addition, the sock tube 20 is connected with the heel 15 and the sock surface 13 by the same boneless suture technology, so as to eliminate the uneven feeling and improve the comfort.

In another embodiment of the present invention, the outer surface of the sole 14 is provided with a first anti-skid group and a second anti-skid group; the first anti-skid group is disposed close to the toe 12, and the second anti-skid group is provided The set is set close to the heel 15.

Specifically, the first anti-skid group and the second anti-skid group are set to improve the wearer's grip when running or doing other sports, so as to avoid the comfortable sports socks from slipping and dislocation, thereby avoiding the wearer's foot sprain, and further improving the comfort.

In another embodiment of the present invention, as shown in FIG. 1 , the first anti-skid group includes a plurality of first anti-skid strips 141 , and a plurality of the first anti-skid strips 141 are spaced along the length direction of the sole 14 . Arrangement; a plurality of the first anti-skid strips 141 all extend along the width direction of the sole 14 . The second anti-skid group includes a plurality of second anti-skid strips 142, and the plurality of the second anti-skid strips 142 are arranged at intervals along the length direction of the sole 14; extends in the width direction.

Specifically, in this embodiment, the direction from the toe 12 to the heel 15 is the length direction of the sole 14 , and the direction perpendicular to the length direction is the width direction of the sole 14 . All the first anti-skid strips 141 and all the second anti-skid strips 142 are made of silicone, and all the first anti-skid strips 141 and all the second anti-skid strips 142 are coated on the outer surface of the sole 14 by dispensing glue. Silicone has natural anti-slip properties, and its soft texture will not smear your feet, which greatly improves comfort. The provision of the first anti-skid strip 141 and the second anti-skid strip 142 greatly improves the frictional force, thereby preventing the comfortable sports socks from slipping.

In another embodiment of the present invention, the inner surfaces of the toe 12 and the sole 14 are both provided with a first loop layer.

Specifically, in this embodiment, the thickness of the first terry layer is 2 mm to 3 mm, and the first terry layer is provided to improve the wear resistance of the toe 12 and the sole 14 to avoid the toe 12 and the sole 14 Wear and hole formation occurs, thereby increasing the service life. In addition, the first loop layer has good shock absorption and buffering functions, which can reduce the impact force on the wearer's feet when exercising, thereby preventing the wearer's feet from being injured and further improving comfort.

Further, the first loop layer is woven from Coolmax fibers and tactel fibers. Coolmax fiber can quickly drain the sweat generated by human activities to the surface of clothing to evaporate, keeping the skin fresh; while tactel fiber has the advantages of soft touch, good breathability, and comfortable wearing. The first loop layer made of Coolmax fiber and tactel fiber is not only soft and comfortable, but also has good air permeability, which can effectively discharge moisture and heat, avoid athlete's foot, and improve comfort.

In another embodiment of the present invention, the inner surface of the heel 15 is provided with a second terry layer, and the thickness of the second terry layer is 2 mm to 3 mm. Abrasion resistance. In addition, the second terry layer has a good shock absorption and cushioning effect, and has a protective effect on the heel to avoid heel injury. Further, the second loop layer is also woven from Coolmax fibers and tactel fibers.

In another embodiment of the present invention, as shown in FIG. 1 , the top of the sock tube 20 is provided with a sock cuff, and the sock cuff is provided with a high-elasticity Lycra elastic cuff 22. The high-elasticity Lycra elastic cuff 22 It has good elasticity and a high degree of fit, which can prevent the sock from sliding down, and it is stable and comfortable without being tight, which greatly improves the comfort.

In another embodiment of the present invention, as shown in FIG. 1 , the outer surface of the heel 15 is provided with a buffer pad 151 . Specifically, the inside of the buffer pad 151 is filled with high-elasticity cotton, and the high-elasticity cotton has good resilience and can be automatically reset. When wearing and exercising, the high-elastic cotton is squeezed by force, which reduces the impact force received by the wearer's heel, thereby avoiding the occurrence of heel injury and greatly improving comfort.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention shall be included in the present invention. within the scope of protection of the utility model.

Claims (5)

1. The utility model provides a sport socks that heat dispersion is high which characterized in that: comprises a sock body and a sock leg; the top of the sock body is connected with the bottom of the sock leg in a knitting mode; a ventilating area for heat dissipation is arranged at the position, corresponding to the toe ditch, of the sock body; the sock leg is formed by alternately weaving elastic fibers and bamboo fibers in a warp-weft manner; wherein the ventilation area covers all toe furrows; the sock leg is provided with a plurality of ventilation channels; the plurality of air-permeable channels extend along the length direction of the sock leg; the plurality of air-permeable channels are arranged at intervals along the circumferential direction of the sock leg; the breathable area consists of a plurality of breathable meshes which are arranged at intervals, and all the breathable meshes positioned at the edge are connected with the sock body in a knitted mode; the cross sections of the plurality of air-permeable meshes are in regular hexagon shapes; the sock body is provided with a stretch-releasing ring; the relaxation ring is annularly arranged and extends from the position, corresponding to the arch of the foot, of the sock body to the position, corresponding to the instep, of the sock body, so that the arch of the foot is prevented from expanding and being pulled; the sock body comprises a sock head, a sock surface, a sock bottom and a sock heel; the sock head, the sock surface, the sock bottom and the sock heel are woven into an integrally formed structure through connecting yarns; the bottom of the sock leg, the heel and the sock surface are woven into an integrally formed structure through connecting yarns; the breathable area is arranged at one end, close to the sock head, of the sock surface.

2. The sports sock of claim 1, wherein: the outer surface of the sock bottom is provided with a first anti-slip group and a second anti-slip group; the first anti-slip group is close to the sock head, and the second anti-slip group is close to the sock heel.

3. The sports sock of claim 1, wherein: the inner surfaces of the sock head and the sock bottom are provided with first terry layers.

4. The sports sock of claim 3, having a high heat dissipation capacity, wherein: the first terry layer is formed by compositely weaving Coolmax fibers and tactel fibers.

5. The sports sock of claim 1, wherein: the outer surface of the heel is provided with a cushion pad.
