Lighting lamp for rescue at sea

Technical Field

The utility model relates to a marine equipment technical field specifically is a marine rescue light.

Background

Maritime search and rescue refers to the work of searching, rescuing and the like performed by the country or the department aiming at maritime accidents and the like. Maritime search and rescue needs strong technical systems and the like, and the maritime search and rescue comprises a lighting lamp for maritime search and rescue.

Through retrieval, the Chinese patent with the publication number of CN211624911U discloses a durable illuminating lamp for maritime search and rescue, the device has simple structure and clear and understandable structure, the opening on the right end face of the lamp frame is sealed by a frame cover and a connector in a closed manner, and the installation is convenient; the lamp section of thick bamboo surface rotates through the screw thread to be connected with fixed cover, the integration of fixed cover right-hand member is provided with solid fixed ring, strengthen the connection stability of a lamp section of thick bamboo, and be provided with the sealing washer between solid fixed ring and the lamp frame left side wall, be provided with the sealing washer between bezel left end and the lamp frame right-hand member face, improve the totally enclosed water-proof effects, the left side is provided with the indent spherical mirror in the lamp section of thick bamboo, increase illumination scope and illumination intensity, improve and search for and rescue the success rate, whole simple to operate is worth promoting.

The above-described device has the following drawbacks: the device is at marine search and rescue's lighting process, and the device direction of illumination can not change, can only be single shine the place ahead, and the irradiation range is too little, and the person in distress who needs the rescue of discovery that can not be timely, and can not adjust the angle of shining the sea, if can shine the person in distress from the distant place, to having near having lighted on the contrary and can not arrive, lead to the device's practicality poor.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a marine light for rescue has solved the problem that above-mentioned background art mentioned.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an illumination lamp for rescue at sea, includes the main part, the main part is inside to be the cavity form, the main part inner wall sets up rotating device, main part bottom fixed connection supporting leg, main part one side sliding connection illumination shell, illumination shell inner wall sets up adjustable device.

Preferably, four groups of the support legs are arranged at the bottom of the main body in a rectangular shape.

Preferably, the outer wall of the left side of the main body is provided with a semi-arc chute.

Preferably, the rotating device comprises a rotating chassis, the rotating chassis is fixedly connected with the inner wall of the main body, the rotating chassis is fixedly connected with a rotating rod B, the rotating rod B penetrates through the rotating wheel, a connecting rod is fixedly connected to one side of the rotating wheel, and one side of the connecting rod is fixedly connected with the bottom of the illuminating shell.

Preferably, the top of the rotating rod B is fixedly connected with an L-shaped rod, and the outer wall of the L-shaped rod is fixedly connected with a rubber sleeve.

Preferably, the adjustable device comprises an adjusting motor, the adjusting motor is fixedly connected with one side of the illumination shell, an output shaft of the adjusting motor is fixedly connected with the rotating rod A, the rotating rod A penetrates through the illumination sleeve, one side of the rotating rod A is rotatably connected with the circular ring, and the circular ring is fixedly connected with one side of the illumination shell.

Preferably, the inner wall of the lighting sleeve is fixedly connected with a lighting device.

Advantageous effects

The utility model provides a marine light for rescue. The method has the following beneficial effects:

(1) This light for rescue at sea through setting up rotating device, under our needs the condition to the illumination of different directions, through rotating L type pole, makes L type pole drive bull stick B rotatory, makes the runner rotatory, drives lighting device and follows the removal, can realize the illumination to different directions, has enlarged the scope of illumination, makes at the in-process of searching for and rescuing, and the staff can pass through the device faster people who finds the needs rescue.

(2) This light for marine rescue through setting up adjustable device, when needs change lighting device to the angle that the surface of water shines, can drive bull stick A through the accommodate motor operation, makes the lighting sleeve rotatory, makes lighting device follow lighting sleeve change angle, and the angle that the sea shines is adjusted to convenient regulation more like this, has strengthened the practicality of device for it is more convenient at the search and rescue process.

Drawings

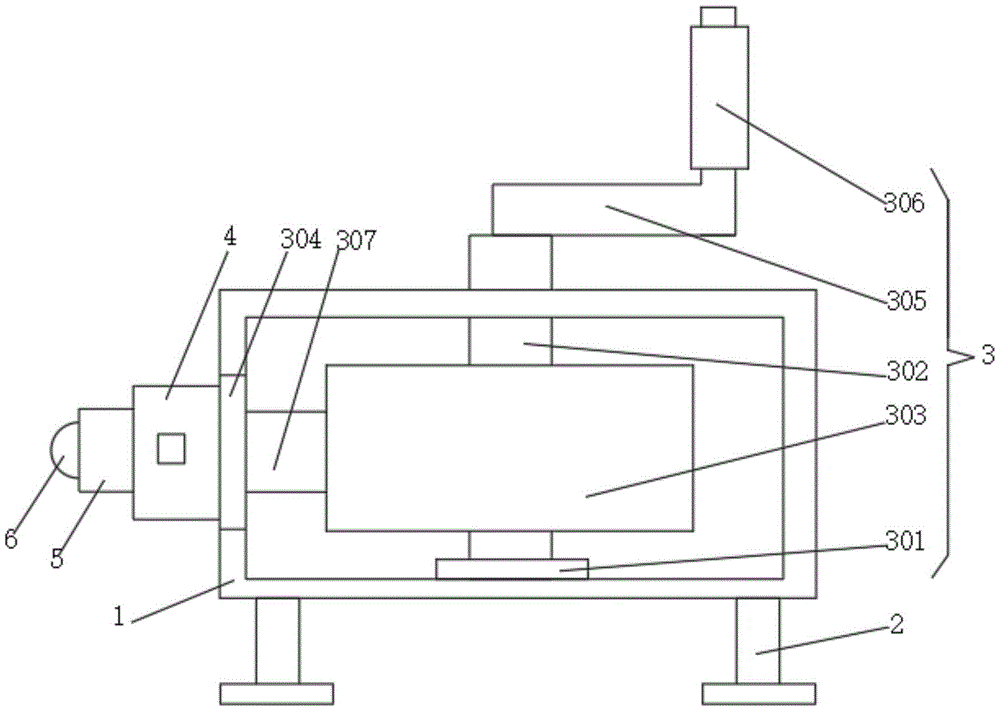

FIG. 1 is a schematic view of the front view structure of the device of the present invention;

FIG. 2 is a schematic view of the adjustable device of the present invention;

fig. 3 is a schematic view of the top view structure of the device of the present invention.

In the figure: 1. a main body; 2. supporting legs; 3. a rotating device; 301. rotating the chassis; 302. a rotating rod B; 303. a rotating wheel; 304. a semi-arc chute; 305. an L-shaped rod; 306. a rubber sleeve; 307. a connecting rod; 4. an illumination housing; 5. an adjustable device; 501. adjusting the motor; 502. a rotating rod A; 503. an illumination sleeve; 504. a circular ring; 6. an illumination device.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a marine light for rescue, includes

main part

1, 1 inside cavity forms that is of main part, 1 inner wall of main part sets up rotating

device

3, 1 bottom fixed connection supporting leg 2 of main part, 1 one side sliding connection illumination shell 4 of main part, 4 inner walls of illumination shell set up adjustable device 5, supporting leg 2 has four groups, and four groups of supporting legs 2 are the rectangle and distribute in 1 bottom of main part, and semi-circular arc spout 304 is seted up to 1 left side outer wall of main part, increases the stability of device in the use.

In this embodiment, the rotating device 3 includes a rotating chassis 301, the rotating chassis 301 is fixedly connected to the inner wall of the main body 1, the rotating chassis 301 is fixedly connected to the rotating rod B302, the rotating rod B302 penetrates through the rotating wheel 303, one side of the rotating wheel 303 is fixedly connected to the connecting rod 307, one side of the connecting rod 307 is fixedly connected to the bottom of the lighting housing 4, the top of the rotating rod B302 is fixedly connected to the L-shaped rod 305, and the outer wall of the L-shaped rod 305 is fixedly connected to the rubber sleeve 306. Through setting up rotating device 3, under the condition that we need the illumination to different directions, through rotating L type pole 305, make L type pole 305 drive bull stick B302 rotatory, make runner 303 rotatory, drive lighting device 6 and follow the removal, can realize the illumination to different directions, enlarged the scope of illumination, make at the in-process of search and rescue, the staff can be through the faster people that find needs the rescue of the device.

In this embodiment, adjustable device 5 includes adjustment motor 501, adjustment motor 501 and illumination shell 4 one side fixed connection, adjustment motor 501's output shaft and bull stick A502 fixed connection, and bull stick A502 runs through illumination sleeve 503, and one side of bull stick A502 is rotated and is connected ring 504, ring 504 and illumination shell 4 one side fixed connection, fixedly connected with lighting device 6 on the inner wall of illumination sleeve 503. Through setting up adjustable device 5, when the angle that lighting device 6 shines the surface of water needs to be changed, can drive bull stick A502 through the operation of adjusting motor 501, make lighting sleeve 503 rotatory, make lighting device 6 follow lighting sleeve 503 and change the angle, the angle that the sea was shone in the regulation that like this is more convenient has strengthened the practicality of device for it is more convenient at the search and rescue process.

During operation (or during the use), through setting up rotating device 3, under the condition that we need the illumination to the direction of difference, through rotating L type pole 305, make L type pole 305 drive bull stick B302 rotatory, make runner 303 rotatory, it follows the removal to drive lighting device 6, can realize the illumination to different directions, the scope of illumination has been enlarged, make the in-process at search and rescue, the staff can find the people that need the rescue through the device sooner, simultaneously through setting up adjustable device 5, when the angle that lighting device 6 shines to the surface of water needs is changed to needs, can operate through adjusting motor 501, drive bull stick A502, it is rotatory to make lighting sleeve 503, make lighting device 6 follow lighting sleeve and change the angle, the angle that 503 shines to the sea more convenient regulation like this, the practicality of device has been strengthened, make it more convenient in the search and rescue process.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a light for rescue at sea, includes main part (1), its characterized in that: the novel multifunctional lamp is characterized in that the inside of the main body (1) is hollow, the inner wall of the main body (1) is provided with a rotating device (3), the bottom of the main body (1) is fixedly connected with a supporting leg (2), one side of the main body (1) is connected with a lighting shell (4) in a sliding mode, and the inner wall of the lighting shell (4) is provided with an adjustable device (5).

2. An illuminating lamp for rescue at sea according to claim 1, characterized in that: the supporting legs (2) are four groups, and the four groups of supporting legs (2) are distributed at the bottom of the main body (1) in a rectangular shape.

3. An illuminating lamp for rescue at sea according to claim 1, characterized in that: the outer wall of the left side of the main body (1) is provided with a semi-circular arc chute (304).

4. An illuminating lamp for rescue at sea according to claim 1, characterized in that: rotating device (3) are including rotating chassis (301), rotating chassis (301) and main part (1) inner wall fixed connection, rotating chassis (301) and bull stick B (302) fixed connection, bull stick B (302) run through runner (303), one side fixedly connected with connecting rod (307) of runner (303), one side and illumination shell (4) bottom fixed connection of connecting rod (307).

5. An illuminating lamp for rescue at sea according to claim 4, characterized in that: the top fixedly connected with L type pole (305) of bull stick B (302), fixedly connected with rubber sleeve (306) on the outer wall of L type pole (305).

6. An illuminating lamp for rescue at sea according to claim 1, characterized in that: adjustable device (5) are including adjusting motor (501), adjusting motor (501) and illumination shell (4) one side fixed connection, the output shaft and bull stick A (502) fixed connection of adjusting motor (501), bull stick A (502) run through illumination sleeve (503), one side of bull stick A (502) is rotated and is connected ring (504), ring (504) and illumination shell (4) one side fixed connection.

7. An illuminating lamp for rescue at sea according to claim 6, characterized in that: and the inner wall of the lighting sleeve (503) is fixedly connected with a lighting device (6).
