CN217547339U - Elastic underpants and casual trousers composed of same - Google Patents

Abstract

The utility model provides an elasticity underpants and leisure trousers of constituteing thereof, its elasticity underpants includes: the waist surface, the combined lining, the soft lining and the waist lining are all made of elastic fabrics and are arranged from outside to inside in a layered manner; the waistband is positioned at the end part of the elastic underpants and is used for bearing the underpants buttons and the underpants ears; the combined liner comprises a bottom liner and a hard liner, wherein one side of the bottom liner is bonded with the inner side surface of the waist surface, and the hard liner is fixed on the other side of the bottom liner; the soft lining is adhered to the inner side of the waist lining. This elasticity underpants adopts the double-deck lining cloth structure of combination lining and soft lining, can ensure that the small deformation takes place in waist face and the waist in step, and then makes the leisure underpants wholly flexible, changes the waistline size to ensure the roughness on leisure underpants surface, improve its pleasing to the eye degree, make the waist sense of touch better.

Description

Elastic underpants and casual trousers composed of same

Technical Field

The utility model relates to the technical field of clothing, especially, relate to an elasticity underpants and leisure trousers of constituteing thereof.

Background

Commercial affairs leisure trousers are that modern business personage attends the conventional selection of some important occasions, along with the change of modern office environment, the increase of the small range of human waistline, and traditional leisure trousers waistline is fixed dimension most can not stretch out and draw back the regulation, and the waist of trousers of leisure trousers can produce a constraint to human waist, makes the people feel that the waist is tight uncomfortable. At present, for most casual pants sold in the market, a full-size process method of a flat waistband and a belt loop is generally adopted, and the variation of the waistline size of the casual pants for men to a human body cannot be met.

The casual pants not only require moderate loosening amount when being cut, but also hope that the waistline of the pants can be freely adjusted, and the comfort level of a wearer is improved. At present, casual trousers in the market mainly comprise two kinds of trousers waists, one is a flat waist, and the inner lining of the trouser bottom of the existing trousers has no elasticity, so that the size adjustability of the trousers is extremely low, and the binding feeling is easy to generate even if the waistband is loosened after a meal; one is to wear the waist with an elastic waist in order to fit consumers of various waistlines, but the waist is cumbersome when worn. As many white collars are used in offices for a long time and on various occasions, the waist of the casual pants is continuously changed, and the waist size of the casual pants is adjusted correspondingly according to the waist of the casual pants.

CN214854428U discloses an elastic waist western-style trousers, which comprises a western-style trousers body, wherein the top of the western-style trousers body is sewn with an elastic waist, the waist comprises a waist head, a waist surface, a waist lining and a waist lining, the waist surface, the waist lining and the waist lining are arranged in a layered manner, the waist lining is positioned between the waist surface and the waist lining, and the waist head is positioned at the end part of the waist of the trousers and used for bearing a buckle of the waist; the waist surface, the waist lining and the waist lining are all made of elastic fabrics, the waistband is made of strongly retracted fabrics, and the elasticity of the waistband, the waist lining and the waist surface is synchronous; the waistband of the elastic waist western-style trousers is easy to deform in the using process, and the attractiveness of the product is affected.

CN214547283U discloses a western style trousers with adjustable waistline, which comprises a western style trousers main body, a plurality of spacing rings fixedly connected with the inner side wall of the western style trousers main body, a spacing belt fixedly connected with the middle part of the western style trousers main body, a plurality of spacing holes arranged at the middle part of the spacing belt, a top sheet fixedly connected with the end of the spacing belt, a protection plate arranged at one side of the western style trousers main body close to the spacing belt, a connecting rod and a fixing rod fixedly connected with one side of the protection plate close to the western style trousers main body respectively, the connecting rod and the western style trousers main body are fixedly connected, and a spacing seat is arranged at one side of the western style trousers main body close to the protection plate. Although the waistline of the western-style trousers can be adjusted, the waistline of the western-style trousers is inconvenient to adjust, and the surface wrinkles of the waistline of the western-style trousers are easily caused when the limiting belt stretches, so that the appearance is influenced.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is: overcomes the defects of the prior art, provides the elastic underpants with beautiful appearance and fine adjustable size, and the casual trousers for protecting the elastic underpants.

The utility model provides a technical scheme that its technical problem adopted is:

an elastic underpants comprises a waistband, a waist surface, a combined lining, a soft lining and a waist lining, wherein the waist surface, the combined lining, the soft lining and the waist lining are all made of elastic fabrics and are arranged from outside to inside in a layered mode; the waistband is positioned at the end part of the elastic underpants and is used for bearing the underpants buttons and the underpants ears; the combined liner comprises a bottom liner and a hard liner, wherein one side of the bottom liner is bonded with the inner side surface of the waist surface, and the hard liner is fixed on the other side of the bottom liner; the soft lining is adhered to the inner side surface of the waist lining.

In an exemplary embodiment, the upper end and the lower end of the bottom lining are provided with a seam allowance with the width of more than or equal to 0.8cm, the width of the seam allowance is preferably 1.0-1.5 cm, and the size of the hard lining is consistent with the size of the net waist width.

In one exemplary embodiment, the thickness ratio of the bottom liner to the hard liner is 1.5-1, the hard liner is thicker and can be shaped, the soft liner is thinner, and the underpants can be fuller, so that the elasticity of the waist of the trousers can be ensured, the waist surface can be supported better, the smoothness of the waist surface of the elastic underpants can be maintained, and the attractiveness of the trousers can be improved.

In an exemplary embodiment, the elasticity of the elastic underpants is 1.0-2.0 cm, and preferably, the elasticity of the elastic underpants is 1.5cm.

Preferably, the waist surface and the waist lining are formed by splicing and folding and ironing seam allowance chain type stitches, so that the transverse elasticity of the waist surface is ensured.

The utility model discloses further solve the technical scheme that its technical problem adopted and be:

the utility model provides a casual pants, includes casual pants body and foretell elasticity underpants, the below is equipped with the front of a garment that is connected through the zip fastener before the elasticity underpants, and preceding pocket, the back pocket of casual pants body all adopt the surface fabric that the horizontal silk has elasticity.

The utility model relates to a beneficial effect of elasticity underpants:

the utility model is formed by sewing the elastic waist lining on the fabric with the telescopic function, so as to stabilize the telescopic resilience of the waistband, and the double-layer lining cloth structure of the combined lining and the soft lining is adopted, so that the waist surface and the waist lining can be ensured to synchronously generate small deformation, the elastic underpants can be integrally stretched, the size of the elastic underpants is changed, and the surface flatness of the elastic underpants is ensured; especially, the hard lining in the combined lining is thicker and can be shaped, the soft lining is thinner, the underpants can be fuller, and the elasticity of the waist of the trousers can be ensured, the waist surface can be better supported, the smoothness of the waist surface of the elastic underpants is kept, the attractiveness is improved, and the touch of the waist is better.

Drawings

Fig. 1 is a schematic structural view of elastic underpants according to embodiment 1 of the present invention;

FIG. 2 isbase:Sub>A schematic cross-sectional view taken along line A-A of FIG. 1;

FIG. 3 is a schematic view of the construction of the composite liner of FIG. 1;

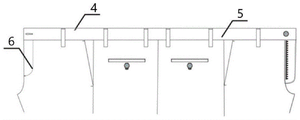

fig. 4 is a schematic view of the waist structure of casual pants in embodiment 2 of the present invention;

fig. 5 is a schematic view of the waist lining structure of the casual pants in embodiment 2 of the present invention;

fig. 6 is a diagram of the effect of stretching the underpants of the casual pants in embodiment 2 of the present invention.

Wherein: 1-waist lining, 2-soft lining, 3-combined lining, 31-bottom lining, 32-hard lining, 4-waist surface, 5-waistband head, 6-front fly, 7-front pocket and 8-back pocket.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Example 1

Referring to fig. 1 to 3, the elastic underpants comprise a waistband 5, a waist surface 4, a combined lining 3, a soft lining 2 and a waistband lining 1, wherein the waist surface 4, the combined lining 3, the soft lining 2 and the waistband lining 1 are all made of elastic fabrics and are arranged from outside to inside in a layered manner; the waistband 5 is positioned at the end part of the elastic underpants and is used for bearing the underpants buttons and the underpants ears; the combined liner 3 comprises a bottom liner 31 and a hard liner 32, one side of the bottom liner 31 is adhered to the inner side of the waist surface 4, and the hard liner 32 is fixed on the other side of the bottom liner 31; the soft lining 2 is bonded with the inner side surface of the waist lining 1.

The upper end and the lower end of the bottom liner 31 are provided with rabbets with the width D =1.0cm, the size of the hard liner 32 is consistent with the size of the net waist width, the deformation of the upper end and the lower end of the elastic fabric of the waist surface 4 is larger than the deformation of the middle part of the waist surface 4, and the front part and the rear part of the elastic underpants are flat.

The thickness of end liner 31 is 0.03cm, and the thickness of hard lining 32 is 0.05cm, and both thickness ratio are 1.67, and hard lining 32 is thicker, can stereotype, and soft lining 2 is thinner, can let the underpants fuller, and then reaches the elasticity that can guarantee the waist of trousers, and can carry out better support to wainscot 4, keeps the planarization of elasticity underpants wainscot 4, improves its pleasing to the eye degree.

The elasticity of the elastic underpants is 1.5cm.

The waist surface 4 and the waist lining 1 are formed by splicing and folding seam loops, so that the transverse elasticity of the waist surface 4 is ensured.

Example 2

Referring to fig. 4 to 6, the casual pants comprise an casual pants body and elastic underpants, the elastic underpants are sewn at the upper end of the casual pants body, a front fly 6 connected through a zipper is arranged below the front of the elastic underpants, and a front pocket 7 and a rear pocket 8 of the casual pants body are made of fabric with elastic transverse threads.

The elastic underpants comprise waistband 5, waistband surface 4, combined lining 3, soft lining 2 and waistband lining 1, wherein the waistband surface 4, the combined lining 3, the soft lining 2 and the waistband lining 1 are all made of elastic fabrics and are arranged from outside to inside in a layered mode; the waistband 5 is positioned at the end part of the elastic underpants and is used for bearing the underpants buttons and the underpants ears; the combined liner 3 comprises a bottom liner 31 and a hard liner 32, wherein one side of the bottom liner 31 is adhered to the inner side of the waist surface 4, and the hard liner 32 is fixed on the other side of the bottom liner 31; the soft lining 2 is adhered to the inner side surface of the waist lining 1.

The upper end and the lower end of the bottom liner 31 are provided with rabbets with the width D =1.2cm, the size of the hard liner 32 is consistent with the size of the net waist width, so that the deformation of the upper end and the lower end of the elastic fabric of the waist surface 4 is larger than the deformation of the middle part of the waist surface 4, and the elastic underpants are smooth before and after deformation.

The thickness of end liner 31 is 0.03cm, and the thickness of hard lining 32 is 0.06cm, and both thickness ratio are 1, and hard lining 32 is thicker, can stereotype, and soft lining 2 is thinner, can let the underpants fuller, and then reach the elasticity that can guarantee the waist of trousers, and can carry out better support to wainscot 4, keep the planarization of elasticity underpants wainscot 4, improve its aesthetic measure.

The elasticity of the elastic underpants is 1.8cm.

The waist surface 4 and the waist lining 1 are formed by splicing and folding and ironing seam allowance chain stitches, and the transverse elasticity of the waist surface 4 is ensured.

The utility model relates to an elasticity underpants, the tang width of the upper end of its end liner 31, lower extreme can also be 0.8cm or 1.5cm, the thickness ratio of end liner 31 and the stiffener 32 of combination lining 3 can also be 1.3 or 1, the elasticity of elasticity underpants can also be 1.2cm or 2.0cm; the above technical features can be understood and implemented by those skilled in the art through the text description, and therefore, the accompanying drawings are not needed to be described.

Finally, it is to be noted that: the above description is only the preferred embodiment of the present invention, and is only used to illustrate the technical solution of the present invention, and is not used to limit the protection scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention shall fall within the protection scope of the present invention.

Claims (7)

1. An elastic underpants, comprising: the waist-protecting lining comprises a waistband (5), a waist surface (4), a combined lining (3), a soft lining (2) and a waist lining (1), wherein the waist surface (4), the combined lining (3), the soft lining (2) and the waist lining (1) are all made of elastic fabrics and are arranged from outside to inside in a layered mode; the waistband (5) is positioned at the end part of the elastic underpants and is used for bearing the underpants buttons and the underpants ears; the combined lining (3) comprises a bottom lining (31) and a hard lining (32), one side of the bottom lining (31) is bonded with the inner side of the waist surface (4), and the hard lining (32) is fixed on the other side of the bottom lining (31); the soft lining (2) is bonded with the inner side surface of the waist lining (1).

2. The elastic underpants according to claim 1 wherein the upper end and the lower end of the bottom lining (31) are provided with a seam allowance with a width of 0.8cm or more, and the size of the hard lining (32) is consistent with the size of the clear waist width.

3. The elastic underpants according to claim 1 or 2, wherein the elasticity of said elastic underpants is 1.0 to 2.0cm.

4. The stretch pant of claim 3, wherein the stretch pant has a stretch of 1.5cm.

5. The stretch pant of claim 1, wherein the ratio of the thickness of the backsheet (31) to the thickness of the stiffener (32) is from 1.5 to 1.

6. The stretch underpants according to claim 1 or 2, wherein the waist surface (4) and the waist lining (1) are made by splicing and folding and ironing seam chain stitches.

7. Leisure pants, characterized in that the leisure pants comprise a leisure pants body and the elastic underpants according to any one of claims 1-6, the elastic underpants are sewn at the upper end of the leisure pants body, a front fly (6) connected through a zipper is arranged below the front of the elastic underpants, and a front pocket (7) and a rear pocket (8) of the leisure pants body are made of transverse-thread elastic fabric.
