The utility model discloses a luminous tri-proof light of buckle installation side, including mount pad and lamp stand, be equipped with four at least installation hole sites on the mount pad, through fix with screw active light source board and drive power supply in the lamp stand, the bottom surface of lamp stand is provided with printing opacity panel, a plurality of light trap has been seted up to the lateral wall inside of lamp stand, the base integrated into one piece of lamp stand has the chimb of kickup, be provided with the buckle bump on the inner wall of chimb, the buckle hole has been seted up on the lateral wall of lamp stand, still be provided with the side light-passing board, the interior border integrated into one piece of side light-passing board have with buckle hole position matched with plug-in card lug, the outer border of side light-passing board has been seted up to detain the hole groove, fixed side light area on the inner wall of lamp stand. The utility model has reasonable structure, is beneficial to improving the lighting effect, and the side light-passing plate is fixed by the buckle, so that the disassembly and the assembly are more convenient, the applicability is strong and the practicability is good; the lamp holder and the mounting seat are used for conducting card inserting positioning through the card inserting guide protruding strips and the card inserting guide grooves, the lamp holder and the mounting seat are convenient to disassemble, assemble and combine, and the practicability is good.
Description
Technical Field
The utility model belongs to the technical field of the tri-proof light, concretely relates to luminous tri-proof light of buckle installation side.
Background
The tri-proof light is a common illumination lamps and lanterns, it is often applied to the comparatively abominable place of outdoor or other environment, therefore it possesses the tri-proof characteristic to need the frame lamp, waterproof has promptly, three kinds of characteristics of dustproof and anticorrosion, among the prior art, it is mainly by the lamp stand to the tri-proof light, fix luminous light source board and the light-passing board on the lamp stand, its user demand that can satisfy general condition, but its illuminating effect is comparatively limited, and also comparatively inconvenient when installing with the lighting fixture, so can influence the efficiency of installation to a certain extent, so suitability and practicality receive the restriction.
Disclosure of Invention
The utility model aims at providing a buckle installation luminous tri-proof light of side that the structure set up rationally and the dismouting is convenient.
Realize the technical scheme of the utility model a luminous tri-proof light of buckle installation side, including mount pad and lamp stand, be equipped with four at least installation hole sites on the mount pad, there are light source board and drive power supply through the fix with screw in the lamp stand, the bottom surface of lamp stand is provided with printing opacity panel, a plurality of printing opacity window has been seted up to the lateral wall inside of lamp stand, the base integrated into one piece of lamp stand has the chimb of bending upward, be provided with the buckle bump on the inner wall of chimb, the buckle hole has been seted up on the lateral wall of lamp stand, still be provided with the side light-passing board, the interior border integrated into one piece of side light-passing board have with buckle hole position matched with plug-in card lug, the outer border of side light-passing board seted up with buckle bump position matched with supports the buckle hole groove, fixed side lamp area on the inner wall of lamp stand, the lamp pearl in side lamp area is in printing opacity window department.
The lamp holder is characterized in that a U-shaped raised line is integrally formed on the top surface of the lamp holder, a plug-in card guide groove is formed in the symmetrical inner wall of the U-shaped raised line, a plug-in card guide raised line is integrally formed in the bottom of the symmetrical outer wall of the mounting seat, the mounting seat is inserted from the opening of the U-shaped raised line, and the plug-in card guide raised line is inserted into the plug-in card guide groove.
An opening of the U-shaped convex strip is integrally formed with an inclined guide baffle piece which is inclined outwards.
The width of the mounting seat is the same as that of the U-shaped raised line.
The side light-passing board is a light-transmitting acrylic board.
The utility model discloses has positive effect: the utility model has the advantages that the structure is reasonable, the light transmission window is arranged on the side wall of the lamp holder, the side light transmission plate is arranged outside the lamp holder, and the side light transmission plate is provided with the side light belt in the lamp holder, thereby being beneficial to improving the lighting effect; meanwhile, the lamp holder and the mounting seat are used for conducting card inserting positioning through the card inserting guide protruding strips and the card inserting guide grooves, the lamp holder and the mounting seat are convenient to disassemble, assemble and combine, and the practicability is good.
Drawings
In order that the manner in which the present invention is attained and can be more readily understood and appreciated, a more particular description of the invention, briefly summarized above, may be had by reference to the embodiments thereof which are illustrated in the appended drawings, wherein:
fig. 1 is a schematic structural view of the present invention;
fig. 2 is another schematic view of the present invention;

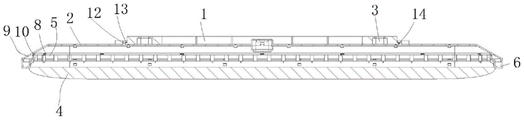

fig. 3 is a sectional structure view of the present invention.
Reference numerals: the mounting base 1, the lamp stand 2, the installation hole site 3, the printing opacity panel 4, the printing opacity window 5, chimb 6, buckle bump 7, buckle hole 8, side light-passing board 9, plug-in card lug 10, support buckle hole groove 11, U-shaped sand grip 12, plug-in card guide way 13, plug-in card direction sand grip 14, slope guide separation blade 15.
Detailed Description
The technical solution is further explained by referring to the drawings in the above specification, and the specific description is as follows:
see fig. 1 to fig. 3, a luminous tri-proof light of buckle installation side, including mount pad 1 and lamp stand 2, be equipped with four at least installation hole sites 3 on the mount pad, in this embodiment, the mount pad is fixed with the installation position through the inflation screw rod on, and the inflation screw rod wears to establish the installation hole site, at the practical application in-process, can set up six, can guarantee the stationarity and the reliability of installation, fix with screw light source board and drive power supply in the lamp stand, in this embodiment, light source board and drive power supply are prior art's conventional structure, the bottom surface of lamp stand is provided with light-transmitting panel 4, a plurality of printing opacity window 5 has been seted up to the lateral wall inside of lamp stand, the base integrated into one piece of lamp stand is the chimb 6 of bending upwards, and in this embodiment, the height of chimb slightly is less than the printing opacity window to the chimb can not influence normal printing opacity, be provided with buckle bump 7 on the inner wall of chimb, buckle hole 8 has been seted up on the lateral wall of lamp stand, still is provided with side light-transmitting plate 9, in this embodiment, side light-transmitting plate is the acrylic plate body. The interior border integrated into one piece of side light-passing board have with buckle hole position matched with plug-in card lug 10, the outer border of side light-passing board seted up with buckle bump position matched with supports buckle hole groove 11, fixed side lamp area on the inner wall of lamp stand, in this embodiment, side lamp area is prior art's conventional structure, and is only simple to use, the lamp pearl in side lamp area is in light-permeable window department. Its side light-passing board is fixed a position through the buckle to conveniently carry out the dismouting operation, also can guarantee effectual light transmission performance simultaneously, the practicality is strong.
The top surface integrated into one piece of lamp stand has U-shaped sand grip 12, and in this embodiment, the height of U-shaped sand grip can set up as required, and in the practical application process, the height of U-shaped sand grip and the thickness of mount pad to the dismouting operation of being convenient for, plug-in card guide way 13 has been seted up on the symmetry inner wall of U-shaped sand grip, the symmetry outer wall bottom integrated into one piece of mount pad has plug-in card direction sand grip 14, the mount pad inserts from the opening part of U-shaped sand grip, just plug-in card direction sand grip plug-in card is in the location in the plug-in card guide way. In this embodiment, in order to improve the convenience of inserting the card, an inclined guiding stop piece 15 inclined outwards is integrally formed at the opening of the U-shaped protruding strip, and in the practical application process, the width of the mounting seat is the same as that of the U-shaped protruding strip.
The utility model has the advantages that the structure is reasonable, the light transmission window is arranged on the side wall of the lamp holder, the side light transmission plate is arranged outside the lamp holder, and the side light transmission plate is provided with the side light belt in the lamp holder, thereby being beneficial to improving the lighting effect; meanwhile, the lamp holder and the mounting seat are used for conducting card inserting positioning through the card inserting guide protruding strips and the card inserting guide grooves, the lamp holder and the mounting seat are convenient to disassemble, assemble and combine, and the practicability is good.
The standard parts used in the present embodiment can be purchased directly from the market, and the non-standard structural parts described in the specification can also be obtained directly by processing according to the common general knowledge of the prior art without any doubt, and the connection mode of the parts adopts the conventional means matured in the prior art, and the machines, parts and equipment adopt the conventional models in the prior art, so that the detailed description is not given here.
It is obvious that the above embodiments of the present invention are only examples for clearly illustrating the present invention, and are not limitations to the embodiments of the present invention. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. This need not be, nor should it be exhaustive of all embodiments. And obvious changes and modifications which fall within the spirit of the invention are intended to be protected by the present invention.
Claims (5)
1. The utility model provides a luminous tri-proof light of buckle installation side, includes mount pad and lamp stand, be equipped with four at least installation hole sites on the mount pad, there are light source board and drive power supply through the fix with screw in the lamp stand, the bottom surface of lamp stand is provided with printing opacity panel, its characterized in that: the utility model discloses a lamp holder, including lateral wall, lamp stand, buckle hole, side light-passing board, fixed side lamp area on the inner wall of lamp stand, the lateral wall of lamp stand is inside to have seted up a plurality of light trap, the base integrated into one piece of lamp stand has the chimb of bending up, be provided with the buckle bump on the inner wall of chimb, the buckle hole has been seted up on the lateral wall of lamp stand, still be provided with the side light-passing board, the interior border integrated into one piece of side light-passing board have with buckle hole position matched with plug-in card lug, the outer border of side light-passing board seted up with buckle bump position matched with is supported and is detained the hole groove, fixed side lamp area on the inner wall of lamp stand, the lamp pearl in side lamp area is in light trap department.
2. The buckle-mounted side-emitting tri-proof light of claim 1, wherein: the top surface integrated into one piece of lamp stand has the U-shaped sand grip, the plug-in card guide way has been seted up on the symmetrical inner wall of U-shaped sand grip, the symmetry outer wall bottom integrated into one piece of mount pad has plug-in card direction sand grip, the mount pad inserts from the opening part of U-shaped sand grip, just plug-in card direction sand grip plug-in card is in the location of plug-in card guide way.
3. The buckle-mounted side-emitting tri-proof light as claimed in claim 2, wherein: an opening of the U-shaped raised line is integrally formed with an inclined guide baffle piece which is inclined outwards.
4. The buckle-mounted side-emitting tri-proof light as claimed in claim 3, wherein: the width of the mounting seat is the same as that of the U-shaped raised line.
5. The buckle-mounted side-emitting tri-proof light as claimed in claim 4, wherein: the side light-passing board is a light-transmitting acrylic board.
