CN217511914U

CN217511914U - Continuous rotary energy-saving wheat wetting and watering device

Info

Publication number: CN217511914U
Application number: CN202221187586.3U
Authority: CN
Inventors: 任顺保; 张恩增; 张建明; 孟新军
Original assignee: Hebei Damingfu Flour Co ltd
Current assignee: Hebei Damingfu Flour Co ltd
Priority date: 2022-05-18
Filing date: 2022-05-18
Publication date: 2022-09-30
Anticipated expiration: 2032-05-18

Abstract

The utility model discloses a continuous rotary energy-saving wheat wetting and watering device, which comprises a bracket, a box body, purified water and a wheat body, wherein the upper end of the box body is provided with a feed hopper, the lower end of the box body is provided with a discharge port, the inner side of the box body is provided with a wheat conveying part, and one side of a wheat transmission mechanism is provided with a wheat watering part; the wheat conveying part comprises a rotary drum and a driving assembly, the driving assembly drives the rotary drum to rotate, and the rotary drum pushes the wheat body to move towards the discharge hole; wheat portion of watering is including permeating water hole, water conservancy diversion subassembly, the pure water flow direction of water conservancy diversion subassembly guide permeates water hole, and the pure water passes and permeates water hole and mix with the wheat body. The beneficial effects of the utility model are that, through the cooperation operation of wheat conveying portion and wheat portion of watering, make and strike water and go on simultaneously with the stirring, it is long when increasing to strike water when efficiency is being improved to strike water, realizes striking the purpose of water effect.

Description

Continuous rotation type energy-saving wheat wetting and watering device

Technical Field

The utility model relates to a wheat moistens wheat technical field, and more specifically says, relates to an energy-conserving wheat of continuous rotary type moistens wheat and attaches water installation.

Background

Before wheat is milled, a proper amount of water is added to the wheat to increase the moisture of the wheat cortex, so that the crushing strength of the wheat cortex is improved, the wheat cortex is not easy to crush when the wheat is milled, the ash content is reduced, and the flour yield is improved; the existing wheat dampening device is named as a patent of a wheat spray dampening machine for flour processing, for example, patent No. CN202020336127.1, in the patent, when wheat passes through the lower part of a feed hopper, dampening operation is firstly carried out on the wheat through a spray head, then stirring is carried out through a packing auger, the dampening process is short, and the dampening effect is poor.

SUMMERY OF THE UTILITY MODEL

To the above defect, the utility model provides an energy-conserving wheat of continuous rotary type wets wheat and attaches water installation solves above-mentioned problem.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a continuous rotation type energy-saving wheat wetting and watering device comprises a support, a box body, purified water and a wheat body, wherein a feed hopper is arranged at the upper end of the box body, a discharge hole is formed in the lower end of the box body, a wheat conveying part is arranged on the inner side of the box body, and a wheat watering part is arranged on one side of a wheat transmission mechanism;

the wheat conveying part comprises a rotary drum and a driving assembly, the driving assembly drives the rotary drum to rotate, and the rotary drum pushes the wheat body to move towards the discharge hole;

wheat portion of watering is including permeating water hole, water conservancy diversion subassembly, the pure water flow direction of water conservancy diversion subassembly guide permeates water hole, and the pure water passes and permeates water hole and mix with the wheat body.

Further, the driving assembly comprises sealing bearings arranged at two ends of the box body, the rotary drum is arranged on the inner ring of the sealing bearings, a driven wheel is arranged at one end of the rotary drum, a rotary motor is arranged at the lower end of the support, a driving wheel is arranged at the rotating end of the rotary motor, a conveying belt is arranged between the driving wheel and the driven wheel, and spiral sheets are arranged on the side surface of the rotary drum.

Furthermore, the diversion assembly comprises diversion trenches formed in the inner side surface of the rotary drum, one end of the rotary drum is open, the other end of the rotary drum is closed, water permeable holes are formed in the side surface of the rotary drum, and the water permeable holes are communicated with the diversion trenches; the limiting rod is installed at the upper end of the support, and the water inlet pipe is installed at the upper end of the limiting rod.

Further, the inner diameter of the closed end of the rotary drum is smaller than that of the open end of the rotary drum.

Further, a brush belt is installed on the side surface of the spiral sheet.

Further, a fixing ring is installed at one end of the opening of the rotary drum.

The beneficial effects of the utility model are that: through the cooperation operation of wheat conveying portion and wheat portion of watering, make and wet and stir and go on simultaneously, it is long when increasing to wet when improving the efficiency of dampening, realizes the purpose of dampening the effect.

Drawings

FIG. 1 is a schematic structural view of a continuous rotation type energy-saving wheat wetting and watering device of the present invention;

FIG. 2 is a schematic view of a wheat transfer section;

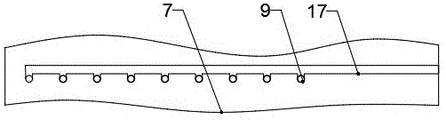

fig. 3 is a schematic top view of a baffle slot;

in the figure, 1, a stent; 2. a box body; 3. purified water; 4. a wheat body; 5. a feed hopper; 6. a discharge port; 7. a rotating drum; 8. a drive assembly; 9. water permeable holes; 10. a flow guide assembly; 11. sealing the bearing; 12. a driven wheel; 13. a rotating electric machine; 14. a driving wheel; 15. a conveyor belt; 16. a spiral sheet; 17. a diversion trench; 18. a limiting rod; 19. a water inlet pipe; 20. a brush belt; 21. and (4) fixing the ring.

Detailed Description

In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. The invention may be embodied in many other forms different from those described herein and similar modifications may be made by those skilled in the art without departing from the spirit and scope of the invention and, therefore, the invention is not to be limited to the specific embodiments disclosed below.

The embodiment of the present application provides a continuous rotation type energy-saving wheat wetting and watering device, please refer to fig. 1-3: the wheat water-absorbing device comprises a support 1, a box body 2, purified water 3 and a wheat body 4, wherein a feed hopper 5 is arranged at the upper end of the box body 2, a discharge hole 6 is formed at the lower end of the box body 2, a wheat conveying part is arranged at the inner side of the box body 2, and a wheat water-absorbing part is arranged at one side of a wheat transmission mechanism;

the wheat conveying part comprises a rotary drum 7 and a driving assembly 8, the driving assembly 8 drives the rotary drum 7 to rotate, and the rotary drum 7 pushes the wheat body 4 to move towards the discharge port 6;

wheat portion of watering is including permeating water hole 9, water conservancy diversion subassembly 10, and water conservancy diversion subassembly 10 guide pure water 3 to permeate water hole 9, and pure water 3 passes and permeates water hole 9 and mix with wheat body 4.

Drive assembly 8 is including installing sealed bearing 11 at box 2 both ends, and rotary drum 7 is installed at sealed bearing 11 inner circle, and 7 one ends of rotary drum are installed from driving wheel 12, and rotating electrical machines 13 are installed to support 1 lower extreme, and driving wheel 14 is installed to the rotatory end of rotating electrical machines 13, installs conveyer belt 15 between driving wheel 14 and the driven wheel 12, and helical blade 16 is installed to 7 side surfaces of rotary drum.

The diversion assembly 10 comprises a diversion trench 17 formed in the inner side surface of the rotary drum 7, one end of the rotary drum 7 is open, the other end of the rotary drum 7 is closed, the water permeable holes 9 are formed in the side surface of the rotary drum 7, and the water permeable holes 9 are communicated with the diversion trench 17; the upper end of the bracket 1 is provided with a limiting rod 18, and the upper end of the limiting rod 18 is provided with a water inlet pipe 19.

The inner diameter of the closed end of the drum 7 is smaller than the inner diameter of the open end of the drum 7.

The side surface of the spiral piece 16 is provided with a brush belt 20.

The open end of the rotating cylinder 7 is provided with a fixed ring 21, and the purified water 3 can be prevented from overflowing through the action of the fixed ring 21.

In this embodiment, the electrical appliance of the device is controlled by an external controller, the wheat body 4 can be transported to the feed hopper 5 through an external transmission device, the wheat body 4 enters the box body 2 through the feed hopper 5 and falls into a space between the rotary drum 7 and the box body 2, the rotary motor 13 is controlled to rotate, the rotary motor 13 drives the driving wheel 14 to rotate, the driving wheel 14 drives the driven wheel 12, the rotary drum 7 and the spiral piece 16 to rotate through the conveying belt 15, the spiral piece 16 rotates to rotate the wheat body 4 at one end of the feed hopper 5 to the position of the discharge port 6, and the transmission efficiency of the spiral piece 16 can be improved through the action of the hairbrush belt 20;

simultaneously with the water source switch-on of inlet tube 19 with the external world, the pure water 3 removes to rotary drum 7 inner circle through inlet tube 19, utilizes the slope and the gravitational potential energy of rotary drum 7 inner circle, and pure water 3 removes to the hole of permeating water 9 along guiding gutter 17, flows to the position of wheat body 4 through the hole of permeating water 9, and pure water 3 discharges from discharge gate 6 after mixing with wheat body 4.

All possible combinations of the technical features of the above embodiments may not be described for the sake of brevity, but should be considered as within the scope of the present disclosure as long as there is no contradiction between the combinations of the technical features.

The above-mentioned embodiments only represent some embodiments of the present invention, and the description thereof is specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, without departing from the concept of the present invention, several variations and modifications can be made, which all fall within the scope of the present invention. Therefore, the protection scope of the present invention should be subject to the appended claims.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or they may be interconnected within two elements or in a relationship where two elements interact with each other unless otherwise specifically limited. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

In the present application, unless expressly stated or limited otherwise, the first feature may be directly on or directly under the second feature or indirectly via intermediate members. Also, a first feature "on," "over," and "above" a second feature may be directly or diagonally above the second feature, or may simply indicate that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the first feature, or may simply mean that the first feature is at a lesser elevation than the second feature.

It will be understood that when an element is referred to as being "secured to" or "disposed on" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. As used herein, the terms "vertical," "horizontal," "upper," "lower," "left," "right," and the like are for purposes of illustration only and do not denote a single embodiment.

Claims

1. A continuous rotation type energy-saving wheat wetting and watering device comprises a support (1), a box body (2), purified water (3) and a wheat body (4), wherein a feed hopper (5) is arranged at the upper end of the box body (2), and a discharge hole (6) is formed in the lower end of the box body (2), and is characterized in that a wheat conveying part is arranged on the inner side of the box body (2), and a wheat watering part is arranged on one side of a wheat transmission mechanism;

the wheat conveying part comprises a rotary drum (7) and a driving assembly (8), the driving assembly (8) drives the rotary drum (7) to rotate, and the rotary drum (7) pushes the wheat body (4) to move towards the discharge hole (6);

wheat portion of catching water is including permeating water hole (9), water conservancy diversion subassembly (10) guide pure water (3) flow direction to permeate water hole (9), and pure water (3) pass and permeate water hole (9) and mix with wheat body (4).

2. The continuous rotation type energy-saving wheat wetting and watering device is characterized in that the driving assembly (8) comprises sealing bearings (11) arranged at two ends of the box body (2), the rotating drum (7) is arranged at the inner ring of the sealing bearings (11), a driven wheel (12) is arranged at one end of the rotating drum (7), a rotating motor (13) is arranged at the lower end of the support (1), a driving wheel (14) is arranged at the rotating end of the rotating motor (13), a conveying belt (15) is arranged between the driving wheel (14) and the driven wheel (12), and spiral sheets (16) are arranged on the side surface of the rotating drum (7).

3. The continuous rotating type energy-saving wheat wetting and watering device according to claim 2, wherein the diversion assembly (10) comprises diversion trenches (17) formed on the inner side surface of the rotary drum (7), one end of the rotary drum (7) is open, the other end of the rotary drum (7) is closed, water permeable holes (9) are formed on the side surface of the rotary drum (7), and the water permeable holes (9) are communicated with the diversion trenches (17); a limiting rod (18) is installed at the upper end of the support (1), and a water inlet pipe (19) is installed at the upper end of the limiting rod (18).

4. A continuously rotating energy-saving wheat wetting and watering device according to claim 3, wherein the inner diameter of the closed end of the rotating drum (7) is smaller than the inner diameter of the open end of the rotating drum (7).

5. The continuous rotation type energy-saving wheat wetting and watering device according to claim 2, wherein a brush belt (20) is installed on the side surface of the spiral piece (16).

6. A continuously rotating energy-saving wheat wetting and watering device according to any one of claims 1-4, wherein a fixed ring (21) is mounted at the open end of the rotating drum (7).
