CN217503390U - Portable multifunctional handheld folding lamp - Google Patents

Abstract

The utility model discloses a portable multifunctional hand-held folding lamp, which comprises a lamp housing and a folding seat which is damped and rotatably connected with the lamp housing. A light source lamp board is installed on the lamp housing, the folding lamp can be freely extended and folded, and is easy to carry. At the same time, it can adjust the illumination angle of the changing light. The folding seat is provided with a mobile phone slot and a mobile phone power supply mechanism, so that the mobile phone can be directly inserted into the mobile phone slot and charged through the mobile phone power supply mechanism to obtain battery life without additional carrying. Mobile charging devices such as power banks, and mobile phone slots can also place large electronic smart devices. The lamp housing can be rotated to a suitable angle to form a reliable support for the device. A mosquito repellent box and an aromatherapy box are installed on the folding seat. It can repel mosquitoes and relieve human fatigue, with various functions.

Description

A portable multifunctional hand-held folding lamp

technical field

The utility model relates to a lighting fixture, in particular to a portable multifunctional hand-held folding lamp.

Background technique

When people rest or work in a dark environment, they generally need hand-held lamps and lanterns for supplementary lighting. However, such high-power lamps and lanterns are bulky and difficult to fold, which makes them lose their portability. With the widespread use of smart phones, People use mobile phones very frequently. People usually need to use electronic devices such as mobile phones for entertainment or auxiliary work while resting or working. However, the function of hand-held lamps is very single, and they cannot supply power for smart phones, MP3 and other devices. At the same time, it is also faced with the need to support and place such electronic equipment. Therefore, it is necessary to carry additional mobile phone brackets and relatively heavy power bank equipment, and it is easy to forget to carry or the power of the charging equipment is insufficient. In addition, handheld lamps are often used in outdoor environments. , People who are active outside are often disturbed by mosquitoes. If the working time is too long, they will cause fatigue. Therefore, they also need to carry mosquito repellent and refreshing items, which leads to a large number of items that people need to carry, which is very inconvenient.

SUMMARY OF THE INVENTION

In order to overcome the deficiencies of the prior art, the utility model provides a portable multifunctional hand-held folding lamp which can be powered by electronic equipment and supported and placed.

The technical scheme adopted by the utility model to solve its technical problems is:

A portable multifunctional hand-held folding lamp, comprising a lamp housing and a folding seat connected with the lamp housing in damping rotation, the lamp housing is provided with a concave cavity, a light source lamp board is installed in the concave cavity, and the folding seat A mobile phone slot and a mobile phone power supply mechanism are arranged thereon.

A mosquito repellent box and an aromatherapy box with ventilation holes on the surface are installed on the folding seat, and a mosquito repellent sheet and a refreshing aromatherapy sheet are placed in the mosquito repellent box and the aromatherapy box, respectively.

A light-transmitting plate covering and sealing the cavity is installed on the lamp housing, a light cup is installed between the light-transmitting plate and the light source lamp board, a control circuit board is installed in the cavity, and a control circuit board is installed in the cavity. The light source lamp board provides a light source battery for working power, the light source lamp board is electrically connected to the control circuit board through the light source battery, and the side of the lamp housing is provided with a digital display and a switch that are electrically connected to the control circuit board Button, USB interface and USBTypeC interface.

The mobile phone power supply mechanism includes a power supply plug, a lithium battery installed in the folding seat, the lithium battery is electrically connected to the control circuit board, and the power supply plug includes a lightning plug connected to the lithium battery through a data cable, MicroUSB plugs and USBTypeC plugs, the outer surface of the folding seat is provided with a touch switch for controlling power supply, a data cable slot arranged in parallel, and a plug groove communicated with the data cable slot, the plug groove is facing the A socket for accommodating and placing the power supply plug is arranged on the side of the data line slot.

The side of the lamp housing is provided with a first bushing, the two ends of the side of the folding seat are symmetrically arranged with a second bushing, and the inner mounting end of the first bushing penetrates the rotating shaft of the second bushing The inner wall of the second shaft sleeve is circumferentially arranged with arc-shaped damping teeth, a damping piece is installed on the rotating shaft, and the side of the damping piece is symmetrically provided with a hook whose end is secured against the damping tooth.

A shaft member is fixedly installed in the first shaft sleeve and the second shaft sleeve, the shaft member is axially provided with a shaft hole with a polygonal cross-section, and the outer side of the rotating shaft is provided with a convex shape corresponding to the shaft hole. pieces.

The inner walls of the first bushing and the second bushing are respectively provided with a first wire hole and a second wire hole.

Each slot surface of the mobile phone slot is provided with a non-slip rubber pad.

The mobile phone slot has an included angle with the horizontal plane.

The beneficial effects of the utility model are: the utility model can be freely stretched and folded, and the illumination angle of the changing light can be adjusted while being easy to carry. The folding seat is provided with a mobile phone slot and a mobile phone power supply mechanism, so that the mobile phone can be directly inserted and placed. On the mobile phone slot, it is charged through the mobile phone power supply mechanism to obtain battery life. There is no need to carry additional mobile charging equipment such as power banks. The mobile phone slot can also place relatively large electronic smart devices, and the lamp housing can be rotated to fit The angle of the folding seat can form a reliable support for the equipment. The mosquito repellent box and the aromatherapy box are installed on the folding seat, which can drive away mosquitoes and relieve human fatigue, and have various functions.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

Fig. 1 is one of the partial structure exploded views of the present utility model;

Fig. 2 is the structural representation of the present utility model;

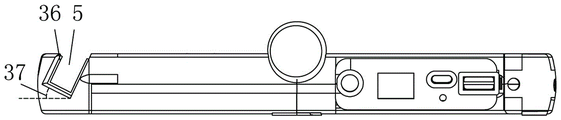

Fig. 3 is the side view of the present utility model;

Fig. 4 is the second part of the exploded view of the present utility model;

FIG. 5 is a structural diagram of the utility model using a spotlight bulb as a light source.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art without creative work fall within the protection scope of the present invention.

The orientation or positional relationship indicated by "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", etc. is based on the drawings The orientation or positional relationship shown is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a Utility Model Restrictions. Furthermore, the terms "first", "second", etc. are only used to differentiate the description and should not be construed to indicate or imply relative importance.

1 to 4, a portable multifunctional hand-held folding lamp includes a lamp housing 1 and a folding seat 2 connected with the lamp housing 1 for damping and rotation. The lamp housing 1 is provided with a cavity 3, the recessed A light source lamp board 4 is installed in the cavity 3, and the folding lamp can be freely stretched and folded, and the illumination angle of the changing light can be adjusted while being easy to carry. The folding seat 2 is provided with a mobile phone slot 5 and a mobile phone power supply mechanism, so that the The mobile phone can be directly inserted into the mobile phone slot, and charged through the mobile phone power supply mechanism to obtain the power for battery life. There is no need to carry additional mobile charging equipment such as power banks. The mobile phone slot can also place relatively large electronic intelligence such as ipad. equipment, and the lamp housing can be rotated to a suitable angle to form a reliable support for the equipment.

The folding seat 2 is provided with a mosquito repellent box 7 and an aromatherapy box 8 with ventilation holes 6 on the surface. The mosquito repellent box 7 and the aromatherapy box 8 are respectively placed with a mosquito repellent sheet and a refreshing aromatherapy sheet. For heating/dispersing mosquito repellent sheets or mosquito coils, when using heated mosquito repellent sheets or mosquito coils, light it and put it in the mosquito repellent box to continuously emit mosquito repellent smoke. , the emitted gas can relieve human fatigue.

A light-transmitting plate 9 covering and sealing the cavity 3 is installed on the lamp housing 1, and an optical cup 10 is installed between the light-transmitting plate 9 and the light source lamp plate 4, and the illuminating light of the light source lamp plate is aggregated, To reduce light loss and improve lighting effects, the cavity 3 is equipped with a control circuit board 11 and a light source battery 12 that provides working power for the light source lamp board 4. The control circuit board is mainly used to drive the light source lamp board and control the following The external power supply of the lithium battery is the existing electronic drive control technology. The light source lamp board 4 is electrically connected to the control circuit board 11 through the light source battery 12, and the side of the lamp housing 1 is provided with the control circuit. The digital display meter 13, the switch button 14, the USB interface 15 and the USBTypeC interface 16 are electrically connected to the board 11. The switch button is used to control the light source light board on and off, the digital display meter is used to display the lithium battery and the light source battery power, and the USB interface 15 And the USBTypeC interface is used to obtain external power to supply power to the battery.

It should be noted that the light source lamp board 4 of the folding lamp can also be replaced by other light source devices such as spotlight bulbs, light source modules or high-power LED lamp beads.

The mobile phone power supply mechanism includes a power supply plug, a lithium battery 17 installed in the folding seat 2, the lithium battery 17 is electrically connected to the control circuit board 11, and the power supply plug includes a data cable connected to the lithium battery. The lightning plug 18, MicroUSB plug 19 and USBTypeC plug 20 of 17, therefore, the electronic device can obtain the battery life power from the power supply mechanism of the mobile phone with any interface, and the outer surface of the folding seat 2 is provided with a touch switch for controlling the power supply 21 (for controlling the display of the digital display meter), data line slots 22 arranged in parallel, and a plug groove 23 communicated with the data line slot 22, the other end of the data line slot communicates with the inside of the A socket 24 for accommodating the power supply plugs is arranged on the side of the groove 23 facing the data line slot 22 for inserting the power supply plugs.

The side of the lamp housing 1 is provided with a first bushing 25 , the side of the folding seat 2 is symmetrically provided with a second bushing 26 at both ends, and the mounting end of the first bushing 25 penetrates into the first bushing 25 . On the rotating shaft 27 of the two shaft sleeves 26, the inner wall of the second shaft sleeve 26 is circumferentially arranged with arc-shaped damping teeth 28, and is located at the outer end of the second shaft sleeve 26, and a damping member 29 is installed on the rotating shaft 27, The side of the damping member 29 is symmetrically provided with a hook 30 whose end presses the damping teeth 28, and the end of the hook is an arc-shaped protrusion. Therefore, while the damping effect is generated between the damping member and the damping teeth, the damping The hook of the part can slide on the damping teeth with the change of the angle between the lamp housing and the folding seat, and the angle of the two can be fixed after being parked in a suitable position.

A shaft member 31 is fixedly installed in the first shaft sleeve 25 and the second shaft sleeve 26. In this embodiment, two shaft sleeves are provided with grooves to accommodate the protruding strips on the shaft member, so that each shaft member is fixed. On the corresponding shaft sleeve, a shaft member is placed on the shaft sleeve for sliding rotation. The shaft member 31 is axially provided with a shaft hole 32 with a polygonal cross-section. The shaft hole in this embodiment is a regular hexagonal structure, so that the lamp housing and the The rotation between the folding seats is more reliable, and the outer side of the rotating shaft 27 is provided with a convex piece 33 whose shape corresponds to the shaft hole 32 .

The inner walls of the first bushing 25 and the second bushing 26 are respectively provided with a first wire hole 34 and a second wire hole 35, so that the lithium battery can be connected to the control circuit board through the wire, and the inner space of the folding lamp can be reasonably utilized.

Each slot surface of the mobile phone slot 5 is provided with a non-slip rubber pad 36 to increase the friction between the smart device and the mobile phone slot, so that the smart device can be stably inserted in the mobile phone slot.

The mobile phone slot 5 has an included angle 37 with the horizontal plane, and the included angle ranges from 25° to 45°, so that the smart device placed in the mobile phone slot has a good viewing angle.

The above embodiments cannot limit the protection scope of the present invention, and those in the technical field can make equal modifications and changes without departing from the overall concept of the present invention, which still fall within the scope of the present invention. .

Claims (9)

1. The utility model provides a portable multi-functional handheld folding lamp, its characterized in that include lamp body (1) and with lamp body (1) damping swivelling joint's folding seat (2), be provided with cavity (3) on lamp body (1), install light source lamp plate (4) in cavity (3), be provided with cell-phone slot (5) and cell-phone power supply mechanism on folding seat (2).

2. The portable multifunctional handheld folding lamp as claimed in claim 1, characterized in that the folding seat (2) is provided with a mosquito repelling box (7) and an aroma box (8) with air holes (6) on the surface, and mosquito repelling pieces and aroma raising pieces are respectively placed in the mosquito repelling box (7) and the aroma box (8).

3. The portable multifunctional handheld folding lamp of claim 1, characterized in that install on lamp body (1) and cover sealedly light-passing board (9) of cavity (3), light-passing board (9) with install light cup (10) between light source lamp plate (4), install in cavity (3) control circuit board (11) and for light source lamp plate (4) provide working power supply's light source battery (12), light source lamp plate (4) pass through light source battery (12) with control circuit board (11) electricity is connected, the side of lamp body (1) be provided with digital display table (13), switch button (14), USB interface (15) and USBTypeC interface (16) that control circuit board (11) electricity is connected.

4. The portable multifunctional handheld folding lamp of claim 3, characterized in that the power supply mechanism of the mobile phone comprises a power supply plug, a lithium battery (17) installed in the folding seat (2), the lithium battery (17) is electrically connected with the control circuit board (11), the power supply plug comprises a lightning plug (18), a MicroUSB plug (19) and a USBTypeC plug (20) which are connected with the lithium battery (17) through a data line, the outer surface of the folding seat (2) is provided with a touch switch (21) for controlling power supply, data line slots (22) arranged in parallel and a plug groove (23) communicated with the data line slots (22), and the plug groove (23) is just aligned with a socket (24) for accommodating the power supply plug.

5. The portable multifunctional handheld folding lamp according to claim 1, characterized in that a first shaft sleeve (25) is arranged at the side of the lamp housing (1), second shaft sleeves (26) are symmetrically arranged at two ends of the side of the folding seat (2), a rotating shaft (27) with a tail end penetrating into the second shaft sleeves (26) is arranged in the first shaft sleeve (25), arc-shaped damping teeth (28) are circumferentially arranged on the inner wall of the second shaft sleeves (26), a damping member (29) is arranged on the rotating shaft (27), and hooks (30) with tail ends abutting against the damping teeth (28) are symmetrically arranged at the side of the damping member (29).

6. The portable multifunctional handheld folding lamp of claim 5, characterized in that a shaft member (31) is fixedly installed in each of the first shaft sleeve (25) and the second shaft sleeve (26), a shaft hole (32) with a polygonal cross section is axially arranged on the shaft member (31), and a convex member (33) with a shape corresponding to the shaft hole (32) is arranged on the outer side of the rotating shaft (27).

7. Portable multifunctional handheld folding light according to claim 5, characterized in that the inner walls of the first (25) and second (26) bushings are provided with a first (34) and a second (35) wire guide, respectively.

8. The portable multifunctional hand-held folding lamp as claimed in claim 1, characterized in that an anti-slip rubber pad (36) is arranged on each groove surface of the mobile phone insertion groove (5).

9. The portable multifunctional hand-held folding light according to claim 1, characterized in that the handset socket (5) has an angle (37) to the horizontal.
