Abstract

The utility model discloses a corrugated cardboard box with an anti-vibration function, comprising a box body, first flip covers are arranged on both sides of the upper part of the box body, and second flip covers are arranged on the other two sides of the box body, and the box body comprises A first cardboard, a second cardboard is arranged on one side of the first cardboard, a third cardboard is arranged on the side of the second cardboard away from the first cardboard, and an air bag is arranged between the first cardboard and the second cardboard, so A corrugated plate is arranged between the second cardboard and the third cardboard, a first rubber plate is arranged at the bottom of the box, and a plurality of rubber blocks arranged in a matrix are arranged above the first rubber plate. Fixed connection with the second rubber plate. The corrugated box has the advantages of simple structure, strong impact resistance, high compressive strength, and good shock-absorbing buffering effect, which avoids the occurrence of damage to items during transportation, and ensures the safety of item transportation.

Description

A corrugated box with shock resistance

technical field

The utility model relates to the technical field of corrugated cardboard boxes, in particular to a corrugated cardboard box with an anti-seismic function.

Background technique

Corrugated cardboard is made into corrugated carton by die-cutting, creasing, nail box or glued box. Corrugated carton is one of the most widely used packaging products. Since the beginning of the century, corrugated boxes have gradually replaced wooden boxes and other transportation packaging containers with their superior performance and good processing performance, and have become the main force of transportation packaging. In addition to protecting commodities, facilitating storage and transportation, they also beautify them. , The role of publicity products, corrugated boxes are green products, it is conducive to environmental protection, is conducive to loading and unloading transportation.

With the progress of the times and the development of science and technology, the logistics and transportation industry has developed very rapidly, and a large number of corrugated boxes need to be used in logistics and transportation. The corrugated boxes on the existing market do not have the function of good earthquake resistance, and are used in the transportation of fragile items. It cannot be well protected at times, and items are easily damaged due to collisions during logistics and transportation, which is not conducive to the use of users. For this reason, we propose a corrugated box with anti-vibration function.

Utility model content

The purpose of this utility model is to provide a corrugated box with an anti-vibration function to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a corrugated box with anti-vibration function, including a box body, both sides above the box body are provided with a first flip cover, and the other two sides of the box body are provided with a second cover. Two flip covers, the box body includes a first cardboard, a second cardboard is arranged on one side of the first cardboard, a third cardboard is arranged on the side of the second cardboard away from the first cardboard, the first cardboard is connected to the second cardboard An air bag is arranged between the cardboards, a wave plate is arranged between the second cardboard and the third cardboard, a first rubber plate is arranged at the bottom of the box body, and a plurality of matrix-arranged rubber plates are arranged above the first rubber plate. A rubber block, the upper part of the rubber block is fixedly connected with the second rubber plate.

Preferably, the box body, the first flip cover and the second flip cover have the same structure.

Preferably, the wave plate is provided with a plurality of supporting cylinders arranged at equal intervals.

Preferably, the side of the first cardboard away from the airbag is provided with a waterproof coating.

Preferably, the rubber block is provided with a plurality of equidistantly arranged annular grooves, and the outer side of the rubber block is sleeved with a spring.

Compared with the prior art, the beneficial effects of the present utility model are: the corrugated box with anti-vibration function, the setting of the airbag effectively guarantees the impact resistance and buffering capacity of the outer side of the box body, and the corrugated board is effective for the second cardboard and the third cardboard. The cardboard is supported, the support cylinder is inserted between the wave plates, and the support cylinder supports the wave plate, thereby effectively improving the supporting strength of the box body. The support structure formed by the first rubber plate, the rubber block and the second rubber block has Good buffer function, the setting of the ring groove reduces the support strength of the rubber block. When the second support plate moves, the spring is compressed by force. It improves the protection effect of the box on the items. The corrugated box has the advantages of simple structure, strong impact resistance, high compressive strength, and good shock-absorbing buffering effect, which avoids the occurrence of damage to items during transportation and ensures the safety of item transportation.

Description of drawings

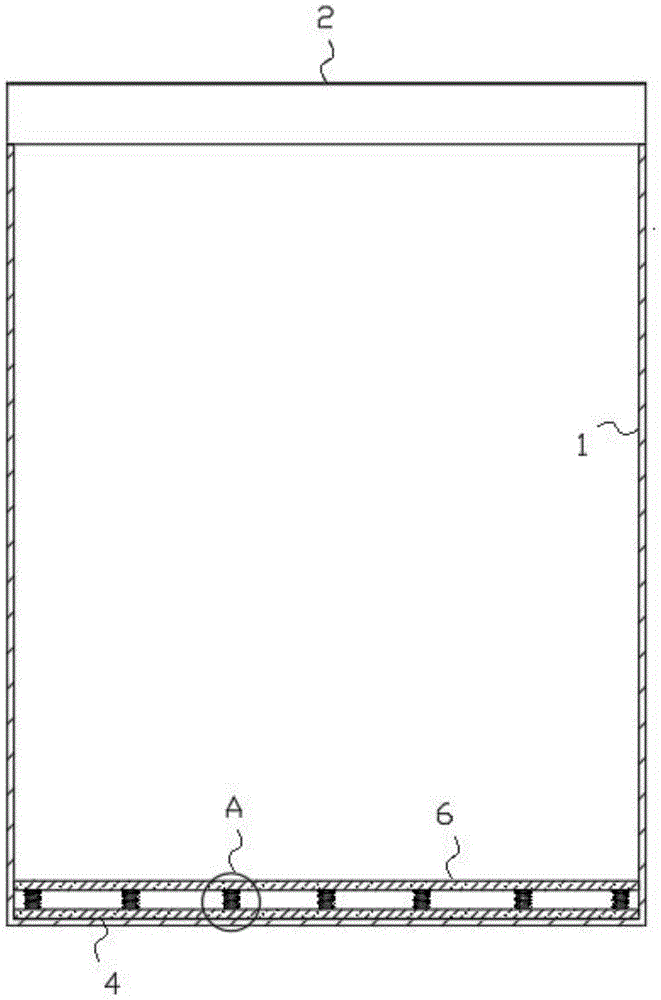

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a schematic diagram of the box structure of the utility model;

Fig. 3 is the sectional view of the utility model;

Fig. 4 is the structural representation of part A of the present utility model;

In the figure: 1 box, 11 first cardboard, 12 second cardboard, 13 third cardboard, 14 air bag, 15 wave board, 16 support cylinder, 17 waterproof coating, 2 first flip, 3 second flip, 4 A rubber plate, 5 rubber blocks, 6 second rubber plates, 7 springs, 8 ring grooves.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides a technical solution: a corrugated box with an anti-vibration function, comprising a box body 1, and first flip covers 2 are provided on both sides above the box body 1, and the box body 1. The other two sides are provided with a second flip cover 3. The arrangement of the first flip cover 2 and the second flip cover 3 can effectively seal the box body 1. The box body 1 includes a first cardboard 11. The first cardboard 11 A second cardboard 12 is arranged on one side, a third cardboard 13 is arranged on the side of the second cardboard 12 away from the first cardboard 11, and an air bag 14 is arranged between the first cardboard 11 and the second cardboard 12. A corrugated board 15 is arranged between the second cardboard 12 and the third cardboard 13 , and the air bag 14 is located between the first cardboard 11 and the second cardboard 12 . The arrangement of the air bag 14 effectively guarantees the impact resistance and buffering capacity of the outside of the box 1 . , the corrugated board 15 supports the second cardboard 12 and the third cardboard 13, thereby effectively improving the supporting strength of the box body 1. The inner bottom of the box body 1 is provided with a first rubber plate 4. The first rubber plate A plurality of rubber blocks 5 arranged in a matrix are arranged above the 4. The top of the rubber blocks 5 is fixedly connected with the second rubber plate 6. The second rubber block 6 can support the article. The first rubber plate 4, the rubber block 5 and The support structure formed by the second rubber block 6 has a good buffer function, thereby effectively improving the protection performance of the articles.

Further, the box body 1 , the first flip cover 2 and the second flip cover 3 have the same structure, and the box body 1 , the first flip cover 2 and the second flip cover 3 with the same structure effectively improve the overall strength of the corrugated box.

Further, the wave plate 15 is provided with a plurality of support cylinders 16 arranged at equal distances, the support cylinders 16 are inserted between the wave plates 15, and the support cylinders 16 support the wave plates 15, thereby effectively improving the performance of the wave plate 15. The compressive strength of the box 1 as a whole.

Further, a waterproof coating 17 is provided on the side of the first cardboard 11 away from the airbag 14, and the waterproof coating 17 effectively increases the overall waterproof performance of the box 1, thereby effectively ensuring the protection of the box 1 to the internal items. performance.

Further, the rubber block 5 is provided with a plurality of equidistantly arranged ring grooves 8, the outer side of the rubber block 5 is sleeved with a spring 7, and the setting of the ring groove 8 reduces the support strength of the rubber block 5, Therefore, the second rubber plate 6 can move more greatly inside the box body 1. When the second support plate 6 moves, the spring 7 is compressed by force, and the elastic force of the spring 7 can effectively reduce the contents of the box body 1. The impact force received, thereby effectively improving the protection effect of the box 1 on the articles.

Specifically, in the present utility model, the airbag 14 is located between the first cardboard 11 and the second cardboard 12. The setting of the airbag 14 effectively guarantees the impact resistance and buffering capacity of the outer side of the box 1. The cardboard 12 and the third cardboard 13 are supported, the support cylinder 16 is inserted between the corrugated boards 15, and the support cylinder 16 supports the corrugated board 15, thereby effectively improving the supporting strength of the box body 1, and the second rubber block 6 can be used. To support the article, the support structure formed by the first rubber plate 4, the rubber block 5 and the second rubber block 6 has a good buffer function. The setting of the ring groove 8 reduces the supporting strength of the rubber block 5, so that the second rubber plate 6 can move more greatly inside the box 1. When the second support plate 6 moves, the spring 7 is compressed by force. The elastic force of the spring 7 can effectively reduce the impact force on the items inside the box 1, so The protection effect of the box body 1 on the articles is effectively improved.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a corrugated box with antidetonation function, includes box (1), its characterized in that: the improved box structure is characterized in that first flip covers (2) are arranged on two sides of the upper portion of the box body (1), second flip covers (3) are arranged on two sides of the box body (1), the box body (1) comprises a first paper board (11), a second paper board (12) is arranged on one side of the first paper board (11), a third paper board (13) is arranged on one side of the second paper board (12) far away from the first paper board (11), an air bag (14) is arranged between the first paper board (11) and the second paper board (12), a wave plate (15) is arranged between the second paper board (12) and the third paper board (13), a first rubber plate (4) is arranged at the bottom of the box body (1), a plurality of rubber blocks (5) arranged in a matrix mode are arranged above the first rubber plate (4), and the upper portions of the rubber blocks (5) are fixedly connected with the second rubber plate (6).

2. An earthquake-resistant corrugated carton as claimed in claim 1, wherein: the box body (1), the first turnover cover (2) and the second turnover cover (3) are identical in structure.

3. An earthquake-resistant corrugated carton as claimed in claim 1, wherein: a plurality of support cylinders (16) which are arranged at equal intervals are arranged in the wave plate (15).

4. An earthquake-resistant corrugated carton as claimed in claim 1, wherein: and a waterproof coating (17) is arranged on one side, away from the air bag (14), of the first paper board (11).

5. An earthquake-resistant corrugated carton as claimed in claim 1, wherein: the rubber block (5) is provided with a plurality of annular grooves (8) which are arranged at equal intervals, and the outer side of the rubber block (5) is sleeved with a spring (7).
