Abstract

The utility model discloses an anti-deformation detection device for a fireproof, anti-deformation and anti-scratch cabinet, which comprises a detection table, a frame body is fixed at the top of the detection table, and an arc pressure block is connected to the inner top of the frame body through a hydraulic cylinder; The cylinder-driven arc pressure block presses the middle position of the cabinet board at the top of the support table, and determines whether the cabinet board is deformed according to the pressure sensor and the prompt light during the pressing process, so as to judge the anti-deformation performance of the cabinet board It is qualified enough. Compared with the traditional detection method, the detection result can be obtained directly after applying pressure, which is convenient and convenient. The motor drives the gear to rotate, thereby driving the rack to move, and according to the size of the cabinet plate to be tested, the support table is moved to an appropriate position. The position is used for the support and placement of the cabinet plates, so that the detection device can stably support the plates of different lengths and specifications, which reduces the limitation of detection and has high practicability.

Description

A fireproof, anti-deformation and anti-scratch cabinet anti-deformation detection device

technical field

The utility model relates to the technical field of cabinet performance detection, in particular to a fireproof, anti-deformation and anti-scratch cabinet anti-deformation detection device.

Background technique

The cabinet refers to the platform for storing kitchen utensils and cooking operations in the kitchen. It is one of the household items that people often use in their daily life. The use of brighter colors is characterized by the combination of cabinets with the operating table and kitchen appliances and Various functional components are organically combined, and according to the kitchen structure, area, and individual needs of family members in consumers' homes, through overall configuration, overall design, and overall construction, a complete set of products is finally formed, which brings a lot of convenience to people. , With the improvement of people's living standards, people's performance requirements for cabinets are getting higher and higher, and cabinets with fire resistance, deformation resistance and scratch resistance have also emerged as the times require. During the production process, the anti-deformation test of the cabinet board is carried out.

Most of the existing cabinet plate anti-deformation detection devices have a single structure, generally only have the function of applying pressure to the plate, and the deformation of the plate needs to be observed by experienced workers with the naked eye, and the inspection results cannot be directly obtained after the pressure is applied. , it is inconvenient to use, and the existing cabinet plate anti-deformation detection device is not easy to adjust. The specification of the board is limited, and the detection limitation is relatively large. Therefore, the utility model proposes a fireproof, anti-deformation and anti-scratch cabinet anti-deformation detection device to solve the problems existing in the prior art.

Utility model content

In view of the above problems, the purpose of the present utility model is to propose a fireproof, anti-deformation and anti-scratch cabinet anti-deformation detection device, which solves the problem that the existing cabinet plate anti-deformation detection device cannot directly obtain the deformation detection result after the plate is pressed and cannot The length of the board is the problem of the corresponding adjustment of the support structure.

In order to achieve the purpose of the present utility model, the present utility model is realized through the following technical solutions: a fireproof, anti-deformation, anti-scratch, and anti-scratch cabinet anti-deformation detection device, comprising a detection table, the top of the detection table is fixed with a frame body, and the inner side of the frame body The top end is connected with an arc-shaped pressure block through a hydraulic cylinder, a gear that is driven and rotated by a motor is symmetrically arranged inside the test table, a rack is meshed and connected to the top of the gear, and a support base plate is fixed at the top of the rack. The front and rear sides of the top of the bottom plate are fixed with a support vertical plate that slides through the detection table. The top of the support vertical plate is located above the detection table and is fixed with a support table. The top of the support table is placed with a cabinet plate. Two sets of the support table There is a pressure sensor therebetween, the bottom end of the pressure sensor is provided with a buffer assembly, the bottom end of the buffer assembly is symmetrically connected with a telescopic adjustment rod, and the bottom end of the telescopic adjustment rod is rotatably connected to the top of the detection table through a bearing. A prompt light is symmetrically installed on the top inner side of the frame body, and the pressure sensor is electrically connected with the prompt light.

A further improvement is that a limit slide bar is symmetrically arranged on the inside of the test table, the limit slide bar slides through the support vertical plate, and a through groove matching the support vertical plate is formed at the top of the test table.

A further improvement is that: the bottom end of the support table is installed with balls that are in contact with the upper surface of the test table, the balls are symmetrically distributed at the bottom end of the support table, the top of the support table is provided with grooves, and the grooves are rotatably connected There are equidistant pulleys.

A further improvement is that: the buffer assembly includes a first buffer plate arranged at the bottom end of the pressure sensor and a second buffer plate arranged at the top end of the telescopic adjustment rod, and the first buffer plate and the second buffer plate are connected with buffers that are evenly distributed spring.

A further improvement is that: the telescopic adjustment rod includes a rotating sleeve and a rotating screw, the rotating sleeve is threadedly sleeved with the outside of the rotating screw, and the bottom end of the rotating sleeve is rotatably connected to the top of the detection table through a bearing, so The top end of the rotating screw rod is fixedly connected to the bottom end of the buffer assembly.

The beneficial effects of the utility model are as follows: the utility model includes a detection table, and the arc pressure block is driven by a hydraulic cylinder to apply pressure to the middle position of the cabinet plate at the top of the support table, and during the pressure application process, according to the pressure sensor and the prompt light To determine whether the cabinet board is deformed, so as to judge whether the anti-deformation performance of the cabinet board is qualified. Compared with the traditional detection method, the test results can be obtained directly after applying pressure, which is convenient and convenient. The motor drives the gear to rotate, thereby driving the tooth The bar moves, and the support table is moved to an appropriate position according to the size of the cabinet board to be detected for the support and placement of the cabinet board, so that the detection device can stably support the boards of different lengths and specifications, which reduces the detection limitation and is more practical. high.

Description of drawings

Fig. 1 is the front view of the present utility model;

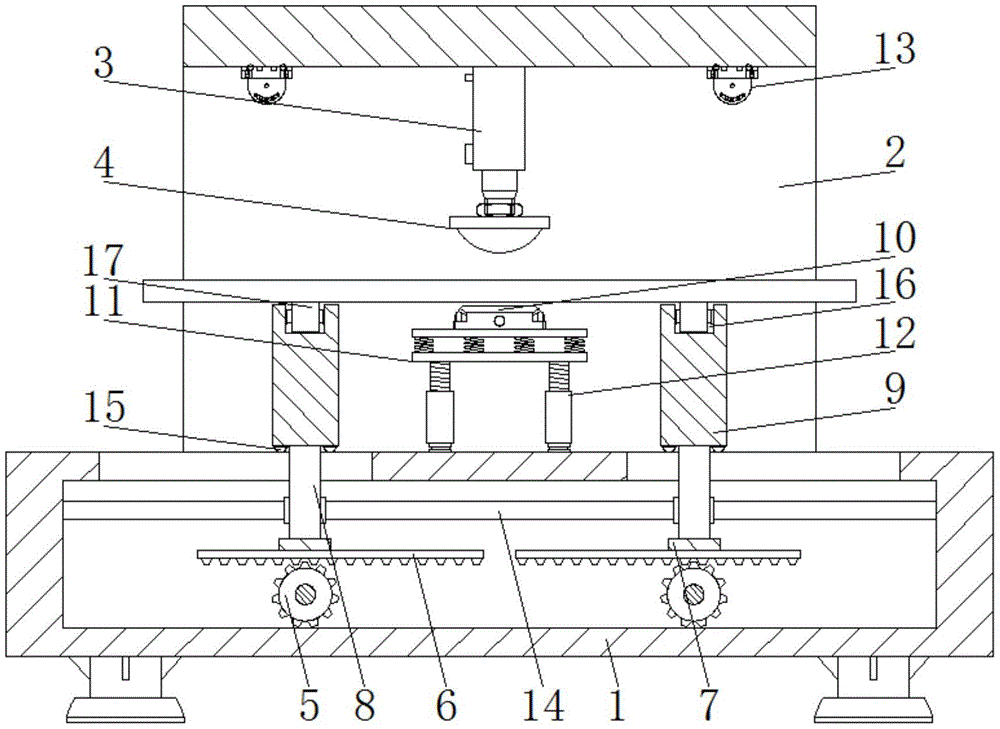

Fig. 2 is the front sectional view of the present utility model;

3 is a side view of the support table of the present invention;

4 is a front view of the buffer assembly of the present invention;

5 is a schematic diagram of the three-dimensional structure of the telescopic adjustment rod of the present invention.

Among them: 1. Testing table; 2. Frame body; 3. Hydraulic cylinder; 4. Arc pressure block; 5. Gear; 6. Rack; 7. Supporting bottom plate; 8. Supporting vertical plate; 10, pressure sensor; 11, buffer assembly; 12, telescopic adjustment rod; 13, prompt light; 14, limit slide bar; 15, ball; 16, groove; 17, pulley; 1101, first buffer plate; 1102, The second buffer plate; 1103, the buffer spring; 1201, the rotating sleeve; 1202, the rotating screw.

Detailed ways

In order to deepen the understanding of the present utility model, the present utility model will be described in further detail below with reference to the embodiments. The present embodiment is only used to explain the present utility model and does not constitute a limitation on the protection scope of the present utility model.

According to FIG. 1 , FIG. 2 , FIG. 3 , FIG. 4 , and FIG. 5 , this embodiment provides a fireproof, deformation-resistant, scratch-resistant, and anti-deformation detection device for cabinets, including a detection table 1 , and a frame body is fixed at the top of the detection table 1 2. The frame body 2 is fixedly welded on the inspection table 1. The inner top of the frame body 2 is connected with an arc pressure block 4 through a hydraulic cylinder 3. The bottom of the arc pressure block 4 is hemispherical. The inside of the inspection table 1 is symmetrically provided. The gear 5 is driven to rotate by the motor, the top of the gear 5 is meshed with a rack 6, the rack 6 is located directly above the gear 5, the top of the rack 6 is fixed with a support base plate 7, and the front and rear sides of the top of the support base plate 7 are fixed with sliding through The support vertical plate 8 of the test table 1, the top of the support vertical plate 8 is located above the test table 1 and is fixed with a support table 9, and a cabinet plate is placed on the top of the support table 9, and the gear 5 is driven by the motor to rotate, thereby driving the rack 6 to move, And according to the size of the cabinet board to be detected, the support table 9 is moved to an appropriate position for the support and placement of the cabinet board, so that the detection device can stably support the boards of different lengths and specifications, and a pressure sensor is arranged between the two sets of support tables 9. 10. The bottom end of the pressure sensor 10 is provided with a buffer assembly 11. The pressure sensor 10 is buffered by the buffer assembly 11 to prevent the pressure sensor 10 from being squeezed due to the deformation of the cabinet plate. The bottom end of the buffer assembly 11 is symmetrically connected with a telescopic adjustment rod 12. The bottom end of the telescopic adjustment rod 12 is rotatably connected to the top of the detection table 1 through the bearing, and the height of the pressure sensor 10 is adjusted by the telescopic adjustment rod 12, so as to adjust the range of the cabinet plate deformation during detection, and the inner top of the frame body 2 is symmetrically installed There is a prompt light 13, the pressure sensor 10 is connected with the PLC control system of the device, and is used to drive the prompt light 13 to flash and work when the pressure sensor 10 is pressed due to the deformation of the cabinet plate during the pressing process. If the pressure sensor 10 does not detect When the pressing force is reached, it means that the cabinet plate is not deformed or the deformation is within the allowable range, and the arc pressure block 4 is driven by the hydraulic cylinder 3 to exert pressure on the middle position of the cabinet plate at the top of the support table 9, and when the pressure is applied In the process, the pressure sensor 10 and the indicator light 13 are used to determine whether the cabinet plate is deformed, so as to judge whether the anti-deformation performance of the cabinet plate is qualified. Compared with the traditional detection method, the detection result can be obtained directly after applying pressure.

Limiting slide bars 14 are symmetrically arranged on the inside of the inspection table 1. The left and right ends of the limit sliders 13 are respectively fixed on the inner walls of the left and right sides of the inspection table 1. The rod 14 limits the position of the support vertical plate 8 to ensure the stability of the support vertical plate 8 when moving.

The bottom end of the support table 9 is installed with balls 15 in contact with the upper surface of the test table 1. The balls 15 are symmetrically distributed at the bottom end of the support table 9. The friction coefficient between the support table 9 and the test table 1 is reduced by the balls 15, so that the support table 9 moves more smoothly, the top of the support table 9 is provided with a groove 16, and the groove 16 is rotatably connected with pulleys 17 distributed at equal distances, and the cabinet plates are supported by the pulleys 17, so as to facilitate the putting in and taking out of the cabinet plates. .

The buffer assembly 11 includes a first buffer plate 1101 arranged at the bottom end of the pressure sensor 10 and a second buffer plate 1102 arranged at the top end of the telescopic adjustment rod 12. The first buffer plate 1101 and the second buffer plate 1102 are connected with buffer springs that are evenly distributed. 1103, using the buffer spring 1103 to play a buffer role between the first buffer plate 1101 and the second buffer plate 1102, so as to prevent the pressure sensor 10 from being crushed due to the deformation of the cabinet plate.

The telescopic adjustment rod 12 includes a rotating sleeve 1201 and a rotating screw rod 1202. The inner side of the rotating sleeve 1201 is provided with an internal thread matching the external thread of the rotating screw rod 1202. The bottom end of the tube 1201 is rotatably connected to the top end of the testing table 1 through a bearing, and the top end of the rotating screw 1202 is fixedly connected to the bottom end of the buffer assembly 11 . and the height of the pressure sensor 10 .

When it is necessary to test the anti-deformation performance of the cabinet board, first start the motor to drive the gear 5 to rotate, the gear 5 then drives the rack 6 to move, and move the support table 9 to an appropriate position according to the size of the cabinet board to be tested, and then move the to-be-tested cabinet board. The cabinet board is placed on the support table 9 and the center of the cabinet board is located directly under the arc pressure block 4, and then the telescopic adjustment rod 12 is used to adjust the pressure sensor 10 up and down and move the pressure sensor 10 to Appropriate distance below the cabinet board (the higher the requirements for the anti-deformation performance of the board, the closer the pressure sensor 10 is to the cabinet board), and then start the hydraulic cylinder 3 to descend and drive the arc pressure block 4 to carry out the middle position on the upper surface of the cabinet board. A certain pressure is applied, and finally the anti-deformation performance of the cabinet plate is determined according to the prompt light 13. If the cabinet plate touches the pressure sensor 10 due to bending deformation during the pressure application process, the pressure sensor 10 will drive after feeling the pressure. The prompt light 13 flashes to indicate that the anti-deformation performance of the cabinet board is unqualified. On the contrary, if the cabinet board does not bend and deform during the pressing process, the pressure sensor 10 will not be touched, and the prompt light 13 does not respond, indicating that the cabinet board is not deformed. Deformation resistance is qualified.

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. An anti-deformation detection device for fireproof, anti-deformation and anti-scratch cabinets, characterized in that it comprises a detection table (1), a frame body (2) is fixed at the top of the detection table (1), and the frame body (2) The inner top end is connected with an arc-shaped pressure block (4) through a hydraulic cylinder (3), and a gear (5) driven and rotated by a motor is symmetrically arranged inside the detection table (1). A rack (6), a support base plate (7) is fixed at the top of the rack (6), and a support vertical plate (8) that slides through the detection table (1) is fixed at the front and rear sides of the top of the support base plate (7). ), the top of the support vertical plate (8) is located above the detection table (1) and is fixed with a support table (9), a cabinet plate is placed on the top of the support table (9), and one of the two groups of the support tables (9) A pressure sensor (10) is arranged between, the bottom end of the pressure sensor (10) is provided with a buffer assembly (11), the bottom end of the buffer assembly (11) is symmetrically connected with a telescopic adjustment rod (12), the telescopic adjustment rod The bottom end of (12) is rotatably connected to the top end of the detection table (1) through a bearing, and a prompt light (13) is symmetrically installed on the inner top end of the frame body (2), and the pressure sensor (10) is electrically connected to the prompt light (13). sexual connection. 2. The anti-deformation detection device for fireproof, anti-deformation and anti-scratch cabinets according to claim 1, characterized in that: a limit slide bar (14) is symmetrically arranged above the inside of the detection table (1), and the limit The sliding rod (14) slides through the supporting vertical plate (8), and the top of the detection table (1) is provided with a through groove matching with the supporting vertical plate (8). 3. The anti-deformation detection device for a fireproof, anti-deformation, anti-scratch cabinet according to claim 1, characterized in that: the bottom end of the support table (9) is installed with a ball ( 15), the balls (15) are symmetrically distributed at the bottom end of the support table (9), the top of the support table (9) is provided with a groove (16), and the groove (16) is rotatably connected with a groove (16). Distance distribution pulley (17). The anti-deformation detection device for a fireproof, anti-deformation, anti-scratch cabinet according to claim 1, wherein the buffer assembly (11) comprises a first buffer plate (1101) arranged at the bottom end of the pressure sensor (10). ) and a second buffer plate (1102) arranged at the top of the telescopic adjustment rod (12), the first buffer plate (1101) and the second buffer plate (1102) are connected with evenly distributed buffer springs (1103). 5. The anti-deformation detection device for a fireproof, anti-deformation, anti-scratch cabinet according to claim 1, wherein the telescopic adjustment rod (12) comprises a rotating sleeve (1201) and a rotating screw (1202), The rotating sleeve (1201) is threadedly sleeved with the outside of the rotating screw (1202), and the bottom end of the rotating sleeve (1201) is rotatably connected to the top of the test table (1) through a bearing, and the rotating screw (1202) ) is fixedly connected to the bottom end of the buffer assembly (11).
