CN217476765U - Lasting ultraviolet-resistant cool fabric - Google Patents
Lasting ultraviolet-resistant cool fabric Download PDFInfo
- Publication number
- CN217476765U CN217476765U CN202220477602.6U CN202220477602U CN217476765U CN 217476765 U CN217476765 U CN 217476765U CN 202220477602 U CN202220477602 U CN 202220477602U CN 217476765 U CN217476765 U CN 217476765U
- Authority
- CN
- China
- Prior art keywords
- fabric layer
- cool
- layer
- fabric
- mao
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 239000004744 fabric Substances 0.000 title claims abstract description 144
- 230000002045 lasting effect Effects 0.000 title claims abstract description 25
- 239000000835 fiber Substances 0.000 claims abstract description 55
- 235000017166 Bambusa arundinacea Nutrition 0.000 claims abstract description 29
- 235000017491 Bambusa tulda Nutrition 0.000 claims abstract description 29
- 241001330002 Bambuseae Species 0.000 claims abstract description 29
- 235000015334 Phyllostachys viridis Nutrition 0.000 claims abstract description 29
- 239000011425 bamboo Substances 0.000 claims abstract description 29
- 230000000844 anti-bacterial effect Effects 0.000 claims abstract description 12
- 239000004743 Polypropylene Substances 0.000 claims description 20
- -1 polypropylene Polymers 0.000 claims description 20
- 229920001155 polypropylene Polymers 0.000 claims description 20
- 239000011487 hemp Substances 0.000 claims description 16
- 238000001816 cooling Methods 0.000 abstract description 8
- 210000004243 sweat Anatomy 0.000 abstract description 8
- 241000894006 Bacteria Species 0.000 abstract description 5
- 240000008564 Boehmeria nivea Species 0.000 description 14
- 230000006750 UV protection Effects 0.000 description 14
- 238000010586 diagram Methods 0.000 description 3
- 239000000463 material Substances 0.000 description 3
- 229920000742 Cotton Polymers 0.000 description 2
- 238000009395 breeding Methods 0.000 description 2
- 230000001488 breeding effect Effects 0.000 description 2
- 239000000126 substance Substances 0.000 description 2
- 210000002268 wool Anatomy 0.000 description 2
- 229920006052 Chinlon® Polymers 0.000 description 1
- 229920000297 Rayon Polymers 0.000 description 1
- 229920002334 Spandex Polymers 0.000 description 1
- 229920004933 Terylene® Polymers 0.000 description 1
- 238000010521 absorption reaction Methods 0.000 description 1
- 230000004075 alteration Effects 0.000 description 1
- 239000012237 artificial material Substances 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000003115 biocidal effect Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 230000003628 erosive effect Effects 0.000 description 1
- 230000001788 irregular Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 239000005445 natural material Substances 0.000 description 1
- 230000035699 permeability Effects 0.000 description 1
- 229920000728 polyester Polymers 0.000 description 1
- 239000005020 polyethylene terephthalate Substances 0.000 description 1
- 230000004224 protection Effects 0.000 description 1
- 230000005855 radiation Effects 0.000 description 1
- 239000002994 raw material Substances 0.000 description 1
- 239000004759 spandex Substances 0.000 description 1
- 238000009987 spinning Methods 0.000 description 1
- 230000003068 static effect Effects 0.000 description 1
- 238000006467 substitution reaction Methods 0.000 description 1
Images
Landscapes
- Woven Fabrics (AREA)
Abstract
The utility model discloses a cool surface fabric of feeling of lasting anti ultraviolet line type, including the basic unit, the outer wall of basic unit is equipped with antibacterial layer, antibacterial layer includes that first mao numb interweaves nice and cool fabric layer and second mao numb interweave nice and cool fabric layer, first mao numb interweaves nice and cool fabric layer and second mao numb interweaves nice and cool fabric layer and sets up respectively in the both ends of basic unit. This lasting anti ultraviolet ray type cooling fabric, through the cooperation between the cool fabric layer of first mao ma interweave, the cool fabric layer of second mao ma interweave, first raw bamboo fiber fabric layer and the second raw bamboo fiber fabric layer, according to first mao ma interweave cool fabric layer, the cool fabric layer of second mao ma interweave, first raw bamboo fiber fabric layer and second raw bamboo fiber fabric layer all have good bacterinertness, can effectually avoid when this lasting anti ultraviolet ray type cooling fabric absorbs sweat after, sweat nourishes the bacterium in this lasting anti ultraviolet ray type cooling fabric, improve this lasting anti ultraviolet ray type cooling fabric's wearing comfort level.
Description
Technical Field
The utility model relates to a surface fabric technical field specifically is a cool sense surface fabric of lasting ultraviolet resistance type.
Background
The fabric is a material for making clothes, and as one of three elements of the clothes, the fabric can not only explain the style and the characteristics of the clothes, but also directly control the expression effects of the color and the shape of the clothes.
For example, the patent numbers are: CN215360223U, a cool feeling fabric of lasting uvioresistant type, including the surface fabric body, though it all has lasting uvioresistant characteristic, when having its dress use, user's sweat can produce breeding of bacterium after being absorbed by it, can influence its problem of dressing travelling comfort
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a cool surface fabric of feeling of lasting ultraviolet resistance type to when solving the existence that proposes in the above-mentioned background art and dressing the use, user's sweat is absorbed the back by it, can produce breeding of bacterium, can influence its problem of dressing the travelling comfort.
In order to achieve the above object, the utility model provides a following technical scheme: the fabric comprises a base layer, wherein an antibacterial layer is arranged on the outer wall of the base layer, the antibacterial layer comprises a first wool-hemp interwoven cool fabric layer and a second wool-hemp interwoven cool fabric layer, and the first wool-hemp interwoven cool fabric layer and the second wool-hemp interwoven cool fabric layer are respectively arranged at two ends of the base layer.
Preferably, the outer walls of the first and second wool-hemp interwoven cooling fabric layers are respectively provided with a first and second bamboo fiber fabric layers.
Preferably, the outer wall of the first bamboo fiber fabric layer is provided with a first ice silk fabric layer.
Preferably, the outer wall of the second bamboo fiber fabric layer is provided with a second ice silk fabric layer.
Preferably, the outer wall of the first ice silk fabric layer is provided with a first cooling type polypropylene fiber fabric layer.
Preferably, the outer wall of the second ice silk fabric layer is provided with a second cool type polypropylene fiber fabric layer.
Compared with the prior art, the beneficial effects of the utility model are that: this cool surface fabric of lasting ultraviolet resistance type, through the cool fabric layer of first wool-flax interweaving, the cool fabric layer of second wool-flax interweaving, cooperation between first primary bamboo fiber surface fabric layer and the secondary bamboo fiber surface fabric layer, according to first wool-flax interweaving cool fabric layer, the cool fabric layer of second wool-flax interweaving, first primary bamboo fiber surface fabric layer and secondary bamboo fiber surface fabric layer all have good bacterinertness, can effectually avoid when this cool surface fabric of lasting ultraviolet resistance type absorbs the sweat after, the sweat nourishes living bacterium in this cool surface fabric of lasting ultraviolet resistance type, improve the wearing comfort level of this cool surface fabric of lasting ultraviolet resistance type.
Through the cooperation between the first ice silk fabric layer, the second ice silk fabric layer, the first cool type polypropylene fiber fabric layer and the second cool type polypropylene fiber fabric layer, according to the fact that the first ice silk fabric layer, the second ice silk fabric layer, the first cool type polypropylene fiber fabric layer and the second cool type polypropylene fiber fabric layer all have cool sensibility and ultraviolet resistance, when the lasting ultraviolet resistance type cool feeling fabric is worn, the lasting ultraviolet resistance type cool feeling fabric has good cool sensibility and an ultraviolet resistance function.
Drawings
FIG. 1 is a schematic view of the connection relationship of the present invention;
FIG. 2 is a schematic plane structure diagram of the lasting ultraviolet-resistant cool feeling fabric;

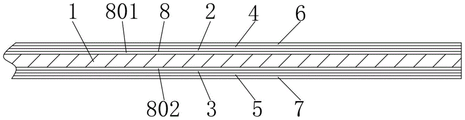

fig. 3 is a schematic structural diagram of a first bamboo fiber fabric layer, a first ice silk fabric layer and a first wool-hemp interwoven cooling fabric layer in fig. 1;
fig. 4 is a schematic structural diagram of a second bamboo fiber fabric layer, a second ice silk fabric layer and a second cooling type polypropylene fiber fabric layer in fig. 1.
In the figure: 1. the base layer comprises 2 parts of a first bamboo fiber fabric layer, 3 parts of a second bamboo fiber fabric layer, 4 parts of a first ice silk fabric layer, 5 parts of a second ice silk fabric layer, 6 parts of a first cool polypropylene fiber fabric layer, 7 parts of a second cool polypropylene fiber fabric layer, 8 parts of an antibacterial layer, 801 parts of a first wool-hemp interwoven cool fabric layer and 802 parts of a second wool-hemp interwoven cool fabric layer.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a lasting ultraviolet resistance line type cool feeling surface fabric, including base level 1, base level 1 is cotton fabric layer, the outer wall of base level 1 is equipped with antibacterial layer 8, antibacterial layer 8 includes first ramie interweave cool fabric layer 801 and second ramie interweave cool fabric layer 802, first ramie interweave cool fabric layer 801 and second ramie interweave cool fabric layer 802 set up respectively in the both ends of base level 1, first ramie interweave cool fabric layer 801 and second ramie interweave cool fabric layer 802 ramie heat conduction wet dispersing performance better, and have very strong anti-rot, mould resistance and other biological erosion ability, but the ramie crystallinity is high, the fibre is stiff, lack elasticity, extensibility is poor, cohesion is not good, the spun yarn filoplume is more. Wool has good spinnability, and has some advantages that ramie does not have in the aspect of wearability, the wool and the ramie can be combined into yarns on a spinning machine to make up for deficiencies, the outer walls of the first wool-ramie interwoven cool fabric layer 801 and the second wool-ramie interwoven cool fabric layer 802 are respectively provided with a first bamboo fiber fabric layer 2 and a second bamboo fiber fabric layer 3, the first bamboo fiber fabric layer 2 and the second bamboo fiber fabric layer 3 are natural bamboo fibers prepared by a physical and chemical combination method, the longitudinal direction of the natural bamboo fibers has transverse joints, the thickness distribution is uneven, and countless fine grooves are formed on the surface of the fiber fabric. The ramie fiber fabric is irregular oval, circular and the like in the transverse direction, a middle cavity is arranged in the ramie fiber fabric, gaps with different sizes are fully distributed on the cross section, and cracks are arranged on the edge of the ramie fiber fabric and are very similar to the cross section of the ramie fiber fabric. Have natural antibiotic antibacterial, the ventilative good characteristic of moisture absorption, the outer wall of first raw bamboo fiber precoat 2 is provided with first ice silk precoat 4, and the outer wall of second raw bamboo fiber precoat 3 is provided with second ice silk precoat 5, and first ice silk precoat 4 and second ice silk precoat 5 are chemical fiber's trade name, and the ice silk is mostly a general name to the ice silk, and the composition that contains is also different, for example: polyester fiber, viscose fiber, terylene, spandex, chinlon, modal, cotton blended yarn and the like are collectively called, and the ice silk is not a material. But rather a generic term for one or more materials, generally nominally: mainly elastic fibres. Including but not limited to: the artificial material, the natural material and other components have the characteristics of smoothness, coolness, air permeability, static resistance, ultraviolet resistance, gorgeous color and the like, the outer wall of the first ice silk fabric layer 4 is provided with a first coolness type polypropylene fiber fabric layer 6, the outer wall of the second ice silk fabric layer 5 is provided with a second coolness type polypropylene fiber fabric layer 7, the first coolness type polypropylene fiber fabric layer 6 and the second coolness type polypropylene fiber fabric layer 7 use ultraviolet-resistant polypropylene filaments as raw materials, the fabric structure is designed, cool fabrics with different weave structures, covering coefficients and thicknesses are developed, 83dtex polypropylene filaments and 83dtex multiplied by 2 polypropylene filaments are respectively used for designing plain, satin and twill fabrics with different thicknesses, the fabric is compact, light, thin and cool in structure, has excellent ultraviolet protection performance, fully embodies cool style characteristics and radiation resistance functionality, and is an ideal garment fabric in summer.
When the lasting ultraviolet-resistant cool fabric is used, the first wool-hemp interwoven cool fabric layer 801, the second wool-hemp interwoven cool fabric layer 802, the first bamboo fiber fabric layer 2 and the second bamboo fiber fabric layer 3 all have good antibacterial property, so that sweat can be effectively prevented from generating bacteria in the lasting ultraviolet-resistant cool fabric after the lasting ultraviolet-resistant cool fabric absorbs sweat, the wearing comfort of the lasting ultraviolet-resistant cool fabric is improved, and the lasting ultraviolet-resistant cool fabric has cool feeling and ultraviolet resistance according to the first ice silk fabric layer 4, the second ice silk fabric layer 5, the first cool polypropylene fiber fabric layer 6 and the second cool polypropylene fiber fabric layer 7, and further has good cool feeling and an ultraviolet-resistant function when being worn.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a cool sense surface fabric of lasting anti ultraviolet line formula, includes basic unit (1), its characterized in that: the antibacterial fabric layer is characterized in that an antibacterial layer (8) is arranged on the outer wall of the base layer (1), the antibacterial layer (8) comprises a first wool-hemp interwoven cool fabric layer (801) and a second wool-hemp interwoven cool fabric layer (802), and the first wool-hemp interwoven cool fabric layer (801) and the second wool-hemp interwoven cool fabric layer (802) are respectively arranged at two ends of the base layer (1).
2. The durable ultraviolet-resistant cool feeling fabric according to claim 1, which is characterized in that: the outer walls of the first wool-hemp interwoven cool fabric layer (801) and the second wool-hemp interwoven cool fabric layer (802) are respectively provided with a first bamboo fiber fabric layer (2) and a second bamboo fiber fabric layer (3).
3. The durable ultraviolet-resistant cool feeling fabric according to claim 2, characterized in that: the outer wall of the first bamboo fiber fabric layer (2) is provided with a first ice silk fabric layer (4).
4. The durable ultraviolet-resistant cool feeling fabric according to claim 2, characterized in that: and a second ice silk fabric layer (5) is arranged on the outer wall of the second bamboo fiber fabric layer (3).
5. The durable ultraviolet-resistant cool feeling fabric according to claim 3, characterized in that: the outer wall of the first ice silk fabric layer (4) is provided with a first cool type polypropylene fiber fabric layer (6).
6. The durable ultraviolet-resistant cool feeling fabric according to claim 4, characterized in that: and a second cool polypropylene fiber fabric layer (7) is arranged on the outer wall of the second ice silk fabric layer (5).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202220477602.6U CN217476765U (en) | 2022-03-07 | 2022-03-07 | Lasting ultraviolet-resistant cool fabric |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202220477602.6U CN217476765U (en) | 2022-03-07 | 2022-03-07 | Lasting ultraviolet-resistant cool fabric |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN217476765U true CN217476765U (en) | 2022-09-23 |
Family
ID=83306579
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202220477602.6U Active CN217476765U (en) | 2022-03-07 | 2022-03-07 | Lasting ultraviolet-resistant cool fabric |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN217476765U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116922896A (en) * | 2023-07-14 | 2023-10-24 | 江苏五龙针织有限公司 | Antibacterial and antiviral fabric and preparation method thereof |
-
