本申请公开一种圆砂轮磨削加工辅助装置，属于圆砂轮加工辅助技术领域，其包括底板，所述底板的顶端固定安装有两组支撑杆，所述支撑杆的顶端固定安装有顶板，所述顶板的贯穿转动设置有转动杆，所述底板的顶端固定安装有输出轴与所述转动杆同轴连接的电动机，所述转动杆的顶端同轴连接有支撑板，所述支撑板的顶端设置有圆砂轮；所述顶板的一侧固定安装有L形安装板，所述L形安装板的水平支臂端部螺纹穿设有调节螺杆，所述调节螺杆的底端转动设置有与圆砂轮顶端贴合的抵触板；本申请在实际使用的过程中能够稳定地使得圆砂轮得到侧面以及边缘处的打磨，提高打磨的效果，为后续的使用提供较好地基础。
The present application discloses an auxiliary device for grinding and processing of a circular grinding wheel, belonging to the technical field of auxiliary processing of circular grinding wheels. A rotating rod is arranged through the rotation of the top plate, a motor whose output shaft is coaxially connected to the rotating rod is fixedly installed on the top end of the bottom plate, a supporting plate is coaxially connected to the top of the rotating rod, and the top end of the supporting plate is fixedly installed. A circular grinding wheel is provided; an L-shaped mounting plate is fixedly installed on one side of the top plate, and an adjusting screw is threaded through the end of the horizontal arm of the L-shaped mounting plate, and the bottom end of the adjusting screw is rotated and provided with a circular wheel. The friction plate attached to the top of the grinding wheel; the present application can stably make the round grinding wheel grind the side and edges during the actual use process, improve the grinding effect, and provide a better foundation for subsequent use.
Description
Technical Field
The application relates to a round grinding wheel processing auxiliary technical field especially relates to a round grinding wheel grinding auxiliary device.
Background
The grinding wheel is also called a consolidation grinding tool, and is a consolidation grinding tool which is formed by consolidating common grinding materials into a certain shape (mostly circular, with a through hole in the center) by a binding agent and has certain strength. It is generally composed of abrasive, bond and air holes, which are often referred to as the three elements of a bonded abrasive tool. According to different classes of binders, ceramic (binder) grinding wheels, resin (binder) grinding wheels, and rubber (binder) grinding wheels are common. The grinding wheel is the one with the largest use amount and the widest use range in the grinding tool, rotates at high speed when in use, and can perform coarse grinding, semi-fine grinding, slotting, cutting and the like on the excircle, the inner circle, the plane, various molded surfaces and the like of a metal or nonmetal workpiece.
The applicant finds that the existing round grinding wheel generally needs to be ground in the machining process, and the existing equipment can only grind one surface in the grinding process, so that the actual grinding efficiency is low, and therefore the round grinding wheel grinding auxiliary device is provided.
SUMMERY OF THE UTILITY MODEL
To prior art's not enough, this application provides a round grinding wheel grinding auxiliary device, has overcome prior art's not enough, aims at solving prior art grinding process's in-process, and current equipment only can polish to a certain face and handle for actual grinding process's efficiency is problem comparatively low.
In order to achieve the above purpose, the present application provides the following technical solutions: the auxiliary device for grinding the round grinding wheel comprises a bottom plate, wherein two groups of supporting rods are fixedly mounted at the top end of the bottom plate, a top plate is fixedly mounted at the top ends of the supporting rods, a rotating rod is arranged on the top plate in a penetrating and rotating mode, an electric motor with an output shaft coaxially connected with the rotating rod is fixedly mounted at the top end of the bottom plate, a supporting plate is coaxially connected at the top end of the rotating rod, and the round grinding wheel is placed at the top end of the supporting plate;
an L-shaped mounting plate is fixedly mounted on one side of the top plate, an adjusting screw rod penetrates through the end part of a horizontal support arm of the L-shaped mounting plate in a threaded manner, and a contact plate attached to the top end of the round grinding wheel is rotatably arranged at the bottom end of the adjusting screw rod;
a through hole in the vertical direction is formed in the horizontal support arm of the L-shaped mounting plate, a side surface polishing assembly penetrates through the through hole, the side surface polishing assembly comprises a sliding pipe which is arranged at the through hole in the horizontal support arm of the L-shaped mounting plate in a sliding mode, a penetrating and contracting rod vertically penetrates through the sliding pipe, and a polishing head is fixedly connected to the bottom end of the penetrating and contracting rod;
the horizontal support arm of the L-shaped mounting plate is provided with a threaded through hole, a screw rod penetrates through the L-shaped mounting plate at the position of the threaded through hole in a threaded mode, an installation head is sleeved at one end of the screw rod, and a side grinding head is fixedly installed on one side of the installation head.
By adopting the technical scheme, in the actual use process, the round grinding wheel to be ground is placed at the top of the supporting plate, then the adjusting screw rod is rotated, the abutting plate is continuously screwed under the action of the adjusting screw rod and finally abutted and extruded with the top surface of the round grinding wheel, and then the rotating rod drives the supporting plate and the abutted and clamped round grinding wheel to rotate by starting the motor, so that a stable foundation is provided for subsequent grinding;
in the grinding process, the side grinding component is moved to the position right above the rotary circular grinding wheel by sliding the side grinding component along the through hole in the horizontal support arm of the L-shaped mounting plate, then the compression rod is pressed downwards, so that the grinding head is gradually contacted with the top surface of the circular grinding wheel, the surface of the circular grinding wheel can be effectively ground in the rotating process of the circular grinding wheel, and the top surface of the circular grinding wheel can be effectively ground in the covering type grinding process by continuously adjusting the position of the side grinding component in the rotating process of the circular grinding wheel;
in the grinding process, the end of the precession screw rod can be provided with a proper mounting head and a side grinding head, and the precession screw rod is rotated, so that the side grinding head is contacted with the side of the round grinding wheel, and the side of the round grinding wheel is well ground.
As a preferred technical solution of the present application, the axis lines of the contact plate, the rotating rod, and the circular grinding wheel coincide.
Through adopting above-mentioned technical scheme, when guaranteeing to press from both sides tight to the round grinding wheel, realize the synchronous rotation of round grinding wheel, provide better basis for polishing.
As an optimal technical scheme of this application, the outside fixed mounting of slip pipe has the spacing ring, just the horizontal support arm of L shape mounting panel has been seted up in the through-hole inboard and has been used for the gliding spacing groove of spacing ring.
Through adopting above-mentioned technical scheme, guarantee that the subassembly of polishing of side can slide in the through-hole on L shape mounting panel effectively, realize polishing effectively to the round grinding wheel side.
As an optimal technical scheme of this application, the top coaxial coupling who wears the shrinkage pool has the pressing plate, just the outside upper portion cover of wearing the shrinkage pool is equipped with the spring, the both ends of spring respectively with the sliding tube with wear shrinkage pool fixed connection.
By adopting the technical scheme, the grinding head can be quickly reset after force is not applied to the side grinding assembly.
As a preferable embodiment of the present application, the diameter of the retraction rod is larger than the inner diameter of the sliding tube.
Through adopting above-mentioned technical scheme, reduce and wear the probability that the shrinkage pool takes place to drop.
As an optimal technical scheme of this application, the top of installation head is seted up the screw thread and is perforated, screw thread perforation screw thread run through be provided with the locking screw that the precession screw rod contradicts.
Through adopting above-mentioned technical scheme to guarantee the installation head after changing and the side grinding head and the screw rod between compact type, reduce the risk that drops.
As an optimal technical scheme of this application, the top fixed mounting of roof has a plurality of groups of fixed blocks, just spherical recess has been seted up on the top of fixed block to the rotation is provided with the helping hand ball in spherical recess.
Through adopting above-mentioned technical scheme, reduced frictional force when playing better supporting role to the round grinding wheel.
As a preferable technical scheme of the application, the top height of the boosting ball is equal to the top height of the supporting plate.
By adopting the technical scheme, the periphery of the round grinding wheel is guaranteed to be better supported in the grinding process, and the stability in the grinding process is guaranteed.
The beneficial effect of this application:
1. in the in-process of in-service use, at first place the top in the backup pad through the round grinding wheel that will treat to polish to guarantee the round grinding wheel, the axial lead coincidence of touch panel and backup pad, then through rotatory adjusting screw, make the touch panel constantly precession under adjusting screw's effect, finally contradict the extrusion with the top surface of round grinding wheel, then through the starter motor, make the dwang drive backup pad and conflict tight round grinding wheel and rotate, provide stable basis for subsequent polishing.
2. In the process of polishing, through the side grinding assembly that slides along the through-hole on the horizontal support arm of L-shaped mounting panel, make the side grinding assembly remove to the pivoted circle emery wheel directly over, then through pushing down the pressing plate, make the draw back pole obtain compression treatment, and then make the head of polishing contact with circle emery wheel top surface gradually, at the rotatory in-process of circle emery wheel, can carry out the work of polishing to the surface of circle emery wheel effectively, through the position of constantly adjusting the side grinding assembly at this in-process, can carry out the overlay type with the top surface of circle emery wheel effectively and polish the processing.
In the grinding process, the end of the precession screw rod can be provided with a proper mounting head and a side grinding head, and the precession screw rod is rotated, so that the side grinding head is contacted with the side of the round grinding wheel, and the side of the round grinding wheel is well ground.
This application can make round grinding wheel obtain the polishing of side and edge steadily at the in-process of in-service use, improves the effect of polishing, provides better basis for subsequent use.
Drawings
FIG. 1 is a schematic front view of the present application;
figure 2 is a schematic diagram of the construction of a side grinding assembly of the present application.

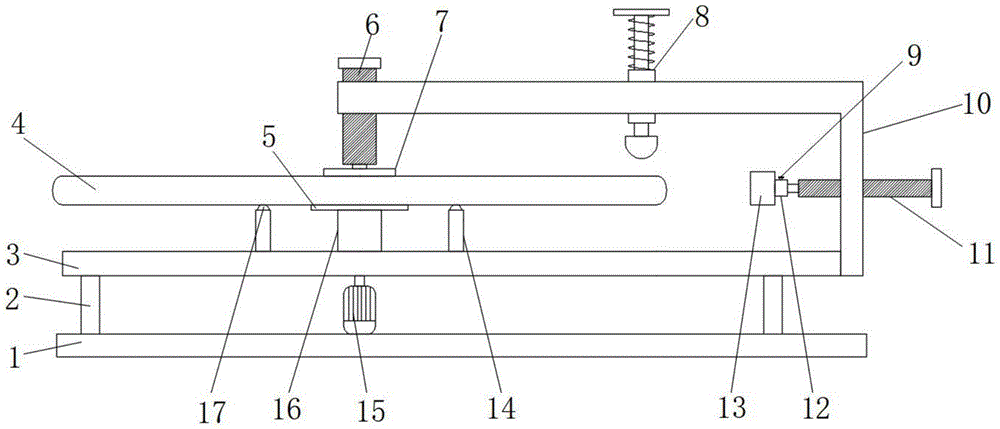

In the figure: 1. a base plate; 2. a support bar; 3. a top plate; 4. a circular grinding wheel; 5. a support plate; 6. adjusting the screw rod; 7. a touch plate; 8. a side grinding assembly; 81. a sliding tube; 82. penetrating and contracting the rod; 83. polishing head; 84. a pressing plate; 85. a spring; 86. a limiting ring; 9. locking the screw; 10. an L-shaped mounting plate; 11. screwing in a screw rod; 12. a mounting head; 13. a side grinding head; 14. a fixed block; 15. an electric motor; 16. rotating the rod; 17. and (4) a power-assisted ball.
Detailed Description
The technical solutions in the embodiments of the present application will be described clearly and completely with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only some embodiments of the present application, and not all embodiments. All other embodiments obtained by a person of ordinary skill in the art based on the embodiments in the present application without making any creative effort belong to the protection scope of the present application.
Referring to fig. 1, a round grinding wheel grinding auxiliary device, including bottom plate 1, the top fixed mounting of bottom plate 1 has two sets of bracing pieces 2, and the top fixed mounting of bracing piece 2 has roof 3, and roof 3 runs through to rotate and is provided with dwang 16, and the top fixed mounting of bottom plate 1 has output shaft and 16 coaxial fixed connection's of dwang motor 15, the coaxial fixedly connected with backup pad 5 in top of dwang 16, and round grinding wheel 4 has been placed on the top of backup pad 5.
An L-shaped mounting plate 10 is fixedly mounted on one side of the top plate 3, an adjusting screw 6 penetrates through the end part of a horizontal support arm of the L-shaped mounting plate 10 in a threaded manner, and a contact plate 7 attached to the top end of the round grinding wheel 4 is rotatably arranged at the bottom end of the adjusting screw 6; the axial lead of the contact plate 7, the rotating rod 16 and the round grinding wheel 4 coincide, so that the contact plate 7 and the supporting plate 5 clamp the round grinding wheel 4 tightly, the synchronous rotating rod 16 of the round grinding wheel 4 rotates, and a good foundation is provided for polishing.
A threaded through hole is formed in a horizontal supporting arm of the L-shaped mounting plate 10, a screwing screw 11 penetrates through the L-shaped mounting plate 10 at the threaded through hole in a threaded mode, an installation head 12 is sleeved at one end of the screwing screw 11, and a side grinding head 13 is fixedly installed on one side of the installation head 12. The top end of the mounting head 12 is provided with a thread through hole, and a locking screw 9 which is abutted against the screw feeding screw 11 is arranged on the mounting head 12 in a penetrating way in the thread through hole, so that the mounting head 12 after replacement, the side grinding head 13 and the screw feeding screw 11 are ensured to be compact, and the falling risk is reduced.
The top end of the top plate 3 is fixedly provided with a plurality of groups of fixing blocks 14, the top ends of the fixing blocks 14 are provided with spherical grooves, the spherical grooves of the fixing blocks 14 are rotatably provided with assisting balls 17, and the assisting balls 17 play a good supporting role in the circular grinding wheel 4 and reduce friction force. The top height of the boosting ball 17 is equal to the top height of the supporting plate 5, so that the periphery of the circular grinding wheel 4 is well supported in the grinding process, and the grinding stability is guaranteed.
Referring to fig. 1-2, a horizontal support arm of the L-shaped mounting plate 10 is provided with a through hole in the vertical direction, a side surface polishing assembly 8 penetrates through the through hole of the L-shaped mounting plate 10, the side surface polishing assembly 8 comprises a sliding tube 81 which is slidably arranged at the through hole of the horizontal support arm of the L-shaped mounting plate 10, a penetration rod 82 vertically penetrates through the sliding tube 81, and a polishing head 83 is fixedly connected to the bottom end of the penetration rod 82; the outside fixed mounting of slip tube 81 has spacing ring 86, and the horizontal support arm of L shape mounting panel 10 is offered at the through-hole inboard and is used for the gliding spacing groove of spacing ring 86, guarantees that side polishing subassembly 8 can slide in the through-hole on L shape mounting panel 10 effectively, realizes polishing effectively 4 sides of round grinding wheel.
The top end of the penetration rod 82 is coaxially connected with a pressing plate 84, the upper part of the outer side of the penetration rod 82 is sleeved with a spring 85, and two ends of the spring 85 are respectively fixedly connected with the sliding pipe 81 and the penetration rod 82, so that the polishing head 83 can be rapidly reset after force is applied to the side polishing assembly 8. The diameter of the penetration rod 82 is larger than the inner diameter of the sliding tube 81, so that the probability of falling off of the penetration rod 82 is reduced.
The working principle is as follows: in the in-process of in-service use, at first place the top at backup pad 5 through the round emery wheel 4 that will wait to polish, and guarantee round emery wheel 4, the axial lead coincidence of conflict board 7 and backup pad 5, then through rotatory adjusting screw 6, make and constantly precession under adjusting screw 6's effect to touch board 7, finally conflict the extrusion with the top surface of round emery wheel 4, then through starter motor 15, make dwang 16 drive backup pad 5 and conflict tight round emery wheel 4 and rotate, provide stable basis for subsequent polishing.
In the process of polishing, through the subassembly 8 of polishing of side of sliding along the through-hole on the horizontal support arm of L shape mounting panel 10, make the subassembly 8 of polishing of side remove to the pivoted circle emery wheel 4 directly over, then through pushing down press plate 84, make to wear the shrinkage pool 82 and obtain compression treatment, and then make the head 83 of polishing gradually with the contact of circle emery wheel 4 top surface, at the rotatory in-process of circle emery wheel 4, can be effectively to the work of polishing of the surface of circle emery wheel 4, through the position of constantly adjusting the subassembly 8 of polishing of side in this process, can carry out the overlay type with the top surface of circle emery wheel 4 effectively and polish the processing.
In the grinding process, the end of the screw-in screw 11 is provided with the proper mounting head 12 and the side grinding head 13, and the screw-in screw 11 is screwed in, so that the side grinding head 13 is contacted with the side of the round grinding wheel 4, and the side of the round grinding wheel 4 is well ground.
This application can make round grinding wheel 4 obtain the polishing of side and edge steadily at the in-process of in-service use, improves the effect of polishing, provides better basis for subsequent use.
Finally, it should be noted that: in the description of the present application, it is to be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present application.
In the description of the present application, it is further noted that, unless expressly stated or limited otherwise, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate.
Although the present application has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, improvement and the like made within the spirit and principle of the present application shall be included in the protection scope of the present application.
