CN217474557U - Cutting device for machine tool cutter - Google Patents

Abstract

The utility model relates to the technical field of tool processing, and discloses a machine tool cutting device, comprising a worktable, a first electric cylinder is installed in the middle of the upper end of the worktable, and a motor is installed at the output end of the first electric cylinder, The output end of the motor is provided with a cutting disc, the left and right sides of the motor are provided with second electric cylinders, and the output end of the second electric cylinder is provided with a limit frame. The utility model can press and limit the cutting tool material by setting the limit frame, the rubber pad, the fixing rod, the straight plate, the through port, the box body and the filter screen, so as to avoid the material deviation during the cutting process, and further The cutting accuracy can be improved, and the cutting tool material on the right side of the table can be pushed into the box, which saves the danger of manual material retrieval, further improves the cutting efficiency, and saves the workload of workers to clean up debris. , more practical, suitable for widespread promotion and use.

Description

A machine tool cutting device

technical field

The utility model relates to the technical field of tool processing, in particular to a tool cutting device for machine tools.

Background technique

The retrieval publication number is (CN111318751A), which discloses a cutter cutting device, which comprises a base, a pair of cutter sliding mechanisms arranged side by side on the base, and a pair of cutters arranged side by side on the base and corresponding to one side respectively. The tool clamping mechanism matched with the sliding mechanism, the tool cutting mechanism arranged between the two tool sliding mechanisms, and the tool length adjusting mechanism arranged on the base.

In the process of realizing the present utility model, the inventor found that at least the following problems have not been solved in the prior art: although the invention can cut the raw material of the cutting tool, it is too dangerous to require manual auxiliary cutting, and the function is single, which is urgently needed. To improve, therefore, we propose a machine tool cutting device.

Utility model content

The purpose of the utility model is to provide a machine tool cutting device, which solves the problems raised in the background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a machine tool cutting device, including a workbench;

A first electric cylinder is installed in the middle of the upper end of the worktable, a motor is installed at the output end of the first electric air cylinder, a cutting disc is installed at the output end of the motor, and a second electric cylinder is installed on the left and right sides of the motor. an electric cylinder, the output end of the second electric cylinder is provided with a limit frame, and the lower end of the right side of the worktable is provided with a fixing rod;

The left end of the fixing rod is installed with a straight plate through the workbench, the left front end of the straight plate is connected with a pulling rope, the middle part of the workbench is provided with a through opening, and the lower end of the through opening is detachably installed with a box body, so the A limit plate is installed on the right end of the fixing rod.

As a preferred embodiment of the present invention, rubber pads are adhered to the left and right sides of the lower end of the limiting frame.

As a preferred embodiment of the present invention, a spring is sleeved on the right outer side wall of the fixing rod.

As a preferred embodiment of the present invention, the free end of the pulling rope bypasses the guide wheel and is connected to the left side of the limit frame.

As a preferred embodiment of the present invention, a filter screen is detachably installed at the lower end of the inner cavity of the box body.

As a preferred embodiment of the present invention, the length of the left side of the straight plate is the same as the length of the left side of the workbench, and the lower end of the straight plate is attached to the upper surface of the workbench.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model can compress and limit the tool material by setting the limit frame, rubber pad, fixed rod, straight plate, port, box and filter screen, so as to avoid the situation of material deviation during the cutting process. , to further improve the cutting accuracy, and push the cut tool material on the right side of the worktable into the box, eliminating the danger of manual reclaiming, further improving the cutting efficiency, and saving workers from cleaning debris. The workload is beneficial to the more practical use of a machine tool cutting device.

2. The present utility model uses the limit plate on the fixed rod, which is convenient to limit the spring through the limit plate, to avoid the spring from falling off the fixed rod, so as to facilitate the reset of the fixed rod, which is conducive to the more practical use of a machine tool cutting device .

Description of drawings

Other features, objects and advantages of the present invention will become more apparent by reading the detailed description of non-limiting embodiments with reference to the following drawings:

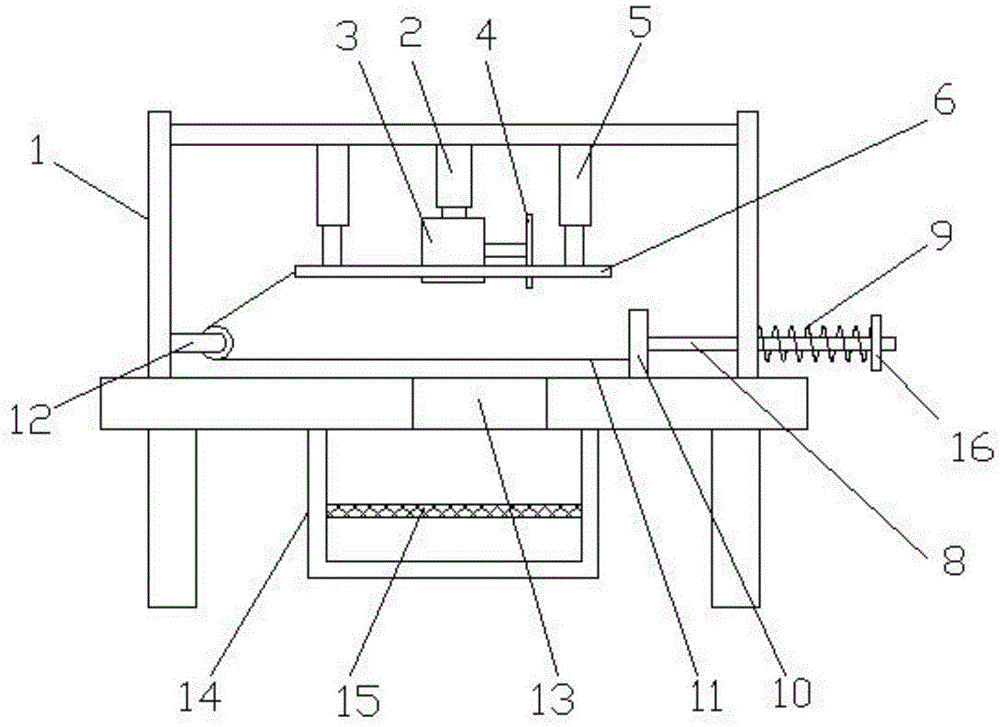

1 is a schematic diagram of the overall structure of a machine tool cutting device of the present utility model;

Fig. 2 is a schematic diagram of the bottom structure of a limit frame of a machine tool cutting device of the present invention.

In the picture: 1. Workbench, 2. First electric cylinder, 3. Motor, 4. Cutting disc, 5. Second electric cylinder, 6. Limiting frame, 7. Rubber pad, 8. Fixing rod, 9. Spring, 10, straight plate, 11, rope, 12, guide wheel, 13, port, 14, box, 15, filter, 16, limit plate.

Detailed ways

1-2, the present utility model provides a technical solution: a machine tool cutting device, comprising a worktable 1, a first electric cylinder 2 is installed in the middle of the upper end of the worktable 1, and the first electric cylinder A motor 3 is installed at the output end of the cylinder 2, a cutting disc 4 is installed at the output end of the motor 3, and a second electric cylinder 5 is arranged on the left and right sides of the motor 3, and the output end of the second electric cylinder 5 is installed. A limit frame 6 is installed, a fixing rod 8 is arranged on the lower end of the right side of the workbench 1, a straight plate 10 is installed at the left end of the fixing rod 8 through the workbench 1, and a pulling rope 11 is connected to the left front end of the straight plate 10. , the middle of the workbench 1 is provided with a through port 13, the lower end of the through port 13 is detachably installed with a box 14, the right end of the fixing rod 8 is installed with a limit plate 16, and the limit frame 6, Rubber pad 7, fixed rod 8, straight plate 10, port 13, box body 14 and filter screen 15, when using, first put the tool material on the table 1, and then open the second electric cylinder 5 through the switch, the second electric cylinder The air cylinder 5 drives the limit frame 6 to move downward, so that the limit frame 6 cooperates with the rubber pad 7 to press and limit the tool material, so as to avoid the material deviation during the cutting process, and further improve the cutting accuracy. Then, the limit frame 6 is controlled to move upward. During the upward movement of the limit frame 6, the pull rope 11 is pulled, and the pull rope 11 drives the straight plate 10 to move to the left, so that the straight plate 10 pushes the cut tool material on the right side above the worktable into the box. In the body 14, the danger of manual material retrieval is eliminated, and the cutting efficiency is further improved. At the same time, the straight plate 10 also pushes the debris on the right side of the worktable 1 into the box body 14, and then separates it through the filter screen 15, thereby saving workers. For the workload of cleaning debris, rubber pads 7 are glued to the left and right sides of the lower end of the limit frame 6, which is convenient to improve the limiting effect. When the rod 8 is reset, the free end of the pull rope 11 bypasses the guide wheel 12 and is connected to the left side of the limit frame 6, which is convenient for driving the straight plate 10 to move. To facilitate removal of debris, the length of the left side of the straight plate 10 is the same as the length of the left side of the workbench 1, and the lower end of the straight plate 10 is attached to the upper surface of the workbench 1, which is convenient to improve the cleaning effect.

Working principle, when using, first put the tool material on the worktable 1, and then turn on the second electric cylinder 5 through the switch, the second electric cylinder 5 drives the limit frame 6 to move down, so that the limit frame 6 cooperates with the rubber pad 7 The tool material is pressed and limited to avoid material deviation during the cutting process, and further improve the cutting accuracy. After cutting, the limit frame 6 is controlled to move upward, and the limit frame 6 is moved upwards. Pull the rope during the upward movement. 11. The pulling rope 11 drives the straight plate 10 to move to the left, so that the straight plate 10 pushes the cutting tool material on the right side above the worktable into the box body 14, which saves the danger of manual material retrieval and further improves the cutting efficiency. The straight plate 10 also pushes the debris on the right side of the workbench 1 into the box body 14, and then separates it through the filter screen 15, thereby saving the workload of the workers to clean the debris.

Claims (6)

1. A machine tool cutting device, characterized in that it comprises a workbench (1); A first electric cylinder (2) is installed in the middle of the upper end of the worktable (1), an output end of the first electric air cylinder (2) is installed with a motor (3), and an output end of the motor (3) is installed with a motor (3). The cutting disc (4), the left and right sides of the motor (3) are provided with a second electric cylinder (5), and the output end of the second electric cylinder (5) is provided with a limit frame (6), the working The lower end of the right side of the table (1) is provided with a fixing rod (8); A straight plate (10) is installed on the left end of the fixing rod (8) through the workbench (1), a pulling rope (11) is connected to the left front end of the straight plate (10), and a middle part of the workbench (1) is opened There is a through port (13), a box body (14) is detachably mounted on the lower end of the through port (13), and a limiting plate (16) is mounted on the right end of the fixing rod (8). 2 . A machine tool cutting device according to claim 1 , wherein rubber pads ( 7 ) are adhered to the left and right sides of the lower end of the limit frame ( 6 ). 3 . 3. A machine tool cutting device according to claim 1, wherein a spring (9) is sleeved on the right outer side wall of the fixing rod (8). 4. A machine tool cutting device according to claim 1, characterized in that: the free end of the pulling rope (11) bypasses the guide wheel (12) and is connected to the left side of the limiter (6). 5. A machine tool cutting device according to claim 1, wherein a filter screen (15) is detachably installed at the lower end of the inner cavity of the box body (14). 6. A machine tool cutting device according to claim 1, wherein the length of the left side of the straight plate (10) is the same as the length of the left side of the workbench (1), and the length of the left side of the straight plate (10) The lower end of the machine is in contact with the upper surface of the workbench (1).
