CN217471042U - A portable fishing rod with a ground bracket - Google Patents

Abstract

The utility model discloses a portable fishing rod with a ground-inserting bracket, which relates to the technical field of fishing rod brackets. The lower surface of the base is fixedly connected, the upper surface of the base is clamped with the lower surface of the fixing plate, the upper surface of the fixing plate is slidably connected with the lower surface of the first fishing rod support seat, and the back of the support frame is connected to the rotating The front of the clamping plate is clamped. In this scheme, the screw rod, U-shaped push plate, positioning column and support spring are arranged, and the screw rod is manually rotated, so that the screw rod will drive the U-shaped push plate to move down when moving, so that the U-shaped push plate is moved downward. When the push plate pushes the connecting plate to unfold, it drives the first fishing rod support seat and the second fishing rod support seat to move to both sides, so that the positions of the first fishing rod support seat and the second fishing rod support seat can be adjusted. The phenomenon of the rod body slipping is avoided, and the service life of the rod body is guaranteed.

Description

A portable fishing rod with a ground bracket

technical field

The utility model relates to the technical field of fishing rod brackets, in particular to a portable fishing rod with a ground-inserted bracket.

Background technique

At present, the fishing rod brackets on the market are mainly composed of a ground plug device and a fishing rod bracket device. The function of position leads to the phenomenon that the fishing rod often slips off when the fishing rod is clamped, which leads to the phenomenon of damage to the fishing rod. At the same time, the existing fishing rod bracket does not have the function of limited position fixation, which requires a long time to manually adjust the fishing rod. Fishing after support greatly increases the labor of operators.

Utility model content

The purpose of the utility model is to provide a portable fishing rod with a ground-inserted bracket, which can realize the function of adjusting the position of the fishing rod bracket, and at the same time, fishing is carried out without manual support for the fishing rod.

The above technical purpose of the present utility model is achieved through the following technical solutions: a portable fishing rod with a ground-inserted bracket, comprising: a support frame, and the lower surface of the support frame is fixedly connected with the top of the pin, the support frame The upper surface of the base is fixedly connected with the lower surface of the base.

The upper surface of the base is clamped with the lower surface of the fixed plate, the upper surface of the fixed plate is slidably connected with the lower surface of the first fishing rod support seat, and the back of the support frame is clamped with the front of the rotating clamping plate, The outer surface of the fixed plate is provided with installation holes, the upper surface of the fixed plate is slidably connected with the lower surface of the second fishing rod support base, the upper surface of the rotating card plate is provided with a groove, and the rotating card plate is provided with a groove. The left side of the inner wall is fixedly connected with the left end of the limit spring.

Wherein, a rod body is overlapped with the upper surface of the first fishing rod support seat.

Further, the upper surface of the fixing plate is provided with a support plate, the support plate is internally threadedly connected with a screw rod, and the bottom end of the screw rod is fixedly connected to the upper surface of the U-shaped push plate.

Further, the upper surface of the fixing plate is fixedly connected to the lower surface of the support plate, and the left side of the first fishing rod support base is fixedly connected to the right end of the positioning column.

Further, the left end of the positioning column is fixedly connected to the right end of the support spring, the left end of the support spring is fixedly connected to the right side of the support plate, and the outer surface of the positioning column is clamped to the back of the connecting plate.

Further, the right end of the limit spring is fixedly connected with the left end of the installation column, and the outer surface of the installation column is provided with a limit bump.

Further, the outer surface of the limiting protrusion is slidably connected with the inner wall of the groove, and the outer surface of the mounting post is clamped with the inner wall of the mounting hole.

Further, the outer surface of the support plate is provided with a chute, and the inner wall of the chute is slidably connected to the outer surface of the connecting plate.

Further, the back of the connecting plate is fixedly connected with the outer surface of the connecting column, and the right side of the connecting column is fixedly connected with the left side of the U-shaped push plate.

Compared with the prior art, the beneficial effects of this scheme are as follows:

1. In this scheme, the screw rod, the U-shaped push plate, the positioning column and the support spring are arranged, and the screw rod is manually rotated to make the screw rod rotate in the support plate, so that the screw rod will drive the U-shaped push plate downward when moving. Move, so that the U-shaped push plate pushes the connecting plate to expand and drives the first fishing rod support seat and the second fishing rod support seat to move to both sides, so that the first fishing rod support seat and the second fishing rod support seat can be realized. The position of the rod can be adjusted, and it can also limit the position of the rod body, avoiding the phenomenon of the rod body sliding down, and ensuring the service life of the rod body;

2. In this scheme, by setting the installation column, the limit bump and the limit spring, and manually rotating the rotating card plate, the rotating card plate will overlap with the fixed plate, and then the limit bump is pulled to make the limit stop. After the bump drives the mounting post to shrink, the mounting post is clamped with the mounting hole, so that the fixing plate can be fixed, so that the operator does not need to manually support the fishing rod for fishing, which greatly reduces the labor of the operator;

3. In this scheme, by setting the connecting plate, the connecting column and the chute, when the screw is rotated, the U-shaped push plate will move down, and then the U-shaped push plate will drive the connecting column to move, and the two sides of the connecting column will move. The connecting plate also moves in the chute, so that the connecting plate can drive the positioning column to move left and right smoothly, so as to achieve the effect of fixing fishing rods of different sizes.

Description of drawings

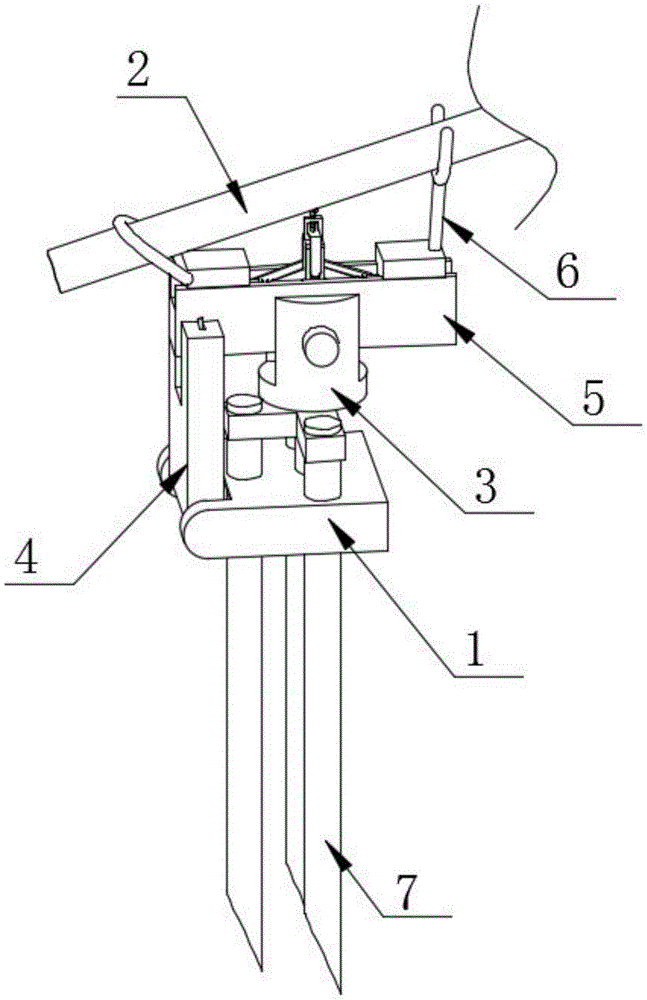

Fig. 1 is the structural representation for embodying the three-dimensional of the present utility model;

FIG. 2 is a schematic structural diagram for embodying the three-dimensional base of the present utility model;

3 is a schematic cross-sectional structure diagram for embodying the three-dimensional fixing plate of the present invention;

FIG. 4 is a schematic cross-sectional structure diagram for embodying the three-dimensional rotation card plate of the present invention;

FIG. 5 is a schematic cross-sectional structure diagram for embodying the three-dimensional support plate of the present invention.

In the figure: 1 support frame, 2 rod body, 3 base, 4 rotating clamp plate, 5 fixed plate, 6 first fishing rod support seat, 7 pins, 8 second fishing rod support seat, 9 installation holes, 10 support plate, 11 screw rod, 12 U-shaped push plate, 13 positioning column, 14 supporting spring, 15 connecting plate, 16 groove, 17 mounting column, 18 limit bump, 19 limit spring, 20 connecting column, 21 chute.

Detailed ways

The utility model will be described in further detail below with reference to the accompanying drawings and specific embodiments. The following embodiments are only descriptive, not limiting the protection scope of the present utility model.

Example 1

A portable fishing rod with a ground bracket, as shown in Figures 1-5, includes: a support frame 1, and the lower surface of the support frame 1 is fixedly connected to the top of the pin 7, and the upper surface of the support frame 1 is connected to the base 3 The lower surface of the base 3 is fixedly connected, the upper surface of the base 3 is clamped with the lower surface of the fixing plate 5, the upper surface of the fixing plate 5 is slidably connected with the lower surface of the first fishing rod support seat 6, and the back of the support frame 1 is connected with the rotating clamping plate. 4, the outer surface of the fixing plate 5 is provided with a mounting hole 9, the upper surface of the fixing plate 5 is slidably connected with the lower surface of the second fishing rod support 8, and the upper surface of the rotating clamping plate 4 is provided with a groove 16. , the left side of the inner wall of the rotating clamp 4 is fixedly connected with the left end of the limit spring 19 , wherein the upper surface of the first fishing rod support seat 6 is overlapped with the rod body 2 .

In practical applications, the pins 7 can be well fixed with the ground, preventing the position of the support frame 1 from shifting after installation, and avoiding the damage to the rod body 2 when the operator is fishing. 4 can be fixed with the installation holes 9 on both sides of the fixed plate 5, which avoids the phenomenon that the fixed plate 5 is inclined when clamping the rod body 2, and the limit spring 19 can exert a thrust on the installation column 17 to ensure the installation column. 17 can be snapped into the mounting hole 9 smoothly.

Example 2

A portable fishing rod with a ground-inserting bracket is different from Embodiment 1 in that, as shown in FIGS. 2 and 3 , the upper surface of the fixing plate 5 is provided with a support plate 10, and the support plate 10 is internally threaded with wires. Rod 11, the bottom end of the screw rod 11 is fixedly connected with the upper surface of the U-shaped push plate 12, the upper surface of the fixed plate 5 is fixedly connected with the lower surface of the support plate 10, and the left side of the first fishing rod support seat 6 is positioned The right end of the column 13 is fixedly connected, the left end of the positioning column 13 is fixedly connected with the right end of the support spring 14, the left end of the support spring 14 is fixedly connected with the right side of the support plate 10, and the outer surface of the positioning column 13 is connected with the back of the connecting plate 15. catch.

In practical applications, the screw rod 11 can drive the connecting plate 15 to move left and right through the cooperation with the U-shaped push plate 12, so that the connecting plate 15 can drive the positioning column 13 and the support spring 14 to move left and right to achieve the first fishing rod. The position of the support seat 6 is fixed, which ensures that the position of the first fishing rod support seat 6 can be adjusted according to the actual situation, and the applicability of the fishing rod bracket is guaranteed.

Example 3

A portable fishing rod with a ground-inserting bracket is different from Embodiment 1 in that, as shown in FIGS. 4 and 5 , the right end of the limit spring 19 is fixedly connected to the left end of the mounting post 17 , and the outer The surface is provided with a limit bump 18, the outer surface of the limit bump 18 is slidably connected with the inner wall of the groove 16, the outer surface of the mounting post 17 is clamped with the inner wall of the mounting hole 9, and the outer surface of the support plate 10 is provided with a chute 21. The inner wall of the chute 21 is slidably connected to the outer surface of the connecting plate 15, the back of the connecting plate 15 is fixedly connected to the outer surface of the connecting column 20, and the right side of the connecting column 20 is fixed to the left side of the U-shaped push plate 12. connect.

In practical applications, when the limiting projection 18 is pulled, the mounting post 17 can be moved, and the mounting post 17 will be pushed by the limiting spring 19 when it is clamped, thereby ensuring that the mounting post 17 can be stable The rod body 2 is snapped into the installation hole 9 to ensure the stability after installation, and the operator does not need to manually support the rod body 2, which reduces the labor of the operator.

Working principle, by rotating the screw 11, the U-shaped push plate 12 can be driven to move, and then the U-shaped push plate 12 will drive the connecting column 20 to move, and the connecting plates 15 on both sides of the connecting column 20 will also move in the chute 21. Move, so that the connecting plate 15 will drive the positioning column 13 to move, and also drive the first fishing rod support base 6 and the second fishing rod support base 8 to move to both sides, and then rotate the rotating clamping plate 4 and the fixing plate 5. After the lap joint is performed, the operator manually pulls the limit bump 18 to adjust the position of the installation column 17. After the rotating clamping plate 4 is clamped with the fixed plate 5, after the limit bump 18 is released, the installation column 17 is in the position. After being pushed by the limit spring 19, it will be snapped into the mounting hole 9. The operator then inserts the pin 7 into the soil, and then snaps the rod body 2 to the first fishing rod support seat 6 and the second fishing rod support seat. within 8.

This specific embodiment is only an explanation of the present utility model, and it is not a limitation of the present utility model. Those skilled in the art can make modifications to the present embodiment without creative contribution as needed after reading this specification, but as long as the utility model is used in the present invention All new types of claims are protected by the patent law.

Claims (8)

1. A portable fishing rod with a ground-inserted bracket, characterized in that it comprises: a support frame (1), and the lower surface of the support frame (1) is fixedly connected with the top of the pin (7), and the support frame ( The upper surface of 1) is fixedly connected with the lower surface of the base (3); The upper surface of the base (3) is clamped with the lower surface of the fixing plate (5), and the upper surface of the fixing plate (5) is slidably connected with the lower surface of the first fishing rod support seat (6). The back of the frame (1) is clamped with the front of the rotating card plate (4), the outer surface of the fixing plate (5) is provided with a mounting hole (9), and the upper surface of the fixing plate (5) is connected to the second fish. The lower surface of the rod support seat (8) is slidably connected, a groove (16) is formed on the upper surface of the rotating clamping plate (4), and the left side of the inner wall of the rotating clamping plate (4) is connected to the limit spring (19). ) at the left end of the fixed connection; Wherein, a rod body (2) is overlapped with the upper surface of the first fishing rod support seat (6). 2. A portable fishing rod with a ground-inserting bracket according to claim 1, wherein a support plate (10) is provided on the upper surface of the fixing plate (5), and the support plate (10) A screw rod (11) is connected with the inner thread, and the bottom end of the screw rod (11) is fixedly connected with the upper surface of the U-shaped push plate (12). 3. A portable fishing rod with a ground-inserting bracket according to claim 1, wherein the upper surface of the fixing plate (5) is fixedly connected with the lower surface of the supporting plate (10), and the first The left side of a fishing rod support seat (6) is fixedly connected with the right end of the positioning column (13). 4. A portable fishing rod with a ground-inserting bracket according to claim 3, characterized in that the left end of the positioning column (13) is fixedly connected with the right end of the support spring (14), and the support spring ( The left end of 14) is fixedly connected with the right side of the support plate (10), and the outer surface of the positioning column (13) is clamped with the back of the connecting plate (15). 5. A portable fishing rod with a ground-inserting bracket according to claim 1, wherein the right end of the limit spring (19) is fixedly connected with the left end of the mounting post (17), and the mounting post The outer surface of (17) is provided with limiting bumps (18). 6 . The portable fishing rod with a ground-inserting bracket according to claim 5 , wherein the outer surface of the limiting protrusion ( 18 ) is slidably connected to the inner wall of the groove ( 16 ), and the The outer surface of the mounting post (17) is clamped with the inner wall of the mounting hole (9). 7. A portable fishing rod with a ground-inserting bracket according to claim 2, wherein a chute (21) is provided on the outer surface of the support plate (10), and the chute (21) The inner wall of the connecting plate (15) is slidably connected with the outer surface of the connecting plate (15). 8. A portable fishing rod with a ground-inserting bracket according to claim 7, characterized in that the back of the connecting plate (15) is fixedly connected to the outer surface of the connecting post (20), and the connecting post The right side of (20) is fixedly connected with the left side of the U-shaped push plate (12).
