CN217457370U - Production device of steel wire adhesive tape pipe - Google Patents
Production device of steel wire adhesive tape pipe Download PDFInfo
- Publication number
- CN217457370U CN217457370U CN202220616232.XU CN202220616232U CN217457370U CN 217457370 U CN217457370 U CN 217457370U CN 202220616232 U CN202220616232 U CN 202220616232U CN 217457370 U CN217457370 U CN 217457370U
- Authority
- CN
- China
- Prior art keywords
- mounting plate
- steel wire
- production device
- base
- conveying
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Treatment Of Fiber Materials (AREA)
Abstract
本实用新型提供一种钢丝胶布管的生产装置，包括底座，所述底座的表面一侧设置有输送台，所述输送台的表面两侧均开设有滑槽，所述滑槽的一端设置有滑块，所述滑块的一端焊接有安装板，所述输送台的外壁两侧固定安装有液压缸，所述安装板的一侧设置有传送机构，所述输送台的两端均螺纹连接有支撑机构。该钢丝胶布管的生产装置，通过滑槽、滑块、安装板和液压缸的设置，可以有效的根据胶布管的尺寸调节输送辊的位置，在使用时通过液压缸带动安装板和滑块在滑槽的一端进行移动，同时滑块和滑槽可以对安装板进行限位，使安装板在移动时保持稳定，而安装板内侧的输送辊在移动的过程中，贴合到胶布管的表面，使胶布管可以稳定的传送。
The utility model provides a production device for steel wire rubber cloth pipes, which comprises a base, a conveying table is arranged on one side of the surface of the base, a chute is provided on both sides of the surface of the conveying table, and one end of the chute is provided with a conveying table. A sliding block, one end of the sliding block is welded with a mounting plate, two sides of the outer wall of the conveying table are fixedly installed with hydraulic cylinders, one side of the mounting plate is provided with a transmission mechanism, and both ends of the conveying table are threadedly connected There is a support mechanism. The production device of the steel wire rubber cloth pipe can effectively adjust the position of the conveying roller according to the size of the rubber cloth pipe through the setting of the chute, the sliding block, the mounting plate and the hydraulic cylinder. One end of the chute moves, and the slider and the chute can limit the mounting plate, so that the mounting plate remains stable when moving, and the conveyor roller inside the mounting plate is attached to the surface of the tape tube during the movement. , so that the tape tube can be transported stably.
Description
Technical Field
The utility model relates to a rubber tube correlation technique field especially relates to a apparatus for producing of steel wire adhesive tape pipe.
Background
The rubber tube is used for conveying gas, liquid, pulpous or granular materials and is composed of an inner rubber layer, an outer rubber layer and a framework layer, wherein the framework layer can be made of cotton fibers, various synthetic fibers, carbon fibers or asbestos, steel wires and the like, and the inner rubber layer and the outer rubber layer of the common rubber tube are made of natural rubber, styrene butadiene rubber or butadiene rubber; the oil-resistant rubber tube adopts chloroprene rubber and nitrile rubber; the acid and alkali resistance and high temperature resistance rubber pipe adopts ethylene propylene rubber, fluororubber or silicon rubber and the like, and in the production process of the steel wire rubberized fabric pipe, a steel wire needs to be wound on the surface of the rubber pipe to reinforce the structure of the rubber pipe, so that a production device of the steel wire rubberized fabric pipe is needed.
But the apparatus for producing of current steel wire rubberized fabric pipe, when using, the dynamics of carrying can't be adjusted according to the concrete of rubber tube to most of winders, and at the in-process of conveying, easy because the distance between the conveying roller is near or far away to unable stable transport rubber tube makes and takes place to be in disorder at the winding of steel wire on the rubber tube surface.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a production device of steel wire adhesive cloth pipe to solve the production device of the current steel wire adhesive cloth pipe that proposes in the above-mentioned background art, when using, most of winders can't be according to the concrete dynamics of carrying out the regulation of rubber tube, at the in-process of conveying, easy because the distance between the conveying roller is nearer or far away, thereby unable stable conveying rubber tube, make and take place in disorder problem in the winding of steel wire on the rubber tube surface.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a apparatus for producing of steel wire adhesive tape pipe, includes the base, surface one side of base is provided with carries the platform, the spout has all been seted up to the surperficial both sides of carrying the platform, the one end of spout is provided with the slider, the one end welding of slider has the mounting panel, the outer wall both sides fixed mounting who carries the platform has the pneumatic cylinder, one side of mounting panel is provided with transport mechanism, the equal threaded connection in both ends of carrying the platform has a supporting mechanism, surface one side fixed mounting of base has positioning mechanism, surface one side of base is provided with installation mechanism, the outer wall top threaded connection of base has fixed frame, fixed frame's skin weld has the protection network.
Preferably, the mounting plate forms a sliding structure with the conveying table through a sliding block and a sliding groove, and the output end of the hydraulic cylinder is in threaded connection with the mounting plate.
Preferably, transport mechanism includes bearing, connecting axle, conveying roller, toothed disc, toothed belt, shield and driving motor, the inner wall both sides of mounting panel all are provided with the bearing, the one end of bearing is provided with the connecting axle, the one pot head of connecting axle is established and is installed the conveying roller, the one end of connecting axle is run through the mounting panel and is provided with the toothed disc, the outer lane cover of toothed disc is equipped with the toothed belt, the outer wall top of mounting panel is provided with the shield, the surperficial one side fixed mounting of shield has driving motor, the connecting axle is installed to driving motor's output.
Preferably, the supporting mechanism comprises a supporting plate, a rotating shaft and a limiting roller, the supporting plate is connected to the two ends of the conveying table in a threaded mode, the rotating shaft is arranged at one end of the supporting plate, and the limiting roller is sleeved at one end of the rotating shaft.
Preferably, positioning mechanism includes fixed station, screwed pipe, threaded rod and registration arm, surface one side of base is provided with the fixed station, the one end of fixed station is provided with the screwed pipe, threaded rod is run through to the one end of screwed pipe, the one end surface of fixed station is run through there is the registration arm.
Preferably, installation mechanism includes rotary disk, connecting rod, bobbin and gag lever post, the outer wall top of base is provided with the rotary disk, surface one side of rotary disk is provided with the connecting rod, the pot head of connecting rod is equipped with the bobbin, the surface of connecting rod runs through there is the gag lever post.
Preferably, a fixed frame is arranged on the outer side of the rotating disc, and three groups of protective nets are arranged.
Compared with the prior art, the beneficial effects of the utility model are that: this apparatus for producing of steel wire adhesive tape pipe, through the spout, the slider, the setting of mounting panel and pneumatic cylinder, can effectually adjust the position of conveying roller according to the size of adhesive tape pipe, drive mounting panel and slider through the pneumatic cylinder and remove in the one end of spout when using, slider and spout can carry on spacingly to the mounting panel simultaneously, make the mounting panel remain stable when removing, and the inboard conveying roller of mounting panel is at the in-process that removes, the surface of laminating the adhesive tape pipe, make the conveying that the adhesive tape pipe can be stable.
Drawings

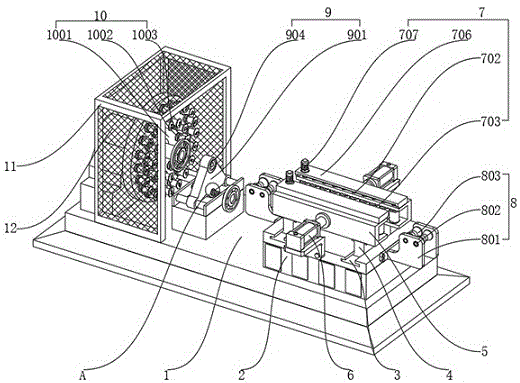

FIG. 1 is a schematic view of the side view appearance structure of the present invention;
FIG. 2 is a schematic view of the structure of the conveying mechanism of the present invention;
FIG. 3 is a schematic view of the structure of the bobbin and the connecting rod of the present invention;
fig. 4 is an enlarged schematic structural view of a portion a in fig. 1 according to the present invention.
In the figure: 1. a base; 2. a conveying table; 3. a chute; 4. a slider; 5. mounting a plate; 6. a hydraulic cylinder; 7. a transport mechanism; 701. a bearing; 702. a connecting shaft; 703. a conveying roller; 704. a gear plate; 705. a gear belt; 706. a dust cover; 707. a drive motor; 8. a support mechanism; 801. a support plate; 802. a rotating shaft; 803. a limiting roller; 9. a positioning mechanism; 901. a fixed table; 902. a threaded pipe; 903. a threaded rod; 904. a positioning tube; 10. an installation mechanism; 1001. rotating the disc; 1002. a connecting rod; 1003. a bobbin; 1004. a limiting rod; 11. a fixed frame; 12. and (4) a protective net.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a apparatus for producing of steel wire adhesive tape pipe, the on-line screen storage device comprises a base 1, base 1's surperficial one side is provided with carries platform 2, carry platform 2's surperficial both sides all to have seted up spout 3, the one end of spout 3 is provided with slider 4, the one end welding of slider 4 has mounting panel 5, carry platform 2's outer wall both sides fixed mounting has pneumatic cylinder 6, one side of mounting panel 5 is provided with transport mechanism 7, the equal threaded connection in both ends of carrying platform 2 has supporting mechanism 8, base 1's surperficial one side fixed mounting has positioning mechanism 9, base 1's surperficial one side is provided with installation mechanism 10, base 1's outer wall top threaded connection has fixed frame 11, fixed frame 11's skin weld has protection network 12.
Further, mounting panel 5 passes through slider 4 and spout 3 and carries the constitution sliding structure of platform 2, the output and the 5 threaded connection of mounting panel of pneumatic cylinder 6, through spout 3, slider 4, the setting of mounting panel 5 and pneumatic cylinder 6, can be effectual according to the size adjustment conveying roller 703's of rubberized fabric pipe position, it removes at the one end of spout 3 to drive mounting panel 5 and slider 4 through pneumatic cylinder 6 when using, slider 4 and spout 3 can carry on spacingly to mounting panel 5 simultaneously, make mounting panel 5 remain stable when removing, and the inboard conveying roller 703 of mounting panel 5 is at the in-process that removes, the surface of rubberized fabric pipe is laminated, make the conveying that the rubberized fabric pipe can be stable.
Further, the transmission mechanism 7 includes a bearing 701, a connecting shaft 702, a conveying roller 703, a gear disc 704, a gear belt 705, a dustproof cover 706 and a driving motor 707, the bearings 701 are disposed on both sides of the inner wall of the mounting plate 5, the connecting shaft 702 is disposed at one end of the bearing 701, the conveying roller 703 is disposed at one end of the connecting shaft 702 in a sleeved manner, the gear disc 704 is disposed at one end of the connecting shaft 702 penetrating through the mounting plate 5, the gear belt 705 is sleeved on the outer ring of the gear disc 704, the dustproof cover 706 is disposed above the outer wall of the mounting plate 5, the driving motor 707 is fixedly mounted on one side of the surface of the dustproof cover 706, the connecting shaft 702 is mounted at the output end of the driving motor 707, the synchronous rotation of the plurality of conveying rollers 703 can be realized through the arrangement of the bearing 701, the connecting shaft 702 is driven to rotate by the driving motor 707, meanwhile, the conveying rollers 703 are driven by the connecting shafts 702 to rotate, and meanwhile, the plurality of connecting shafts 702 are connected together by means of the gear disc 704 and the gear belt 705, so that the plurality of conveying rollers 703 can rotate simultaneously, and the plurality of conveying rollers 703 can prevent the rubberized fabric pipes from pausing during conveying.
Further, supporting mechanism 8 includes backup pad 801, rotation axis 802 and spacing roller 803, the equal threaded connection in both ends of carrying platform 2 has backup pad 801, the one end of backup pad 801 is provided with rotation axis 802, the pot head of rotation axis 802 is equipped with spacing roller 803, through the setting of backup pad 801, rotation axis 802 and spacing roller 803, can effectually support the adhesive tape pipe, when using, place the adhesive tape pipe on the surface of spacing roller 803, then convey by conveying roller 703, carry the spacing roller 803 at platform 2 both ends and can effectually support the adhesive tape pipe.
Further, the positioning mechanism 9 includes a fixing table 901, a threaded pipe 902, a threaded rod 903 and a positioning pipe 904, the surface side of the base 1 is provided with the fixing table 901, one end of the fixing table 901 is provided with the threaded pipe 902, the threaded rod 903 is penetrated through one end of the threaded pipe 902, the positioning pipe 904 is penetrated through one end surface of the fixing table 901, through the setting of the fixing table 901, the threaded pipe 902, the threaded rod 903 and the positioning pipe 904, the positioning and conveying can be performed by the rubberized fabric pipe, when in use, one end of the rubberized fabric pipe is penetrated through one end of the positioning pipe 904 and then is connected with the rotating disk 1001, and according to the winding degree, the position of the fixing table 901 can be adjusted through the matching of the threaded rod 903 and the threaded pipe 902.
Further, installation mechanism 10 includes rotary disk 1001, connecting rod 1002, bobbin 1003 and gag lever post 1004, the outer wall top of base 1 is provided with rotary disk 1001, surface one side of rotary disk 1001 is provided with connecting rod 1002, a pot head of connecting rod 1002 is equipped with bobbin 1003, the surface of connecting rod 1002 runs through gag lever post 1004, through rotary disk 1001, connecting rod 1002, the setting of bobbin 1003 and gag lever post 1004, can install bobbin 1003 fast, when using, directly the cover is established on connecting rod 1002's surface with bobbin 1003, then at the front end of bobbin 1003, run through the one end of connecting rod 1002 with gag lever post 1004, gag lever post 1004 and connecting rod 1002 carry out threaded connection, thereby spacing to bobbin 1003.
Further, the outside of rotary disk 1001 is provided with fixed frame 11, and protection network 12 is provided with three groups, through the setting of fixed frame 11 and protection network 12, with fixed frame 11 fixed mounting on the surface of base 1, live rotary disk 1001 parcel, and protection network 12 can effectually prevent that the steel wire from breaking suddenly and causing the injury to the staff.
The working principle is as follows: firstly, the rubberized fabric tube is placed on the surface of a limiting roller 803, then the rubberized fabric tube is conveyed by a conveying roller 703, then a mounting plate 5 and a sliding block 4 are driven by a hydraulic cylinder 6 to move at one end of a sliding groove 3, meanwhile, the mounting plate 5 can be limited by the sliding block 4 and the sliding groove 3, so that the mounting plate 5 is kept stable when moving, the conveying roller 703 on the inner side of the mounting plate 5 is attached to the surface of the rubberized fabric tube in the moving process, then a driving motor 707 drives a connecting shaft 702 to rotate, meanwhile, the connecting shaft 702 drives the conveying roller 703 to rotate, meanwhile, a plurality of connecting shafts 702 are connected together by a gear disc 704 and a gear belt 705, the plurality of conveying rollers 703 can rotate simultaneously, then one end of the rubberized fabric tube penetrates through one end of a positioning tube 904 and then is connected with a rotating disc 1001, and thus the production device of the steel wire rubberized fabric tube is completed.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
