本实用新型是一种移动式自动升降平台，包括底座，底座上四角处安装有万向轮，底座上表面从上到下依次安装有多级升降机构，多级升降机构连有驱动装置，多级升降机构顶部设有升降平台，底座上表面一侧设有推拉把手且另外一侧可拆卸安装有若干个延伸支撑组件。本实用新型可以根据运输提升物料的多少安装多个延伸支撑组件，完成物料的转运及提升，效率更高。
The utility model relates to a mobile automatic lifting platform, which comprises a base, universal wheels are installed on the four corners of the base, a multi-level lifting mechanism is installed on the upper surface of the base in sequence from top to bottom, and the multi-level lifting mechanism is connected with a driving device. The top of the stage lifting mechanism is provided with a lifting platform, one side of the upper surface of the base is provided with a push-pull handle, and the other side is detachably installed with several extension support components. The utility model can install a plurality of extension support components according to the amount of transported and lifted materials, so as to complete the transfer and lifting of the materials, and the efficiency is higher.
Description
Technical Field
The utility model relates to a elevating gear's technical field especially relates to a portable automatic rising platform.
Background
In construction work, a lifting device is often used for transferring and lifting required materials or materials. The existing lifting mechanism of the lifting device is generally perfect, can well lift materials, but the load capacity of the transportation is not large, the transportation of the materials can not be carried out according to actual needs, the continuous reciprocating operation is required, and the overall construction progress is influenced.
Disclosure of Invention
The utility model discloses aim at solving prior art's not enough, and provide a portable automatic rising platform.
The utility model discloses a realize above-mentioned purpose, adopt following technical scheme:
the utility model provides a portable automatic lifting platform, includes the base, and the universal wheel is installed to four corners department on the base, and multistage elevating system is installed in proper order to base upper surface from the top down, and multistage elevating system even has drive arrangement, and multistage elevating system top is equipped with lift platform, and base upper surface one side is equipped with push-and-pull handle and one side demountable installation has a plurality of to extend supporting component in addition.
Every extends the backup pad all including extending, the both ends that extend the backup pad one side all are equipped with plugboard and relative other side all are equipped with two grafting otic placodes, the side both ends that base and extension supporting component are connected all are equipped with two base grafting otic placodes, the plugboard, the grafting otic placode, spacing jack has all been seted up on the base grafting otic placode, be equipped with spacing recess on the spacing jack inner wall, one of them extends the plugboard of supporting component and pegs graft in the base grafting otic placode that corresponds and through the spacing inserted bar connection installation unanimous with spacing jack shape, the plugboard of the extension subassembly in the outside pegs graft in the grafting otic placode of the inboard adjacent extension subassembly and through the spacing inserted bar connection installation unanimous with spacing jack shape, spacing inserted bar both ends are pegged graft and are had the anticreep round pin axle.
The multistage lifting mechanism comprises a first guide groove stand column fixed on the upper surface of the base, a second guide groove stand column is vertically and slidably mounted in the first guide groove stand column, a third guide groove stand column is slidably mounted in the second guide groove stand column, the lifting platform is fixed at the top of the third guide groove stand column, a first mounting plate is arranged at the upper end of one side of the first guide groove stand column, a first fixed pulley is rotatably mounted on the first mounting plate, a second mounting plate is arranged at the lower end of one side of the second guide groove stand column, a third mounting plate is arranged at the upper end of the one side of the second guide groove stand column, a second fixed pulley is rotatably mounted on the second mounting plate, a third fixed pulley is rotatably mounted on the third mounting plate, a fourth mounting plate is arranged at the lower end of one side of the third guide groove stand column, a fifth mounting plate is arranged at the upper end of the one side of the third guide groove stand column, a fourth fixed pulley is rotatably mounted on the fourth mounting plate, and a fifth fixed pulley is rotatably mounted on the fifth mounting plate;
the driving device is a driving motor fixed on the base, a steel wire rope is wound on a rotating shaft of the driving motor, and the steel wire rope turns and is wound on a first fixed pulley, a second fixed pulley, a third fixed pulley, a fourth fixed pulley and a fifth fixed pulley in sequence.
Be equipped with first spout on the guide slot stand inside wall, be equipped with the first slider that corresponds with first spout on No. two guide slot stand lateral walls, first slider slidable mounting is in first spout, is equipped with the second spout on No. two guide slot stand inside walls, is equipped with the second slider that corresponds with the second spout on No. three guide slot stand lateral walls, and second slider slidable mounting all is equipped with the anticreep fixture block bottom first slider, second slider in the second spout.
A plurality of reinforced inclined struts are arranged between the first guide groove upright post and the upper surface of the base.
The bottom of the extension supporting plate is also provided with universal wheels.
The limiting jack is a cross-shaped jack.
The utility model has the advantages that: the utility model discloses can accomplish the transportation and the promotion of material according to what a plurality of extension backup pads of installation that the transportation promoted the material, efficiency is higher.
Drawings

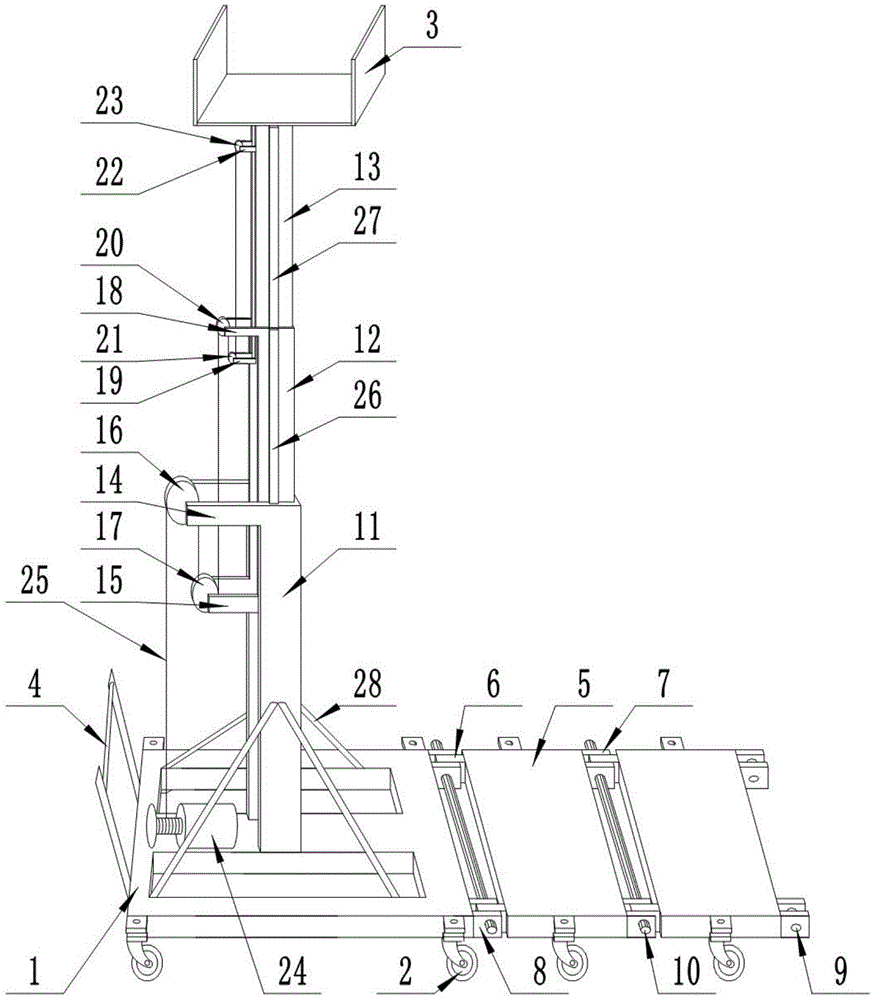

FIG. 1 is a schematic view of the present invention;
in the figure: 1-a base; 2-universal wheels; 3-lifting the platform; 4-push-pull handle; 5-extending the support plate; 6-a plugboard; 7-inserting ear plates; 8, inserting an ear plate into the base; 9-limiting jacks; 10-limiting inserted rods; 11-a guide groove upright post; 12-second guide groove upright post; 13-third guide groove upright post; 14-mounting plate number one; 15-mounting plate II; 16-fixed pulley; 17-fixed pulley number two; 18-mounting plate III; 19-four mounting plate; no. 20-third fixed pulley; no. 21-fourth fixed pulley; 22-five mounting plate; no. 23-five fixed pulleys; 24-a drive motor; 25-a steel wire rope; 26-a first slide; 27-a second slide; 28-reinforcing diagonal bracing;
the following detailed description will be made in conjunction with embodiments of the present invention with reference to the accompanying drawings.
Detailed Description
The invention will be further explained with reference to the following figures and examples:
as shown in figure 1, a portable automatic lifting platform, including base 1, universal wheel 2 is installed to base 1 upper four corners department, and multistage elevating system is installed from the top down in proper order to base 1 upper surface, and multistage elevating system even has drive arrangement, and multistage elevating system top is equipped with lift platform 3, and base 1 upper surface one side is equipped with push-and-pull handle 4 and one side demountable installation has a plurality of to extend supporting component in addition.
Each extending support component comprises an extending support plate 5, two ends of one side surface of the extending support plate 5 are respectively provided with an inserting plate 6, two ends of the other opposite side surface are respectively provided with two inserting lug plates 7, two ends of the side surface of the base 1 connected with the extending support components are respectively provided with two base inserting lug plates 8, limiting jacks 9 are respectively arranged on the inserting plates 6, the inserting lug plates 7 and the base inserting lug plates 8, limiting grooves are arranged on the inner walls of the limiting jacks 9, one of the extension supporting component's plugboard 6 pegs graft in corresponding base grafting otic placode 8 and through the spacing inserted bar 10 unanimous with spacing jack 9 shape and connect the installation, the plugboard 6 of the extension subassembly in the outside pegs graft in the adjacent extension component's of inboard grafting otic placode 7 and through the spacing inserted bar 10 unanimous with spacing jack 9 shape connect the installation, spacing inserted bar 10 both ends are pegged graft and are had the anticreep round pin axle.
The multistage lifting mechanism comprises a first guide groove upright post 11 fixed on the upper surface of a base 1, a second guide groove upright post 12 is vertically and slidably mounted in the first guide groove upright post 11, a third guide groove upright post 13 is slidably mounted in the second guide groove upright post 12, a lifting platform 3 is fixed at the top of the third guide groove upright post 13, a first mounting plate 14 is arranged at the upper end of one side of the first guide groove upright post 11, a first fixed pulley 16 is rotatably mounted on the first mounting plate 14, a second mounting plate 15 is arranged at the lower end of one side of the second guide groove upright post 12, a third mounting plate 18 is arranged at the upper end of the lower end of the one side of the second guide groove upright post 12, a second fixed pulley 17 is rotatably mounted on the second mounting plate 15, a third fixed pulley 20 is rotatably mounted on the third mounting plate 18, a fourth mounting plate 19 is arranged at the lower end of one side of the third guide groove upright post 13, a fifth mounting plate 22 is arranged at the upper end of the lower mounting plate, a fourth fixed pulley 21 is rotatably mounted on the fourth mounting plate 19, and a fifth fixed pulley 23 is rotatably mounted on the fifth mounting plate 22;
the driving device is a driving motor 24 fixed on the base 1, a steel wire rope 25 is wound on a rotating shaft of the driving motor 24, and the steel wire rope turns in sequence and is wound on a first fixed pulley 16, a second fixed pulley 17, a third fixed pulley 20, a fourth fixed pulley 21 and a fifth fixed pulley 23.
Be equipped with first spout on 11 inside walls of first guide slot stand, be equipped with the first slider 26 that corresponds with first spout on No. two guide slot stand 12 lateral walls, first slider 26 slidable mounting is in first spout, be equipped with the second spout on No. two guide slot stand 12 inside walls, be equipped with the second slider 27 that corresponds with the second spout on No. three guide slot stand 13 lateral walls, second slider 27 slidable mounting is in the second spout, first slider 26, second slider 27 bottom all is equipped with the anticreep fixture block.
A plurality of reinforced inclined struts 28 are arranged between the first guide groove upright post 11 and the upper surface of the base 1.
The bottom of the extension supporting plate 5 is also provided with a universal wheel 2.
The limiting jack 9 is a cross-shaped jack.
The utility model discloses during the use, can promote a plurality of extension backup pads 5 of how many installations of material according to the transportation, can place more materials such as steel spare part on extension backup pad 5, along with base 1 removes the position that needs promoted, need not make a round trip to come and go and transport, recycle lift platform 3 after targetting in place and rise to required height under elevating system's drive, accomplish the promotion of material, the efficiency of whole transportation and promotion operation is higher. The extension supporting plate 5 can be detached when not needed, and does not occupy too large volume. The extension supporting plate 5 is installed through the limit inserting rod 10 and the limit inserting hole 9 in a matched mode, and operation is simple. The shapes and the styles of the limiting insertion holes 9 and the limiting insertion rods 10 can be diversified, and the limiting insertion rods 10 can be used as long as the limiting insertion rods 10 do not rotate in the limiting insertion holes 9.
The present invention has been described above with reference to the accompanying drawings, and it is obvious that the present invention is not limited by the above embodiments, and various improvements made by the method concept and technical solution of the present invention or directly applied to other occasions without improvement are all within the protection scope of the present invention.
Claims (7)
1. The utility model provides a portable automatic lifting platform, its characterized in that, includes base (1), and universal wheel (2) are installed to four corners department on base (1), and base (1) upper surface from the top down installs multistage elevating system in proper order, and multistage elevating system even has drive arrangement, and multistage elevating system top is equipped with lift platform (3), and base (1) upper surface one side is equipped with push-and-pull handle (4) and one side demountable installation has a plurality of to extend supporting component in addition.
2. The mobile automatic lifting platform according to claim 1, wherein each extension supporting component comprises an extension supporting plate (5), two ends of one side surface of the extension supporting plate (5) are respectively provided with a plugboard (6), two opposite plugboard lugs (7) are respectively arranged at two ends of the other side surface, two base plugboard lugs (8) are respectively arranged at two ends of the side surface of the base (1) connected with the extension supporting components, the plugboards (6), the plugboards (7) and the base plugboard lugs (8) are respectively provided with a limiting jack (9), a limiting groove is arranged on the inner wall of the limiting jack (9), one plugboard (6) of one extension supporting component is plugged in the corresponding base plugboard lug (8) and is connected and installed through a limiting plug rod (10) with the same shape as the limiting jack (9), the plugboard (6) of the extension component at the outer side is plugged in the plugboard lug (7) of the adjacent extension component at the inner side and is connected and installed through the limiting jack with the limiting jack (10) (9) The limiting inserted rods (10) with the same shape are connected and installed, and anti-drop pin shafts are inserted at two ends of the limiting inserted rods (10).
3. The mobile automatic lifting platform according to claim 2, wherein the multi-stage lifting mechanism comprises a first guide groove upright post (11) fixed on the upper surface of the base (1), a second guide groove upright post (12) is vertically and slidably mounted in the first guide groove upright post (11), a third guide groove upright post (13) is slidably mounted in the second guide groove upright post (12), the lifting platform (3) is fixed on the top of the third guide groove upright post (13), a first mounting plate (14) is arranged at the upper end of one side of the first guide groove upright post (11), a first fixed pulley (16) is rotatably mounted on the first mounting plate (14), a second mounting plate (15) is arranged at the lower end of one side of the second guide groove upright post (12), a third mounting plate (18) is arranged at the upper end of the second mounting plate (15), a second fixed pulley (17) is rotatably mounted on the second mounting plate (15), a third fixed pulley (20) is rotatably mounted on the third mounting plate (18), a fourth mounting plate (19) is arranged at the lower end of one side of the third guide groove upright post (13), a fifth mounting plate (22) is arranged at the upper end of the third guide groove upright post, a fourth fixed pulley (21) is rotatably mounted on the fourth mounting plate (19), and a fifth fixed pulley (23) is rotatably mounted on the fifth mounting plate (22);
the driving device is a driving motor (24) fixed on the base (1), a steel wire rope (25) is wound on a rotating shaft of the driving motor (24), and the steel wire rope turns in sequence and is wound on a first fixed pulley (16), a second fixed pulley (17), a third fixed pulley (20), a fourth fixed pulley (21) and a fifth fixed pulley (23).
4. The mobile automatic lifting platform according to claim 3, wherein a first sliding groove is formed in the inner side wall of the first guide groove upright post (11), a first sliding block (26) corresponding to the first sliding groove is formed in the outer side wall of the second guide groove upright post (12), the first sliding block (26) is slidably mounted in the first sliding groove, a second sliding groove is formed in the inner side wall of the second guide groove upright post (12), a second sliding block (27) corresponding to the second sliding groove is formed in the outer side wall of the third guide groove upright post (13), the second sliding block (27) is slidably mounted in the second sliding groove, and anti-falling clamping blocks are arranged at the bottoms of the first sliding block (26) and the second sliding block (27).
5. A mobile automatic lifting platform according to claim 4, characterized in that a plurality of reinforcing diagonal braces (28) are provided between the first guide groove upright (11) and the upper surface of the base (1).
6. A mobile automatic lifting platform according to claim 5, characterized in that the bottom of the extension support plate (5) is also provided with universal wheels (2).
7. A mobile automatic lifting platform according to claim 6, characterized in that the limit socket (9) is a cross socket.
