Abstract
本实用新型公开了一种火电厂电气设备防护用具，涉及电气设备防护技术领域，包括储存组件和照明组件，连接杆限位在定位板的中间，连接杆可以对挂钩进行固定，而横杆和挂钩可以对防护衣等防护用具进行悬挂，导向滑板可以在导向滑槽的内部进行滑动，方便对连接杆的伸缩进行调节，从而方便将连接杆取出拿取悬挂在挂钩上的防护用具，同时人员可以将一些独立不需要悬挂的防护用具放在第一放置盘和第二放置盘内部进行储存，分隔板可以将收纳腔的内部进行分隔，从而方便人员对不同类型的防护用具进行存放，转杆通过轴承座进行旋转调节，当转杆转动时可以带动第一放置盘和第二放置盘同步转动，使人员可以快速进行挑选寻找防护用具。
The utility model discloses a protective appliance for electrical equipment in a thermal power plant, which relates to the technical field of electrical equipment protection. The hook can suspend protective equipment such as protective clothing, and the guide slide plate can slide inside the guide chute, which is convenient for adjusting the expansion and contraction of the connecting rod, so as to facilitate the removal of the connecting rod and the protective equipment hanging on the hook. Some independent protective appliances that do not need to be suspended can be stored inside the first placing tray and the second placing tray. The partition plate can separate the interior of the storage cavity, so that it is convenient for personnel to store different types of protective appliances The rod is rotated and adjusted through the bearing seat, and when the rotating rod rotates, the first placing plate and the second placing plate can be driven to rotate synchronously, so that personnel can quickly select and find protective equipment.
Description
Technical Field
The utility model relates to an electrical equipment protects technical field, especially a thermal power plant's electrical equipment protective apparatus.
Background
Electrical equipment protective device of thermal power plant, the effect is that the personal safety of protection workman in process of production and the necessary defensive of health are equipped, play very important effect to reducing occupational hazard, often these instruments can exist with safe tool cabinet simultaneously, safe tool cabinet is collection dampproofing, the dehumidification, it is dustproof, loss prevention, neat pleasing to the eye ordinary intelligent safety tool cabinet series product in an organic whole, high-quality cold plate is used to its shell, adopt artistic type electrostatic spraying, high strength toughened glass is chooseed for use to the cabinet door, elegant appearance, pleasing to the eye.
At present, all protective tools are stored in a centralized storage mode, some protective tools which can be suspended and can not be suspended are stacked together and cannot be classified for storage, so that personnel need to spend time selecting and searching before working, the preparation time is long, and the efficiency is seriously influenced.
SUMMERY OF THE UTILITY MODEL
This section is for the purpose of summarizing some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this section and in the abstract of the specification and the title of the application to avoid obscuring the purpose of this section, the abstract of the specification and the title of the application, and such simplifications or omissions are not intended to limit the scope of the invention.
The utility model discloses a problem that exists in the above-mentioned and/or current thermal power plant electrical equipment protective equipment has been proposed.
Therefore, the utility model aims to solve the problem of how to provide a thermal power plant electrical equipment protective apparatus.
In order to solve the technical problem, the utility model provides a following technical scheme: a protective tool for electrical equipment of a thermal power plant comprises;
the storage assembly comprises a cabinet body, a storage cavity, a cabinet door, an observation window, a hanging piece, a cross rod and a rotating rod, wherein the storage cavity is formed in the cabinet body, the cabinet door is installed on the front side of the cabinet body, the observation window is formed in the surface of the cabinet door, the hanging piece is installed at the upper end of an inner cavity of the storage cavity, the cross rod is installed on the inner wall of the storage cavity, and the rotating rod is installed at the lower end of the inner cavity of the hanging piece;
the lighting assembly comprises a fixed shell, a power box and an annular groove, the fixed shell is installed at the top end of the inner cavity of the storage cavity, the power box is installed at the upper end of the fixed shell, and the annular groove is formed in the lower end of the fixed shell.
Based on the technical characteristics: suspension member and horizontal pole can hang the protection apparatus, and the protection apparatus that can not hang can be put and is classified and deposit in the inside of storing the chamber, avoids the protection apparatus to pile together, and the power supply box of installation can provide electric power to cabinet body inside, when the protection apparatus that personnel need look for needs, can open the cabinet door and stimulate suspension member and rotatory bull stick afterwards, makes personnel can select fast and look for the protection apparatus.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the positioning plates are arranged on two sides of the hanging piece and are arranged at the upper end of the cross rod, and the connecting rod is arranged in the middle of the positioning plates.
Based on the technical characteristics: the connecting rod is limited in the middle of the positioning plate, and protective tools such as protective clothes can be hung.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the middle of one side of the positioning plate is provided with a positioning groove, and the two ends of the positioning groove are symmetrically provided with guide sliding grooves.
Based on the technical characteristics: the locating slot and the guide sliding groove are arranged to limit the connecting rod, so that the connecting rod can be adjusted in a sliding mode.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the middle of the connecting rod is provided with hooks at intervals, and the two sides of the connecting rod are provided with guide sliding plates.
Based on the technical characteristics: the connecting rod can be fixed the couple, and the couple can hang protective apparatus such as protective clothing.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the guide sliding plate is connected with the guide sliding groove in a sliding mode.
Based on the technical characteristics: the direction slide can slide in the inside of direction spout, conveniently adjusts the flexible of connecting rod to the convenience takes out the connecting rod.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the upper end of the rotating rod is provided with a first placing disc, the lower end of the rotating rod is provided with a second placing disc, and the surface of the rotating rod is further provided with limiting lugs at intervals.
Based on the technical characteristics: the personnel can place some independent not guard equipments that need hang and place the dish inside first and the second is placed and is stored, and the spacing lug of installation can hang other guard equipments.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the rotating rod is installed with the first placing disc and the second placing disc at two ends in an I-shaped structure.
Based on the technical characteristics: so that the rotating rod can be kept stable when rotating or placing the protective tool.
As a thermal power plant's electrical equipment protective apparatus's an preferred scheme, wherein: the bearing frame is installed to the bottom that the dish was placed to the second, and the second is placed the dish and is seted up with the inside of first placing the dish and accomodate the chamber, and accomodate the inboard in chamber and then install the division board.
Based on the technical characteristics: personnel can place the protection apparatus at first place set and the second place the intracavity of accomodating of set inside, and the bull stick carries out rotation regulation through the bearing frame, can drive when the bull stick rotates that first place set and second place the dish and rotate in step.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: the partition plates are arranged in an annular array.
Based on the technical characteristics: the division board can separate the inside of accomodating the chamber to make things convenient for personnel to deposit the protective apparatus of different grade type.
As a preferred scheme of thermal power plant's electrical equipment protective apparatus, wherein: and an illuminating lamp is arranged inside the annular groove and is electrically connected with the power box.
Based on the technical characteristics: the light can be to the inside illumination of storing the chamber, makes things convenient for personnel to look for the protective apparatus that needs night.
The utility model discloses beneficial effect does: the connecting rod is spacing in the centre of locating plate, the connecting rod can be fixed the couple, and horizontal pole and couple can hang protection apparatus such as protective clothing, the direction slide can slide in the inside of direction spout, the convenience is adjusted the flexible of connecting rod, thereby conveniently take out the connecting rod and take the protection apparatus of hanging on the couple, personnel can place some independent protection apparatus that need not hang at first place the dish and the second is placed the dish inside and is stored simultaneously, the division board can be separated the inside of accomodating the chamber, thereby make things convenient for personnel to deposit the protection apparatus of different grade type, the bull stick carries out rotation regulation through the bearing frame, can drive first place the dish and the second is placed the dish synchronous rotation when the bull stick rotates, make personnel can select the searching protection apparatus fast.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without inventive labor. Wherein:

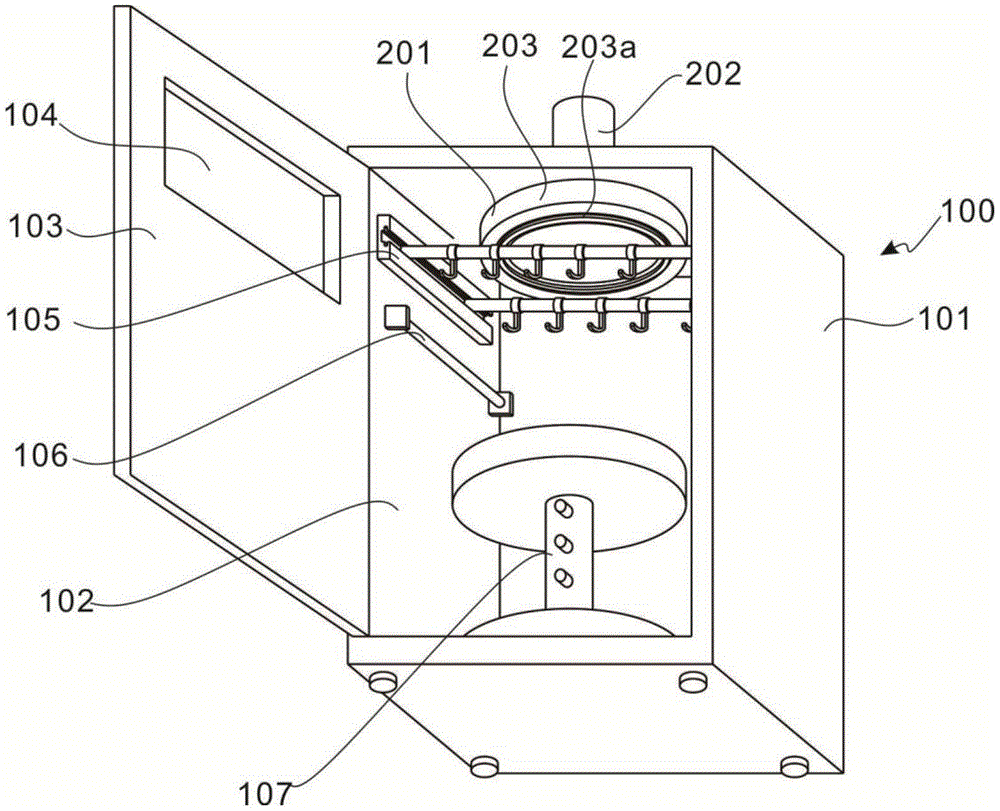

fig. 1 is an overall structural view of a protective device for electrical equipment of a thermal power plant.
Fig. 2 is a structure diagram of a hanger of a protective device for electrical equipment in a thermal power plant.
Fig. 3 is a structure diagram of a rotating rod of a protective tool for electrical equipment of a thermal power plant.
In the drawings, the components represented by the respective reference numerals are listed below:
100. a storage assembly; 101. a cabinet body; 102. a storage chamber; 103. a cabinet door; 104. an observation window; 105. a suspension member; 105a, a positioning plate; 105a-1, a positioning groove; 105a-2, a guide chute; 105b, a connecting rod; 105b-1 and a hook; 105b-2, a guide sliding plate; 106. a cross bar; 107. a rotating rod; 107a, a first placing tray; 107b, a second placing tray; 107b-1, a bearing seat; 107b-2, a receiving cavity; 107b-3, a partition plate; 107c, a limit bump; 200. a lighting assembly; 201. fixing the housing; 202. a power supply box; 203. an annular groove; 203a and an illuminating lamp.
Detailed Description
In order to make the aforementioned objects, features and advantages of the present invention more comprehensible, embodiments accompanying the present invention are described in detail below with reference to the accompanying drawings.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, but the present invention may be implemented in other ways different from the specific details set forth herein, and one skilled in the art may similarly generalize the present invention without departing from the spirit of the present invention, and therefore the present invention is not limited to the specific embodiments disclosed below.
Furthermore, the references herein to "one embodiment" or "an embodiment" refer to a particular feature, structure, or characteristic that may be included in at least one implementation of the invention. The appearances of the phrase "in one embodiment" in various places in the specification are not necessarily all referring to the same embodiment, nor are separate or alternative embodiments mutually exclusive of other embodiments.
Example 1
Referring to fig. 1 and 2, for a first embodiment of the present invention, the embodiment provides a protective device for electrical equipment of a thermal power plant, which includes a storage assembly 100, which includes a cabinet 101, a storage cavity 102, a cabinet door 103, an observation window 104, a suspension member 105, a cross bar 106 and a rotating rod 107, the storage cavity 102 is opened inside the cabinet 101, the cabinet door 103 is installed on the front surface of the cabinet 101, the observation window 104 is opened on the surface of the cabinet door 103, the suspension member 105 is installed on the upper end of the inner cavity of the storage cavity 102, the positioning plates 105a are installed on both sides of the suspension member 105, the positioning plate 105a is installed on the upper end of the cross bar 106, the positioning groove 105a-1 is opened in the middle of one side of the positioning plate 105a, the guide sliding grooves 105a-2 are symmetrically opened at both ends of the positioning groove 105a-1, the connecting rod 105b is installed in the middle of the positioning plate 105a, the hooks 105b-1 are installed at intervals in the middle of the connecting rod 105b, guide sliding plates 105b-2 are arranged on two sides of the connecting rod 105b, the guide sliding plates 105b-2 are connected with the guide sliding grooves 105a-2 in a sliding mode, a cross rod 106 is arranged on the inner wall of the storage cavity 102, and a rotating rod 107 is arranged at the lower end of the inner cavity of the hanging piece 105.
The connecting rod 105b is limited in the middle of the positioning plate 105a, the connecting rod 105b can fix the hook 105b-1, the hook 105b-1 and the cross rod 106 can hang protective tools such as protective clothing, the positioning groove 105a-1 and the guide sliding groove 105a-2 are arranged to limit the connecting rod 105b, so that the connecting rod 105b can be adjusted in a sliding manner, the guide sliding plate 105b-2 can slide in the guide sliding groove 105a-2, the telescopic adjustment of the connecting rod 105b is facilitated, the connecting rod 105b is convenient to take out, the protective tools which cannot be hung can be placed in the storage cavity 102 for classified storage, the protective tools are prevented from being stacked together, when a person needs to find the required protective tools, the cabinet door 103 can be opened, and then the hanging part 105 and the rotating rod 107 can be pulled, the personnel can select and look for the protective appliance quickly.
Example 2
Referring to fig. 1 and 3, a second embodiment of the present invention, which is different from the first embodiment, is: the upper end of the rotating rod 107 is provided with a first placing disc 107a, the lower end of the rotating rod 107 is provided with a second placing disc 107b, the surface of the rotating rod 107 is further provided with limiting lugs 107c at intervals, the rotating rod 107 is installed with the first placing disc 107a and the second placing disc 107b at two ends in an I-shaped structure, the bottom end of the second placing disc 107b is provided with a bearing seat 107b-1, the inside of the second placing disc 107b and the first placing disc 107a is provided with a containing cavity 107b-2, the inner side of the containing cavity 107b-2 is provided with partition plates 107b-3, and the partition plates 107b-3 are installed in an annular array shape.
Personnel can place the protective apparatus in first place the dish 107a and place the inside chamber 107b-2 of accomodating of dish 107b with the second, and the spacing lug 107c of installation can hang other protective apparatus, the inside of accomodating chamber 107b-2 can be separated to division board 107b-3 to make things convenient for personnel to deposit different types of protective apparatus, bull stick 107 carries out rotation regulation through bearing frame 107b-1, can drive first place dish 107a and second place dish 107b synchronous rotation when bull stick 107 rotates, when personnel need take the protective apparatus of accomodating the inside chamber 107b-2, can rotate bull stick 107 and carry out rotation regulation.
Example 3
Referring to fig. 1, a third embodiment of the present invention is different from the first two embodiments: the lighting assembly 200 comprises a fixed shell 201, a power box 202 and an annular groove 203, the fixed shell 201 is installed at the top end of an inner cavity of the storage cavity 102, the power box 202 is installed at the upper end of the fixed shell 201, the annular groove 203 is formed in the lower end of the fixed shell 201, a lighting lamp 203a is installed inside the annular groove 203, the lighting lamp 203a is electrically connected with the power box 202, the installed power box 202 can provide power for the lighting lamp 203a, the lighting lamp 203a can illuminate the inside of the storage cavity 102, and a person can conveniently find a needed protective appliance at night.
It should be noted that the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting, and although the present invention is described in detail with reference to the preferred embodiments, those skilled in the art should understand that the technical solutions of the present invention can be modified or substituted by equivalents without departing from the spirit and scope of the technical solutions of the present invention, which should be covered by the scope of the claims of the present invention.
