CN217433107U - Drilling equipment is used in cupboard production and processing - Google Patents

Abstract

The utility model belongs to the technical field of drilling devices, in particular to a drilling device for cabinet production and processing. The bottom of the bottom plate is provided with a moving assembly, and a second screw rod is rotatably connected between the two support plates through a bearing. The utility model is provided with a bottom plate, a support plate, a moving component, a second motor, a second screw rod, a U-shaped moving block, a collection box, a U-shaped pipe, a dust hopper, a hose and a fan, and is used for processing raw material plates. During the process, when the plate needs to be punched in different positions, the drill can be moved in different directions without moving the plate, so that it is more convenient to use. The dust is collected and processed, so as to avoid the phenomenon that it is diffused in the air and will damage the health of the operator.

Description

A kind of drilling device for cabinet production and processing

technical field

The utility model relates to the technical field of drilling devices, in particular to a drilling device for cabinet production and processing.

Background technique

Cabinets refer to appliances for storing clothes, documents, etc., usually in the shape of a square, rectangle or circle. The raw materials for cabinet furniture mainly include cabinets made of wood, wood-based panels or metals for various purposes. During the production and assembly process of the cabinet, it is often necessary to drill holes on the raw material sheet through a drilling device, so as to facilitate the later assembly.

When drilling the raw material sheet, the corresponding drilling device is used, but the drill bit of the current drilling device can only move in one direction, so when the sheet needs to be drilled in different positions, it is inconvenient to use. At the same time, the current drilling device does not have the function of collecting and processing the dust generated during drilling, so that the dust is diffused in the air. If the operator inhales it, it will damage the health of the operator. Therefore, we propose a cabinet production and processing. A drilling device is used to solve the above problems.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the present invention provides a drilling device for cabinet production and processing, which solves the problems raised in the above-mentioned background technology.

(2) Technical solutions

The utility model specifically adopts the following technical solutions in order to achieve the above-mentioned purpose:

A drilling device for cabinet production and processing, comprising a bottom plate, four corners of the bottom of the bottom plate are fixed with support legs, both sides of the bottom plate are slidably connected with support plates, the bottom of the bottom plate is provided with moving components, two A second screw rod is rotatably connected between the support plates through a bearing, one side wall of one of the support plates is fixed with a second motor, and the output end of the second motor is fixedly connected to one end of the second screw rod, The surface of the second screw rod is threadedly connected with a U-shaped moving block, an electric push rod is fixed inside the U-shaped moving block, and a support frame is fixed at the output end of the electric push rod, and the bottom of the support frame passes through the bottom of the support frame. The bearing is rotatably connected with a rotating rod, a third motor is fixed inside the support frame, the output end of the third motor is fixedly connected with the top end of the rotating rod, the bottom of the rotating rod is fixed with a drill bit body, and the bottom of the bottom plate is fixed with a drill bit body. A collection box is fixed on the top, a side wall of the collection box is hinged with a sliding door, a U-shaped pipe is arranged above the collection box, and the U-shaped pipe is fixedly connected with the two side walls of the support frame through the fixing block, so The two inlets of the U-shaped pipe are connected and fixed with a dust hopper, the surface of the U-shaped pipe is connected and fixed with a hose, one end of the hose is connected and fixed with a side wall of the collection box, and the top of the bottom plate is connected and fixed. A fan is fixed, the air inlet end of the fan is connected and fixed with a side wall of the collection box through a pipeline, two cylinders are fixed on the top of the collection box, and splints are fixed on the top-out ends of the cylinders. The top of the box is fixed with a limit plate.

Further, the moving assembly includes two baffle plates fixed on the top of the bottom plate, a first screw rod is rotatably connected between the two baffle plates through a bearing, a first motor is fixed at the bottom of the bottom plate, and the first screw rod is fixed at the bottom of the bottom plate. An output end of a motor is fixedly connected to one end of a first screw rod, a connecting plate is threadedly connected to the surface of the first screw rod, and two side walls of the connecting plate are respectively fixedly connected to one side wall of the two support plates.

Further, both side walls of the bottom plate are provided with T-shaped grooves, and one side wall of the two support plates is fixed with T-shaped blocks adapted to the T-shaped grooves.

Further, a guide rod is fixed between the two support plates, and the U-shaped moving block is slidably connected to the surface of the guide rod.

Further, a vertical plate is fixed on the bottom of the U-shaped moving block, a sliding groove is formed on one side wall of the vertical plate, and a sliding block adapted to the sliding groove is fixed on one side wall of the support frame.

Further, a filter screen is installed at the pipe communication part of one side wall of the collection box.

(3) Beneficial effects

Compared with the prior art, the utility model provides a drilling device for cabinet production and processing, which has the following beneficial effects:

The utility model is provided with a bottom plate, a support plate, a moving component, a second motor, a second screw rod, a U-shaped moving block, a collection box, a U-shaped pipe, a dust hopper, a hose and a fan, and the raw material plate is processed in the process of During the processing, when the plate needs to be punched in different positions, the drill can be moved in different directions without moving the plate, so that it is more convenient to use. The dust is collected and processed, so as to avoid the phenomenon that it is diffused in the air and will damage the health of the operator.

Description of drawings

1 is a schematic diagram of the overall structure of the present utility model;

2 is a schematic diagram of a second perspective view of the overall structure of the present invention;

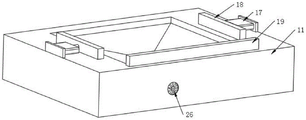

Fig. 3 is the structural representation of the utility model collection box;

Fig. 4 is the structural schematic diagram of the support plate of the present invention;

5 is a schematic structural diagram of a U-shaped moving block of the present invention;

FIG. 6 is a schematic diagram of the structure of the support frame of the present invention.

In the figure: 1. Bottom plate; 2. Supporting leg; 3. Supporting plate; 4. Moving assembly; 401, Baffle plate; 402, First screw rod; 403, First motor; Rod; 6. Second motor; 7. U-shaped moving block; 8. Support frame; 9. Rod; 10. Third motor; 11. Collection box; 12. Sliding door; 13. U-shaped pipe; 14. Suction Dust hopper; 15, hose; 16, fan; 17, cylinder; 18, splint; 19, limit plate; 20, T-slot; 21, T-block; 22, guide rod; 23, vertical plate; 24, Chute; 25, slider; 26, filter; 27, electric push rod; 28, drill body.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example

As shown in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6, a drilling device for cabinet production and processing proposed by an embodiment of the present invention includes a bottom plate 1, and the bottom four corners of the bottom plate 1 are fixed There are support legs 2, both sides of the bottom plate 1 are slidably connected with support plates 3, the bottom of the bottom plate 1 is provided with a moving assembly 4, and a second screw rod 5 is rotatably connected between the two support plates 3 through bearings, and one of the support plates One side wall of 3 is fixed with a second motor 6, the output end of the second motor 6 is fixedly connected with one end of the second screw rod 5, the surface of the second screw rod 5 is threadedly connected with a U-shaped moving block 7, and the U-shaped moving block 7 is fixed with an electric push rod 27, the output end of the electric push rod 27 is fixed with a support frame 8, the bottom of the support frame 8 is rotatably connected with a rotating rod 9 through a bearing, and a third motor 10 is fixed inside the support frame 8. The output end of the third motor 10 is fixedly connected to the top of the rotating rod 9, the bottom of the rotating rod 9 is fixed with the drill body 28, the top of the bottom plate 1 is fixed with a collection box 11, and a side wall of the collection box 11 is hinged with a sliding door 12, collecting The top of the box 11 is provided with a U-shaped pipe 13. The U-shaped pipe 13 is fixedly connected to the two side walls of the support frame 8 through a fixing block. A hose 15 is connected and fixed on the surface of the bottom plate, one end of the hose 15 is connected and fixed with a side wall of the collecting box 11, a fan 16 is fixed on the top of the bottom plate 1, and the air inlet end of the fan 16 is connected to a side wall of the collecting box 11 through a pipeline. Connected and fixed, two cylinders 17 are fixed on the top of the collecting box 11, splints 18 are fixed on the top of the cylinders 17, and a limiting plate 19 is fixed on the top of the collecting box 11. At the top of the plate, the limit plate 19 limits its rear side, and the plate 18 is pushed by the air cylinder 17 to fix the plate. By starting the second motor 6, the second motor 6 rotates to drive the second screw rod 5 to move, and the second screw rod 5 moves. The rod 5 moves to drive the U-shaped moving block 7 to move, so that the drill body 28 can be moved laterally, and the drill body 28 can be moved vertically through the moving assembly 4. After moving to an appropriate position, the third motor 10 is activated, and the third The motor 10 drives the rotating rod 9 to rotate, thereby driving the clamped and fixed drill bit body 28 to rotate, and the electric push rod 27 sends the drill bit body 28 to a proper position, thereby drilling the raw material sheet.

As shown in FIG. 1 and FIG. 2 , in some embodiments, the moving assembly 4 includes two baffles 401 fixed on the top of the base plate 1 , and a first lead screw 402 is rotatably connected between the two baffles 401 through bearings. The bottom of 1 is fixed with a first motor 403, the output end of the first motor 403 is fixedly connected with one end of the first screw rod 402, the surface of the first screw rod 402 is screwed with a connecting plate 404, and the two side walls of the connecting plate 404 are respectively It is fixedly connected with one side wall of the two support plates 3. When in use, by starting the first motor 403, the first motor 403 rotates and drives the first screw rod 402 to rotate, and the first screw rod 402 rotates to drive the connecting plate 404 to move, thereby driving The support plate 3 moves, thereby driving the drill body 28 to move vertically.

As shown in FIG. 1 and FIG. 2 , in some embodiments, T-shaped grooves 20 are opened on both side walls of the bottom plate 1 , and one side wall of the two support plates 3 is fixed with a T-shaped groove 20 adapted to it. The T-shaped block 21 is used to make the movement of the support plate 3 more stable when the first screw rod 402 rotates to drive the support plate 3 to move.

As shown in Figures 1 and 2, in some embodiments, a guide rod 22 is fixed between the two support plates 3, and the U-shaped moving block 7 is slidably connected to the surface of the guide rod 22, in order to play a limiting role, When the second screw 5 rotates and drives the U-shaped moving block 7 to move, the U-shaped moving block 7 will not rotate synchronously with the second screw 5 .

As shown in FIG. 5 and FIG. 6 , in some embodiments, a vertical plate 23 is fixed on the bottom of the U-shaped moving block 7 , one side wall of the vertical plate 23 is provided with a chute 24 , and one side wall of the support frame 8 is fixed with a vertical plate 23 . The sliding block 25 matched with the chute 24 passes through the vertical plate 23 so that when the electric push rod 27 drives the support frame 8 to move, the support frame 8 can move more stably.

As shown in FIG. 3 , in some embodiments, a filter screen 26 is installed at a side wall of the collection box 11 where the pipes communicate with each other, in order to filter the dust and collect it into the collection box 11 .

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides a drilling equipment is used in cupboard production and processing, includes bottom plate (1), its characterized in that: the bottom four corners of the bottom plate (1) are respectively fixed with a support leg (2), two sides of the bottom plate (1) are respectively connected with a support plate (3) in a sliding manner, the bottom of the bottom plate (1) is provided with a moving component (4), a second lead screw (5) is rotatably connected between the two support plates (3) through a bearing, a second motor (6) is fixed on one side wall of one support plate (3), the output end of the second motor (6) is fixedly connected with one end of the second lead screw (5), a U-shaped moving block (7) is connected with the surface of the second lead screw (5) through a screw thread, an electric push rod (27) is fixed inside the U-shaped moving block (7), a support frame (8) is fixed at the output end of the electric push rod (27), a rotating rod (9) is rotatably connected with the bottom of the support frame (8) through a bearing, a third motor (10) is fixed inside the support frame (8), the output end of the third motor (10) is fixedly connected with the top end of the rotating rod (9), a drill bit body (28) is fixed at the bottom of the rotating rod (9), a collecting box (11) is fixed at the top of the bottom plate (1), a sliding door (12) is hinged to one side wall of the collecting box (11), a U-shaped pipe (13) is arranged above the collecting box (11), the U-shaped pipe (13) is fixedly connected with two side walls of the supporting frame (8) through a fixing block, two inlets of the U-shaped pipe (13) are both fixedly communicated with a dust suction hopper (14), a hose (15) is fixedly communicated with the surface of the U-shaped pipe (13), one end of the hose (15) is fixedly communicated with one side wall of the collecting box (11), a fan (16) is fixed at the top of the bottom plate (1), and an air inlet end of the fan (16) is fixedly communicated with one side wall of the collecting box (11) through a pipeline, two cylinders (17) are fixed on the top of the collecting box (11), clamping plates (18) are fixed at the ejection ends of the cylinders (17), and a limiting plate (19) is fixed on the top of the collecting box (11).

2. The drilling device for cabinet production and processing according to claim 1, wherein: remove subassembly (4) including fixing two baffle (401) at bottom plate (1) top, two rotate through the bearing between baffle (401) and be connected with first lead screw (402), the bottom of bottom plate (1) is fixed with first motor (403), the output of first motor (403) and the one end fixed connection of first lead screw (402), the surface threaded connection of first lead screw (402) has connecting plate (404), the both sides wall of connecting plate (404) respectively with a lateral wall fixed connection of two backup pads (3).

3. The drilling device for cabinet production and processing according to claim 1, wherein: t type groove (20) have all been seted up to the both sides wall of bottom plate (1), two a lateral wall of backup pad (3) all is fixed with T type piece (21) with T type groove (20) looks adaptation.

4. The drilling device for cabinet production and processing according to claim 1, wherein: a guide rod (22) is fixed between the two support plates (3), and the U-shaped moving block (7) is connected to the surface of the guide rod (22) in a sliding mode.

5. The drilling device for cabinet production and processing according to claim 1, wherein: the bottom of the U-shaped moving block (7) is fixed with a vertical plate (23), one side wall of the vertical plate (23) is provided with a sliding groove (24), and one side wall of the supporting frame (8) is fixed with a sliding block (25) matched with the sliding groove (24).

6. The drilling device for cabinet production and processing according to claim 1, wherein: a filter screen (26) is arranged at the communicated position of one side wall pipeline of the collecting box (11).
