Abstract
The utility model discloses an exhaust device for textile production, including filtering the frame, filter frame one side fixed mounting has first water pump and water storage box, filters frame up end fixed mounting and has the air exhauster, and the air intake department of air exhauster is connected with the intake pipe, and the air outlet department of air exhauster is connected with the induction-pipe, and the tip that the air exhauster was kept away from to the induction-pipe passes and filters frame roof and tip and extend to and filter the interior bottom of frame, filters the frame up end and is provided with the outlet duct, filters fixedly connected with cistern on the frame interior diapire, filters the frame interior top and transversely is provided with first aqueduct. The utility model discloses in, through starting the air exhauster, in the same suction filter frame of air in the workshop of will weaving with weaving dirt, then through starting first water pump for the weaving dirt spraying dust fall in the liquid of first water pump in first connecting pipe and the first aqueduct suction water storage box to the air, then the air after the filtration is discharged from the air outlet pipe, can effectually avoid weaving dirt to cause the pollution to the air.
Description
Technical Field
The utility model relates to a textile mill equipment technical field specifically is an exhaust device for textile production.
Background
The spinning is a general name taken from spinning and weaving, but with the continuous development and perfection of a spinning knowledge system and a subject system, particularly after non-woven textile materials and three-dimensional compound weaving and other technologies are produced, the spinning is not only traditional spinning and weaving, but also comprises a non-woven fabric technology, a three-dimensional weaving technology, an electrostatic nano-web forming technology and the like, and the spinning is roughly divided into two procedures of spinning and weaving.
In the process of textile processing, a lot of cotton dust is often produced, and the existing exhaust fan for textile production directly exhausts cotton scraps into the air generally in the using process, so that the environment is polluted, and the scraps are not convenient to collect.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an exhaust device for textile production to solve current exhaust fan for textile production in-process that uses, generally directly discharge into the air with the cotton piece, not only can cause the pollution to the environment, and be not convenient for carry out the problem of collecting to the piece.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides an exhaust device for textile production, includes the filter frame, filter frame one side fixed mounting has first water pump and water storage box, filter frame up end fixed mounting has the air exhauster, the air intake department of air exhauster is connected with the intake pipe, the air outlet department of air exhauster is connected with the blast pipe, the tip that the air exhauster was kept away from to the blast pipe passes filter frame roof and tip and extends to the interior bottom of filter frame, the filter frame up end is provided with the outlet duct, fixedly connected with cistern on the diapire in the filter frame, the top transversely is provided with first aqueduct in the filter frame, the terminal surface array is provided with a plurality of shower heads under the first aqueduct, the one end of first aqueduct is passed the filter frame lateral wall and the tip is connected with the play water end of first water pump, be provided with first connecting pipe between first water pump and the water storage box.
Furthermore, it has sealing door to cross filter frame one side and articulate through the hinge, be provided with the observation window on the sealing door, the observation window is made for transparent material and forms.
Furthermore, two auxiliary plates are transversely arranged on the inner side of the filter frame, two ends of each auxiliary plate are fixedly connected with the inner wall of the filter frame, and a plurality of leakage holes are formed in the two auxiliary plates.
Further, fixed mounting has level sensor on the cistern inner wall, fixed mounting has control module on the filter frame outer wall, control module and level sensor electric connection.
Furthermore, a filter screen is transversely arranged at the top in the reservoir.
Further, cistern one side fixed mounting has the second water pump, be connected with the second connecting pipe between second water pump and the cistern, the end of intaking of second water pump is connected with the second aqueduct, the one end that the second water pump was kept away from to the second aqueduct passes filter frame lateral wall and tip and extends to the bottom in the cistern.
Furthermore, a dust filter plate is fixedly mounted on the inner top wall of the filter frame and is positioned right below the air outlet pipe.
Furthermore, the air inlet pipe, the air supply pipe and the air outlet pipe are all hard steel pipes.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses in, through starting the air exhauster, in the same suction filter frame of air in the workshop of will weaving with weaving dirt, then through starting first water pump, make first water pump through the weaving dirt spraying dust fall in the liquid of first connecting pipe and first aqueduct suction water storage box to the air, then discharge in the air outlet pipe of air after filtering, can effectually avoid weaving dirt to cause the pollution to the air, and can increase the range of contact of weaving dirt and liquid through setting up the accessory plate, and the dust fall can adsorb on the accessory plate, can conveniently carry out recovery processing with weaving dirt.
Drawings

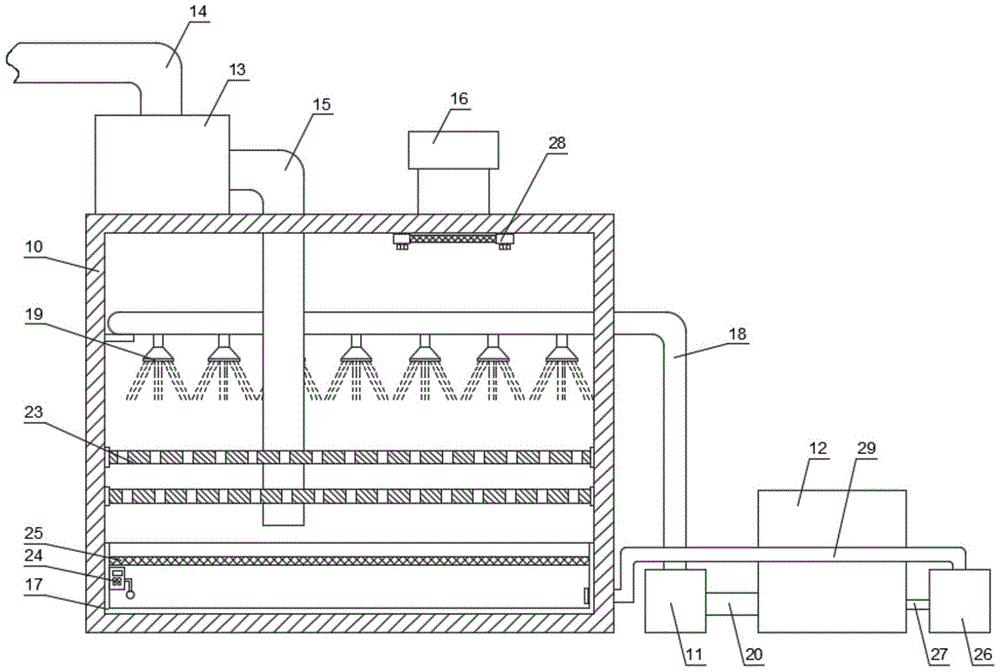

FIG. 1 is a schematic sectional front view of an air exhaust device for textile production;
fig. 2 is a schematic front view of an air exhaust device for textile production.
Reference numerals are as follows: 10. a filter frame; 11. a first water pump; 12. a water storage tank; 13. an exhaust fan; 14. an air inlet pipe; 15. an air supply pipe; 16. an air outlet pipe; 17. a reservoir; 18. a first water conduit; 19. a shower head; 20. a first connecting pipe; 21. a sealing door; 22. an observation window; 23. an auxiliary plate; 24. a liquid level sensor; 25. a filter screen; 26. a second water pump; 27. a second connecting pipe; 28. a dust filter plate; 29. a second water guide pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution:
the utility model provides an exhaust device for textile production, including filter frame 10, filter frame 10 one side has first water pump 11 and water storage box 12 through bolt fixed mounting, filter frame 10 up end has air exhauster 13 through bolt fixed mounting, air intake department of air exhauster 13 is connected with intake pipe 14, air outlet department of air exhauster 13 is connected with blast pipe 15, blast pipe 15 keeps away from the tip of air exhauster 13 and passes filter frame 10 roof and tip and extend to the interior bottom of filter frame 10, filter frame 10 up end is provided with outlet duct 16, welded fastening has cistern 17 on the diapire in the filter frame 10, the top transversely is provided with first aqueduct 18 in the filter frame 10, the terminal surface array is provided with a plurality of shower nozzles 19 under first aqueduct 18, the one end of first aqueduct 18 passes filter frame 10 lateral wall and tip and is connected with the water outlet end of first water pump 11, be provided with first connecting pipe 20 between first water pump 11 and the water storage box 12.
Wherein, two auxiliary plates 23 are transversely arranged at the inner side of the filter frame 10, two ends of the two auxiliary plates 23 are welded and fixed with the inner wall of the filter frame 10, a plurality of leakage holes are respectively arranged on the two auxiliary plates 23,
example 1: through starting air exhauster 13, in together the suction filter frame 10 with the air in the weaving workshop with weaving dirt, then through starting first water pump 11, make first water pump 11 through first connecting pipe 20 and 18 interior liquid of suction water storage box 12 of first aqueduct to the weaving dirt spraying dust fall in the air, then discharge in the air outlet duct 16 of air after filtering, can effectually avoid weaving dirt to cause the pollution to the air, and can increase the contact range of weaving dirt and liquid through setting up accessory plate 23, and the dust that falls can adsorb on accessory plate 23, can conveniently carry out recovery processing with weaving dirt.
In addition, a sealing door 21 is hinged on one side of the filter frame 10 through a hinge, an observation window 22 is arranged on the sealing door 21, and the observation window 22 is made of transparent materials.
The observation window 22 is arranged to facilitate the checking of the textile dust adsorbed on the auxiliary board 23 and the filter screen 25, and facilitate the timely cleaning of the staff.
There is level sensor 24 through bolt fixed mounting on the cistern 17 inner wall, there is control module through bolt fixed mounting on the filter frame 10 outer wall, control module and level sensor 24 electric connection, the top transversely is provided with filter screen 25 in the cistern 17, there is second water pump 26 through bolt fixed mounting in cistern 17 one side, be connected with second connecting pipe 27 between second water pump 26 and the cistern 17, the end of intaking of second water pump 26 is connected with second aqueduct 29, the one end that second water pump 26 was kept away from to second aqueduct 29 is passed filter frame 10 lateral wall and tip and is extended to the bottom in the cistern 17.
Example 2: the liquid in the first aqueduct 18 sprays and then falls into the reservoir 17, then the second water pump 26 is started through the setting, so that the second water pump 26 sucks the liquid in the reservoir 17 through the second aqueduct 29, and the liquid stored on the bottom wall in the reservoir 17 is treated through the filter screen 25, the magazines in the liquid are less, then the liquid is led into the water storage tank 12 through the second connecting pipe 27, so the liquid in the water storage tank 12 can be repeatedly used, and the utilization rate of water resources is improved.
The liquid level in the reservoir 17 is detected by the arranged liquid level sensor 24, when the set value is reached, the liquid level sensor 24 sends a signal to the control module, and then the control module controls the second water pump 26 to be turned on and off.
The first water pump 11 and the second water pump 26 are electrically connected to the control module.
Wherein, a dust filter plate 28 is fixedly arranged on the inner top wall of the filter frame 10 through bolts, and the dust filter plate 28 is positioned under the air outlet pipe 16.
During the use, the gas after the filtration carries out the secondary filter through dust filter 28, improves the filter effect of air, can effectually avoid weaving dirt to cause the pollution to the air.
The air inlet pipe 14, the air supply pipe 15 and the air outlet pipe 16 are all made of hard steel pipes.
The working principle is as follows: through starting air exhauster 13, in together the suction filter frame 10 with the air in the weaving workshop with weaving dirt, then through starting first water pump 11, make first water pump 11 through first connecting pipe 20 and 18 interior liquid of suction water storage box 12 of first aqueduct to the weaving dirt spraying dust fall in the air, then discharge in the air outlet duct 16 of air after filtering, can effectually avoid weaving dirt to cause the pollution to the air, and can increase the contact range of weaving dirt and liquid through setting up accessory plate 23, and the dust that falls can adsorb on accessory plate 23, can conveniently carry out recovery processing with weaving dirt.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.
Claims (8)
1. The utility model provides an exhaust device for textile production, includes filter frame (10), its characterized in that: the water filter is characterized in that a first water pump (11) and a water storage tank (12) are fixedly mounted on one side of the filter frame (10), an exhaust fan (13) is fixedly mounted on the upper end face of the filter frame (10), an air inlet pipe (14) is connected to an air inlet of the exhaust fan (13), an air delivery pipe (15) is connected to an air outlet of the exhaust fan (13), the end portion, far away from the exhaust fan (13), of the air delivery pipe (15) penetrates through the top wall of the filter frame (10) and extends to the inner bottom of the filter frame (10), an air outlet pipe (16) is arranged on the upper end face of the filter frame (10), a water storage tank (17) is fixedly connected to the inner bottom wall of the filter frame (10), a first water guide pipe (18) is transversely arranged at the inner top of the filter frame (10), a plurality of spray headers (19) are arranged on the lower end face of the first water guide pipe (18), one end of the first water guide pipe (18) penetrates through the side wall of the filter frame (10) and is connected with the water outlet end of the first water pump (11), a first connecting pipe (20) is arranged between the first water pump (11) and the water storage tank (12).
2. An exhaust device for textile production according to claim 1, characterised in that: the filter frame (10) one side is articulated through the hinge and is had sealing door (21), be provided with observation window (22) on sealing door (21), observation window (22) are the transparent material preparation and form.
3. An exhaust device for textile production according to claim 1, characterised in that: two auxiliary plates (23) are transversely arranged on the inner side of the filter frame (10), two ends of each auxiliary plate (23) are fixedly connected with the inner wall of the filter frame (10), and a plurality of leakage holes are formed in each auxiliary plate (23).
4. An exhaust device for textile production according to claim 3, characterised in that: fixed mounting has level sensor (24) on cistern (17) inner wall, fixed mounting has control module on filter frame (10) outer wall, control module and level sensor (24) electric connection.
5. An exhaust device for textile production according to claim 3, characterised in that: and a filter screen (25) is transversely arranged at the top in the water storage tank (17).
6. An exhaust device for textile production according to claim 5, wherein: cistern (17) one side fixed mounting has second water pump (26), be connected with second connecting pipe (27) between second water pump (26) and cistern (17), the end of intaking of second water pump (26) is connected with second aqueduct (29), the one end that second water pump (26) were kept away from in second aqueduct (29) is passed filter frame (10) lateral wall and tip and is extended to cistern (17) bottom in.
7. An air exhaust device for textile production according to claim 1, wherein: and a dust filter plate (28) is fixedly mounted on the inner top wall of the filter frame (10), and the dust filter plate (28) is positioned under the air outlet pipe (16).
8. An exhaust device for textile production according to claim 1, characterised in that: the air inlet pipe (14), the air supply pipe (15) and the air outlet pipe (16) are all hard steel pipes.
