Abstract

The utility model discloses a novel split type integrated stove which is convenient for maintenance, comprising an integrated stove body, a cavity is opened on the front side of the integrated stove body near the bottom, and the top and bottom of the cavity are near the left and right sides. Each has a circular groove, the inner cavity of the circular groove has a disc, the inner cavity of the circular groove is equipped with an annular groove, and the left and right sides of the disc are fixedly connected with a slider, the slider It is movably connected to the inner cavity of the adjacent annular groove, and there is a motor between the two discs on the same side. The position of the wind wheel and the motor is exchanged, the connecting rod is pushed backward, and the connecting rod is rotated. The connecting rod drives the rotating disk to rotate, and the rotating disk cleans the inside of the wind wheel through the cleaning strip.

Description

A new type of split integrated stove that is easy to maintain

technical field

The utility model relates to the technical field of integrated stoves, in particular to a novel split integrated stove which is convenient for maintenance.

Background technique

The integrated stove is an extremely popular multi-functional kitchen appliance in China. It greatly improves the cooking environment in the kitchen. It integrates the three major components of the range hood, the disinfection cabinet and the gas stove kitchen. It occupies a small kitchen space and is easy to use. , so it is favored by consumers.

However, the existing integrated stoves have some problems in use. The existing integrated stoves are inconvenient to clean the motor and the wind wheel during use, which reduces the working efficiency of the device. Clean the inside of the stove.

Utility model content

In order to overcome the deficiencies of the prior art, one of the objectives of the present invention is to provide a new type of split integrated stove that is easy to maintain.

One of the purposes of the present utility model adopts the following technical scheme to realize:

A new type of split integrated cooker that is easy to maintain, including an integrated cooktop body, a cavity is opened on the front side of the integrated cooktop body near the bottom, and a circular shape is opened on the top and bottom of the cavity near the left and right sides. The inner cavity of the circular slot has a disc, the inner cavity of the circular slot is provided with an annular slot, the left and right sides of the disc are fixedly connected with sliders, and the sliders are movably connected to adjacent In the inner cavity of the annular groove, there is a motor between the two discs on the same side, the power output shaft of the motor is fixedly connected with a transmission rod, and the rear end of the transmission rod is fixedly connected with a wind wheel. The left and right sides of the cavity are provided with adjustment mechanisms, and the front side of the cavity is provided with a cleaning mechanism.

Further, the adjustment mechanism includes a rotating rod fixedly connected to the left and right sides of the transmission rod, the left and right sides of the cavity are provided with transverse rods, and the corresponding end of the transverse rod is fixedly connected with a U-shaped plate, A connecting plate is fixedly connected to one end of the cross bar away from the motor, and a scraper is fixedly connected to the top and bottom of the side of the connecting plate away from the motor.

Further, the cleaning mechanism includes a movable door on the front side of the cavity, the front side of the movable door is provided with two hinges near the top, and the movable door is movably connected with the front side of the integrated stove body through the hinges, so There are connecting rods running through the front side of the movable door near the left and right sides, the rear end of the connecting rod is fixedly connected with a rotating disk, and the outer edges of the rotating disk are fixedly connected with several cleaning strips.

Further, the top and bottom of the motor have L-shaped plates, the L-shaped plates are located on one side of the adjacent disk, and the corresponding side of the disk is provided with three first threaded holes, the L One side of the shaped plate is provided with bolts, one end of the bolts is located in the adjacent first threaded hole and meshes with each other, and the corresponding side of the disk is fixedly connected to the left and right sides with fixing rods, so The corresponding end of the fixing rod is fixedly connected with an elastic rod, and the end of the elastic rod away from the fixing rod is fixedly connected with an insertion rod. The rod is located in the cavity adjacent to the socket.

Further, a circular ring is sleeved on the outer edge of the crossbar, the top and bottom of the circular ring are fixedly connected with an elastic rope, and one end of the elastic rope away from the circular ring is fixedly connected to one side of the adjacent cavity.

Further, limit plates are fixedly connected to the left and right sides of the connecting rod near the front end, and adjustment plates are fixed to the side of the limit plate away from the connecting rod. The front side of the movable door is provided with a plurality of second threaded holes near the left and right sides, the rear end of the threaded rod is located in the inner cavity of the adjacent second threaded hole, and is engaged with each other, and the front end of the threaded rod is fixedly connected There are knobs.

Further, a fixing frame is fixedly connected to the center of the rear side of the movable door, the top and bottom of the inner cavity of the fixing frame have connection frames, the inner cavity of the connection frame has a cleaning plate in common, and the top and bottom of the inner cavity of the fixing frame are connected. The bottoms are all provided with blind holes, one side of the connecting frame is fixedly connected with a spring, and one end of the spring away from the connecting frame is fixedly connected to the inner cavity of the adjacent blind hole.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In the present utility model, through the mutual cooperation between the rotating disc, cleaning strip, fixing frame, cleaning plate and other structures, the rotating disc can be realized, the positions of the wind wheel and the motor are exchanged, and the connecting rod is pushed backward. , rotate the connecting rod, the connecting rod drives the rotating disc to rotate, and the rotating disc cleans the inside of the wind wheel through the cleaning strip;

2. In the present utility model, the motor can be placed between the discs through the mutual cooperation between the disc, the motor, the L-shaped plate, the scraper, etc. Limit, the transmission rod drives the rotating rod to rotate, the rotating rod drives the scraper to move through the U-shaped plate, and the scraper scrapes the interior of the cavity.

The above description is only an overview of the technical solution of the present invention, in order to be able to understand the technical means of the present invention more clearly, it can be implemented according to the contents of the description, and in order to make the above-mentioned and other purposes, features and advantages of the present invention better. It is obvious and easy to understand, and the preferred embodiments are exemplified below, and the detailed description is as follows in conjunction with the accompanying drawings.

Description of drawings

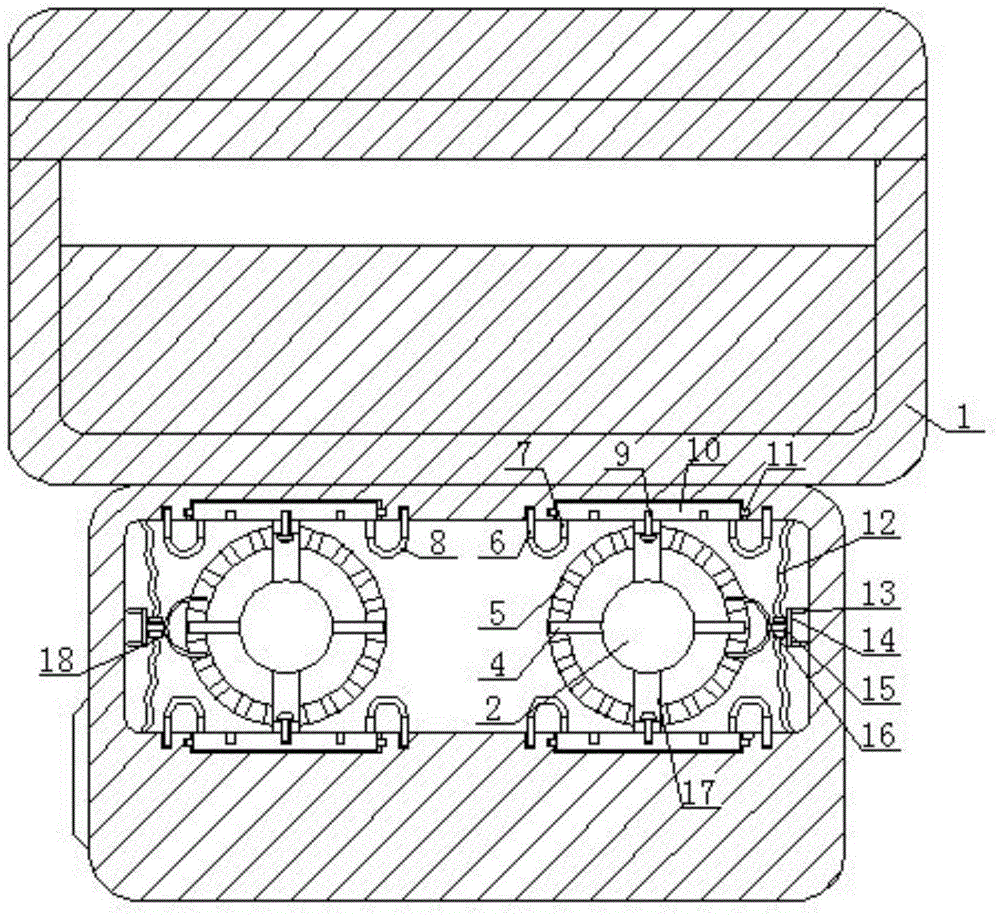

Fig. 1 is the front sectional view of this embodiment;

Fig. 2 is the front view of this embodiment;

3 is a rear cross-sectional view of the component transmission rod of the present embodiment;

FIG. 4 is a rear cross-sectional view of the component cleaning strip of the present embodiment.

In the picture: 1. Integrated stove body; 2. Motor; 3. Transmission rod; 4. Rotating rod; 5. Wind wheel; 6. Inserting rod; 7. Fixed rod; 8. Elastic rod; 9. Bolt; 10. Circle Disc; 11, slider; 12, elastic rope; 13, scraper; 14, connecting plate; 15, cross bar; 16, ring; 17, L-shaped plate; 18, U-shaped plate; 19, movable door; 20 , knob; 21, limit plate; 22, adjustment plate; 23, threaded rod; 24, connecting rod; 25, cleaning strip; 26, rotating disk; 27, connecting frame; 28, fixing frame; 29, cleaning plate; 30 ,spring.

Detailed ways

Hereinafter, the present invention will be further described with reference to the accompanying drawings and specific embodiments. It should be noted that, on the premise of no conflict, the embodiments or technical features described below can be combined arbitrarily to form new implementations. example.

It should be noted that when a component is referred to as being "fixed to" another component, it can be directly on the other component or there may also be a centered component. When a component is considered to be "connected" to another component, it may be directly connected to the other component or there may be a co-existence of an intervening component. When a component is considered to be "set on" another component, it may be directly set on the other component or there may be a co-existing centered component. The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for illustrative purposes only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field to which the present invention belongs. The terms used in the description of the present invention herein are only for the purpose of describing specific embodiments, and are not intended to limit the present invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Embodiment 1: Please refer to Figures 1 to 4, a new type of split integrated stove that is easy to maintain, including an integrated stove body 1, the front side of the integrated stove body 1 is provided with a cavity near the bottom, and the top of the cavity is The bottom is provided with circular grooves near the left and right sides, the inner cavity of the circular groove is provided with a disc 10, the inner cavity of the circular groove is provided with an annular groove, and the left and right sides of the disc 10 are fixedly connected with sliders 11. The block 11 is movably connected to the inner cavity of the adjacent annular groove, and the motor 2 is shared between the two discs 10 on the same side. The power output shaft of the motor 2 is fixedly connected with a transmission rod 3, and the rear end of the transmission rod 3 is fixedly connected with a The wind wheel 5 has an adjustment mechanism on the left and right sides of the cavity, a cleaning mechanism on the front side of the cavity, and an L-shaped plate 17 on the top and bottom of the motor 2. The L-shaped plate 17 is located on one side of the adjacent disc 10, The corresponding side of the disk 10 is provided with three first threaded holes, one side of the L-shaped plate 17 is provided with bolts 9, and one end of the bolts 9 is located in the adjacent first threaded holes and engages with each other. A fixed rod 7 is fixedly connected to the corresponding side near the left and right sides, an elastic rod 8 is fixedly connected to the corresponding end of the fixed rod 7, and an insertion rod 6 is fixedly connected to the end of the elastic rod 8 away from the fixed rod 7. The top and bottom of the cavity are provided with four sockets, and the insertion rod 6 is located in the inner cavity of the adjacent sockets;

The adjustment mechanism includes a rotating rod 4 that is fixedly connected on the left and right sides of the transmission rod 3. There are transverse rods 15 on the left and right sides of the cavity. The corresponding end of the transverse rod 15 is fixedly connected with a U-shaped plate 18. One end of the motor 2 is fixedly connected with a connecting plate 14, and the top and bottom of the connecting plate 14 away from the motor 2 are fixedly connected with a scraper 13. The outer edge of the crossbar 15 is sleeved with a circular ring 16, and the top of the circular ring 16 is set. The elastic rope 12 is fixedly connected with the bottom, and the end of the elastic rope 12 away from the ring 16 is fixedly connected to the side of the adjacent cavity, and the motor 2 is placed between the disks 10. The disc 10 limits the motor 2, the transmission rod 3 drives the rotating rod 4 to rotate, and the rotating rod 4 drives the scraper 13 to move through the U-shaped plate 18, and the scraper 13 cleans the interior of the cavity.

The second embodiment: please refer to FIGS. 1 to 4 , the cleaning mechanism includes a movable door 19 on the front side of the cavity. The front side of the movable door 19 is provided with two hinges near the top, and the movable door 19 is connected to the integrated stove through the hinges. The front side of the main body 1 is movably connected, and the front side of the movable door 19 is provided with connecting rods 24 near the left and right sides. 25. The left and right sides of the connecting rod 24 near the front end are fixedly connected to the limiting plate 21, the side of the limiting plate 21 away from the connecting rod 24 is fixed to the adjusting plate 22, and the inner cavity of the adjusting plate 22 is provided with a threaded rod 23, which is movable. The front side of the door 19 near the left and right sides is provided with a plurality of second threaded holes, the rear end of the threaded rod 23 is located in the inner cavity of the adjacent second threaded hole, and is engaged with each other, and the front end of the threaded rod 23 is fixedly connected with a knob 20 , the center of the rear side of the movable door 19 is fixedly connected with a fixed frame 28, the top and bottom of the inner cavity of the fixed frame 28 have a connecting frame 27, the inner cavity of the connecting frame 27 has a cleaning plate 29, and the top and bottom of the fixed frame 28 cavity are provided with There are blind holes, one side of the connecting frame 27 is fixedly connected with a spring 30, and one end of the spring 30 away from the connecting frame 27 is fixedly connected to the inner cavity of the adjacent blind hole, and the disc 10 is rotated to adjust the position of the wind wheel 5 and the motor 2. Swap, push the connecting rod 24 backward, rotate the connecting rod 24, the connecting rod 24 drives the rotating disk 26 to rotate, and the rotating disk 26 cleans the interior of the wind wheel 5 through the cleaning strip 25.

Working principle: During use, the operator puts the motor 2 and the fan wheel 5 into the cavity inside the integrated stove body 1, attaches the L-shaped plate 17 and the disc 10 to each other, turns the bolt 9, and the bolt 9 enters into the cavity. Inside the disc 10, the motor 2 is limited, and the motor 2 is started by an external power supply. The motor 2 drives the transmission rod 3 to rotate, the transmission rod 3 drives the wind wheel 5 to rotate, and the transmission rod 3 drives the rotation rod 4 to rotate. The rod 4 drives the U-shaped plate 18 to swing up and down, the U-shaped plate 18 drives the crossbar 15 to move, the crossbar 15 drives the ring 16 to move, the ring 16 drives the elastic rope 12 to stretch, and the crossbar 15 drives the connecting plate 14 To move, the connecting plate 14 drives the scraper 13 to move, and the scraper 13 cleans one side of the cavity. When the wind wheel 5 needs to be cleaned, the movable door 19 is opened, and the elastic rod 8 is pulled, and the elastic rod 8 drives the The insertion rod 6 moves, the fixed rod 7 is rotated, the fixed rod 7 drives the disc 10 to rotate, the disc 10 drives the slider 11 to rotate, the disc 10 drives the L-shaped plate 17 to rotate through the bolt 9, and the L-shaped plate 17 drives The motor 2 rotates, the motor 2 drives the wind wheel 5 to rotate through the transmission rod 3, the positions of the wind wheel 5 and the motor 2 are exchanged, then the movable door 19 is closed, the knob 20 is turned, and the knob 20 drives the threaded rod 23 to rotate. , take the threaded rod 23 out of the second threaded hole, rotate the adjustment plate 22, the adjustment plate 22 drives the limit plate 21 to rotate, the limit plate 21 drives the connecting rod 24 to rotate, and moves the connecting rod 24 backward, the connecting rod 24 drives the rotating disk 26 to move, moves the rotating disk 26 to the inside of the wind wheel 5, rotates the connecting rod 24, the connecting rod 24 drives the rotating disk 26 to rotate, the rotating disk 26 drives the cleaning bar 25 to rotate, and the cleaning bar 25 is opposite to the wind wheel. 5. Clean the inside, open the movable door 19 at the same time, swing the connecting frame 27, the connecting frame 27 drives the spring 30 to stretch, take out the cleaning plate 29 from the connecting frame 27, and the cleaning plate 29 cleans the interior of the cavity.

The above-mentioned embodiments are only the preferred embodiments of the present invention, and the scope of protection of the present invention cannot be limited by this. Any insubstantial changes and replacements made by those skilled in the art on the basis of the present invention belong to the scope of the present invention. The scope of protection of the utility model.

Claims (7)

1. A new type of split-type integrated stove that is easy to maintain, comprising an integrated stove body (1), characterized in that: a cavity is opened on the front side of the integrated stove body (1) near the bottom, and the top of the cavity is Circular grooves are provided at the bottom near the left and right sides, the inner cavities of the circular grooves are provided with discs (10), and the inner cavities of the circular grooves are provided with annular grooves. Both sides are fixedly connected with a slider (11), the slider (11) is movably connected to the inner cavity of the adjacent annular groove, and a motor (2) is shared between the two discs (10) on the same side , the power output shaft of the motor (2) is fixedly connected with a transmission rod (3), the rear end of the transmission rod (3) is fixedly connected with a wind wheel (5), and the left and right sides of the cavity are Adjustment mechanism, the front side of the cavity is provided with a cleaning mechanism. 2. A new type of split-type integrated stove for easy maintenance according to claim 1, characterized in that: the adjustment mechanism comprises a rotating rod (4) fixedly connected to the left and right sides of the transmission rod (3). There are transverse rods (15) on the left and right sides of the cavity, the corresponding ends of the transverse rods (15) are fixedly connected with a U-shaped plate (18), and the end of the transverse rod (15) is away from the motor (2). A connecting plate (14) is fixedly connected with each other, and a scraper (13) is fixedly connected at the top and the bottom of the connecting plate (14) on the side away from the motor (2). 3. A new type of split-type integrated stove for easy maintenance according to claim 1, characterized in that: the cleaning mechanism comprises a movable door (19) on the front side of the cavity, and the front side of the movable door (19) is close to Two hinges are provided at the top, the movable door (19) is movably connected to the front side of the integrated stove body (1) through the hinges, and the front side of the movable door (19) near the left and right sides is provided with a A connecting rod (24), the rear end of the connecting rod (24) is fixedly connected with a rotating disk (26), and the outer edges of the rotating disk (26) are fixedly connected with a plurality of cleaning strips (25). 4. A new type of split-type integrated stove for easy maintenance according to claim 1, characterized in that: the motor (2) has L-shaped plates (17) at the top and bottom, and the L-shaped plates (17) Located on one side of the adjacent disc (10), the corresponding side of the disc (10) is provided with three first threaded holes, and one side of the L-shaped plate (17) is provided with bolts (9). ), one end of the bolt (9) is located in the adjacent first threaded hole, and is engaged with each other, and the corresponding side of the disk (10) is fixedly connected with a fixing rod (7) near the left and right sides, The corresponding one end of the fixing rod (7) is fixedly connected with an elastic rod (8), and one end of the elastic rod (8) away from the fixing rod (7) is fixedly connected with an insertion rod (6). The top and bottom of the inner cavity are provided with four insertion holes, and the insertion rods (6) are located in the inner cavity of the adjacent insertion holes. 5. A new type of split-type integrated stove that is easy to maintain as claimed in claim 2, characterized in that: the outer edges of the transverse rods (15) are all sleeved with circular rings (16), and the circular rings (16) Both the top and the bottom are fixedly connected with an elastic cord (12), and one end of the elastic cord (12) away from the ring (16) is fixedly connected to one side of the adjacent cavity. 6. A new type of split-type integrated stove for easy maintenance according to claim 3, characterized in that: the left and right sides of the connecting rod (24) near the front end are fixedly connected to the limiting plate (21), the limiting plate (21). The adjusting plate (22) is fixed on the side of the position plate (21) away from the connecting rod (24), the inner cavity of the adjusting plate (22) is provided with a threaded rod (23), and the front side of the movable door (19) A plurality of second threaded holes are opened near the left and right sides, the rear ends of the threaded rods (23) are located in the inner cavity of the adjacent second threaded holes, and are engaged with each other, and the front ends of the threaded rods (23) are fixed A knob (20) is attached. 7. A new type of split-type integrated stove for easy maintenance according to claim 3, characterized in that: a fixed frame (28) is fixedly connected to the center of the rear side of the movable door (19), and the fixed frame (28) ) Both the top and bottom of the inner cavity have a connecting frame (27), the inner cavity of the connecting frame (27) has a cleaning plate (29), and the top and bottom of the fixing frame (28) inner cavity are provided with blind holes, so One side of the connecting frame (27) is fixedly connected with a spring (30), and one end of the spring (30) away from the connecting frame (27) is fixedly connected to the inner cavity of the adjacent blind hole.
