CN217387891U - Dampproofing intelligent heat dissipation switch board of lightning protection - Google Patents

Abstract

The utility model discloses a lightning-proof and moisture-proof intelligent heat dissipation control cabinet, which comprises an installation cabinet and a base. An air inlet is opened on one side of the installation cabinet, and moisture-absorbing cotton is fixedly installed inside the air inlet. . A protective fence is fixedly installed on one side of the air inlet, and adjustment columns are fixedly installed on both sides of the inside of the installation cabinet. The inner sides of the two sets of adjustment columns are provided with chutes. Slots are provided on the front surfaces, a mounting plate is movably installed between the two sets of adjustment columns, and a support column is fixedly installed on the lower surface of the mounting plate. The utility model enables the control cabinet to have a good heat dissipation and moisture-proof effect, and the incoming air will preferentially pass through the moisture-absorbing cotton on the installation frame to absorb moisture, and the control cabinet is easy to adjust, the height of the installation in the installation cabinet can be adjusted, and the power supply of different sizes is avoided. The switch controller cannot be installed effectively and is practical.

Description

A lightning-proof and moisture-proof intelligent cooling control cabinet

technical field

The utility model relates to the technical field of control cabinets, in particular to a lightning-proof and moisture-proof intelligent heat-dissipating control cabinet.

Background technique

The control cabinet is to assemble switchgear, measuring instruments, protective appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on the screen according to the electrical wiring requirements. and the safety of surrounding equipment. During normal operation, the circuit can be turned on or off by means of manual or automatic switches, and the existing outdoor control cabinets are equipped with lightning protection devices, which can avoid lightning strikes;

The existing control cabinet has certain defects, it is inconvenient to adjust the installation height of the internal electrical components, and it cannot be installed and adjusted according to the power switches of different sizes, which is not conducive to the use of users, and may not be installed. At the same time, the existing control The cabinet is not moisture-proof, and is easily affected by moisture and affects the use. Therefore, a lightning-proof and moisture-proof intelligent cooling control cabinet is now proposed.

Utility model content

The main purpose of the utility model is to provide a lightning-proof and moisture-proof intelligent heat dissipation control cabinet, which can effectively solve the problems in the background technology.

To achieve the above purpose, the technical scheme adopted by the present utility model is:

A lightning-proof and moisture-proof intelligent heat dissipation control cabinet includes an installation cabinet and a base, an air inlet is opened on one side of the installation cabinet, and moisture-absorbing cotton is fixedly installed inside the air inlet, and the installation cabinet is located in the air inlet. A guardrail is fixedly installed on one side of the cabinet, and adjustment columns are fixedly installed on both sides of the inside of the installation cabinet. The inner sides of the two sets of adjustment columns are provided with chutes, and the front surfaces of the two sets of adjustment columns are provided with a slot, a mounting plate is movably installed between the two sets of adjustment columns, a support column is fixedly installed on the lower surface of the mounting plate, a connecting rod is movably installed on the rear surface of the mounting plate, and the inner part of the connecting rod is movable A docking rod is installed, a sliding block is movably installed on one side of the docking rod, a baffle plate is movably installed on the front surface of the base, and a filling groove is opened inside the base.

Preferably, the base is located on the lower surface of the installation cabinet and is fixedly connected to the installation cabinet, the through hole penetrates through the base, and the installation cabinet and the base pass through each other through the through hole.

Preferably, a cabinet door is movably installed on the front surface of the installation cabinet, a heat dissipation frame is fixedly installed on the rear surface of the installation cabinet, and an exhaust fan is fixedly installed inside the heat dissipation frame.

Preferably, an installation frame is fixedly installed inside the air inlet, and the moisture-absorbing cotton is fixedly installed on the outer surface of the installation frame and is fixedly connected to the installation cabinet.

Preferably, the sliding block is slidably installed in the inner chute of the adjusting column, and the mounting plate and the adjusting column are slidably connected through the sliding groove and the sliding block.

Preferably, the interior of the filling groove is filled with hygroscopic material, the two sides of the base are fixedly installed with stabilizing plates, and the upper surface of the installation cabinet is fixedly installed with a cabinet top.

Compared with the prior art, the utility model has the following beneficial effects:

1. The control cabinet has a good heat dissipation and moisture-proof effect through the set filling groove, stabilizer plate, baffle, moisture-absorbing cotton and exhaust fan. The incoming air will preferentially absorb moisture through the moisture-absorbing cotton on the installation frame, and the perforation and The filling groove inside the base runs through, and the hygroscopic material inside the base can effectively absorb moisture and improve the service life of the cabinet;

2. The control cabinet is easy to adjust by setting the adjusting column, mounting plate, connecting rod, docking rod, slider, chute, support column and slot, which can adjust the installation height in the installation cabinet and avoid the power supply of different sizes. The switch controller cannot be effectively installed, the installation effect is improved, and the fixing effect is good and practical.

Description of drawings

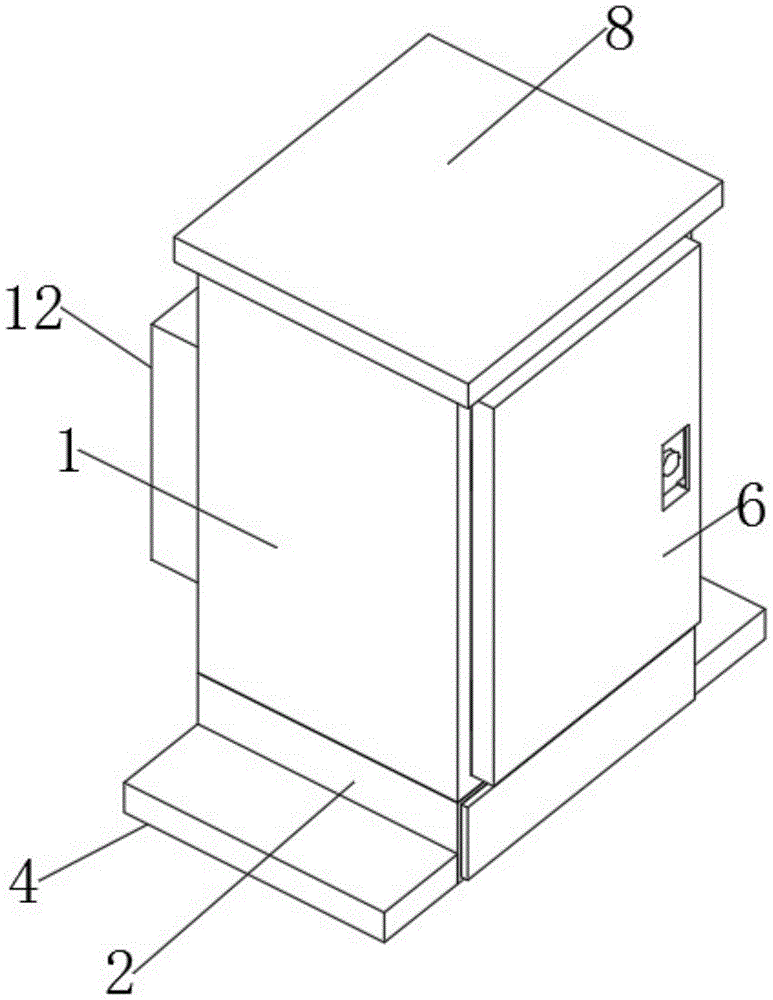

Fig. 1 is the overall structure schematic diagram of a kind of lightning-proof and moisture-proof intelligent heat-dissipating control cabinet of the present utility model;

2 is a schematic diagram of the internal structure of an installation cabinet in a lightning-proof and moisture-proof intelligent heat-dissipating control cabinet of the present invention;

3 is a schematic diagram of a partial structure of an installation cabinet in a lightning-proof and moisture-proof intelligent heat-dissipating control cabinet of the present invention;

4 is a schematic diagram of the connection structure of the mounting plate and the adjusting column in a lightning-proof and moisture-proof intelligent heat dissipation control cabinet of the present invention.

In the picture: 1. Installation cabinet; 2. Base; 3. Filling slot; 4. Stabilizing plate; 5. Baffle; 6. Cabinet door; 7. Moisture-absorbing cotton; 8. Cabinet top; 9. Perforation; 10. Guardrail ;11. Mounting frame; 12. Heat dissipation frame; 13. Exhaust fan; 14. Adjusting column; 15. Mounting plate; 16. Connecting rod; 17. Docking rod; 18. Slider; 19. Chute; 20. Support Column; 21. Slot.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

As shown in Figure 1-4, a lightning-proof and moisture-proof intelligent heat dissipation control cabinet includes an installation cabinet 1 and a base 2. An air inlet is opened on one side of the installation cabinet 1, and a moisture-absorbing cotton 7 is fixed inside the air inlet. In the installation cabinet 1, a protective fence 10 is fixedly installed on the side located at the air inlet, and adjustment columns 14 are fixedly installed on both sides of the inside of the installation cabinet 1. The inner sides of the two sets of adjustment columns 14 are provided with chute 19. The front surface of the adjustment column 14 is provided with a slot 21, a mounting plate 15 is movably installed between the two sets of adjustment columns 14, a support column 20 is fixedly installed on the lower surface of the installation plate 15, and a connection is movably installed on the rear surface of the installation plate 15. Rods 16 and connecting rods 16 are movably installed with a docking rod 17 , one side of the docking rod 17 is movably installed with a slider 18 , a baffle 5 is movably installed on the front surface of the base 2 , and a filling groove 3 is opened inside the base 2 .

The base 2 is located on the lower surface of the installation cabinet 1 and is fixedly connected to the installation cabinet 1, the through hole 9 penetrates the base 2, the installation cabinet 1 and the base 2 pass through each other through the through hole 9, the through hole 9 inside the installation cabinet 1 and the filling groove 3 inside the base 2 pass through , the hygroscopic material inside the base 2 can effectively absorb moisture.

A cabinet door 6 is movably installed on the front surface of the installation cabinet 1, a heat dissipation frame 12 is fixedly installed on the rear surface of the installation cabinet 1, and an exhaust fan 13 is fixedly installed inside the heat dissipation frame 12, and the exhaust fan 13 inside the heat dissipation frame 12 is activated, The exhaust fan 13 will extract the air inside the installation cabinet 1 to dissipate heat inside the installation cabinet 1 .

A mounting frame 11 is fixedly installed inside the air inlet, and the moisture-absorbing cotton 7 is fixedly installed on the outer surface of the mounting frame 11 and is fixedly connected with the installation cabinet 1. The mounting frame 11 is mainly used to fix the moisture-absorbing cotton 7, so that it can block the moisture of the outside air. gas.

The sliding block 18 is slidably installed in the inner sliding groove 19 of the adjusting column 14, and the mounting plate 15 and the adjusting column 14 are slidably connected through the sliding groove 19 and the sliding block 18. The sliding block 18 and the sliding groove 19 mainly provide a guiding effect, so that it can be Swipe vertically.

The interior of the filling groove 3 is filled with hygroscopic material, the two sides of the base 2 are fixedly installed with the stabilizing plate 4, the upper surface of the installation cabinet 1 is fixedly installed with the cabinet top 8, the hygroscopic material inside the filling groove 3 absorbs moisture, and the stabilizing plate 4 is mainly increased. The contact area stabilizes the installation cabinet 1 .

It should be noted that the utility model is a lightning and moisture-proof intelligent heat dissipation control cabinet. The installation cabinet 1 can be installed outdoors, the base 2 is placed, and then bolts are used to penetrate the stabilization plate 4 to be fixed to the ground, and fill the filling groove 3. Moisture-absorbing material, close the baffle 5, open the cabinet door 6, adjust the installation height according to the size of the electrical control parts to be installed, lift the installation plate 15 and then pull it out, the docking rod 17 will slide out from the connecting rod 16, The docking rod 17 will rotate on the slider 18, and the slider 18 will slide to adjust the position in the chute 19 on the adjustment column 14. After adjusting to the proper position, insert the support column 20 under the mounting plate 15 into the adjustment column 14 In the slot 21 on the top, the connecting rod 16 will be accommodated inside the docking rod 17, so that the height of the installation in the installation cabinet 1 can be adjusted, and the exhaust fan 13 inside the heat dissipation frame 12 can be activated, and the exhaust fan 13 will remove the installation cabinet. 1. The internal air is drawn out, and the external air will enter the installation cabinet 1 through the air inlet on the side of the protective fence 10, and the incoming air will preferentially absorb moisture through the moisture-absorbing cotton 7 on the installation frame 11, and the perforation 9 inside the installation cabinet 1. Connecting with the filling groove 3 inside the base 2, the hygroscopic material inside the base 2 can effectively absorb moisture, and the cabinet top 8 is mainly used for rain protection.

The basic principles and main features of the present invention and the advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a dampproofing intelligent heat dissipation switch board of lightning protection, includes installation cabinet (1), perforation (9) and base (2), its characterized in that, the air inlet has been seted up to one side of installation cabinet (1), and the inside fixed mounting of air inlet has absorbent cotton (7), in installation cabinet (1), one side fixed mounting that is located the air inlet has rail guard (10), the equal fixed mounting in inside both sides of installation cabinet (1) has regulation post (14), and spout (19) have all been seted up to the inboard of two sets of regulation post (14), and two sets of slot (21) have all been seted up to the front surface of regulation post (14), and two sets of movable mounting panel (15) between regulation post (14), the lower fixed surface of mounting panel (15) installs support column (20), the rear surface movable mounting of mounting panel (15) has connecting rod (16), the inside movable mounting of connecting rod (16) has butt joint pole (17), one side movable mounting of butt joint pole (17) has slider (18), the front surface movable mounting of base (2) has baffle (5), filling groove (3) have been seted up to the inside of base (2).

2. The lightning-protection and moisture-proof intelligent heat dissipation control cabinet is characterized in that the base (2) is located on the lower surface of the installation cabinet (1) and is fixedly connected with the installation cabinet (1), the through hole (9) penetrates through the base (2), and the installation cabinet (1) and the base (2) are mutually communicated through the through hole (9).

3. The intelligent lightning-protection and moisture-proof heat dissipation control cabinet is characterized in that a cabinet door (6) is movably mounted on the front surface of the installation cabinet (1), a heat dissipation frame (12) is fixedly mounted on the rear surface of the installation cabinet (1), and an exhaust fan (13) is fixedly mounted inside the heat dissipation frame (12).

4. The intelligent heat dissipation control cabinet with lightning protection and moisture protection functions as claimed in claim 1, wherein a mounting frame (11) is fixedly mounted inside the air inlet, and the moisture absorption cotton (7) is fixedly mounted on the outer surface of the mounting frame (11) and fixedly connected with the mounting cabinet (1).

5. The intelligent lightning-protection and moisture-proof heat dissipation control cabinet according to claim 1, wherein the sliding block (18) is slidably mounted in a secondary sliding groove (19) of the adjusting column (14), and the mounting plate (15) and the adjusting column (14) are slidably connected through the sliding groove (19) and the sliding block (18).

6. The intelligent lightning-protection and moisture-proof heat dissipation control cabinet is characterized in that the filling groove (3) is filled with moisture absorption materials, stabilizing plates (4) are fixedly mounted on two sides of the base (2), and a cabinet top (8) is fixedly mounted on the upper surface of the mounting cabinet (1).
