CN217377160U

CN217377160U - Fixing auxiliary device for building electrical construction

Info

Publication number: CN217377160U
Application number: CN202123095053.0U
Authority: CN
Inventors: 郑立青
Original assignee: Weihai Yuantai Construction Technology Co ltd
Current assignee: Weihai Yuantai Construction Technology Co ltd
Priority date: 2021-12-10
Filing date: 2021-12-10
Publication date: 2022-09-06
Anticipated expiration: 2031-12-10

Abstract

The utility model belongs to the technical field of building electrical construction, in particular to a fixing auxiliary device for building electrical construction, which comprises a base and a positioning auxiliary mechanism arranged on the top of the base; the top that the electric device was placed at the insulation board is favorable to lifting the electric device, improves the efficiency of construction, is favorable to guaranteeing the stability in this fixed auxiliary device use, is favorable to conveniently promoting the device and removes.

Description

Fixing auxiliary device for building electrical construction

Technical Field

The utility model belongs to the technical field of the building electrical construction, concretely relates to building electrical construction is with fixed auxiliary device.

Background

Electricity is a general name in the disciplines or engineering fields of production, transmission, distribution, use, electrical equipment manufacturing and the like of electric energy, and a science of creating, maintaining and improving a limited space and environment by taking electric energy, electric equipment and an electric technology as means covers three aspects of conversion, utilization and research of electric energy, including basic theory, application technology, facility equipment and the like; during construction in the prior art, most of the electrical devices are lifted manually and then fixed on a wall, so that a large amount of time and labor are consumed, and the construction efficiency is low.

Therefore, the fixing auxiliary device for building electrical construction is designed to solve the problems.

SUMMERY OF THE UTILITY MODEL

To solve the problems set forth in the background art described above. The utility model provides a building electrical construction is with fixed auxiliary device, the top of placing at the insulation board of electric device is favorable to lifting electric device, improves the efficiency of construction, is favorable to guaranteeing the stability in this fixed auxiliary device use, is favorable to conveniently promoting the device and removes.

In order to achieve the above purpose, the utility model provides a following technical scheme: a fixing auxiliary device for building electrical construction comprises a base and a positioning auxiliary mechanism arranged at the top of the base;

the positioning auxiliary mechanism comprises a rectangular sleeve, a rectangular sliding plate, a threaded hole, a threaded column, a servo motor, a driven gear and a driving gear, the rectangular sleeve is fixedly connected to the top of the base, the rectangular sliding plate is movably connected to the inside of the rectangular sleeve, the threaded hole is symmetrically formed in the bottom of the rectangular sliding plate, the threaded column is in threaded connection with the inner wall surface of the threaded hole, the servo motor is installed at the position, close to the central position, of the top of the base, the driving gear is fixedly installed at the end of an output shaft of the servo motor, the driven gear is meshed with and connected to the surface of the driving gear, and the driven gear is fixedly connected to the surface of the threaded column.

As the utility model relates to a building electrical construction is with fixed auxiliary device preferred, location complementary unit still includes roof and insulation board, the roof fixed connection be in the top of rectangle slide, insulation board fixed connection be in the top of roof.

As the utility model relates to a building electrical construction is with fixed auxiliary device is preferred, still including setting up the removal subassembly of base bottom, it includes square casing, gyro wheel, square groove and spring to remove the subassembly, square groove sets up the bottom of base is close to turning position department, square casing swing joint is in the internal face of square groove, gyro wheel fixed mounting is in the internal face of square casing, spring fixed connection is in the top of square casing, just the spring is kept away from the one end fixed connection of square casing is in the internal face of square groove.

As the utility model relates to a building electrical construction is with fixed auxiliary device is preferred, it still includes guide way and guide block to remove the subassembly, the guide way is seted up square groove's internal face, guide block swing joint be in the inside of guide way, just guide block and square casing fixed connection.

As the utility model relates to a building electrical construction is with fixed auxiliary device is preferred, it still includes the rectangle ring cover to remove the subassembly, rectangle ring cover fixed connection be in the bottom of base, just square casing is located the inside of rectangle ring cover.

As the utility model relates to a building electrical construction is with fixed auxiliary device is preferred, location complementary unit still includes rectangular channel and circular recess, the rectangular channel is seted up the inside of base, just driven gear and driving gear all are located the inside of rectangular channel, circular recess is seted up the bottom of rectangle slide, just servo motor is located the inside of circular recess.

As the utility model relates to a building electrical construction is with fixed auxiliary device is preferred, location auxiliary mechanism still includes the bearing, bearing fixed connection is in the surface of screw thread post is close to driven gear's bottom position department, just the screw thread post passes through the bearing and is connected with the base rotation.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, servo motor's operation drives the driving gear and rotates, and the rotation of driving gear drives driven gear and rotates, thereby driven gear's rotation drives the screw thread post and rotates, makes the rectangle slide at the telescopic internal face of rectangle, and the removal of rectangle slide drives roof and insulation board and removes, and electric device places at the top of insulation board and then can realize lifting electric device, improves the efficiency of construction.

2. The utility model discloses in, the electric device is placed on the insulation board, makes the spring be in compression state to make rectangle ring cover and ground contact, thereby guarantee the fastness of the device in the use, after the electric device installation finishes, along with the decline of insulation board, make gyro wheel and ground laminating, thereby make rectangle ring cover keep away from ground, at this moment can promote the device and remove, be favorable to guaranteeing the stability in this fixed auxiliary device use, be favorable to conveniently promoting the device and remove.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic structural view of the screw post and the base of the present invention;

fig. 3 is a schematic structural view of a driven gear and a driving gear in the present invention;

FIG. 4 is a schematic structural view of the square housing and the roller of the present invention;

fig. 5 is a cross-sectional view of the rectangular sleeve of the present invention;

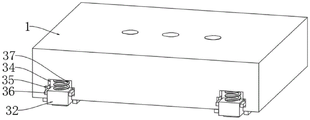

fig. 6 is a cross-sectional view of the base of the present invention;

in the figure:

1. a base;

2. a positioning assistance mechanism; 21. a rectangular sleeve; 22. a rectangular slide plate; 23. a threaded hole; 24. a top plate; 25. an insulating plate; 26. a threaded post; 27. a servo motor; 28. a driven gear; 29. a driving gear; 210. a bearing; 211. a rectangular groove; 212. a circular groove;

3. a moving assembly; 31. a rectangular ring sleeve; 32. a square housing; 33. a roller; 34. a square groove; 35. a guide groove; 36. a guide block; 37. a spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1;

a fixing auxiliary device for building electrical construction comprises a base 1.

In this embodiment: when workers carry out electrical construction on the wall surface, the electrical devices need to be fastened, and unnecessary loss caused by the fact that the electrical devices fall off from the wall surface is avoided; during construction among the prior art, the great part adopts the manual work to lift electrical components, then fix electrical components on the wall body, need consume a large amount of time and manpower, the efficiency of construction is low, borrow this on the basis add location complementary unit 2 and remove subassembly 3, electrical components places and is favorable to lifting electrical components at the top of insulation board 25, improve the efficiency of construction, be favorable to guaranteeing the stability in this fixed auxiliary device use, be favorable to conveniently promoting the device and remove.

Further, the method comprises the following steps:

as shown in fig. 1 to 6:

with the above in mind: the positioning auxiliary mechanism 2 comprises a rectangular sleeve 21, a rectangular sliding plate 22, a threaded hole 23, a top plate 24, an insulating plate 25, a threaded column 26, a servo motor 27, a driven gear 28, a bearing 210, a circular groove 212, a rectangular groove 211 and a driving gear 29, wherein the rectangular sleeve 21 is fixedly connected to the top of the base 1, the rectangular sliding plate 22 is movably connected to the inside of the rectangular sleeve 21, the threaded hole 23 is symmetrically formed in the bottom of the rectangular sliding plate 22, the threaded column 26 is in threaded connection with the inner wall surface of the threaded hole 23, the servo motor 27 is installed at the position, close to the central position, of the top of the base 1, the driving gear 29 is fixedly installed at the end of an output shaft of the servo motor 27, the driven gear 28 is in meshed connection with the surface of the driving gear 29, the driven gear 28 is fixedly connected to the surface of the threaded column 26, the top plate 24 is fixedly connected to the top of the rectangular sliding plate 22, and the insulating plate 25 is fixedly connected to the top of the top plate 24, rectangular channel 211 is seted up in the inside of base 1, and driven gear 28 and driving gear 29 all are located the inside of rectangular channel 211, and circular recess 212 is seted up in the bottom of rectangle slide 22, and servo motor 27 is located the inside of circular recess 212, and bearing 210 fixed connection is in the bottom position department that the surface of screw thread post 26 is close to driven gear 28, and screw thread post 26 passes through bearing 210 and is connected with base 1 rotation.

In this embodiment: when the device is in normal use, the connecting wire of the servo motor 27 is connected with a power supply, the servo motor 27 is started by the operation controller, the driving gear 29 is driven to rotate by the operation of the servo motor 27, the driven gear 28 is driven to rotate by the rotation of the driving gear 29, the threaded column 26 is driven to rotate by the rotation of the driven gear 28, the threaded column 26 rotates on the inner wall surface of the threaded hole 23, the rectangular sliding plate 22 slides on the inner wall surface of the rectangular sleeve 21, the height of the rectangular sliding plate 22 is adjusted, the top plate 24 and the insulation plate 25 are driven to move by the movement of the rectangular sliding plate 22, an electric device is placed at the top of the insulation plate 25, the electric device can be lifted, the construction efficiency is improved, the phenomenon that a large amount of time and manpower are consumed for fixing the electric device on a wall body by lifting the electric device manually during construction is avoided, the phenomenon that electric leakage is caused in the installation process when the electric equipment is lifted to a high position is avoided by the arrangement of the insulation plate 25, and the electric leakage is caused to operate below the electric device The electric shock phenomenon of the working personnel of the device occurs.

It should be noted that: the number of the driven gears 28 and the threaded columns 26 is two, the two driven gears 28 are symmetrically arranged on the surface of the driving gear 29, and the rectangular sliding plate 22 is attached to the inner wall surface of the rectangular sleeve 21, so that the stability of the rectangular sliding plate 22 in the height adjusting process is ensured, the bearings 210 are arranged on the inner wall surface of the rectangular grooves 211, and the threaded columns 26 are rotatably connected with the base 1 through the bearings 210.

Further, the method comprises the following steps:

in an alternative embodiment, the mobile assembly 3 is further included, the mobile assembly 3 is disposed at the bottom of the base 1, the mobile assembly 3 includes a rectangular ring 31, a square housing 32, a roller 33, a square groove 34, a guide groove 35, a guide block 36, and a spring 37, the square groove 34 is disposed at a position close to a corner of the bottom of the base 1, the square housing 32 is movably connected to an inner wall surface of the square groove 34, the roller 33 is fixedly mounted on an inner wall surface of the square housing 32, the spring 37 is fixedly connected to a top of the square housing 32, and one end of the spring 37 far away from the square shell 32 is fixedly connected with the inner wall surface of the square groove 34, the guide groove 35 is arranged on the inner wall surface of the square groove 34, the guide block 36 is movably connected in the guide groove 35, and the guide block 36 is fixedly connected with the square shell 32, the rectangular ring sleeve 31 is fixedly connected with the bottom of the base 1, and the square shell 32 is positioned inside the rectangular ring sleeve 31.

In this embodiment: when lifting electric device, electric device places on insulation board 25, thereby exert the effort to base 1 under electric device effect of gravity, make spring 37 be in compression state, thereby make rectangle ring cover 31 and ground contact along with spring 37's compression, thereby guarantee the fastness of the device in the use, after electric device installs and finishes, along with insulation board 25's decline exerts the effort to shape casing 32 under the effect of spring 37 elastic potential energy, make gyro wheel 33 and ground laminating, thereby make rectangle ring cover 31 keep away from ground, at this moment, can promote the device and remove, be favorable to guaranteeing the stability in this fixed auxiliary device use, be favorable to conveniently promoting the device and remove.

It should be noted that: the number of the rectangular ring sleeves 31 and the number of the rollers 33 are four, and the rectangular ring sleeves and the rollers are arranged at the bottom of the base 1 in a rectangular array mode, so that the device can be moved conveniently, and meanwhile, the stability of the device in the using process is guaranteed.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described above, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a building electrical construction is with fixed auxiliary device, includes base (1), its characterized in that: the device also comprises a positioning auxiliary mechanism (2) arranged at the top of the base (1);

the positioning auxiliary mechanism (2) comprises a rectangular sleeve (21), a rectangular sliding plate (22), a threaded hole (23), a threaded column (26), a servo motor (27), a driven gear (28) and a driving gear (29), the rectangular sleeve (21) is fixedly connected to the top of the base (1), the rectangular sliding plate (22) is movably connected to the inside of the rectangular sleeve (21), the threaded hole (23) is symmetrically formed in the bottom of the rectangular sliding plate (22), the threaded column (26) is in threaded connection with the inner wall surface of the threaded hole (23), the servo motor (27) is installed on the position, close to the center, of the top of the base (1), the driving gear (29) is fixedly installed at the end of an output shaft of the servo motor (27), and the driven gear (28) is in meshed connection with the surface of the driving gear (29), and the driven gear (28) is fixedly connected on the surface of the threaded column (26).

2. The fixing auxiliary device for electric construction of buildings according to claim 1, characterized in that: the positioning auxiliary mechanism (2) further comprises a top plate (24) and an insulating plate (25), the top plate (24) is fixedly connected to the top of the rectangular sliding plate (22), and the insulating plate (25) is fixedly connected to the top of the top plate (24).

3. The fixing auxiliary device for electric construction of buildings according to claim 1, characterized in that: still including setting up removal subassembly (3) of base (1) bottom, removal subassembly (3) are including square casing (32), gyro wheel (33), square groove (34) and spring (37), square groove (34) are seted up the bottom of base (1) is close to corner position department, square casing (32) swing joint in the internal face of square groove (34), gyro wheel (33) fixed mounting in the internal face of square casing (32), spring (37) fixed connection in the top of square casing (32), just spring (37) are kept away from the one end fixed connection of square casing (32) in the internal face of square groove (34).

4. The fixing auxiliary device for electric construction of buildings according to claim 3, characterized in that: the moving assembly (3) further comprises a guide groove (35) and a guide block (36), the guide groove (35) is formed in the inner wall surface of the square groove (34), the guide block (36) is movably connected inside the guide groove (35), and the guide block (36) is fixedly connected with the square shell (32).

5. The fixing auxiliary device for electric construction of buildings according to claim 3, characterized in that: the moving assembly (3) further comprises a rectangular ring sleeve (31), the rectangular ring sleeve (31) is fixedly connected to the bottom of the base (1), and the square shell (32) is located inside the rectangular ring sleeve (31).

6. The fixing auxiliary device for electric construction of buildings according to claim 1, characterized in that: positioning assistance mechanism (2) still includes rectangular channel (211) and circular recess (212), set up in rectangular channel (211) the inside of base (1), just driven gear (28) and driving gear (29) all are located the inside of rectangular channel (211), set up in circular recess (212) the bottom of rectangle slide (22), just servo motor (27) are located the inside of circular recess (212).

7. The fixing auxiliary device for electric construction of buildings according to claim 1, characterized in that: the positioning auxiliary mechanism (2) further comprises a bearing (210), the bearing (210) is fixedly connected to the position, close to the bottom of the driven gear (28), of the surface of the threaded column (26), and the threaded column (26) is in rotating connection with the base (1) through the bearing (210).
