Abstract

The utility model discloses a plate cutting device, comprising a body, a moving mechanism is arranged on the body, a moving plate is arranged on the moving mechanism, a moving component is installed on the moving plate, and one end of the moving component is installed There is a mounting plate, a rotating assembly is mounted on the mounting plate, a mounting table is mounted on the upper end of the rotating assembly, a third electric telescopic rod is mounted on the mounting table, and one end of the third electric telescopic rod is mounted with a cutting A power mechanism is installed on the body, the power mechanism corresponds to the moving mechanism, and a clamping mechanism is installed on the opposite side of the moving plate and the body. The utility model can be well adapted to plates of different specifications, and at the same time, it is convenient to adapt to different cutting methods, improves the efficiency and quality of cutting, and can also effectively move the plates automatically, which is convenient for fast cutting and improves the cutting efficiency of the plates.

Description

A plate cutting device

technical field

The utility model relates to the technical field of sheet metal cutting, in particular to a sheet metal cutting device.

Background technique

The board cutting machine is a common machine used for cutting boards. The preliminarily cut board is placed on the workbench of the board cutting machine, and then the board is cut by the cutter on the board cutting machine according to the needs of customers. With the continuous development of the industry, the quality and precision requirements for wood cutting are also constantly improving. Most of the existing board cutting machines use manual labor to directly push the board and use a cutting knife to cut.

Existing board cutting is generally done by small hand saws or large cutting equipment. Small hand saws cannot fix the board well and are prone to shaking. At the same time, large cutting equipment cannot be well adapted to different cutting methods, which is not conducive to lifting. The efficiency of cutting, for this reason, we propose a plate cutting device to solve the above problems.

Utility model content

The purpose of the utility model is to solve the problem that the small and medium-sized hand saws in the prior art cannot fix the plate very well, and are prone to shaking. At the same time, the large-scale cutting equipment cannot be well adapted to different cutting methods, which is not conducive to improving the cutting efficiency. A plate cutting device is proposed.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A plate cutting device includes a body, a moving mechanism is arranged on the body, a moving plate is arranged on the moving mechanism, a moving component is installed on the moving plate, and a mounting plate is installed on one end of the moving component, so the A rotating assembly is installed on the mounting plate, an installation table is installed on the upper end of the rotating assembly, a third electric telescopic rod is installed on the installation table, and a cutter is installed at one end of the third electric telescopic rod, and the body A power mechanism is installed on the top, the power mechanism corresponds to the moving mechanism, and a clamping mechanism is jointly installed on the opposite side of the moving plate and the body.

Preferably, in order to well clamp plates of different specifications and improve the practicability of the product, the moving mechanism includes a second electric telescopic rod installed at the lower end of the body, and the end of the piston rod of the second electric telescopic rod is installed with a connection There are two gaps on the body, the upper end of the connecting plate is slidably sleeved in the two gaps, and two connecting rods are installed on one side of the connecting plate, and one end of the two connecting rods is Commonly fixed on one side of the mobile board.

Preferably, in order to facilitate clamping the plate and facilitate the movement of the plate, the clamping mechanism includes a plurality of transverse shafts rotatably connected to the opposite side of the moving plate and the body, and the opposite sides of the moving plate and the body are installed with multiple There are several vertical axes, and multiple vertical axes and multiple horizontal axes on the same side are staggered.

Preferably, in order to facilitate the automatic movement of the plate, the power mechanism includes a first electric telescopic rod installed on the body, the body is provided with an opening, and a slider is slidably installed in the opening, and the slider of the slider is slidably installed. A motor is installed on one side, the end of the piston rod of the first electric telescopic rod penetrates through the opening and is fixed on the upper end of the slider, and the piston rod of the motor penetrates the slider and is installed with a pressure shaft.

Preferably, in order to ensure the stability of rotation and facilitate stable adjustment of components, one end of the mounting plate is arranged in an arc shape, and the rotating assembly is installed at the center point of the arc end.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The second electric telescopic rod can provide good power, so that the connecting plate can drive the connecting rod to move, so that the moving plate can move. Adapt to multiple specifications of plates;

2. Through the operation of the first electric telescopic rod, the slider can drive the pressing shaft to rise and fall, and the plate can be well clamped. Under the action of the motor and the cooperation of the pressing shaft, the vertical shaft and the horizontal shaft, it can be well Make the plate move on the ground for easy cutting;

3. Through the operation of the rotating component, the cutter can be rotated well, and the cutting position can be well adjusted by the third electric telescopic rod, which is convenient for adapting to different thicknesses of plates and improving the practicability of the product. At the same time, the movement of the moving component can make the cutter move well, which is convenient for effectively cutting the plate and improving the cutting speed and efficiency;

To sum up, the utility model can be well adapted to plates of different specifications, at the same time, it is convenient to adapt to different cutting methods, improve the efficiency and quality of cutting, and can also effectively make the plates move automatically, which is convenient for effective cutting, and improves the accuracy of the plates. cutting efficiency.

Description of drawings

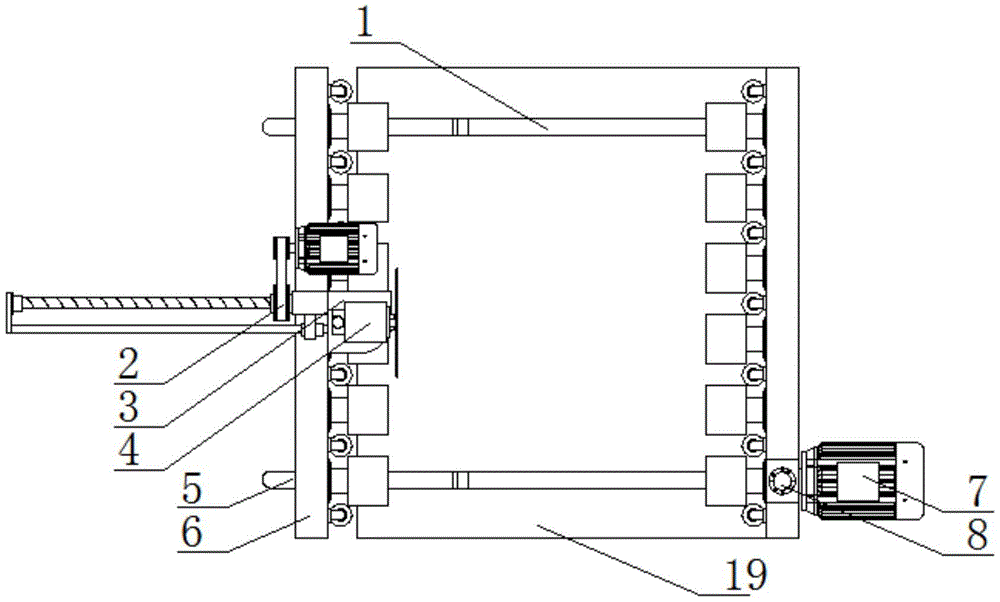

Fig. 1 is the top view of a kind of plate cutting device proposed by the utility model;

2 is a front view of a plate cutting device proposed by the utility model;

Fig. 3 is the cutter installation structure diagram of a kind of plate cutting device proposed by the utility model;

In the picture: 1 gap, 2 moving components, 3 mounting plate, 4 cutter, 5 connecting rod, 6 moving plate, 7 motor, 8 first electric telescopic rod, 9 vertical axis, 10 horizontal axis, 11 second electric telescopic rod , 12 connecting plate, 13 pressing shaft, 14 sliding block, 15 opening, 16 third electric telescopic rod, 17 mounting table, 18 rotating assembly, 19 body.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, a plate cutting device, including a body 19, the body 19 is provided with a moving mechanism, the moving mechanism is provided with a moving plate 6, the moving mechanism can make the moving plate 6 move well, the moving plate 6 A moving assembly 2 is installed, and a mounting plate 3 is installed at one end of the moving assembly 2. The moving assembly 2 can make the mounting plate 3 move well. When cutting horizontally, the plate does not move, and the cutter 4 is on the mounting plate 3 and the moving assembly. 2 to move under the action of cutting, when cutting vertically, first move the cutter 4 to a suitable position, and then move the plate for cutting, which can well achieve horizontal and vertical cutting, improve the practicability of the product, and install A rotating assembly 18 is installed on the plate 3, and a mounting table 17 is installed on the upper end of the rotating assembly 18, which is convenient to rotate and adjust the position of the cutter 4, so as to perform cutting in both horizontal and vertical directions, and a third electric motor is installed on the mounting table 17. The telescopic rod 16, the cutter 4 is installed at one end of the third electric telescopic rod 16, and the cutter 4 can be moved up and down through the third electric telescopic rod 16, which can be well adapted to plates of different thicknesses, and improves the cutting efficiency and quality. A power mechanism is installed on 19, and the power mechanism corresponds to the moving mechanism, which can make the plate automatically move or fix.

2, the moving mechanism includes a second electric telescopic rod 11 installed at the lower end of the body 19, the end of the piston rod of the second electric telescopic rod 11 is installed with a connecting plate 12, the body 19 is provided with two gaps 1, the connecting plate 12 Both sides of the upper end are slidably sleeved in the two gaps 1, two connecting rods 5 are installed on one side of the connecting plate 12, and one end of the two connecting rods 5 is jointly fixed on one side of the moving plate 6, and the second electric telescopic rod 11 can push the connecting plate 12 to move, the connecting plate 12 can ensure the stability of its movement through the gap 1, and at the same time the connecting plate 12 can drive the moving plate 6 to move through the connecting rod 5, which is convenient for automatic regulation, and can well push the plate to move to facilitate its movement. Clamp and fix.

1, 2, the clamping mechanism includes a plurality of horizontal shafts 10 rotatably connected to the opposite side of the moving plate 6 and the body 19, and a plurality of vertical shafts 9 are installed on the opposite sides of the moving plate 6 and the body 19, and the same side A plurality of vertical shafts 9 and a plurality of horizontal shafts 10 are arranged in a staggered manner, and the two sides of the lower end of the plate can be prevented from being on the horizontal shaft 10. When the moving plate 6 moves, the vertical shafts 9 on it can abut against the plate and push the plate to move, which is convenient for clamping plate.

2, the power mechanism includes a first electric telescopic rod 8 installed on the body 19. The electric telescopic rod is connected to external supporting equipment, so that it is convenient for staff to control its operation. The body 19 is provided with an opening 15, and the opening 15 is slidably installed. The slider 14, the motor 7 is installed on one side of the slider 14, the end of the piston rod of the first electric telescopic rod 8 penetrates through the opening 15 and is fixed on the upper end of the slider 14, the piston rod of the motor 7 penetrates the slider 14 and is installed with a pressure shaft 13 The first electric telescopic rod 8 can push and pull the slider 14 up and down, and can well drive the motor 7 and the pressing shaft 13 to rise and fall. The pressing shaft 13 can touch the upper end side of the plate, which is convenient to use plates of various thicknesses. At the same time, the motor 7 can make the pressing shaft 13 go up and down. Rotation, it is convenient to make the plate move automatically, which helps to improve work efficiency.

1 and 3, one end of the mounting plate 3 is arranged in an arc shape, and the rotating assembly 18 is installed at the center point of the arc end to facilitate stable rotation and avoid collision between the blades of the cutter 4 and the components.

In the utility model, when in use, the worker places the plate on the horizontal shaft 10, the second electric telescopic rod 11 operates, and the vertical shaft 9 can well clamp the plate, and the first electric telescopic rod 8 can push the plate The slider 14 moves up and down, so that the pressing shaft 13 touches the upper end side of the plate, and the motor 7 provides power to move the plate very well. It is convenient for fast cutting. When the cross-cutting is performed, the rotation of the rotating assembly 18 can make the cutter 4 operate, and can perform cross-cutting well. At the same time, the movement of the moving assembly 2 can well drive the cutter 4 to move, so as to efficiently cut the plate. The third electric telescopic rod 16 can be well adapted to plates of different thicknesses.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (5)

1. A panel cutting device, comprising a machine body (19), characterized in that: be equipped with moving mechanism on organism (19), be equipped with movable plate (6) on the moving mechanism, install removal subassembly (2) on movable plate (6), mounting panel (3) are installed to the one end of removal subassembly (2), install runner assembly (18) on mounting panel (3), mount table (17) are installed to the upper end of runner assembly (18), install third electric telescopic handle (16) on mount table (17), cutterbar (4) are installed to the one end of third electric telescopic handle (16), install power unit on organism (19), power unit and moving mechanism are corresponding, the fixture is installed jointly to relative one side of movable plate (6) and organism (19).

2. A board cutting device according to claim 1, characterized in that: the moving mechanism comprises a second electric telescopic rod (11) installed at the lower end of a machine body (19), a connecting plate (12) is installed at the tail end of a piston rod of the second electric telescopic rod (11), two openings (1) are formed in the machine body (19), two sides of the upper end of the connecting plate (12) are respectively sleeved in the two openings (1) in a sliding mode, two connecting rods (5) are installed on one side of the connecting plate (12), and one ends of the two connecting rods (5) are jointly fixed on one side of a moving plate (6).

3. A board cutting device according to claim 1, characterized in that: the clamping mechanism comprises a plurality of transverse shafts (10) which are rotatably connected to one side, opposite to the moving plate (6) and the machine body (19), of the moving plate (6) and the machine body (19), a plurality of vertical shafts (9) are mounted on one side, opposite to the moving plate (6) and the machine body (19), and the vertical shafts (9) and the transverse shafts (10) are arranged in a staggered mode on the same side.

4. A sheet cutting device according to claim 1, characterized in that: the power mechanism comprises a first electric telescopic rod (8) installed on a machine body (19), an opening (15) is formed in the machine body (19), a sliding block (14) is installed in the opening (15), a motor (7) is installed on one side of the sliding block (14), the tail end of a piston rod of the first electric telescopic rod (8) penetrates through the opening (15) and is fixed to the upper end of the sliding block (14), and a piston rod of the motor (7) penetrates through the sliding block (14) and is provided with a pressing shaft (13).

5. A board cutting device according to claim 1, characterized in that: the one end of mounting panel (3) is the arc setting, the centre of circle point at the arc end is installed in runner assembly (18).
