Abstract

The utility model discloses a photovoltaic bracket with strong stability, which comprises multiple sets of support bases, shock-absorbing blocks, adjustment components, transmission components and connection components. The multiple sets of the support bases are made of metal materials. The support base is installed above the ground through bolts, the shock-absorbing block is installed on the top of the support base through bolts, the adjustment assembly is installed above the support base, the transmission assembly is installed on the top of the support base, and the connection assembly is installed on the support base side. The utility model is provided with an adjustment component. During the use of the bracket, the drive motor is used to drive the transmission rod to rotate, the rotation of the transmission rod drives the rotation of the stabilizing rod, and the rotation of the stabilizing rod drives the rotation of the placing plate, so as to realize the adjustment of the angle of the solar panel. It is beneficial to the absorption and utilization of solar energy by the solar panel, the stability of the placement board can be enhanced by using the reinforcing rod and the connecting rod, and the solar panel can be clamped by using the placement board.

Description

A kind of photovoltaic support with strong stability

technical field

The utility model relates to the related technical field of photovoltaic brackets, in particular to a photovoltaic bracket with strong stability.

Background technique

In the solar photovoltaic power generation system, in order to facilitate the fixation and installation of the solar panel, the photovoltaic bracket will be used. Because it is exposed to the outdoors for a long time, the stability of the photovoltaic bracket has high requirements to prevent it from being caused by bad weather. Damage or displacement will affect subsequent light energy absorption, so a photovoltaic support with strong stability is required.

The prior art has the following deficiencies: the overall structure of most photovoltaic supports is relatively large, which is inconvenient for installation, and the angle adjustment is poor during use, which is not conducive to the absorption and utilization of solar energy.

Utility model content

The purpose of the present invention is to provide a photovoltaic support with strong stability, so as to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a photovoltaic support with strong stability, comprising multiple groups of support bases, shock-absorbing blocks, adjustment components, transmission components and connection components, and the multiple groups of said support bases are made of metal. The support base is installed on the ground through bolts, the shock-absorbing block is installed on the top of the support base through bolts, the adjustment assembly is installed on the top of the support base, and the transmission assembly is installed on the top of the support base. The connecting assembly is installed on one side of the support base.

As a further preference of this technical solution, the adjustment assembly includes a motor box, a drive motor, a transmission rod, multiple groups of stabilizing rods, a reinforcing rod, a connecting rod and a placement plate, and the motor box is installed on the top of the shock-absorbing block by bolts, The drive motor is installed in the motor box through bolts, the transmission rod is installed at the output end of the drive motor, a plurality of groups of the stabilizing rods are sleeved and installed outside the transmission rod, and the reinforcing rods are installed between the stabilizing rods through bolts, The connecting rod is mounted on one side of the reinforcing rod by bolts, and the placing plate is mounted on the top end of the stabilizing rod by bolts.

As a further preference of the technical solution, the connecting rod is connected with the placing plate, and the stabilizing rod, the reinforcing rod and the connecting rod are all made of metal materials.

As a further preference of this technical solution, the transmission assembly includes a stabilizer, two sets of sliding grooves, a sliding rod, a vertical rod, a rotating wheel, a transmission belt, a transmission wheel and a moving groove, and the stabilizer is installed on the top of the support base by bolts. , the surface of the stabilizer is symmetrically provided with two sets of sliding grooves, the sliding rod is installed on one side of the stabilizer rod by bolts, the vertical rod is installed on the bottom end of the placing plate by bolts, and the rotating wheel is sleeved and installed on the transmission rod Externally, the transmission belt is sleeved and installed on the outside of the rotating wheel, the transmission wheel is rotatably installed at the bottom end of the vertical rod, and the surface of the stabilizer is provided with a moving groove.

As a further preference of this technical solution, the stabilizer is rotatably connected with the transmission rod, the sliding rod is slidably connected with the sliding groove, the transmission belt connects the rotating wheel and the transmission wheel together, and the transmission wheel slides with the moving groove connect.

As a further preference of this technical solution, the connecting assembly includes a cross bar, a fixing bar, two sets of connecting pieces and a limit groove, the cross bar is installed between the support bases by bolts, and the fixing bar is installed by bolts between the supporting bases. At the top of the cross bar, two sets of the connecting pieces are symmetrically installed on the top ends of the two sides of the fixing bar, and a limiting groove is provided on the surface of the placing plate.

As a further preference of the technical solution, the fixing rod is rotatably connected with the transmission rod, and the connecting piece is slidably connected with the limiting groove.

The utility model provides a photovoltaic support with strong stability, which has the following beneficial effects:

(1) The utility model is provided with an adjustment component. During the use of the bracket, the drive motor is used to drive the transmission rod to rotate, the rotation of the transmission rod drives the rotation of the stabilizing rod, and the rotation of the stabilizing rod drives the rotation of the placement plate to realize the angle of the solar panel. The adjustment of the solar panel is conducive to the absorption and utilization of solar energy by the solar panel, and the stability of the placement panel can be enhanced by using the reinforcing rod and the connecting rod.

(2) The utility model is provided with a transmission assembly and a connecting assembly. During the rotation process, the rotation of the transmission rod drives the rotating wheel to rotate, and under the conduction of the transmission belt, the transmission wheel is driven to rotate, and the rotation of the transmission wheel drives the vertical rod to move along the The groove slides, and the rotation of the stable rod drives the sliding rod to slide along the sliding groove. The cross rod can be used to connect the support bases, and the fixed rod can be used to support and limit the transmission rod. During the rotation of the placing plate, the connecting piece Sliding along the limit groove to realize the limit and connection between the placing plates and enhance the overall stability.

Description of drawings

Fig. 1 is the overall structure schematic diagram of the present utility model;

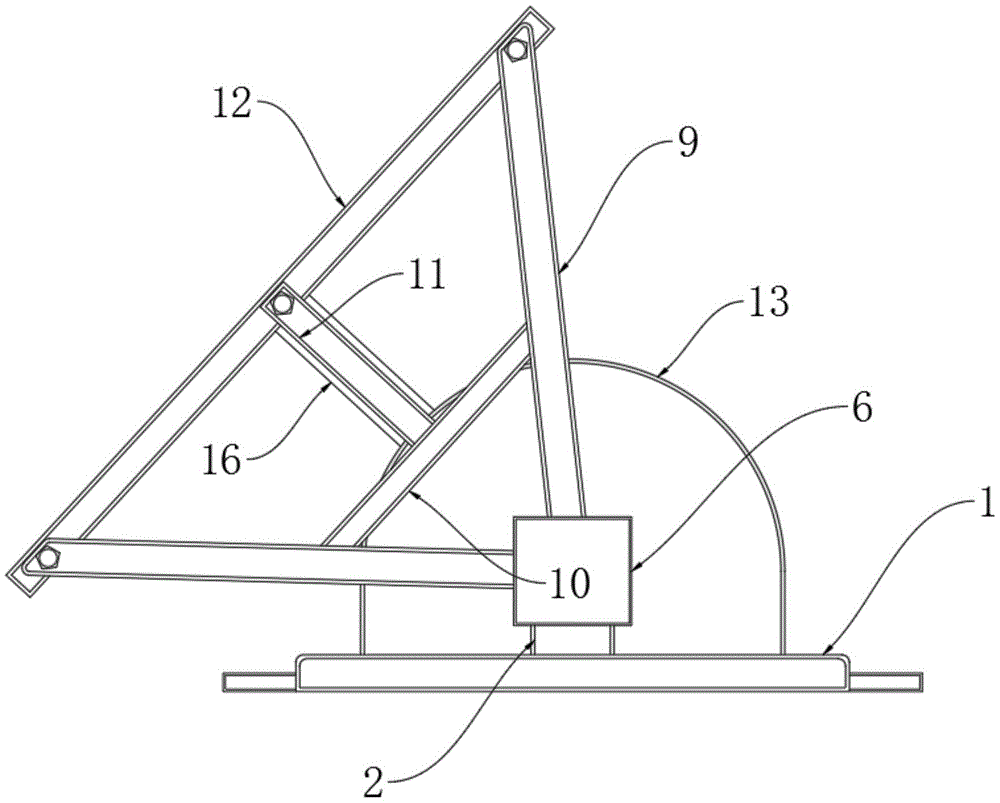

Fig. 2 is the structural schematic diagram of the adjusting assembly of the present invention;

3 is a schematic structural diagram of a transmission assembly of the present invention;

FIG. 4 is an enlarged schematic view of the structure at A in FIG. 2 of the present invention.

In the figure: 1. Support base; 2. Damping block; 3. Adjustment component; 4. Transmission component; 5. Connecting component; 6. Motor box; 7. Drive motor; 8. Transmission rod; 9. Stabilizing rod; 10 , Reinforcing rod; 11, connecting rod; 12, placing plate; 13, stabilizer; 14, sliding groove; 15, sliding rod; 16, vertical rod; 17, rotating wheel; 18, transmission belt; 19, transmission wheel; 20, Moving slot; 21, cross bar; 22, fixed bar; 23, connecting piece; 24, limit slot.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.

As shown in Figures 1-4, the present utility model provides a technical solution: a photovoltaic support with strong stability, including multiple groups of support bases 1, shock-absorbing blocks 2, adjustment components 3, transmission components 4 and connection components 5, and more The support bases 1 are made of metal materials, and multiple sets of the support bases 1 are installed above the ground through bolts, the shock-absorbing block 2 is installed on the top of the support base 1 through bolts, and the adjustment components 3 are installed on the support base. Above 1 , the transmission assembly 4 is installed on the top of the support base 1 , and the connection assembly 5 is installed on one side of the support base 1 .

In this embodiment, specifically: the adjustment assembly 3 includes a motor box 6, a drive motor 7, a transmission rod 8, a plurality of groups of stabilizing rods 9, a reinforcing rod 10, a connecting rod 11 and a placing plate 12. The motor box 6 passes through The bolts are installed on the top end of the damping block 2, the drive motor 7 is installed in the motor box 6 through the bolts, the transmission rod 8 is installed at the output end of the drive motor 7, and a plurality of groups of the stabilizing rods 9 are sleeved and installed on the transmission rod 8 Externally, the reinforcing rods 10 are installed between the stabilizing rods 9 by bolts, the connecting rod 11 is installed on one side of the reinforcing rods 10 by bolts, and the placing plate 12 is installed on the top of the stabilizing rods 9 by bolts, so as to realize the connection between the solar panels. The angle adjustment is conducive to the absorption and utilization of solar energy.

In this embodiment, specifically: the connecting rod 11 and the placing plate 12 are connected together, and the stabilizing rod 9 , the reinforcing rod 10 and the connecting rod 11 are all made of metal materials to enhance the stability of the placing plate 12 .

In this embodiment, specifically: the transmission assembly 4 includes a stabilizer 13 , two sets of sliding grooves 14 , a sliding rod 15 , a vertical rod 16 , a rotating wheel 17 , a transmission belt 18 , a transmission wheel 19 and a moving groove 20 . The member 13 is installed on the top of the support base 1 by bolts, two sets of sliding grooves 14 are symmetrically opened on the surface of the stable member 13, the sliding rod 15 is installed on the side of the stable rod 9 by bolts, and the vertical rod 16 is installed on the side of the stable rod 9 by bolts. At the bottom end of the placing plate 12, the rotating wheel 17 is sleeved and installed outside the transmission rod 8, the transmission belt 18 is sleeved and installed outside the rotating wheel 17, and the transmission wheel 19 is rotatably installed at the bottom end of the vertical rod 16. A moving groove 20 is formed on the surface of the piece 13 to enhance the stability during rotation.

In this embodiment, specifically: the stabilizer 13 is rotatably connected with the transmission rod 8, the sliding rod 15 is slidably connected with the sliding groove 14, the transmission belt 18 connects the rotating wheel 17 and the transmission wheel 19 together, the The transmission wheel 19 is slidably connected with the moving groove 20 .

In this embodiment, specifically: the connecting assembly 5 includes a cross bar 21, a fixing bar 22, two sets of connecting pieces 23 and a limit groove 24, the cross bar 21 is installed between the support bases 1 by bolts, and the The fixed rod 22 is installed on the top of the cross rod 21 by bolts, and the two sets of the connecting pieces 23 are symmetrically installed on the tops of the two sides of the fixed rod 22. The surface of the placing plate 12 is provided with a limit slot 24 to realize the support base 1 and the placing plate 12. the connection between.

In this embodiment, specifically: the fixing rod 22 is rotatably connected with the transmission rod 8 , and the connecting piece 23 is slidably connected with the limiting groove 24 , so as to support the transmission rod 8 .

Working principle, when the photovoltaic support is in use, the support base 1 can be used to fix the connection between the support and the ground, and multiple sets are arranged, which is convenient for transportation and installation. During the use of the bracket, start the driving motor 7, the driving motor 7 drives the transmission rod 8 to rotate, the rotation of the transmission rod 8 drives the rotation of the stabilizing rod 9, and the rotation of the stabilizing rod 9 drives the rotation of the placing plate 12, so as to realize the rotation of the solar panel. The adjustment of the angle is conducive to the absorption and utilization of solar energy by the solar panel. The stability of the placing plate 12 can be enhanced by the use of the reinforcing rod 10 and the connecting rod 11. By providing the transmission assembly 4, the rotation of the transmission rod 8 drives the rotation during the rotation process. The rotation of the wheel 17 drives the transmission wheel 19 to rotate under the conduction of the transmission belt 18, the rotation of the transmission wheel 19 drives the vertical rod 16 to slide along the moving groove 20, and the rotation of the stabilizing rod 9 drives the sliding rod 15 to slide along the sliding groove 14. For the stability during rotation, by providing the connecting assembly 5, the support base 1 can be connected by the cross bar 21, and the transmission rod 8 can be supported and limited by the fixed rod 22. During the rotation process of the placing plate 12 , the connecting piece 23 slides along the limiting groove 24 to realize the limiting and connection between the placing plates 12 and enhance the overall stability.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A photovoltaic support with strong stability, characterized in that it comprises multiple groups of support bases (1), shock-absorbing blocks (2), adjustment components (3), transmission components (4) and connection components (5), The plurality of groups of the support bases (1) are made of metal materials, the plurality of groups of the support bases (1) are installed above the ground through bolts, and the shock-absorbing blocks (2) are installed on the top of the support base (1) through bolts, The adjustment assembly (3) is installed above the support base (1), the transmission assembly (4) is installed on the top of the support base (1), and the connection assembly (5) is installed on one side of the support base (1). 2 . The photovoltaic support with strong stability according to claim 1 , wherein the adjustment component ( 3 ) comprises a motor box ( 6 ), a drive motor ( 7 ), a transmission rod ( 8 ), multiple A stabilizing rod (9), a reinforcing rod (10), a connecting rod (11) and a placing plate (12) are assembled, the motor box (6) is mounted on the top of the shock-absorbing block (2) through bolts, and the driving motor (7) ) is installed in the motor box (6) through bolts, the transmission rod (8) is installed at the output end of the drive motor (7), and the multiple sets of the stabilization rods (9) are sleeved and installed outside the transmission rod (8), so The reinforcing rod (10) is installed between the stabilizing rods (9) through bolts, the connecting rod (11) is installed on one side of the reinforcing rod (10) through bolts, and the placing plate (12) is installed on the stabilizing rod through bolts (9) TOP. 3. A photovoltaic support with strong stability according to claim 2, characterized in that: the connecting rod (11) is connected with the placing plate (12), the stabilizing rod (9), the reinforcing rod (10) and the connecting rod (11) are both made of metal materials. 4 . The photovoltaic support with strong stability according to claim 1 , wherein the transmission assembly ( 4 ) comprises a stabilizer ( 13 ), two sets of sliding grooves ( 14 ), and a sliding rod ( 15 ). 5 . , vertical rod (16), rotating wheel (17), transmission belt (18), transmission wheel (19) and moving groove (20), the stabilizer (13) is installed on the top of the support base (1) by bolts, the The surface of the stabilizer (13) is symmetrically provided with two sets of sliding grooves (14), the sliding rod (15) is mounted on one side of the stabilizer rod (9) by bolts, and the vertical rod (16) is mounted on the placing plate (9) by bolts. 12) At the bottom end, the rotating wheel (17) is sleeved and installed on the outside of the transmission rod (8), the transmission belt (18) is sleeved and installed on the outside of the rotating wheel (17), and the transmission wheel (19) is rotatably installed on the outside. The bottom end of the vertical rod (16) is provided with a moving groove (20) on the surface of the stabilizer (13). 5. A photovoltaic support with strong stability according to claim 4, characterized in that: the stabilizer (13) is rotatably connected to the transmission rod (8), and the sliding rod (15) is connected to the sliding groove ( 14) Sliding connection, the transmission belt (18) connects the rotating wheel (17) with the transmission wheel (19), and the transmission wheel (19) is slidably connected with the moving groove (20). 6 . The photovoltaic support with strong stability according to claim 2 , wherein the connecting assembly ( 5 ) comprises a cross bar ( 21 ), a fixing bar ( 22 ), and two sets of connecting pieces ( 23 ). 7 . and a limit slot (24), the cross bar (21) is installed between the support bases (1) by bolts, the fixing bar (22) is installed on the top of the cross bar (21) by bolts, and the two sets of connection The parts (23) are symmetrically mounted on the top ends of the two sides of the fixing rod (22), and a limiting groove (24) is provided on the surface of the placing plate (12). 7 . The photovoltaic support with strong stability according to claim 6 , wherein the fixing rod ( 22 ) is rotatably connected with the transmission rod ( 8 ), and the connecting piece ( 23 ) is connected with the limiting groove. 8 . (24) Sliding connection.
