CN217339279U

CN217339279U - Multifunctional massager

Info

Publication number: CN217339279U
Application number: CN202221070652.9U
Authority: CN
Inventors: 钟云清; 陈文锦
Original assignee: Wei Jia Hua Fujian Electronics Co ltd
Current assignee: Dalian Huakang Elderly Care Service Co ltd
Priority date: 2022-05-07
Filing date: 2022-05-07
Publication date: 2022-09-02
Anticipated expiration: 2032-05-07

Abstract

The utility model discloses a multifunctional massager, comprising: an upper casing, a lower casing, a backrest support assembly, a massager main body, and a jade box. The massager main body further comprises a transmission shaft, and both ends of the transmission shaft are fixedly installed There is an eccentric wheel, the back pressing rod is sleeved on the eccentric wheel, the back pressing rod is provided with a rotating slot, the bottom of the back pressing rod is rotated and connected to the second limit insert rod, and the upper end of the back pressing rod is provided with a pressing head; the eccentric wheel is driven to connect the eccentric pinch Inclined wheel, eccentric clamping inclined wheel is covered with pressing arm, the upper end of the pressing arm is installed with horizontal massage head and vertical massage head, the lower end of the pressing arm is provided with a limit insert rod, the side surface of the eccentric clamping bevel wheel is designed with inclined surface; jade box Contains jade pieces and jade box cover, and the bottom of the jade box is provided with a heating plate. The utility model has fewer structural parts, massages the neck, shoulders and back at the same time, and has more functions.

Description

Multifunctional massager

Technical Field

The utility model relates to the technical field of massagers, in particular to a multifunctional massager.

Background

Chinese patent discloses CN105326630A a kneading massager, which can complete finger pressing and kneading 3D actions by the same motor, and has small volume and low production cost. However, the back pressing rod is connected with the pressing rod through the metal connecting rod, the pinching arm is spliced with the swinging arm through the two-part structure, the cost is high, the back pressing rod cannot be used in combination with other massage equipment, and the application ductility is poor.

Therefore, we propose a multi-functional massager in order to solve the problems set forth above.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a multifunctional massager to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a multi-functional massager, comprising: the massage machine comprises an upper shell, a lower shell, a backrest support assembly, a massager main body and a jade box, wherein the backrest support assembly is installed below the lower shell, the jade box is installed on the upper shell, the massager main body is installed in the upper shell and the lower shell, and a first guide sliding groove and a second guide sliding groove are formed in the lower shell;

the massager main body further comprises a first transmission shaft, eccentric wheels are fixedly mounted at two ends of the first transmission shaft, a back pressing rod is sleeved on the eccentric wheel and provided with a rotating slotted hole, the inner wall of the rotating slotted hole is rotationally attached to the eccentric wheel, the rotating slotted hole is in an oval shape, a second limiting insertion rod is rotationally connected to the bottom of the back pressing rod, the second limiting insertion rod abuts against a second guide sliding groove when rotating, the first transmission shaft drives the eccentric wheel to rotate, the outermost end of the eccentric wheel abuts against the inner wall of the rotating slotted hole, meanwhile, the second limiting insertion rod limits axial action, the back pressing rod performs reciprocating arc motion, and a pressing head is arranged at the upper end of the back pressing rod;

the transmission shaft I is simultaneously in driving connection with an eccentric pinching inclined wheel, a pressing arm is sleeved on the eccentric pinching inclined wheel, a transverse massage head and a vertical massage head are mounted at the upper end of the pressing arm, the transverse massage head is rotationally connected with the pressing arm, the lower end of the pressing arm is rotationally connected with the eccentric pinching inclined wheel, a first limiting insertion rod is arranged at the lower end of the pressing arm and is in sliding connection with a first guide chute, the side surface of the eccentric pinching inclined wheel adopts an inclined plane design, the wide part and the narrow part of the inclined plane are in reciprocating extrusion on the pressing arm in the rotating process, meanwhile, the first limiting insertion rod is limited, the pressing arm swings left and right, and under the eccentric rotating action of an eccentric wheel, the pressing arm swings left and right in the horizontal direction and generates elliptical arc motion on the vertical surface at the same time of the horizontal direction, and elliptical reciprocating kneading tracks in the horizontal and vertical directions are formed;

the jade box comprises a jade sheet and a jade box cover, and a heating sheet is arranged at the bottom of the jade box for hot compress on the neck.

Preferably, be equipped with fixed slot, motor groove, gearbox in the shell down, the gearbox both sides are equipped with the fixed slot, and the massager main part includes the motor, and this motor is equipped with drive screw, and the motor is installed in the motor inslot, and motor groove top is equipped with the motor lid.

Preferably, the massager body further comprises a second transmission shaft, two ends of the second transmission shaft are rotatably connected with a first bearing, the first bearing is fixedly installed on the gearbox, the second transmission shaft is rotatably connected with the gearbox, a first gear and a second gear are fixedly installed on the second transmission shaft, and the second gear is meshed with a driving screw of the motor.

Preferably, a third gear is mounted on the first transmission shaft and meshed with the first gear, a second bearing is symmetrically arranged on the first transmission shaft and rotatably connected with the first transmission shaft, the second bearing is embedded in the fixed groove, a gearbox cover is arranged above the gearbox, and the second bearing is tightly pressed in the fixed groove by the gearbox cover.

Preferably, the lower end of the pressing arm is provided with a first limiting insertion rod, and the first limiting insertion rod is in sliding connection with the first guide sliding groove.

Preferably, the surface of the lower shell is provided with a mounting hole, the lower shell is fixedly connected with the backrest support assembly through a bolt and the mounting hole, the backrest support assembly is hinged by two parts, the hinged part can rotate, and the backrest support assembly is fixedly connected with external equipment, so that the massager main body can be mounted with a plurality of types of massage equipment.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the lower shell is fixed on the massage equipment through the backrest support assembly, so that the application range is wider, and the lower shell is more convenient to combine with other equipment;

2. during the rotation of the first transmission shaft, the outermost end of the eccentric wheel abuts against the inner wall of the rotating slotted hole, meanwhile, under the action of the limit insert rod II, the back pressing rod makes reciprocating arc motion, the eccentric wheel drives the eccentric pinching inclined wheel to rotate during the rotation, the pressing arm is repeatedly extruded left and right during the rotation of the eccentric pinching inclined wheel, and meanwhile, the limit of the limit insert rod I enables the pressing arm to swing left and right;

3. the jade box comprises a jade sheet and a jade box cover, and a heating sheet is arranged at the bottom of the jade box and has the function of hot compress physiotherapy on the neck.

Drawings

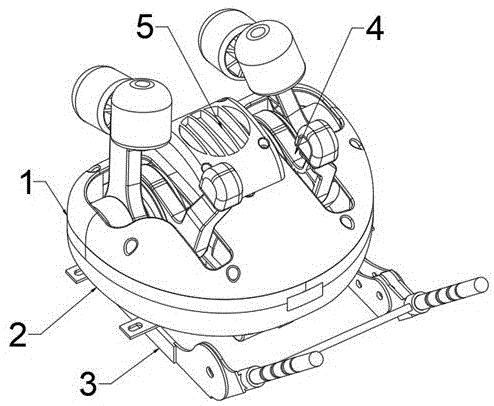

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the main body and the lower housing of the massage device of the present invention;

fig. 3 is an enlarged view of the point a of fig. 2 in the present invention.

In the figure: 1. an upper housing; 2. a lower housing; 3. a back support assembly; 4. a massager body; 5. a jade box; 6. a motor; 7. pressing the arm; 8. a first limiting inserted rod; 9. a transverse massage head; 10. a vertical massage head; 11. an eccentric pinching bevel wheel; 12. a second limiting inserted rod; 13. an eccentric wheel; 14. a first guide chute; 15. fixing grooves; 16. a motor slot; 23. a first transmission shaft; 24. a second transmission shaft; 25. a first bearing; 26. a second bearing; 27. a first gear; 28. a second gear; 29. a third gear; 30. a photosensitive sensor; 31. a photosensitive grid wheel; 32. a photosensitive circuit board; 33. a transmission case cover; 34. a jade box cover; 35. jade pieces; 36. a second guide chute; 37. a back pressing rod; 38. a motor box cover.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a multi-functional massager, comprising: the massage device comprises an upper shell 1, a lower shell 2, a backrest support assembly 3, a massager main body 4 and a jade box 5, wherein the upper shell 1 and the lower shell 2 are fixedly installed through bolts, the backrest support assembly 3 is installed below the lower shell 2, the jade box 5 is installed on the upper shell 1, and the massager main body 4 is installed in the upper shell 1 and the lower shell 2;

a first guide sliding groove 14, a fixed groove 15, a second guide sliding groove 36, a motor groove 16 and a gearbox are arranged in the lower shell 2, the fixed grooves 15 are arranged on two sides of the gearbox, the first guide sliding grooves 14 are symmetrically arranged on the left inner wall and the right inner wall of the lower shell 2, and the second guide sliding groove 36 is arranged on one side, close to the front side, of the first guide sliding groove 14;

the massager body 4 comprises a motor 6, the motor 6 is provided with a driving screw, the motor 6 is arranged in a motor groove 16, and a motor box cover 38 is arranged above the motor groove 16;

the massager body 4 further comprises a second transmission shaft 24, two ends of the second transmission shaft 24 are rotatably connected with a first bearing 25, the first bearing 25 is fixedly installed on a gearbox, the second transmission shaft 24 is rotatably connected with the gearbox, a first gear 27 and a second gear 28 are fixedly installed on the second transmission shaft 24, and the second gear 28 is meshed with a driving screw of the motor 6;

the massager body 4 further comprises a first transmission shaft 23, a third gear 29 is mounted on the first transmission shaft 23, the third gear 29 is meshed with the first gear 27, a second bearing 26 is symmetrically arranged on the first transmission shaft 23, the second bearing 26 is rotatably connected with the first transmission shaft 23, the second bearing 26 is embedded in the fixing groove 15, a gearbox cover 33 is arranged above the gearbox, and the second bearing 26 is tightly pressed in the fixing groove 15 by the gearbox cover 33 to realize the rotary connection of the first transmission shaft 23 and the gearbox;

a photosensitive grid wheel 31 is sleeved on one side of the first transmission shaft 23, a photosensitive sensor 30 is arranged on one side of the photosensitive grid wheel 31, the photosensitive sensor 30 is fixedly installed in the gearbox, and the photosensitive sensor 30 is electrically connected with a photosensitive circuit board 32;

the two ends of a first transmission shaft 23 are fixedly provided with eccentric wheels 13, a back pressing rod 37 is sleeved on the eccentric wheels 13, a rotating slotted hole is formed in the back pressing rod 37, the inner wall of the rotating slotted hole is rotationally attached to the eccentric wheels 13, the rotating slotted hole is in an oval design, the bottom of the back pressing rod 37 is rotationally connected with a second limiting insertion rod 12, the second limiting insertion rod 12 abuts against a second guide sliding groove 36 when rotating, the first transmission shaft 23 drives the eccentric wheels 13 to rotate, the outermost end of the eccentric wheels 13 abuts against the inner wall of the rotating slotted hole, meanwhile, the second limiting insertion rod 12 limits axial action, the back pressing rod 37 performs reciprocating arc motion, and a pressing head is arranged at the upper end of the back pressing rod 37, so that reciprocating arc massage on a human body is realized;

the transmission shaft I23 is in driving connection with the eccentric pinching inclined wheel 11, the eccentric pinching inclined wheel 11 is sleeved with the pressing arm 7, the upper end of the pressing arm 7 is provided with a transverse massage head 9 and a vertical massage head 10, the transverse massage head 9 is in rotating connection with the pressing arm 7, the lower end of the pressing arm 7 is in rotating connection with the eccentric pinching inclined wheel 11, the lower end of the pressing arm 7 is provided with a first limiting insertion rod 8, the first limiting insertion rod 8 is in sliding connection with a first guide sliding chute 14, the side surface of the eccentric pinching inclined wheel 11 is designed to be an inclined surface, a wide part and a narrow part of the inclined surface are in reciprocating extrusion on the pressing arm 7 in the rotating process, meanwhile, the first limiting insertion rod 8 is limited, the function of left-right swinging of the pressing arm 7 is achieved, meanwhile, due to the eccentric rotating effect of the eccentric wheel 13, the pressing arm 7 is enabled to swing left-right and move back in an arc manner at the same time, an oval reciprocating massage and kneading track in the horizontal direction is formed, and the effect on a human body is increased; jade box 5 contains jade piece 35 and jade lid 34, and 5 bottoms of jade box are equipped with the heating plate, realize the health care physiotherapy function to human hot compress through heating the jade.

The working principle is as follows: the lower shell 2 is fixed on the massage equipment through the backrest support assembly 3, the massager body 4 is fixed through the upper shell 1, the motor 6 is started, the screw rod drives the second gear 28 to rotate, and the first transmission shaft 23 is driven to rotate sequentially through the second transmission shaft 24, the first gear 27 and the third gear 29;

the first transmission shaft 23 drives the eccentric wheel 13 to rotate in the rotating process, and the back pressing rod 37 repeatedly swings in an arc shape from front to back in the rotating process of the eccentric wheel 13, so that the back of the human body is massaged in a reciprocating manner;

the eccentric wheel 13 drives the eccentric pinching inclined wheel 11 to rotate in the rotating process, the eccentric pinching inclined wheel 11 repeatedly extrudes the pressing arm 7 from side to side in the rotating process, and meanwhile, the pressing arm 7 swings from side to side and moves back and forth in an arc manner at the same time under the eccentric rotating effect of the eccentric wheel 13, an oval reciprocating kneading track in the horizontal direction is formed, the massaging effect on a human body is increased, the neck and the shoulder are respectively massaged through the transverse massaging heads 9 and the vertical massaging heads 10, and the health care and physical therapy function of hot compress on the human body is realized through heating jade;

the structure is exquisite, massages neck, shoulder and back simultaneously, can directly set up through being connected with back support assembly and massage on different massage equipment or support device simultaneously, and the suitability is wider.

Those not described in detail in this specification are within the skill of the art.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. a multifunctional massager, it is characterized in that: upper shell, lower shell, backrest support assembly, massager main body, jade box, the backrest support assembly is installed under the lower shell, and the jade box is installed on the upper shell, The massager main body is installed in the upper shell and the lower shell, and the lower shell is provided with a guide chute 1 and a guide chute 2;

The massager body also includes a first transmission shaft, an eccentric wheel is fixedly installed at both ends of the first transmission shaft, a back pressing rod is sleeved on the eccentric wheel, and the back pressing rod is provided with a rotation slot, and the inner wall of the rotation slot is rotated and fitted with the eccentric wheel. , The oval design of the rotating slot hole, the bottom of the back pressing rod is rotatably connected to the limit insertion rod 2, the limit insertion rod 2 is in contact with the guide chute 2 when it rotates, and the transmission shaft 1 drives the eccentric wheel during the rotation process, the outermost end of the eccentric wheel touches Hold the inner wall of the rotating slot, and at the same time, under the axial action of the second limiting rod, the back pressing rod moves in a reciprocating arc, and the upper end of the back pressing rod is provided with a pressing head;

At the same time, the transmission shaft drives and connects the eccentric clamping bevel wheel, the eccentric clamping bevel wheel is covered with a pressing arm, and the upper end of the pressing arm is provided with a horizontal massage head and a vertical massage head, wherein the horizontal massage head is rotatably connected with the pressing arm, and the lower end of the pressing arm is connected with the pressing arm. The eccentric clamping bevel wheel is connected in rotation, the lower end of the pressing arm is provided with a limit plunger, and the limit plunger 1 is slidably connected with the guide chute. Reciprocatingly squeeze the pressing arm with the narrow part, and at the same time limit the position of the insertion rod 1, the pressing arm swings left and right, and under the action of the eccentric rotation of the eccentric wheel, the pressing arm swings left and right while moving in an arc forward and backward, forming an ellipse in the horizontal direction. The reciprocating kneading trajectory;

The jade box contains jade pieces and a jade box cover, and a heating plate is arranged at the bottom of the jade box.

2. A multifunctional massager according to claim 1, characterized in that, a fixing slot, a motor slot and a gearbox are arranged in the lower casing, a fixing slot is arranged on both sides of the gearbox, and the massager main body comprises a motor , The motor is provided with a driving screw, the motor is installed in the motor slot, and a motor box cover is arranged above the motor slot.

3. The multifunctional massager according to claim 1, wherein the massager main body further comprises a second transmission shaft, two ends of the transmission shaft are rotatably connected with a first bearing, and the first bearing is fixedly installed with the gearbox, The second transmission shaft is rotatably connected with the gearbox, and the first gear and the second gear are fixedly installed on the second transmission shaft, wherein the second gear is meshed with the driving screw of the motor.

4. The multifunctional massager according to claim 1, wherein the first transmission shaft is provided with a third gear, the third gear meshes with the first gear, and the first transmission shaft is symmetrically provided with a second bearing, and the second bearing The second bearing is embedded and installed in the fixed groove, and the gearbox cover is arranged above the gearbox, and the gearbox cover presses the second bearing in the fixed groove.

5 . The multifunctional massager according to claim 1 , wherein the lower shell is provided with mounting holes, and the lower shell is fixedly connected to the backrest bracket assembly through bolts and the mounting holes, and the backrest bracket assembly is composed of 5 . The two parts are hinged, the hinged part can be rotated, and the backrest bracket assembly is fixedly connected with the external equipment, so that the main body of the massager can be installed with several kinds of massage equipment.
