Abstract

The present disclosure relates to the technical field of electronic equipment, and in particular to an electronic equipment bracket, comprising a bottom support plate and a back support board, the bottom support board is connected with the back support board; the side of the bottom support board facing the back support board is provided with a keyboard, and the back support board One end away from the bottom bracket is provided with a reflector assembly, and the reflector assembly is used for cooperating with the camera of the electronic device to adjust the shooting area of the camera. When the electronic device bracket provided by the present disclosure is in use, the camera of the electronic device is set corresponding to the reflector assembly, and the content within the visible range of the reflector assembly can be reflected to the camera of the electronic device through the reflector assembly. When the user enters text into the electronic device, the user enters the content through the keyboard, avoiding moving the electronic device, improving the convenience of inputting content to the electronic device when using the mirror assembly, and effectively simplifying the transmission of image information by the electronic device at the same time using the mirror assembly. The function and the operation of the text input function using the keyboard improve the convenience of using the electronic device.

Description

electronic equipment stand

technical field

The present disclosure relates to the technical field of electronic devices, and in particular, to an electronic device bracket.

Background technique

Currently, in the prior art, when an AR mirror is used by a tablet computer, the AR mirror is connected to the tablet computer, so as to set the AR mirror and the front camera of the tablet computer correspondingly. When in use, stand up the tablet for easy viewing, and at the same time ensure that the AR mirror is set opposite the desktop, so that the front camera of the tablet can collect graphic information such as books on the desktop through the AR mirror.

However, when the user enters text into the tablet computer that is using the AR mirror, he needs to bring the tablet computer in front of the user to operate, and then put the tablet computer back to the position where the AR mirror needs to be used after the operation, which is cumbersome and inconvenient to operate.

Utility model content

In order to solve the above technical problems, the present disclosure provides an electronic device stand.

The present disclosure provides an electronic device bracket, comprising a bottom support plate and a back support plate for supporting the electronic device, the bottom support plate is connected with the back support plate;

A keyboard is disposed on the side of the bottom support plate facing the back support plate, and a reflector assembly is disposed on the end of the back support plate away from the bottom support plate, and the reflector assembly is used to communicate with the camera of the electronic device Cooperate to adjust the shooting area of the camera.

Optionally, the back support board includes a back support board body and at least one connection board, the back support board body is used to support the electronic device, and the at least one connection board is connected to the back support after being connected end to end. The board body and the bottom support board are used to adjust the position of the back support board body.

Optionally, the at least one connecting plate includes a first connecting plate, one end of the first connecting plate is rotatably connected to the body of the back support plate through a damping shaft, and the other end of the first connecting plate is connected to the body through a damping shaft. The bottom bracket is connected in rotation.

Optionally, the at least one connecting plate further includes a second connecting plate, the second connecting plate is installed between the bottom support plate and the first connecting plate, and one end of the second connecting plate is connected to the bottom plate. The support plate is rotatably connected through the damping shaft, and the other end is rotatably connected with the first connecting plate through the damping shaft.

Optionally, the second connecting plate is an inverted L-shaped structure.

Optionally, an escape groove for embedding one end of the second connecting plate is provided on the bottom support plate.

Optionally, the mirror assembly and the back support plate are rotatably connected through a damping shaft.

Optionally, an accommodating groove for accommodating the reflector assembly is provided on the back support plate, and the depth of the accommodating groove is greater than or equal to the thickness of the reflector assembly.

Optionally, a lower edge of the accommodating groove is provided with a notch, so as to form a latching position of the reflector assembly in the accommodating state in the accommodating groove.

Optionally, a magnetic attraction component is arranged in the back support plate for attracting the electronic device.

When the electronic device bracket provided by the present disclosure is in use, the electronic device is connected to the back support plate, and the bottom support plate is placed on the desktop to support the back support plate, so as to support the electronic device and stand the electronic device on the desktop . When the electronic device is installed on the back support plate, the camera of the electronic device needs to be set corresponding to the reflector assembly. After the user places books and other materials within the visible range of the reflector assembly, the content in the visible range can be reflected by the reflector. The mirror assembly is reflected into the camera of the electronic device for further processing by the electronic device. When the user needs to input text into the electronic device, the content input can be realized by operating the keyboard, which can effectively avoid the need to move the electronic device to realize the content input, and improve the convenience of inputting content to the electronic device when using the mirror assembly. In addition, it also avoids the need to re-determine the visible range of the mirror assembly after the electronic device is moved, effectively simplifying the operation of the electronic device using the mirror assembly to transmit image information and using the keyboard for text input at the same time, improving the use of electronic devices. convenience.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the disclosure and together with the description serve to explain the principles of the disclosure.

In order to more clearly illustrate the embodiments of the present disclosure or the technical solutions in the prior art, the accompanying drawings that are required to be used in the description of the embodiments or the prior art will be briefly introduced below. In other words, on the premise of no creative labor, other drawings can also be obtained from these drawings.

FIG. 1 is a schematic diagram of a structure of an electronic device support according to an embodiment of the disclosure;

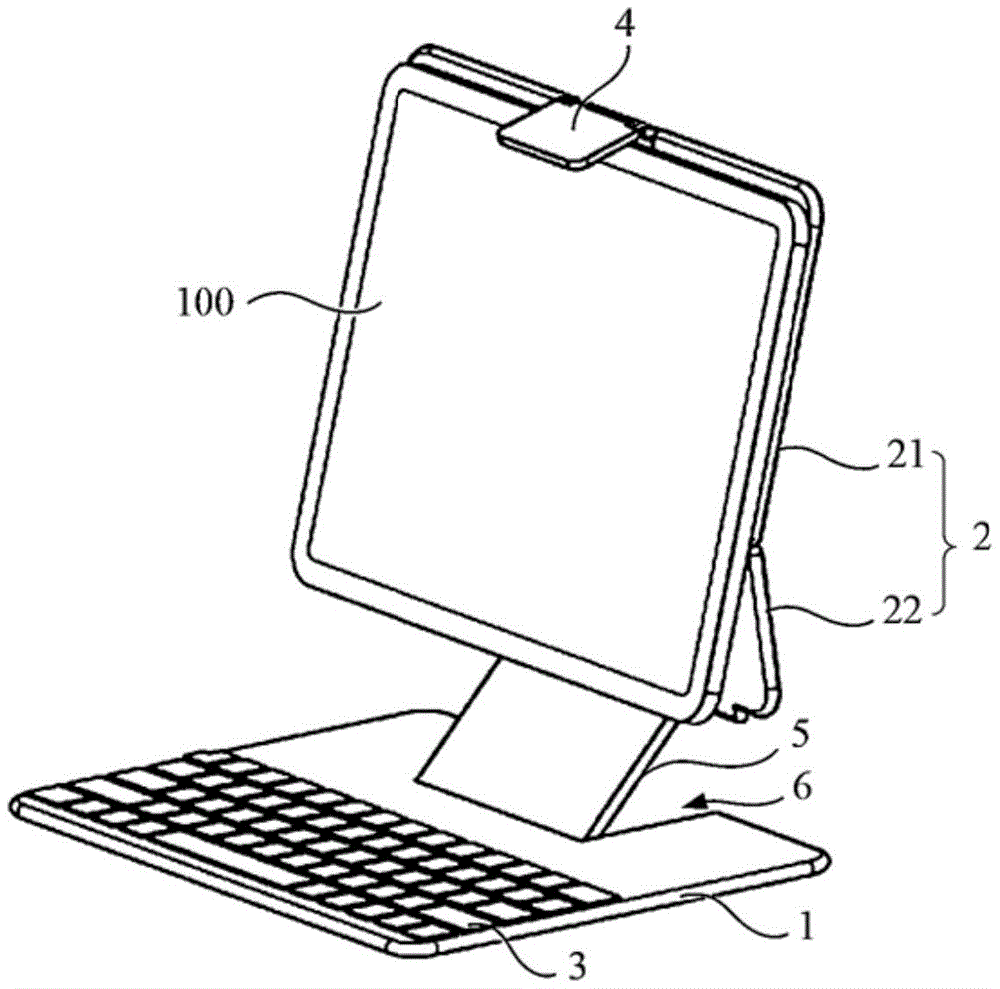

FIG. 2 is a schematic diagram of another structure of the electronic device support according to the embodiment of the disclosure;

Fig. 3 is the rear view structure schematic diagram of the electronic equipment bracket shown in Fig. 2;

FIG. 4 is a schematic diagram of a storage state of the electronic equipment support according to an embodiment of the present disclosure;

FIG. 5 is a schematic structural diagram of the mirror assembly according to the embodiment of the disclosure;

6 is a schematic diagram of a storage state of the reflector assembly according to the embodiment of the disclosure;

FIG. 7 is a schematic diagram of storage of a mirror assembly in a structure of an electronic device bracket according to an embodiment of the disclosure;

FIG. 8 is a schematic diagram of the storage of the mirror assembly in another structure of the electronic device bracket according to the embodiment of the disclosure.

Among them, 1. bottom support plate; 2. back support plate; 21, back support plate body; 22, first connecting plate; 3, keyboard; 4, mirror assembly; 41, lens body; 42, lens bracket; 5, 51, the first connection part; 52, the second connection part; 6, the avoidance groove; 7, the accommodation groove; 8, the notch; 100, the electronic device.

Detailed ways

In order to more clearly understand the above objects, features and advantages of the present disclosure, the solutions of the present disclosure will be further described below. It should be noted that the embodiments of the present disclosure and the features in the embodiments may be combined with each other under the condition of no conflict.

Many specific details are set forth in the following description to facilitate a full understanding of the present disclosure, but the present disclosure can also be implemented in other ways different from those described herein; obviously, the embodiments in the specification are only a part of the embodiments of the present disclosure, and Not all examples.

At present, when users enter text into a tablet computer that is using an AR mirror, they need to bring the tablet computer to the user for operation, and then put the tablet computer back to the position where the AR mirror is needed after the operation, which is cumbersome and inconvenient to operate.

In view of this, the embodiments of the present disclosure provide an electronic device bracket, which can effectively solve the above-mentioned technical problems.

As shown in FIG. 1 to FIG. 3 , an embodiment of the present disclosure provides an electronic device bracket, which includes a bottom bracket 1 and a back bracket 2 for supporting the electronic device 100 , and the bottom bracket 1 is connected to the back bracket 2 ;

A keyboard 3 is provided on the side of the bottom support plate 1 facing the back support board 2, and a reflector assembly 4 is provided on the end of the back support plate 2 away from the bottom support board 1, and the reflector assembly 4 is used to cooperate with the camera of the electronic device 100 to adjust the camera. shooting area.

When the electronic device bracket provided by the embodiment of the present disclosure is in use, the electronic device 100 is connected to the back support board 2, and the bottom support board 1 is placed on the desktop to support the back support board 2, so as to realize the support of the electronic device, so as to Electronic devices stand on the table. When the electronic device is installed on the back support plate 2 , the camera of the electronic device needs to be set corresponding to the reflector assembly 4 . It can be reflected into the camera of the electronic device through the mirror assembly 4, and further processed by the electronic device. When the user needs to input text into the electronic device, the content input can be realized by operating the keyboard 3, which can effectively avoid the need to move the electronic device to realize the content input, and improve the convenience of inputting content to the electronic device when using the mirror assembly 4 . In addition, it also avoids the need to re-determine the visible range of the reflector assembly 4 after the electronic equipment is moved, effectively simplifying the operation of the electronic equipment using the reflector assembly 4 to transmit image information and using the keyboard 3 to perform text input functions at the same time, improving the performance. Ease of use of electronic devices.

The above electronic device may be a tablet computer, a mobile phone, etc., which is not limited in this embodiment.

Specifically, the above-mentioned back support plate 2 is provided with a magnetic attraction component for attracting the electronic device 100 .

When connecting the electronic device to the backboard 2 , the electronic device can be directly adsorbed on the backboard 2 through the magnetic attraction component, and the position of the electronic device can be adjusted along the plane direction of the backboard 2 to attach the electronic device to the backboard 2 . The camera corresponds to the reflector assembly, so as to realize the reflection of the content within the visible range of the reflector assembly 4 to the camera of the electronic device through the reflector assembly 4 .

The electronic device is connected to the back support plate 2 through the magnetic attraction component, so that the position of the electronic device can be easily adjusted, so that the electronic device bracket can be adapted to various electronic devices, and the versatility of the electronic device bracket is improved.

In some embodiments, the backing board 2 includes a backing board body 21 and at least one connecting board. The backing board body 21 is used to support the electronic device, and the at least one connecting board is connected end to end and is respectively connected to the backing board body and the backboard body 21 . The bottom plate 1 is used to adjust the position of the back plate body 21 .

That is to say, the number of the above-mentioned connecting plates can be 1, 2, 3 or more. When one connecting plate is provided, the connecting plate is arranged between the back support plate body 21 and the bottom support plate 1, and passes through the damping The rotating shaft is respectively connected with the back support board body 21 and the bottom support board 1, and the position of the back support board body is adjusted by changing the angle between the connecting board and the back support board body 21 and the bottom support board 1, thereby adjusting the electronic equipment and the reflector. The height of the component.

When the number of connecting plates is two or more, the plurality of connecting plates are connected in sequence through the damping shaft, the first connecting plate is connected with the bottom support plate 1 through the damping shaft, and the last connecting plate and the back support plate body 21 are connected by the damping shaft The rotating shaft is connected, so as to realize the position adjustment of the back plate body 21, and multiple connecting plates are arranged so that the adjustable position range of the back plate body 21 is larger, which is convenient for adjusting the electronic device to an angle that is convenient for the user to view, thereby improving the user user experience.

Specifically, the above at least one connecting plate includes a first connecting plate 22, one end of the first connecting plate 22 is rotatably connected to the back support plate body 21 through a damping shaft, and the other end is rotatably connected to the bottom support plate 1 through a damping shaft.

After connecting the electronic device to the backing board body 21 , by adjusting the angles between the first connecting plate 22 and the backing board body 21 and the bottom supporting board 1 respectively, the placement angle of the electronic device can be adjusted, and one end of the electronic device can be adjusted at the same time. The electronic device is placed on the bottom bracket 1 to complete the placement of the electronic device, so that the screen and the bottom bracket 1 are at a certain angle, which is convenient for users to watch.

Moreover, as shown in FIG. 4 , by rotatably connecting the first connecting member 22 to the bottom bracket 1 and the first connecting plate 22 to the back bracket body 21 , after the electronic device is used, the back bracket body 21 can be rotatably connected. The first connecting plate 22 is rotated to be parallel to the bottom support plate 1 to realize the storage of the electronic equipment bracket.

By connecting the first connecting plate 22 and the back support plate body 21 through the damping shaft, and the first connecting plate 22 and the bottom support plate 1 being rotatably connected through the damping shaft, the damping shaft can bear the set force, and when the external force is less than the set force When the force is applied, the first connecting plate 22 and the backing plate body 21 do not rotate relative to each other. That is to say, when the set tolerable force value of the damping shaft at the above-mentioned position is large, the electronic device does not need to be supported by the bottom bracket 1 , but can be supported and positioned only by the back bracket body 21 . And by adjusting the angle between the first connecting board 22 and the back support board body 21 and the angle between the first connecting board 22 and the bottom support board 1, the height of the electronic device relative to the bottom support board 1 can be realized, and the electronic device can be adjusted. The height of the device is adjusted, so as to realize the height adjustment of the reflector assembly 4 to adjust the visible range of the reflector assembly 4 .

As shown in FIG. 2 to FIG. 3 , in some embodiments, the at least one connecting board further includes a second connecting board 5 , the second connecting board 5 is installed between the bottom support board 1 and the first connecting board 22 , the second connecting board 5 is One end of the connecting plate 5 is rotatably connected to the bottom support plate 1 through a damping shaft, and the other end is rotatably connected to the first connecting plate 22 through a damping shaft.

A second connecting plate 5 can also be arranged between the above-mentioned bottom support plate 1 and the first connecting plate 22. Height adjustment range of equipment, mirror assembly 4. That is, the bottom bracket 1 , the second connecting plate 5 and the first connecting plate 22 are connected in sequence to form a folded structure, and the included angle between the bottom bracket 1 , the second connecting plate 5 and the first connecting plate 22 is The larger the size, the greater the degree of expansion between the three, and the higher the height of the reflector assembly 4 and the back plate body 21, so that the reflector assembly 4 and the electronic device can have a larger height adjustment range. The height of the mirror assembly 4 can make the reflector assembly 4 have a larger viewing range, and the height of the back plate body 21 can be adjusted to adjust the height of the electronic device to a comfortable height according to the user's usage habits. Since the reflector assembly and the back support body 21 are raised or lowered synchronously, the setting height of the reflector assembly and the back support body 21 can be integrated by the required height range of the reflector assembly and the comfortable and good height range of the electronic device. selection, which is not limited in this embodiment.

In some embodiments, the second connecting plate 5 is an inverted L-shaped structure.

Specifically, the second connecting plate 5 includes a first connecting portion 51 and a second connecting portion 52, and the first connecting portion 51 and the second connecting portion 52 are perpendicular to each other. Specifically, the height of the second connection portion 52 is not less than the thickness of the electronic device. By providing the second connecting portion 52 bent relative to the first connecting portion 51, when the bottom pallet 1 and the back pallet 2 are folded and stored until the bottom pallet 1 and the back pallet 2 are parallel to each other, the second connecting portion 52 and the bottom pallet The support plate 1 and the back support plate 2 are perpendicular to each other, so that a accommodating space for electronic equipment is formed between the bottom support plate 1 and the back support plate 2, so that after the electronic equipment bracket is stored, the electronic equipment is located between the bottom support plate 1 and the back support plate 2. It can play a protective role on electronic equipment.

Specifically, the bottom support plate 1 is provided with an escape groove 6 for embedding one end of the second connecting plate.

That is to say, the size of the opening of the escape groove 6 can be the same as the size of the first connecting portion 51 , so that after the first connecting portion 51 and the bottom bracket 1 are rotated to the same plane, the first connecting portion 51 is embedded in the escapement. In the groove 6 , a rectangular structure is formed with the bottom pallet 1 .

In addition, the first connecting plate 22 and the backing plate body 21 are rotated to lie on the same plane to form the backing plate 2 with a rectangular structure. Therefore, when the electronic device bracket is in the storage state, the back support plate 2 and the bottom support plate 1 are parallel to each other, and the distance between the back support plate 2 and the bottom support plate 1 is the height dimension of the second connection portion 52, so as to form an electronic device accommodating space.

In some embodiments, the mirror assembly 4 is rotatably connected to the back support plate 2 through a damping shaft.

By rotatably connecting the reflector assembly 4 and the back support plate 2 through the damping shaft, the reflector assembly 4 can be rotated relative to the back support plate 2 to any angle, and the position of the reflector assembly 4 remains unchanged under the action of the damping shaft. The stability of the connection between the reflector assembly 4 and the back support plate 2 is improved, thereby ensuring that the visible range of the reflector assembly 4 remains unchanged.

As shown in FIG. 5 to FIG. 8 , in some embodiments, the back support plate 2 is provided with an accommodating groove 7 for accommodating the reflector assembly 4 , and the depth of the accommodating groove 7 is greater than or equal to the thickness of the reflector assembly 4 .

By arranging the accommodating groove 7 on the back support plate 2, when the electronic equipment rack is accommodated, the reflector assembly 4 can be accommodated in the accommodating groove 7, which facilitates the storage and carrying of the electronic equipment rack.

Specifically, the lower edge of the accommodating groove 7 is provided with a notch 8 to form a latching position of the reflector assembly in the accommodating state in the accommodating groove.

By providing the notch 8 at the edge of the accommodating groove 7, it is convenient for the user to take out the reflector assembly 4 from the accommodating groove 7 through the notch 8 for application.

In some embodiments, the reflector assembly 4 includes a lens body 41 and a lens holder 42, one end of the lens holder 42 is rotatably connected to the back support plate 2 through a damping shaft, and the other end is rotatably connected to the lens body 41 through a damping shaft.

The lens holder 42 is rotatably connected with the lens body 41. When the lens holder 42 is rotated to an obtuse angle with the back support plate 2, the lens body 41 can be rotated relative to the lens holder 42 to adjust the position of the lens body 41 so that the lens body 41 is arranged opposite to one side of the bottom pallet 1 . That is to say, the lens body 41 is rotatably connected to the back support plate 2 through the lens holder 42 , which increases the adjustable angle of the lens body 41 and makes the device more convenient to use.

The above-mentioned lens body 41 may be an AR lens.

It should be noted that, in this document, relational terms such as "first" and "second" etc. are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply these There is no such actual relationship or sequence between entities or operations. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

The above descriptions are only specific embodiments of the present disclosure, so that those skilled in the art can understand or implement the present disclosure. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the present disclosure. Therefore, the present disclosure is not intended to be limited to the embodiments described herein, but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims (10)

1. An electronic equipment bracket is characterized by comprising a bottom supporting plate and a back supporting plate used for supporting electronic equipment, wherein the bottom supporting plate is connected with the back supporting plate;

the keyboard is arranged on one side, facing the back supporting plate, of the bottom supporting plate, a reflector component is arranged at one end, far away from the bottom supporting plate, of the back supporting plate, and the reflector component is used for being matched with a camera of the electronic equipment to adjust the shooting area of the camera.

2. The electronic device stand of claim 1, wherein the back support plate comprises a back support plate body and at least one connecting plate, the back support plate body is used for supporting the electronic device, and the at least one connecting plate is connected with the back support plate body and the bottom support plate respectively after being connected end to end so as to adjust the position of the back support plate body.

3. The electronic device stand of claim 2, wherein the at least one connection plate comprises a first connection plate, one end of the first connection plate is rotatably connected to the back support plate body through a damping rotating shaft, and the other end of the first connection plate is rotatably connected to the bottom support plate through a damping rotating shaft.

4. The electronic device stand of claim 3, wherein the at least one connection plate further comprises a second connection plate, the second connection plate being mounted between the bottom bracket plate and the first connection plate, one end of the second connection plate being rotatably connected to the bottom bracket plate via a damping shaft, and the other end of the second connection plate being rotatably connected to the first connection plate via a damping shaft.

5. The electronic device stand of claim 4, wherein the second connecting plate is an inverted L-shaped structure.

6. The electronic device stand according to claim 5, wherein an escape groove for fitting an end portion of the second connecting plate is provided on the bottom bracket.

7. The electronic device stand of claim 1, wherein the mirror assembly is rotatably coupled to the back carrier via a damping shaft.

8. The electronic device holder according to claim 7, wherein the back plate is provided with a receiving groove for receiving the mirror assembly, and the depth of the receiving groove is greater than or equal to the thickness of the mirror assembly.

9. The electronic device holder according to claim 8, wherein a lower edge of the receiving groove is provided with a notch to form a snap-in position of the mirror assembly in the receiving state in the receiving groove.

10. The electronic device stand of claim 1, wherein a magnetic component is disposed in the back support plate for attracting the electronic device.
