CN217333205U - Tablet computer with temperature adjusting function - Google Patents

Abstract

The utility model relates to a tablet computer with a temperature adjustment function in the technical field of tablet computers, comprising a casing, a display screen is mounted on the surface of the casing, the back of the display screen penetrates into the interior of the casing, and four corners of the display screen are installed There is a camera, a thermostat, a sensor, a main control board and a power supply are installed inside the housing. The thermostat is installed at one end of the sensor, the sensor is installed at one end of the main control board, and the two ends of the power supply are respectively installed with rapid heat dissipation. One end of the fan and circulating cooling fan, the fast cooling fan and the circulating cooling fan all run through the back of the casing. The temperature of the tablet can be monitored by the sensor provided. When the temperature of the tablet is too high, the fast cooling fan can be activated by the thermostat. And the circulating cooling fan to dissipate the heat of the tablet, which greatly prevents the tablet from being overheated frequently, which can lead to hot hands, and serious damage to the parts, thus affecting the service life of the tablet.

Description

Tablet PC with thermostat

technical field

The utility model relates to the field of tablet computers, in particular to a tablet computer with a temperature adjustment function.

Background technique

A tablet computer, also called a portable computer, is a small and portable personal computer with a touch screen as the basic input device. It has a touchscreen that allows users to work with a stylus or digital pen instead of a traditional keyboard or mouse. Users can input via built-in handwriting recognition, an on-screen soft keyboard, voice recognition, or a real keyboard (if the model is equipped).

The Chinese patent with the announcement number CN204374843U discloses a tablet computer, but the tablet computer still has the following problems: because of the poor heat dissipation performance of the tablet, the tablet often experiences excessively high temperature, which is hot to the hand at light, and seriously causes the parts to be damaged. damage, which will affect the service life of the tablet.

Utility model content

The purpose of the present invention is to solve the above defects and provide a tablet computer with a temperature adjustment function.

The purpose of the present utility model is achieved by the following methods: a tablet computer with a temperature adjustment function, including a casing, a display screen is mounted on the surface of the casing, the back of the display screen penetrates into the interior of the casing, and the four Cameras are installed in the corners, and there are thermostats, sensors, main control boards and power supplies inside the housing. The thermostats are installed at one end of the sensors, the sensors are installed at one end of the main control board, and the power supplies are installed at the thermostat. One end of the sensor, the sensor and the main control board, and the two ends of the power supply are respectively equipped with a fast cooling fan and a circulating cooling fan. The controller, camera, power supply, fast cooling fan and circulating cooling fan are all electrically connected to the main control board.

In the above description, as a further solution, a dust filter is installed through one end of the casing of the rapid cooling fan and the circulating cooling fan.

In the above description, as a further solution, the back of the housing is provided with a non-slip pad for preventing the housing from slipping, and the housing can be anti-slip through the anti-slip pad.

In the above description, as a further solution, the surface of the anti-skid cushion layer is provided with an adjustment shaft, and the adjustment shaft penetrates through the anti-skid cushion layer and is connected to the housing.

In the above description, as a further solution, one end of the adjusting shaft is provided with a bracelet for hanging on the hand, and the casing can be hung on the hand through the bracelet.

In the above description, as a further solution, one side of the casing is provided with a charging port for charging with the power source, and one end of the charging port penetrates into the interior of the casing to connect with the power source, and the power source can be charged through the charging port. .

In the above description, as a further solution, the rapid cooling fan and the circulating cooling fan are both composed of a rotating shaft and a fan blade, and one end of the fan blade is connected to the rotating shaft.

In the above description, as a further solution, both ends of the housing are provided with anti-slip strips for anti-slip.

The beneficial effects of the utility model are as follows: the temperature of the flat plate can be monitored by the sensor provided, and when the temperature of the flat plate is too high, the fast cooling fan and the circulating cooling fan are activated by the thermostat to dissipate the heat of the flat plate, which greatly reduces the temperature of the flat plate. It prevents the tablet from frequently overheating, which can lead to hot hands and serious damage to parts, thus affecting the service life of the tablet.

Description of drawings

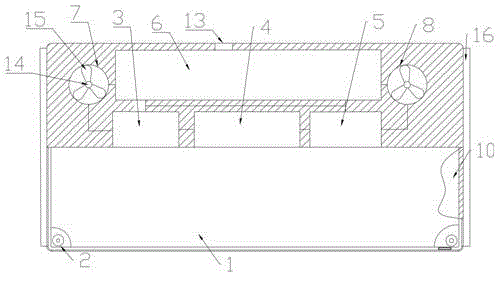

Fig. 1 is the schematic diagram of this embodiment;

2 is a cross-sectional view of this embodiment;

Fig. 3 is the rear view of this embodiment;

In the picture, 1-display screen, 2-camera, 3-thermostat, 4-sensor, 5-main control board, 6-power supply, 7-fast cooling fan, 8-circulating cooling fan, 9-dust filter Net, 10-anti-skid cushion, 11-adjustment shaft, 12-bracelet, 13-charging port, 14-rotating shaft, 15-fan blade, 16-anti-skid strip.

Detailed ways

In order to facilitate the understanding of those skilled in the art, the present invention will be further described below with reference to the embodiments and the accompanying drawings, and the contents mentioned in the embodiments are not intended to limit the present invention. The present utility model will be described in detail below in conjunction with the accompanying drawings.

Please refer to FIG. 1-3 . The tablet computer with temperature adjustment function embodied therein includes a casing. A display screen 1 is mounted on the surface of the casing. The back of the display screen 1 penetrates into the interior of the casing. Cameras 2 are installed at all four corners, and a thermostat 3, a sensor 4, a main control board 5 and a power supply 6 are installed inside the casing. The thermostat 3 is installed at one end of the sensor 4, and the sensor 4 is installed in the main control One end of the board 5, the power supply 6 is installed on one end of the thermostat 3, the sensor 4 and the main control board 5, and the two ends of the power supply 6 are respectively installed with a fast cooling fan 7 and a circulating cooling fan 8. One end of the cooling fan 8 runs through the back of the casing. The display screen 1 , the thermostat 3 , the sensor 4 , the camera 2 , the power supply 6 , the fast cooling fan 7 and the circulating cooling fan 8 are all electrically connected to the main control board 5 .

A dust filter 9 is installed through one end of the rapid cooling fan 7 and the circulating cooling fan 8 through the casing. A non-slip pad 10 is installed on the back of the housing for anti-skidding of the housing, and the housing can be anti-slip through the non-slip pad. An adjustment shaft 11 is installed on the surface of the anti-skid cushion layer 10 , and the adjustment shaft 11 penetrates through the anti-skid cushion layer 10 and is connected to the housing. One end of the adjusting shaft 11 is provided with a wristband 12 for hanging on the hand, and the casing can be hung on the hand through the wristband 12 . One side of the casing is provided with a charging port 13 for charging with the power source 6 . The rapid cooling fan 7 and the circulating cooling fan 8 are both composed of a rotating shaft 14 and a fan blade 15, and one end of the fan blade 15 is connected to the rotating shaft. Both ends of the casing are installed with anti-skid strips 16 for anti-skid.

The working principle of the embodiment of the present utility model is as follows: the temperature of the flat panel can be monitored by the sensor 4 provided, and when the temperature of the flat panel is too high, the fast cooling fan 7 and the circulating cooling fan 8 are activated by the thermostat 3 to perform the temperature control of the flat panel. The heat dissipation greatly prevents the tablet from frequently overheating, which can lead to hot hands in light and serious damage to parts, thus affecting the service life of the tablet.

The above content is a further detailed description of the present invention in combination with specific further embodiments, and it cannot be considered that the specific implementation of the present invention is limited to these descriptions. For those of ordinary skill in the technical field of the present invention, without departing from the concept of the present invention, some simple deductions or substitutions can be made, which should be regarded as the protection scope of the present invention.

Claims (8)

1. A tablet computer with a temperature adjustment function, comprising a casing, a display screen is installed on the surface of the casing, and the back of the display screen penetrates into the interior of the casing, characterized in that cameras are installed at four corners of the display screen, The inside of the shell is provided with a thermostat, a sensor, a main control board and a power supply. The thermostat is installed at one end of the sensor, and the sensor is installed at one end of the main control board. One end of the control board and two ends of the power supply are respectively equipped with a fast cooling fan and a circulating cooling fan. One end of the fast cooling fan and the circulating cooling fan runs through the back of the casing. Both the fast cooling fan and the circulating cooling fan are electrically connected to the main control board. 2 . The tablet computer with a temperature adjustment function according to claim 1 , wherein a dust filter is installed at one end of the rapid cooling fan and the circulating cooling fan running through the casing. 3 . 3 . The tablet computer with a temperature adjustment function according to claim 1 , wherein a non-slip pad is installed on the back of the casing to prevent the casing from slipping. 4 . 4 . The tablet computer with temperature adjustment function according to claim 3 , wherein an adjusting shaft is installed on the surface of the anti-skid pad, and the adjusting shaft penetrates through the anti-skid pad to connect with the casing. 5 . 5 . The tablet computer with a temperature adjustment function according to claim 4 , wherein one end of the adjustment shaft is provided with a bracelet for hanging on the hand. 6 . 6 . The tablet computer with temperature adjustment function according to claim 3 , wherein a charging port for charging with a power source is provided on one side of the casing, and one end of the charging port penetrates into the interior of the casing and the power source. 7 . to connect. 7 . The tablet computer with temperature adjustment function according to claim 1 , wherein the rapid cooling fan and the circulating cooling fan are both composed of a rotating shaft and a fan blade, and one end of the fan blade is connected to the rotating shaft. 8 . 8 . The tablet computer with temperature adjustment function according to claim 3 , wherein both ends of the casing are provided with anti-skid strips for anti-skid. 9 .
