Abstract
The utility model discloses a hem aluminium honeycomb composite ceramic tile mounting structure, which comprises a keel module, wherein the keel module comprises a plurality of keels, and each keel is fixedly connected with an original wall body through a plurality of U-shaped keel clamps; the aluminum honeycomb composite ceramic tile module comprises a flanging aluminum honeycomb plate; the two opposite ends of the edge-folded aluminum honeycomb plate are respectively provided with a female slot and a male slot; the hem aluminum honeycomb panel is connected with the opposite keels in a nailing fixing mode through the female slots. According to the edge-folded aluminum honeycomb composite ceramic tile installation structure, the ceramic tile does not need to be grooved or punched, and the loss of the ceramic tile is reduced; adopt slim ceramic tile, compound hem aluminium honeycomb panel has increased ceramic tile shock resistance, has reduced broken risk. Can adopt public female groove grafting nailing fixed, it is simple convenient, the simplified operation shortens construction cycle. Is worthy of large-area popularization and application.
Description
Technical Field
The utility model relates to an architectural decoration technical field especially relates to a hem aluminium honeycomb composite ceramic tile mounting structure.
Background
At present, the wall body installation in the market mostly adopts a wet tile pasting mode, cement mortar is utilized for leveling and pasting, the working hours are consumed, the construction period is long, the problems of hollowing, cracking, falling and the like are easy to generate, and meanwhile, the tiles are generally difficult to reuse and are not beneficial to the principle of sustainable development; the dry hanging generally adopts a slotted dry hanging and a back-bolt dry hanging, but both the slotted dry hanging and the back-bolt dry hanging have higher requirements on the thickness of the ceramic tile, the used ceramic tile is thicker, and the material cost is also increased linearly.
The mode of the current dry process operation installation ceramic tile in existing market is mostly ceramic tile back fluting and colludes the mounting, perhaps the pre-buried back of the body bolt locking of ceramic tile back is fixed, but these two kinds of modes require to be higher to ceramic tile thickness, and need slot or punch the ceramic tile, easily cause the ceramic tile to break, increase the loss of ceramic tile.
SUMMERY OF THE UTILITY MODEL
The utility model provides a hem aluminium honeycomb composite ceramic tile mounting structure.
The utility model provides a following scheme:
a hem aluminium honeycomb composite tile mounting structure, includes:
the keel module comprises a plurality of keels, and each keel is fixedly connected with the original wall body through a plurality of U-shaped keel clamps;
the aluminum honeycomb composite ceramic tile module comprises a flanging aluminum honeycomb plate; the edge-folded aluminum honeycomb plate is used for bearing a plurality of ceramic tiles; the two opposite ends of the edge-folded aluminum honeycomb plate are respectively provided with a female slot and a male slot; the hem aluminum honeycomb panel is connected with the opposite keels in a nailing fixing mode through the female slots.
Preferably: and the two adjacent aluminum honeycomb composite ceramic tile modules positioned in the non-external corner area and the non-internal corner area are connected in a manner of inserting the female slot into the male slot.
Preferably: and the end surfaces of two adjacent aluminum honeycomb composite ceramic tile modules in the external corner area, which are contacted with each other, are spliced after being obliquely cut by 45 degrees and are fixed at the back by adopting an L-shaped corner connector.
Preferably: and two adjacent aluminum honeycomb composite ceramic tile modules positioned in the internal corner area are connected by adopting an F-shaped fixing piece.
Preferably: the F-shaped fixing piece comprises a first plate body, a second plate body and a third plate body; the end surfaces of the second plate body and the third plate body are respectively abutted against and fixedly connected with the surface of the first plate body; the inner surface and the end surface of one of the aluminum honeycomb composite ceramic tile modules positioned at the internal corner are respectively abutted against the outer surface of the first plate body and the surface of the second plate body; and a clamping part for clamping the end part of the other aluminum honeycomb composite ceramic tile module positioned at the internal corner is formed between the second plate body and the third plate body.
Preferably: the inner surface of one aluminum honeycomb composite ceramic tile module positioned at the internal corner is abutted with the outer surface of the first plate body and is connected with the outer surface of the first plate body in a back nailing manner; the third plate body is kept away from the surface of the second plate body is used for being connected with the keel in a butting mode and achieving the purpose of front nailing.
Preferably: the aluminum honeycomb composite ceramic tile module further comprises a ceramic tile connected with the edge-folded aluminum honeycomb plate through an adhesive layer.
Preferably: the ceramic tile comprises a plurality of blocks, and two adjacent ceramic tile pieces form a parting structure; the parting structure adopts a cross to control the size of the gap.
Preferably: the keel is a light steel keel.
Preferably: the original wall body is an aerated block wall body.
According to the utility model provides a concrete embodiment, the utility model discloses a following technological effect:
through the utility model, a hem aluminium honeycomb composite ceramic tile mounting structure can be realized, and in an implementation mode, the structure can comprise a keel module, wherein the keel module comprises a plurality of keels, and each keel is fixedly connected with an original wall body through a plurality of U-shaped keel clamps; the aluminum honeycomb composite ceramic tile module comprises a flanging aluminum honeycomb plate; the edge-folded aluminum honeycomb plate is used for bearing a plurality of ceramic tiles; the two opposite ends of the edge-folded aluminum honeycomb plate are respectively provided with a female slot and a male slot; the hem aluminum honeycomb panel is connected with the opposite keels in a nailing fixing mode through the female slots. According to the flanging aluminum honeycomb composite ceramic tile mounting structure, the ceramic tile does not need to be grooved or punched, and the ceramic tile loss is reduced; adopt slim ceramic tile, compound hem aluminium honeycomb panel has increased ceramic tile shock resistance, has reduced broken risk. Can adopt public female groove grafting nailing fixed, it is simple convenient, the simplified operation shortens construction cycle. Is worthy of being popularized and used in large area.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the embodiments will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.
Fig. 1 is a schematic structural diagram of a hem aluminum honeycomb composite tile mounting structure provided by an embodiment of the present invention;
fig. 2 is a partial enlarged sectional view a provided by the embodiment of the present invention;
fig. 3 is a partial enlarged sectional view B provided in the embodiment of the present invention;
fig. 4 is a partial enlarged sectional view of C provided by an embodiment of the present invention;
fig. 5 is a schematic structural view of an F-shaped fixing member according to an embodiment of the present invention;
figure 6 is a schematic structural view of a keel module provided by an embodiment of the invention;

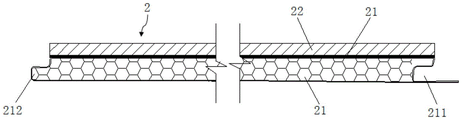

fig. 7 is a schematic structural diagram of an aluminum honeycomb composite tile module provided by an embodiment of the present invention.
In the figure: keel module 1, keel 11, U type fossil fragments press from both sides 12, the compound ceramic tile module 2 of aluminium honeycomb, hem aluminium honeycomb panel 21, female slot 211, public slot 212, ceramic tile 22, gluing agent layer 23, original wall body 3, L type angle sign indicating number 4, F type mounting 5, first plate body 51, second plate body 52, third plate body 53.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art all belong to the protection scope of the present invention.
Examples
Referring to fig. 1, fig. 2, fig. 3, fig. 4, fig. 5, fig. 6, and fig. 7, for a structure for installing a flanged aluminum honeycomb composite tile according to an embodiment of the present invention, as shown in fig. 1, fig. 2, fig. 3, fig. 4, fig. 5, fig. 6, and fig. 7, the structure includes:
the keel module 1 comprises a plurality of keels 11, and each keel 11 is fixedly connected with the original wall 3 through a plurality of U-shaped keel clamps 12;
the aluminum honeycomb composite ceramic tile module 2 comprises a folded aluminum honeycomb plate 21; the flanged aluminum honeycomb plate 21 is used for bearing a plurality of ceramic tiles 22; a female slot 211 and a male slot 212 are respectively formed at two opposite ends of the flanged aluminum honeycomb panel 21; the flanged aluminum honeycomb panel 21 is connected with the opposite keels 11 in a nailing fixing mode through the female slots 211.
The utility model provides a hem aluminium honeycomb composite ceramic tile mounting structure adopts hem aluminium honeycomb panel as the carrier of decorative boards such as ceramic tiles, realizes being connected with fossil fragments through hem aluminium honeycomb panel. The ceramic tile is connected with the edge-folded aluminum honeycomb plate in a sticking mode, so that in the dry construction process, the back of the ceramic tile is not required to be grooved or perforated.
In the practical use process, when the wall surface is decorated, external corners and internal corners can appear at certain positions, in order to ensure that the external corners, the internal corners and the plane joints can obtain good edge folding effects and ensure that the construction is simple and easy, the embodiment of the application can provide two adjacent aluminum honeycomb composite ceramic tile modules 2 which are positioned in non-external corner areas and non-internal corner areas and are connected in a manner of inserting the female slots 211 and the male slots 212. Be located the regional plane region of non-external corner and non-internal corner, can adopt hem aluminum honeycomb panel to peg graft from the female slot in area and link to each other with public slot, both can guarantee the steadiness after connecting like this, can also guarantee simultaneously that the binding off is complete. It can be understood that the gap between two adjacent flanged aluminum honeycomb plates after being connected can be filled with seam beautifying agent.
The end surfaces, which are positioned in the external corner area and are contacted with each other, of the two adjacent aluminum honeycomb composite ceramic tile modules 2 are spliced after being obliquely cut by 45 degrees and are fixed at the back by adopting an L-shaped corner connector 4. The end faces of two adjacent edge-folded aluminum honeycomb plates in the external corner area, which are contacted, are obliquely cut by 45 degrees and then spliced, so that the formed external corner structure is attractive in opening closing, and the stability of the structure after the two edge-folded aluminum honeycomb plates are connected is better through the L-shaped corner connectors.
And two adjacent aluminum honeycomb composite ceramic tile modules 2 positioned in the internal corner area are connected by adopting an F-shaped fixing piece 5. The F-shaped fixing piece 5 with a special structure is adopted to fix in the internal corner area, so that the stability after fixing can be ensured, and meanwhile, a good edge folding effect can be obtained. The leakage area formed at the internal corner of the two aluminum honeycomb composite ceramic tile modules can be filled with seam beautifying agent.
Specifically, the F-shaped fixing member 5 includes a first plate 51, a second plate 52, and a third plate 53; the respective end surfaces of the second plate body 52 and the third plate body 53 are respectively abutted against and fixedly connected with the surface of the first plate body 51; the inner surface and the end surface of one of the aluminum honeycomb composite ceramic tile modules positioned at the internal corner are respectively abutted against the outer surface of the first plate body 51 and the surface of the second plate body 52; the second plate body 52 and the third plate body 53 form a clamping part for clamping the end part of another aluminum honeycomb composite tile module positioned at the internal corner. In order to facilitate the installation of the fixing piece, the inner surface of one of the aluminum honeycomb composite ceramic tile modules positioned at the internal corner is abutted against the outer surface of the first plate body 51 and is connected in a back nailing manner; the surface of the third plate body 53, which is far away from the second plate body 52, is used for abutting against the keel 11 and realizing the connection between the third plate body 53 and the keel 11 in a front nailing manner.
In practical application, this compound ceramic tile module of aluminium honeycomb can adopt multiple mode preparation, for example, under an implementation, this application embodiment can provide compound ceramic tile module of aluminium honeycomb still include with the hem aluminium honeycomb panel passes through the ceramic tile 22 that gluing agent layer 23 links to each other. Adopt gluing agent layer to paste the ceramic tile on hem aluminium honeycomb panel, can guarantee the stability of connecting, can reduce the thickness and the weight of cost of manufacture through the compound ceramic tile module of aluminium honeycomb that reduces formation simultaneously, do benefit to the site operation and use.
In practical application, ceramic tiles with proper size and quantity can be selected according to the requirements of application occasions to be connected with the same edge-folded aluminum honeycomb plate, specifically, the ceramic tiles comprise a plurality of ceramic tiles, and two adjacent ceramic tiles form a parting structure; the parting structure adopts a cross to control the size of the gap. The gaps between the adjacent ceramic tiles are controlled to be uniform, so that the aim of further improving the attractiveness can be fulfilled.
It can be understood that the keel and the original wall provided by the embodiment of the present application may be made of various materials, for example, in an implementation manner, the keel provided by the embodiment of the present application may be a light steel keel. The original wall body is an aerated block wall body. The light steel keel has the advantages of light weight and low cost. The U-shaped keel clamp and the wall body of the air-entrapping block can be fixed by special expansion bolts, so that the fixation firmness is ensured.
The utility model provides a hem aluminium honeycomb composite ceramic tile mounting structure when concrete realization:
the aluminum honeycomb composite ceramic tile module prefabrication mode is as follows: placing the edge-folded aluminum honeycomb plate on an operation platform, uniformly coating an adhesive, sequentially paving and pasting ceramic tiles, controlling seams of the ceramic tiles by adopting a parting cross, and after paving and pasting are finished, carrying out pressurization and solidification for about 5-6 hours by adopting a press.
The installation mode is as follows: arrange deepening drawing according to fossil fragments, fix U type fossil fragments clamp on original wall body in proper order, it is fixed to carry out two side nailings after the leveling with light gauge steel through U type fossil fragments clamp, light gauge steel installs the back that finishes in proper order, carry out the installation of the compound ceramic tile of aluminium honeycomb, hem aluminium honeycomb panel is from taking public mother's groove, mother's groove nailing is fixed with corresponding fossil fragments, the compound ceramic tile module of aluminium honeycomb that non-external corner and non-reentrant corner region are adjacent adopts public groove grafting installation, the compound ceramic tile of aluminium honeycomb is stayed the seam and is adopted the beautiful seam agent to handle.
Installing the internal and external corners: the external corner module is spliced after being beveled at 45 degrees by adopting an aluminum honeycomb composite ceramic tile, and the back part of the external corner module is fixed by adopting an L-shaped corner connector; the internal corner adopts F type mounting to fix in advance behind the compound ceramic tile back of one side aluminium honeycomb, installs the wall, fixes F type mounting nailing on opposite side light gauge steel after, accomplishes the integral erection with the compound ceramic tile grafting of opposite side aluminium honeycomb. The aluminum honeycomb composite ceramic tile module can be prefabricated in a factory, is convenient to install on site, is free of cutting on site, is free of dust, and is low in dependency on the technical level of workers.
In a word, the hem aluminium honeycomb composite ceramic tile mounting structure provided by the application does not need to slot or punch a ceramic tile, so that the ceramic tile loss is reduced; adopt slim ceramic tile, compound hem aluminium honeycomb panel has increased ceramic tile shock resistance, has reduced broken risk. Can adopt the public female groove grafting nailing fixed, it is simple convenient, the simplified operation shortens construction cycle. Is worthy of large-area popularization and application.
It should be noted that, in this document, relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention shall fall within the protection scope of the present invention.
Claims (10)
1. The utility model provides a compound ceramic tile mounting structure of hem aluminium honeycomb which characterized in that includes:
the keel module comprises a plurality of keels, and each keel is fixedly connected with the original wall body through a plurality of U-shaped keel clamps;
the aluminum honeycomb composite ceramic tile module comprises a folded aluminum honeycomb plate; the two opposite ends of the edge-folded aluminum honeycomb plate are respectively provided with a female slot and a male slot; the hem aluminum honeycomb panel passes through the fixed mode of nailing of female slot and links to each other with relative fossil fragments.
2. The flanged aluminum honeycomb composite tile installation structure of claim 1, wherein two adjacent aluminum honeycomb composite tile modules located in non-external corner and non-internal corner regions are connected by plugging the female slot and the male slot.
3. The flanged aluminum honeycomb composite tile installation structure of claim 1, wherein the respective end surfaces of two adjacent aluminum honeycomb composite tile modules in the external corner area, which are in contact with each other, are spliced after being beveled by 45 degrees and fixed at the back by an L-shaped corner brace.
4. A flanged aluminum honeycomb composite tile installation structure according to claim 1, wherein two adjacent aluminum honeycomb composite tile modules in the reentrant corner region are connected using F-shaped fasteners.
5. The flanged aluminum honeycomb composite tile mounting structure of claim 4, wherein the F-shaped fastener comprises a first panel, a second panel, and a third panel; the end surfaces of the second plate body and the third plate body are respectively abutted against and fixedly connected with the surface of the first plate body; the inner surface and the end surface of one of the aluminum honeycomb composite ceramic tile modules positioned at the internal corner are respectively abutted against the outer surface of the first plate body and the surface of the second plate body; and a clamping part is formed between the second plate body and the third plate body and used for clamping the end part of the other aluminum honeycomb composite ceramic tile module positioned at the internal corner.
6. The flanged aluminum honeycomb composite tile installation structure of claim 5, wherein the inner surface of one of the aluminum honeycomb composite tile modules at the inside corner abuts the outer surface of the first panel and is nailed to the back side; the third plate body is kept away from the surface of the second plate body is used for being connected with the keel in a butting mode and achieving the purpose of front nailing.
7. A flanged aluminum honeycomb composite tile installation structure according to claim 1, wherein the aluminum honeycomb composite tile modules further comprise tiles connected to the flanged aluminum honeycomb panel by an adhesive layer.
8. A flanged aluminum honeycomb composite tile mounting structure as claimed in claim 7, wherein the tile comprises a plurality of tiles, adjacent tile pieces forming a parting structure; the parting structure adopts a cross to control the size of the gap.
9. The flanged aluminum honeycomb composite tile mounting structure of claim 1, wherein the keel is a light steel keel.
10. The flanged aluminum honeycomb composite tile installation according to claim 1, wherein the original wall is an aerated block wall.
