Abstract

The utility model discloses an auxiliary construction device for building decoration of buildings, which relates to the technical field of auxiliary equipment for building decoration. A bottom plate is arranged between the inner sides, a lifting platform is movably arranged between the inner sides of the pillars, a lifting component is arranged inside the column, and a supporting component is arranged at the bottom of the bottom plate. The lifting component includes a first motor, a rotating shaft, a vertical bevel gear, and a screw rod. , a transverse bevel gear and a moving block, and the support assembly includes a support plate, a second motor, a screw rod, a fixed plate, and an internal thread barrel. The utility model is an auxiliary construction device for building decoration, which can be fixed, avoids the movement of the device and the phenomenon of tipping caused by the movement of the traveling wheel, avoids the injury caused by the construction personnel, and can adjust the lifting operation of the lifting platform by itself. The height adjustment is more convenient, and no manual climbing is required for architectural decoration, which saves time and effort.

Description

Auxiliary construction device for building decoration

technical field

The utility model relates to the technical field of building decoration auxiliary equipment, in particular to an auxiliary construction device for building decoration.

Background technique

Architectural decoration is the abbreviation of architectural decoration and decoration engineering. Architectural decoration is to protect the main structure of the building, improve the physical performance of the building, use the function and beautify the building, using decoration materials or accessories to carry out various processing processes on the inner and outer surfaces and spaces of the building. Architectural decoration is an indispensable part of people's life. It is an important friend for human beings to savor life and savor life. Due to the accelerated pace of modern life, people's nerves will be tense. After get off work, they really want to relax. This is when the warmth of home is needed. Therefore, when doing home decoration, we must pay attention to warmth. The building decoration industry has become one of the three pillar industries in the construction industry and is a labor-intensive industry. The building decoration industry is a sunrise industry that has grown rapidly with the gradual rise of the real estate boom. In recent years, with the rapid growth of China's economy and the vigorous development of related industries, the building decoration industry has increasingly shown its huge development potential, and the market growth space is increasing at an average rate of about 20% per year.

At present, most building decorations on the market use construction ladders, which require construction personnel to climb and construct by themselves, which is relatively dangerous and does not have the function of adjusting the height. Moreover, when the device is in use, it cannot be fixedly supported, which is prone to tipping, resulting in construction. People are injured, therefore, it is necessary to provide an auxiliary construction device for building decoration.

Utility model content

The main purpose of the utility model is to provide an auxiliary construction device for building decoration, which can effectively solve the problem that most of the building decorations in the background technology use construction ladders, which require construction personnel to climb and construct by themselves, which is dangerous and does not have the ability to adjust the height. In addition, when the device is in use, it cannot be fixed and supported, and it is prone to tipping and injury to construction workers.

In order to achieve the above purpose, the technical scheme adopted by the present utility model is: an auxiliary construction device for building decoration, comprising a base, the top of the base is provided with two pillars, and the inner tops of the two pillars are connected with beams, A bottom plate is arranged between the inner sides of the pillars, a lifting platform is movably arranged between the inner sides of the pillars, a lifting component is arranged inside the pillar, and a support component is arranged at the bottom of the bottom plate;

The lifting assembly includes a first motor, a rotating shaft, a vertical bevel gear, a screw rod, a lateral bevel gear and a moving block. A first motor is arranged inside the base, and the driving end of the first motor is fixed to one end of the rotating shaft. A vertical bevel gear is sleeved on the outer peripheral surface of the rotating shaft, a screw rod is movably provided inside the strut, one end of the screw rod is fixedly connected to the top of the transverse bevel gear, and the outer peripheral surface of the screw rod is sleeved with moving blocks;

The support assembly includes a support plate, a second motor, a screw rod, a fixed plate, and an internal thread cylinder, a support plate is movably provided on both sides of the base, and a second motor is arranged inside the bottom plate, and the second motor The driving end of the threaded rod is fixedly connected with the top of the screw rod, a fixing plate is arranged inside the support plate, and the bottom of the fixing plate is connected with the inside of the support plate through an internal thread cylinder.

Preferably, the top of the bottom plate is provided with a sleeve, the interior of the sleeve is movably provided with a movable rod, the bottom of the movable rod is connected to a limit plate, the bottom of the limit plate is connected with a spring, and the movable rod is connected to the bottom of the limit plate. The top of the rod is fixedly connected to the bottom of the lift table.

Preferably, a sliding block is fixedly connected to one side of the support plate, a first sliding slot is opened on one side of the base, and the sliding block is movably arranged inside the first sliding groove, and is located at the inner side of the first sliding groove. Sliding inside.

Preferably, the four corners of the bottom of the base are fixedly connected with running wheels, and the four running wheels are distributed at the four corners of the bottom of the base in a rectangular array.

Preferably, a cavity is opened inside the strut, the screw rod is movably arranged inside the cavity, a second chute is opened inside the strut, and the second chute communicates with the interior of the cavity , the moving block is movably arranged inside the second chute, and slides inside the second chute.

Preferably, two vertical bevel gears are sleeved on the outer peripheral surface of the rotating shaft. The meshing of the transverse bevel gear is in a transmission connection with the screw rod.

Preferably, a circular groove is formed on the top of the support plate, the fixing plate is fixedly connected to the inner wall of the circular groove, and the screw rod is threadedly connected to the inner thread cylinder through an internal thread.

Compared with the prior art, the utility model has the following beneficial effects:

1. In this utility model, by starting the first motor, the first motor drives the rotating shaft to rotate inside the base, the rotation of the rotating shaft drives two vertical bevel gears to rotate, and the meshing of the vertical bevel gear and the horizontal bevel gear drives two groups of The lead screw rotates inside the cavity, so as to drive the moving block through the screw connection of the lead screw to make relative movement or opposite movement on the lead screw, so that the two moving blocks drive the lifting platform to carry out the lifting operation. The lifting operation of the lifting platform can be adjusted, and the height can be adjusted more conveniently. It does not need manual climbing for architectural decoration, which saves time and effort, and is easy to operate.

2. In this utility model, when it needs to be used, the device is moved to the construction position by the running wheel, and the second motor drives the screw to rotate by starting the second motor. The threaded barrel descends on the screw, thereby driving the supporting plate to descend through the fixing plate, and through the setting of the slider and the first chute, the supporting plate is stably descended on one side of the base, so that the bottom of the supporting plate is in contact with the ground, so the The device is fixed to avoid the movement of the device and the occurrence of dumping caused by the movement of the traveling wheel, and avoid the injury of the construction personnel.

Description of drawings

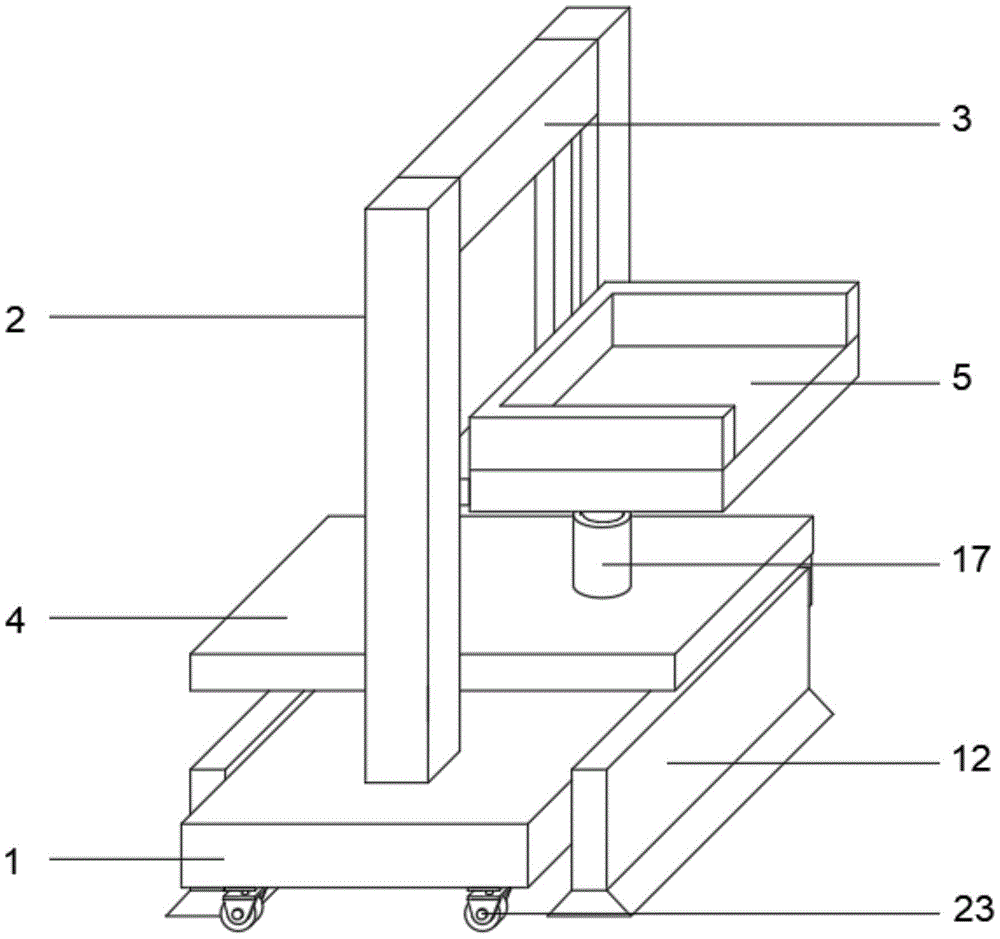

Fig. 1 is the three-dimensional structure schematic diagram of the auxiliary construction device for building decoration of the utility model;

Fig. 2 is the front view inner section structure schematic diagram of a kind of auxiliary construction device for building decoration of the present utility model;

Fig. 3 is the partial side view internal sectional structure schematic diagram of a kind of auxiliary construction device for building decoration of the present invention;

Fig. 4 is the enlarged structural schematic diagram of place A in Fig. 2 of a kind of auxiliary construction device for building decoration of the present utility model;

Fig. 5 is an enlarged schematic view of the structure of the auxiliary construction device for building decoration of the present utility model at B in Fig. 2 .

In the figure: 1. Base; 2. Pillar; 3. Beam; 4. Bottom plate; 5. Lifting table; 6. First motor; 7. Rotating shaft; 8. Vertical bevel gear; 9. Screw; 10. Horizontal cone gear; 11, moving block; 12, support plate; 13, second motor; 14, screw rod; 15, fixed plate; 16, internal thread barrel; 17, casing; 18, movable rod; 19, limit plate; 20 21, the slider; 22, the first chute; 23, the running wheel; 24, the cavity; 25, the second chute.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Figures 1-5, the utility model is an auxiliary construction device for building decoration, comprising a base 1, the top of the base 1 is provided with two pillars 2, and the inner tops of the two pillars 2 are connected with beams 3, A bottom plate 4 is arranged between the inner sides of the pillars 2, a lifting platform 5 is movably arranged between the inner sides of the pillars 2, a lifting assembly is arranged inside the pillar 2, and a support assembly is arranged at the bottom of the bottom plate 4;

The lifting assembly includes a first motor 6, a rotating shaft 7, a vertical bevel gear 8, a screw rod 9, a lateral bevel gear 10 and a moving block 11. The interior of the base 1 is provided with a first motor 6, and the driving end of the first motor 6 is connected to the rotating shaft. One end of the 7 is fixedly connected, the outer peripheral surface of the rotating shaft 7 is sleeved with a vertical bevel gear 8, the interior of the pillar 2 is movably provided with a lead screw 9, one end of the lead screw 9 is fixedly connected with the top of the horizontal bevel gear 10, and the The outer peripheral surface is sleeved with a moving block 11;

The support assembly includes a support plate 12, a second motor 13, a screw 14, a fixed plate 15, and an internal thread cylinder 16. The two sides of the base 1 are movably provided with the support plate 12, the interior of the bottom plate 4 is provided with a second motor 13, the second The driving end of the motor 13 is fixedly connected to the top of the screw rod 14 , a fixing plate 15 is provided inside the support plate 12 , and the bottom of the fixing plate 15 is connected to the interior of the support plate 12 through an internal thread cylinder 16 .

The top of the bottom plate 4 is provided with a sleeve 17, the inner part of the sleeve 17 is movable with a movable rod 18, the bottom of the movable rod 18 is connected with the limit plate 19, the bottom of the limit plate 19 is connected with a spring 20, and the top of the movable rod 18 is connected to the limit plate 19. The bottom of the lifting platform 5 is fixedly connected.

A sliding block 21 is fixedly connected to one side of the support plate 12 , and a first sliding slot 22 is opened on one side of the base 1 . .

The bottom four corners of the base 1 are fixedly connected with running wheels 23 , and the four running wheels 23 are distributed at the bottom four corners of the base 1 in a rectangular array.

A cavity 24 is opened inside the pillar 2, the screw rod 9 is movably arranged inside the cavity 24, a second chute 25 is opened on the inner side of the pillar 2, and the second chute 25 is communicated with the interior of the cavity 24, and the moving block The 11 is movably arranged inside the second chute 25 and slides inside the second chute 25 .

The outer peripheral surface of the rotating shaft 7 is sleeved with two vertical bevel gears 8. The top side of the vertical bevel gear 8 is meshed with the bottom side of the lateral bevel gear 10. The rotating shaft 7 passes through the vertical bevel gear 8 and the lateral bevel gear. The meshing of 10 is in driving connection with the screw rod 9 .

The top of the support plate 12 is provided with a circular groove. The fixing plate 15 is fixedly connected to the inner wall of the circular groove.

The working principle of the utility model is as follows: when in use, the device is moved to the construction position by the traveling wheel 23, and by starting the second motor 13, the second motor 13 drives the screw 14 to rotate, and the rotation of the screw 14 passes through the inner thread and the inner thread barrel 16. The screw connection drives the internal thread barrel 16 to descend on the screw 14, thereby driving the support plate 12 to descend through the fixing plate 15, and through the setting of the slider 21 and the first chute 22, the support plate 12 is stabilized on one side of the base 1 Descend to make the bottom of the support plate 12 contact the ground, firmly support the support plate 12 to the column, so that the device is fixed, and then the construction personnel stand on the lifting platform 5, start the first motor 6, and the first motor 6 drives the rotating shaft 7 in The interior of the base 1 rotates, and the rotation of the rotating shaft 7 drives the two vertical bevel gears 8 to rotate. The block 11 is connected by the thread of the screw rod 9, so that it can make relative movement or opposite movement on the screw rod 9, so that the two moving blocks 11 can drive the lifting platform 5 to carry out the lifting operation. Therefore, the device is fixed to avoid traveling wheels. The movement of 23 causes the movement of the device and the occurrence of dumping, which avoids the injury caused by the construction personnel, can adjust the lifting operation of the lifting platform 5 by itself, and can adjust the height more conveniently, and does not require manual climbing for architectural decoration, which is more economical Time-saving and easy to operate.

The basic principles and main features of the present invention and the advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a building architectural decoration is with supplementary construction equipment which characterized in that: the lifting device comprises a base (1), wherein two pillars (2) are arranged at the top of the base (1), the tops of the inner sides of the two pillars (2) are connected with a cross beam (3), a bottom plate (4) is arranged between the inner sides of the pillars (2), a lifting table (5) is movably arranged between the inner sides of the pillars (2), a lifting assembly is arranged in the pillars (2), and a supporting assembly is arranged at the bottom of the bottom plate (4);

the lifting assembly comprises a first motor (6), a rotating shaft (7), a vertical bevel gear (8), a lead screw (9), a transverse bevel gear (10) and a moving block (11), the first motor (6) is arranged inside the base (1), the driving end of the first motor (6) is fixedly connected with one end of the rotating shaft (7), the vertical bevel gear (8) is sleeved on the outer peripheral surface of the rotating shaft (7), the lead screw (9) is movably arranged inside the strut (2), one end of the lead screw (9) is fixedly connected with the top of the transverse bevel gear (10), and the moving block (11) is sleeved on the outer peripheral surface of the lead screw (9);

the supporting component comprises a supporting plate (12), a second motor (13), a screw rod (14), a fixing plate (15) and an internal thread cylinder (16), the supporting plate (12) is movably arranged on two sides of the base (1), the second motor (13) is arranged inside the base plate (4), the driving end of the second motor (13) is fixedly connected with the top of the screw rod (14), the fixing plate (15) is arranged inside the supporting plate (12), and the internal connection of the internal thread cylinder (16) and the supporting plate (12) is arranged at the bottom of the fixing plate (15).

2. The building architectural decoration of claim 1 is with supplementary construction equipment, characterized in that: the top of bottom plate (4) is equipped with sleeve pipe (17), the inside activity of sleeve pipe (17) is equipped with movable rod (18), the bottom of movable rod (18) is connected with limiting plate (19), the bottom of limiting plate (19) is connected with spring (20), the top of movable rod (18) and the bottom fixed connection of elevating platform (5).

3. The building architectural decoration of claim 1 is with supplementary construction equipment, characterized in that: one side fixedly connected with slider (21) of backup pad (12), first spout (22) have been seted up to one side of base (1), slider (21) activity sets up in the inside of first spout (22), and slides in the inside of first spout (22).

4. The building architectural decoration of claim 1 is with supplementary construction equipment, characterized in that: the all fixedly connected with of bottom four corners department of base (1) wheel (23) of traveling, four it distributes in the bottom four corners department of base (1) to travel wheel (23) is the rectangle array.

5. The building architectural decoration of claim 1 is with supplementary construction equipment, characterized in that: the novel screw rod mechanism is characterized in that a cavity (24) is formed in the support column (2), the screw rod (9) is movably arranged in the cavity (24), a second sliding groove (25) is formed in the inner side of the support column (2), the second sliding groove (25) is communicated with the inside of the cavity (24), and the moving block (11) is movably arranged in the second sliding groove (25) and slides in the second sliding groove (25).

6. The building architectural decoration of claim 1 is with supplementary construction equipment, characterized in that: the outer peripheral face cover of pivot (7) is equipped with two vertical bevel gear (8), top one side of vertical bevel gear (8) is the meshing with one side bottom of horizontal bevel gear (10) and is connected, pivot (7) are the transmission through the meshing of vertical bevel gear (8) and horizontal bevel gear (10) and are connected with lead screw (9).

7. The building architectural decoration of claim 1 is with supplementary construction equipment, characterized in that: the round groove is opened at the top of backup pad (12), fixed plate (15) fixed connection is on the inner wall of round groove, screw rod (14) are threaded connection through internal thread and an internal thread section of thick bamboo (16).
