Abstract

The utility model relates to the technical field of automobile processing, in particular to a paint spraying device for processing automobile parts with uniform spraying. The technical scheme includes: a workbench, a collection box and a hanging tray, a mounting block is fixedly installed on the top of the workbench, a top plate is fixedly installed on the top of the mounting block through a support frame, a motor is fixedly installed on the top of the top plate, and the output end of the motor is reciprocated. The screw rod is movably installed with a spray cavity box, the front end of the spray cavity box is fixedly installed with a spray head, the bottom of the top plate is movably installed with a hanging plate, and the motor and the hanging plate are installed through a belt drive. The utility model is provided with the mutual cooperation among the hanging plate, the spray cavity box and the spray head, so that the spare parts can be hung on the hanging plate more conveniently. The spare parts are uniformly sprayed, avoiding the phenomenon of leakage or uneven spraying, and increasing the efficiency.

Description

A paint spraying device for processing auto parts with uniform spraying

technical field

The utility model relates to the technical field of automobile processing, in particular to a paint spraying device for processing automobile spare parts with uniform spraying.

Background technique

Auto parts processing is the unit that constitutes the whole of auto parts processing and the products that serve the processing of auto parts. Auto parts, as the foundation of the auto industry, are a necessary factor to support the sustainable and healthy development of the auto industry, especially the current auto industry is in full swing and in full swing The independent development and innovation carried out requires painting to prevent rust when processing auto parts, so it is necessary to use a painting device for auto parts processing with uniform spraying.

After retrieval, the patent publication number CN215586855U discloses a paint spraying device. The utility model relates to a paint spraying device, which includes a paint spraying box and a placing box. The bottom of the placing box is provided with a universal wheel, and the top of the base of the spraying box is connected with a climbing board. , Place the parts to be painted on the turntable in the placement box, and then the placement box enters the painting box through the universal wheel through the climbing board, slides back and forth through the universal wheel, and the hydraulic cylinder drives the nozzle to move downward to adjust the nozzle and the parts to be painted The relative position of the machine, turn on the paint spray pump, spray the paint in the paint box through the nozzle, and control the motor to start at the same time, drive the parts to rotate through the turntable, and evenly paint the auto parts, and turn on the heating lamp board to dry the parts. After the painting is completed, the placing box is taken out of the painting box through the universal wheel, and the painted parts are removed, and then the painting process of the next part is carried out.

The defects of the existing paint spraying device for auto parts processing with uniform spraying are:

1. In the process of using the existing spraying equipment for auto parts processing with uniform spraying, when the existing spraying equipment sprays the auto parts, the phenomenon of spray leakage or uneven spraying will occur, resulting in a relatively poor spraying effect. Generally, the practicality is reduced;

2. The general spraying equipment for auto parts processing with uniform spraying does not have a good collection structure, and the existing spraying equipment is inconvenient to recycle excess paint, which leads to easy waste of paint and increases the cost of auto parts processing. Therefore, we propose a paint spraying device for auto parts processing with uniform spraying to solve the existing problems.

Utility model content

The purpose of the present utility model is to provide a paint spraying device for processing auto parts with uniform spraying, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a paint spraying device for processing auto parts with uniform spraying, including a workbench, a collection box and a hanging tray, and a mounting block is fixedly installed on the top of the workbench, and the A top plate is fixedly installed on the top of the installation block through a support frame, a motor is fixedly installed on the top of the top plate, a spray chamber box is movably installed at the output end of the motor through a reciprocating screw rod, and a spray head is fixedly installed at the front end of the spray chamber box , the bottom of the top plate is movably installed with a hanging plate, the motor and the hanging plate are installed through a belt drive, a support plate is fixedly installed at the bottom of the workbench, and a collection box is slidably installed between the support plates, and the A scraper is slidably installed between the installation blocks.

It can be more convenient to hang the spare parts on the hanging plate. Through the rotation of the hanging plate and the movement of the spray cavity box, the spare parts can be painted evenly, avoiding the phenomenon of leakage or uneven spraying. , increasing the efficiency.

Preferably, a sliding rod is used for sliding installation between the spray chamber box and the installation block, and a collection box corresponding to the settling hole is provided on the top of the workbench. The reciprocating screw rod is used to make the spray chamber box move along the sliding rod, and the spray head can be driven to spray the parts evenly.

Preferably, the top of the top plate is provided with an installation groove matched with the belt, and a protective plate corresponding to the installation groove is fixedly installed on the top of the top plate. The belt can be protected by a protective plate to prevent dust and impurities from accumulating inside.

Preferably, a sliding block is used for sliding installation between the collection box and the supporting plate, a fixing knob is used to fix the sliding block and the supporting plate, and one side of the sliding block is provided with a docking hole matched with the fixing knob. By connecting between the fixing knob and the butt hole, the collection box can be conveniently fixed between the support plates, which is more convenient to use.

Preferably, a first handle is fixedly installed at the front end of the collection box, and a non-slip cover is provided on the first handle. By being able to slide between the support plates conveniently, it is more connected in the process of transferring, and the efficiency is increased.

Preferably, a movable rod is slidably installed between the scraper plate and the mounting block, and a second handle is fixedly installed on the top of the scraper plate. The collection box can be easily pulled through the first handle, so that the collected paint can be better transferred.

Compared with the prior art, the beneficial effects of the present utility model are:

1. By providing the mutual cooperation between the hanging plate, the spray cavity box and the nozzle, it is more convenient to hang the spare parts on the hanging plate. Through the rotation of the hanging plate and the movement of the spray cavity box, it is more convenient. The spare parts are uniformly sprayed to avoid the phenomenon of leakage or uneven spraying, and increase the efficiency.

2. By providing the scraper plate, the mutual cooperation between the movable rod and the collection box, it is more convenient to move the scraper plate along the movable rod, so that the scraper plate can pass the excess paint on the worktable through the settling hole. Collecting in the inside of the collection box can effectively recycle the excess paint, avoid waste and reduce processing costs.

Description of drawings

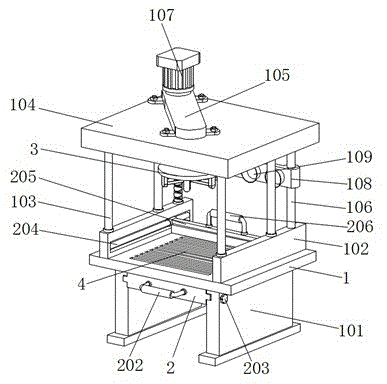

Fig. 1 is the first appearance three-dimensional front view of the utility model;

Fig. 2 is the back structure schematic diagram of the utility model;

3 is a perspective front view of the second appearance of the utility model;

FIG. 4 is a schematic diagram of the partial structure of the top plate of the present invention.

In the figure: 1, workbench; 101, support plate; 102, mounting block; 103, support frame; 104, top plate; 105, protective plate; 106, sliding rod; 107, motor; 108, spray chamber box; ;2. Collection box; 201, Slider; 202, First handle; 203, Fixed knob; 204, Active rod; 205, Scraper plate; 206, Second handle; 207, Docking hole; ; 301, reciprocating screw; 302, installation groove; 303, belt; 4, settlement hole.

Detailed ways

The technical solutions of the present invention will be further described below with reference to the accompanying drawings and specific embodiments.

Example 1

As shown in Figures 1-4, the utility model proposes a paint spraying device for auto parts processing with uniform spraying, including a workbench 1, a collection box 2 and a hanging tray 3, and a mounting block 102 is fixedly installed on the top of the workbench 1 , the top of the mounting block 102 is fixedly installed with the top plate 104 through the support frame 103, the top of the top plate 104 is fixedly installed with the motor 107, the output end of the motor 107 is movably installed with the spray chamber box 108 through the reciprocating screw rod 301, and the front end of the spray chamber box 108 is installed The spray head 109 is fixedly installed, the bottom of the top plate 104 is movably installed with the hanging plate 3, the motor 107 and the hanging plate 3 are driven and installed by the belt 303, the bottom of the worktable 1 is fixedly installed with a support plate 101, and the support plates 101 are slidably installed In the collection box 2, a scraper plate 205 is slidably installed between the installation blocks 102, the spray chamber box 108 and the installation block 102 are slidably installed by a sliding rod 106, and a collection box 2 corresponding to the settling hole 4 is arranged on the top of the worktable 1 , the top of the top plate 104 is provided with an installation groove 302 that cooperates with the belt 303, and the top of the top plate 104 is fixedly installed with a protective plate 105 corresponding to the installation groove 302. The sliding block 201 and the support plate 101 are fixed by a fixing knob 203, and a docking hole 207 is arranged on one side of the sliding block 201 to cooperate with the fixing knob 203. The front end of the collection box 2 is fixedly installed with a first handle 202, and the first handle 202 is installed on the front end of the collection box 2. A handle 202 is provided with a non-slip sleeve, the scraper plate 205 and the mounting block 102 are slidably installed by a movable rod 204 , and a second handle 206 is fixedly mounted on the top of the scraper plate 205 .

The working principle of the paint spraying device for auto parts processing with uniform spraying based on Example 1 is that the parts that need to be painted can be suspended by the hanging plate 3, and the hanging plate 3 can be driven to rotate by the belt 303 through the rotation of the motor 107, and at the same time The reciprocating screw rod 301 is used to make the spray chamber box 108 move along the sliding rod 106, and the spray head 109 can be driven to uniformly spray paint the spare parts, which can avoid the phenomenon of leakage or uneven spraying. When spraying, the effect is better and the efficiency is increased. By pulling the second handle 206, the scraper 205 can be easily moved along the movable rod 204, so that the scraper 205 can remove the excess paint on the worktable 1. The settling hole 4 is introduced into the interior of the collection box 2, and the collection box 2 can be easily collected, and the fixing knob 203 is connected with the docking hole 207, so that the collection box 2 can be conveniently fixed between the support plates 101. More convenient to use.

Embodiment 2

As shown in FIGS. 2-4 , the present invention proposes a paint spraying device for processing auto parts with uniform spraying. Compared with the first embodiment, the present embodiment further includes: the front end of the collection box 2 is fixedly installed with a first handle 202, and the sliding block 201 is installed between the collection box 2 and the support plate 101.

In this embodiment, the collection box 2 can be easily pulled by the first handle 202 , so that the collected paint can be better transferred, and the slider 201 can be easily slid along the support plates 101 . , making the transfer process more connected and increasing efficiency.

The above-mentioned specific embodiments are only several preferred embodiments of the present invention. Based on the technical solutions of the present invention and the relevant enlightenment of the above-mentioned embodiments, those skilled in the art can make various alternative improvements to the above-mentioned specific embodiments. and combination.

Claims (6)

1. A paint spraying device for processing auto parts with uniform spraying, comprising a workbench (1), a collection box (2) and a hanging tray (3), characterized in that: the top of the workbench (1) is fixedly installed with A mounting block (102), a top plate (104) is fixedly mounted on the top of the mounting block (102) through a support frame (103), a motor (107) is fixedly mounted on the top of the top plate (104), and the motor (107 ) output end is movably installed with a spray chamber box (108) through a reciprocating screw (301), the front end of the spray chamber box (108) is fixedly installed with a spray head (109), and the bottom of the top plate (104) is movably installed with a spray chamber box (108). A hanging plate (3), the motor (107) and the hanging plate (3) are installed by means of a belt (303) transmission, and a support plate (101) is fixedly installed at the bottom of the workbench (1). A collection box (2) is slidably installed between (101), and a scraper (205) is slidably installed between the installation blocks (102). 2. A paint spraying device for processing auto parts with uniform spraying according to claim 1, characterized in that: the spray cavity box (108) and the mounting block (102) are slidably installed by a sliding rod (106). , the top of the workbench (1) is provided with a collection box (2) corresponding to the settling hole (4). 3. A paint spraying device for processing auto parts with uniform spraying according to claim 1, characterized in that: the top of the top plate (104) is provided with a mounting groove (302) matched with the belt (303), and A protective plate (105) corresponding to the installation groove (302) is fixedly installed on the top of the top plate (104). 4. A paint spraying device for processing auto parts with uniform spraying according to claim 1, characterized in that: between the collection box (2) and the support plate (101), a sliding block (201) is slidably installed, The sliding block (201) and the support plate (101) are fixed by a fixing knob (203), and one side of the sliding block (201) is provided with a docking hole (207) matched with the fixing knob (203). 5. A paint spraying device for processing auto parts with uniform spraying according to claim 1, characterized in that: the front end of the collection box (2) is fixedly installed with a first grip (202), and the first grip The handle (202) is provided with a non-slip sleeve. 6 . The paint spraying device for processing auto parts with uniform spraying according to claim 1 , wherein the scraper ( 205 ) and the mounting block ( 102 ) are slidably mounted by a movable rod ( 204 ). 7 . , and a second handle (206) is fixedly installed on the top of the scraper plate (205).
