Abstract

The utility model relates to the technical field of machining of mechanical parts, and discloses a novel working table for machining of mechanical parts, which comprises a box body; the utility model rotates by holding a turntable by hand after the parts are placed on a bearing plate, and the turntable rotates during the rotation. It will drive the second screw to rotate through the cooperation of the fixed seat, and the second screw will drive the splint to move through the cooperation of the bearing, the guide rod and the guide groove when it rotates, which can fix parts of different sizes and ensure the mechanical The processing quality of the parts reduces the failure rate of the parts, and has high practicability. At the same time, by starting the motor, the motor will drive the first screw to rotate through the cooperation of the bearing after starting, and the first screw will pass the guide rail and guide when rotating. With the cooperation of the block, the fixed plate is moved upward, which can realize the adjustment of the height of the bearing plate, which is suitable for the operation of the staff of different heights, and has high flexibility.

Description

A new type of workbench for machining mechanical parts

technical field

The utility model relates to the technical field of machining of mechanical parts, in particular to a novel working table for machining of mechanical parts.

Background technique

Mechanical parts, also known as mechanical components, are the basic components that constitute machinery, and are inseparable single parts that make up machinery and machines. Generally speaking, mechanical parts need to be placed on a workbench during processing. At present, the existing workbench has a single function, does not have a height adjustment function, and cannot be operated by staff of different heights, which reduces the time for staff to operate. The comfort of the machine is poor, the flexibility is poor, and it is impossible to limit the mechanical parts of different sizes. If the mechanical parts shake and move during the processing, it will seriously affect the processing quality of the parts, and the practicability is poor.

Utility model content

The purpose of the present utility model is to provide a new workbench for machining mechanical parts, which has the advantages of being able to adjust the height of the bearing plate and fix parts of different sizes, and solve the problem that the existing workbench does not have a height Adjustment function and mechanical parts are prone to shaking and movement problems during processing.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a novel working table for machining mechanical parts, comprising a box body, a partition plate is bolted on the inside of the box body, and the inside of the box body is rotatably connected with a bearing through a bearing. The first screw, the bottom of the first screw is fixedly sleeved with a motor, the surface of the first screw is threadedly connected with a fixing plate, the top of the box is provided with a bearing plate, and the bottom of the bearing plate is connected with the fixing plate There are two connecting posts bolted between them, the top of the box body is provided with through holes for use with the connecting posts, the top of the carrying plate is bolted with two fixing seats, and the inner threaded connections of the fixing seats are For the second screw rods, splints are bolted on opposite sides of the two second screw rods.

Preferably, an annular plate is fixedly sleeved on the surface of the motor, and two connecting plates are bolted between the bottom of the annular plate and the partition plate.

Preferably, two guide rails are bolted on the inside of the box body, and guide blocks slidably connected to the guide rails are bolted on both sides of the fixing plate.

Preferably, guide rods are bolted on the opposite sides of the two splints, and a guide groove for cooperating with the guide rods is provided on one side of the fixing seat.

Preferably, the other end of the second screw is bolted with a turntable.

Preferably, a door panel is hinged on the front of the box body through a hinge, and a handle is bolted to the front of the door panel.

Preferably, a top plate is bolted on the top of the carrying plate, and a lighting lamp is installed on the bottom of the top plate.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

The utility model rotates by holding the turntable by hand after the parts are placed on the bearing plate, the turntable will drive the second screw rod to rotate under the cooperation of the fixing seat during rotation, and the second screw rod will pass through the bearing and the guide rod when rotating. In cooperation with the guide groove, the splint is driven to move, and parts of different sizes can be fixed, which ensures the processing quality of mechanical parts, reduces the failure rate of parts, and has high practicability;

In the utility model, by starting the motor, the motor will drive the first screw rod to rotate through the cooperation of the bearing after starting, and the first screw rod will drive the fixed plate to move upward through the cooperation of the guide rail and the guide block when rotating, so that the bearing plate can be moved upwards. The height of the machine can be adjusted, and it is suitable for staff of different heights to operate, with high flexibility.

Description of drawings

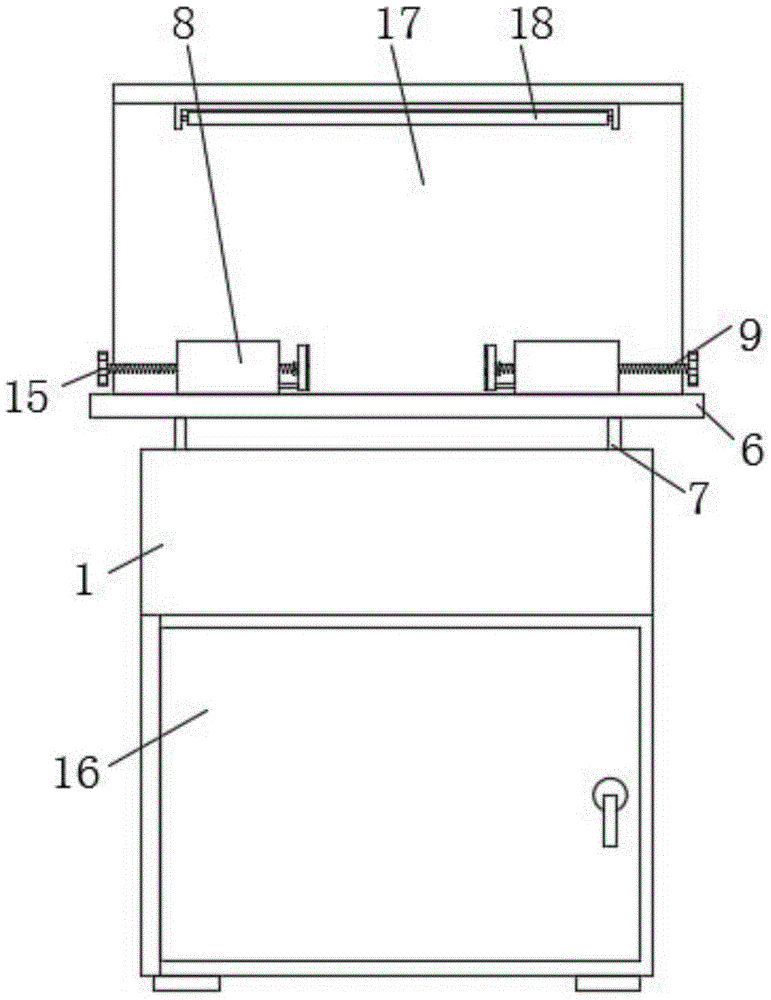

Fig. 1 is the front schematic view of the structure of the utility model;

Fig. 2 is the front sectional schematic diagram of the structure of the utility model;

Fig. 3 is the enlarged schematic diagram of place A in Fig. 2 of the utility model;

FIG. 4 is an enlarged schematic view of the position B in FIG. 2 of the present utility model.

In the figure: 1. Box body; 2. Partition plate; 3. First screw rod; 4. Motor; 5. Fixed plate; 6. Loading plate; 7. Connecting column; , splint; 11, annular plate; 12, guide rail; 13, guide block; 14, guide rod; 15, turntable; 16, door panel; 17, top plate; 18, lighting.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1, Fig. 2, Fig. 3 and Fig. 4, a new type of workbench for machining mechanical parts, including a box body 1, a partition 2 is bolted to the inside of the box body 1, and the inside of the box body 1 passes through a bearing A first screw 3 is rotatably connected, the bottom of the first screw 3 is fixedly sleeved with a motor 4, the surface of the first screw 3 is threadedly connected with a fixing plate 5, the top of the box 1 is provided with a bearing plate 6, and the bottom of the bearing plate 6 is provided Two connecting posts 7 are bolted to the fixing plate 5 , the top of the box body 1 is provided with through holes for use with the connecting posts 7 , and the top of the carrying plate 6 is bolted with two fixing seats 8 . A second screw 9 is internally threaded, and the opposite sides of the two second screws 9 are bolted with a splint 10. After the parts are placed on the carrier plate 6, the turntable 15 is held by hand to rotate, and the turntable 15 rotates when It will drive the second screw 9 to rotate through the cooperation of the fixing seat 8, and the second screw 9 will drive the splint 10 to move through the cooperation of the bearing, the guide rod 14 and the guide groove when rotating, which can fix parts of different sizes. , which ensures the processing quality of mechanical parts, reduces the failure rate of parts, and has high practicability. At the same time, by starting the motor 4, the motor 4 will drive the first screw 3 to rotate through the cooperation of the bearing after starting, and the first screw 3 During rotation, the fixed plate 5 will be driven to move upward through the cooperation of the guide rail 12 and the guide block 13, so that the height of the carrying plate 6 can be adjusted.

Further, an annular plate 11 is fixedly sleeved on the surface of the motor 4, and two connecting plates are bolted between the bottom of the annular plate 11 and the partition plate 2, and the motor 4 can be fixed by the arrangement of the annular plate 11 and the connecting plate. , to prevent the motor 4 from falling down during operation.

Further, two guide rails 12 are bolted inside the box body 1 , and guide blocks 13 slidably connected to the guide rails 12 are bolted on both sides of the fixed plate 5 . 5. Limit the position to prevent the fixed plate 5 from tilting in the process of moving up and down.

Further, the opposite sides of the two clamping plates 10 are bolted with guide rods 14, and one side of the fixed seat 8 is provided with a guide groove for use with the guide rod 14. The splint 10 is limited to prevent the splint 10 from rotating.

Further, a turntable 15 is bolted to the other end of the second screw rod 9 , and the arrangement of the turntable 15 can make it more convenient for the staff to rotate the second screw rod 9 .

Further, a door panel 16 is hinged on the front of the box body 1 through hinges, and a handle is bolted to the front of the door panel 16 . Through the setting of the door panel 16 , the items placed in the box body 1 can be stored, and the space inside the box body 1 can be improved. utilization.

Further, a top plate 17 is bolted to the top of the carrying plate 6, and a lighting lamp 18 is installed at the bottom of the top plate 17. By setting the top plate 17 and the lighting lamp 18, the mechanical parts on the carrying plate 6 can be illuminated, which is convenient for the staff. to be processed.

Working principle: When the mechanical parts need to be processed, the parts are first taken and placed on the carrier plate 6. After the parts are placed, the turntable 15 is held by hand to rotate. Drive the second screw 9 to rotate, the second screw 9 will drive the splint 10 to move through the cooperation of the bearing, the guide rod 14 and the guide groove when rotating, and the splint 10 will clamp the parts placed on the carrier plate 6 after moving. When the height of the bearing plate 6 needs to be adjusted, start the motor 4, the motor 4 will drive the first screw 3 to rotate through the cooperation of the bearing after starting, and the first screw 3 will pass the guide rail 12 and The guide block 13 drives the fixed plate 5 to move upward, and the fixed plate 5 drives the carrier plate 6 to move upward together through the cooperation of the connecting post 7 and the through hole when moving upward.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A new workbench for machining mechanical parts, comprising a box body (1), characterized in that: a partition plate (2) is bolted to the inside of the box body (1), and a partition plate (2) is bolted inside the box body (1). A first screw (3) is rotatably connected through the bearing, the bottom of the first screw (3) is fixedly sleeved with a motor (4), and the surface of the first screw (3) is screwed with a fixing plate (5), The top of the box body (1) is provided with a bearing plate (6), and two connecting columns (7) are bolted between the bottom of the bearing plate (6) and the fixing plate (5). 1) A through hole for cooperating with the connecting column (7) is provided on the top of the bearing plate (6), two fixing seats (8) are bolted on the top of the bearing plate (6), and the inner screw connection of the fixing seat (8) is The second screw (9), the opposite sides of the two second screws (9) are bolted with a splint (10). 2. A new type of workbench for machining mechanical parts according to claim 1, characterized in that: the surface of the motor (4) is fixedly sleeved with an annular plate (11), and the bottom of the annular plate (11) Two connecting plates are bolted to the partition plate (2). 3. A new type of workbench for machining mechanical parts according to claim 1, characterized in that: two guide rails (12) are bolted on the inside of the box body (1), and two guide rails (12) are bolted on the inside of the box body (1). Both sides are bolted with guide blocks (13) slidably connected with the guide rails (12). 4. A new type of workbench for machining mechanical parts according to claim 1, characterized in that: guide rods (14) are bolted on the opposite sides of the two splints (10), and the fixed seat is One side of (8) is provided with a guide groove which is used in cooperation with the guide rod (14). 5. A new type of workbench for machining mechanical parts according to claim 1, characterized in that a turntable (15) is bolted to the other end of the second screw (9). 6. A new type of workbench for machining mechanical parts according to claim 1, characterized in that: the front of the box (1) is hinged with a door panel (16) through hinges, and the front side of the door panel (16) is bolted There is a handle. 7. A new type of workbench for machining mechanical parts according to claim 1, characterized in that: a top plate (17) is bolted to the top of the carrying plate (6), and a bottom plate (17) is mounted with a top plate (17). Lights (18).
