An intraoperative head and neck immobilizer for reverse shoulder replacement surgery

technical field

The utility model relates to the technical field of head and neck fixation, in particular to a head and neck fixer in reverse shoulder replacement surgery.

Background technique

Reverse shoulder replacement is a surgical procedure in which the glenoid is removed, a prosthesis protruding from the shoulder blade is placed on the glenoid to form a joint, and then the soft tissue above is sutured.

The position of shoulder replacement surgery is to suspend the affected shoulder joint in the conventional "beach chair" position. Therefore, the head of the operating bed and the end of the bed should be exchanged, and the operating bed should be changed to the reverse position before placing the beach chair position. When performing surgery on a patient, half of the bed board needs to be removed, so that it is convenient to suspend the patient's shoulder joint, which is convenient for the surgeon's operation and intraoperative C-arm fluoroscopy. However, when the patient is suspended, the upper body of the patient is suspended. At this time, the patient's head and neck are easily swayed due to the loss of support, and the existing "beach chair" is difficult to support and prevent the patient's head and neck from swinging, so medical care is often required. Personnel hold the patient's head and neck for a long time, which can easily cause great discomfort to both the medical staff and the patient, which can easily affect the overall medical effect and quality.

Utility model content

The purpose of the utility model is to provide a head and neck fixer in reverse shoulder replacement surgery to solve the above technical problems.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical solutions to realize:

An intraoperative head and neck fixer for reverse shoulder replacement surgery, including a surgical chair, characterized in that a mattress is connected to one side of the top of the surgical chair through a first plate body, and baffles are provided on both sides of the mattress , one side of the top of the mattress is respectively connected with a head ring and a neck brace through a Velcro, the bottom of one side of the baffle is fixedly connected with an L-shaped vertical plate, a fixing mechanism is arranged above the top of the mattress, and the fixing mechanism It includes a mounting plate, a support rod is arranged below the mounting plate, an arc-shaped positioning block is fixedly connected to the bottom end of the support rod, and an arc-shaped silicone pad is fixedly connected to the bottom of the positioning block. Both sides are provided with positioning components connected with the vertical plate.

The head ring and the neck brace can support the patient's head and neck to a certain extent, and at the same time, the patient's forehead can be positioned through the fixing mechanism to prevent the patient's head from swinging, thereby reducing the discomfort of the patient and medical staff.

Preferably, a support plate is fixedly connected to both sides of the positioning block, and an airbag is fixedly connected to one side of the support plate.

The airbag can abut on both sides of the patient's head, thereby further enhancing the effect of fixing the patient's head and neck.

Preferably, the positioning assembly includes a U-shaped plate slidably connected to the top of the vertical plate, and a cross bar fixedly connected to the mounting plate is fixedly connected to the top of one side of the U-shaped plate.

The position of the positioning block and the silicone pad can be adjusted up and down through the positioning assembly, so as to facilitate the positioning of the patient's forehead.

Preferably, a fixing box is fixedly connected to the bottom of one side of the U-shaped plate, four corners of the inner wall of the fixing box are fixedly connected with fixing rods, and the fixing box is provided with a sliding plate slidingly sleeved on the outer surface of the fixing rod , a plug-in rod is fixedly connected through one side of the slide plate.

By pulling the insertion rod, the sliding plate can be driven to move, so that the insertion rod is separated from the vertical plate, thereby facilitating the quick release of the limit on the U-shaped plate, thereby facilitating the upward movement of the U-shaped plate.

Preferably, the four corners of one side of the inner wall of the fixing box are fixedly connected with a first spring sleeved on the outer surface of the fixing rod and fixedly connected with one side of the slide plate.

The first spring can make it difficult for the sliding plate to be pulled, and can also ensure that the insertion rod does not move at will, thereby ensuring the stability of the U-shaped plate.

Preferably, the other side of the inner wall of the fixed box is fixedly connected with a second spring sleeved on the outer surface of the insertion rod and fixedly connected with the other side of the slide plate, and one end of the insertion rod is fixedly connected with a handle.

The second spring can abut the sliding plate, thereby further improving the effect of limiting the sliding plate, ensuring that the sliding plate will not be displaced at will, and further improving the stability of the U-shaped plate when it is limited.

Preferably, first insertion holes are formed through both sides of the U-shaped plate, a plurality of second insertion holes are formed through one side of the vertical plate in an equidistant linear array, and the other end of the insertion rod is located in the first insertion hole. In the hole and the second insertion hole, the two ends of the insertion rod respectively penetrate the two sides of the fixed box and are slidably connected with it.

When the insertion rod is located in the first jack and the second jack, the U-shaped plate cannot move, and when the U-shaped plate cannot move, since the U-shaped plate is connected with the mounting plate through the cross bar, it is ensured that the mounting plate does not move. Will move up or down at will.

Preferably, a U-shaped adjustment plate is fixedly connected at the middle position of the bottom of the mounting plate, the top of the adjustment plate is slidably connected with a return-shaped frame, the bottom of the return-shaped frame is fixedly connected with the top end of the support rod, and the adjustment plate The top is provided with a plurality of threaded grooves, the top of the return frame is threadedly connected with threaded rods located in the threaded grooves, and the bottom of the baffle is fixedly connected with a clamping piece.

By unscrewing the threaded rod, the return frame can be moved, the movement of the return frame can move the support rod, and the movement of the support rod can drive the positioning block and the silicone pad to move, and then the positioning block and the silicone pad can be adjusted back and forth for different patients. block, enabling positioning of the forehead of different patients.

Compared with the prior art, the beneficial effects of the present utility model are:

1. When the utility model is in use, it can fix the patient's head and neck without the need for medical staff to hold the patient's head and neck all the time, preventing the patient's head from swinging, thereby reducing the discomfort between the patient and the medical staff, and improving the overall performance. The role of medical outcomes and medical quality.

2. When the utility model is in use, it also has the effect of facilitating the quick separation of the fixing mechanism and the vertical plate through the positioning assembly, thereby facilitating the placement of the patient's head on the head ring and the neck brace.

3. When the utility model is in use, it also has a position that is convenient for adjusting the position of the positioning block and the silicone cushion block back and forth, so as to facilitate adjustment and use for different patients, thereby increasing the scope of the device's applicable group.

Description of drawings

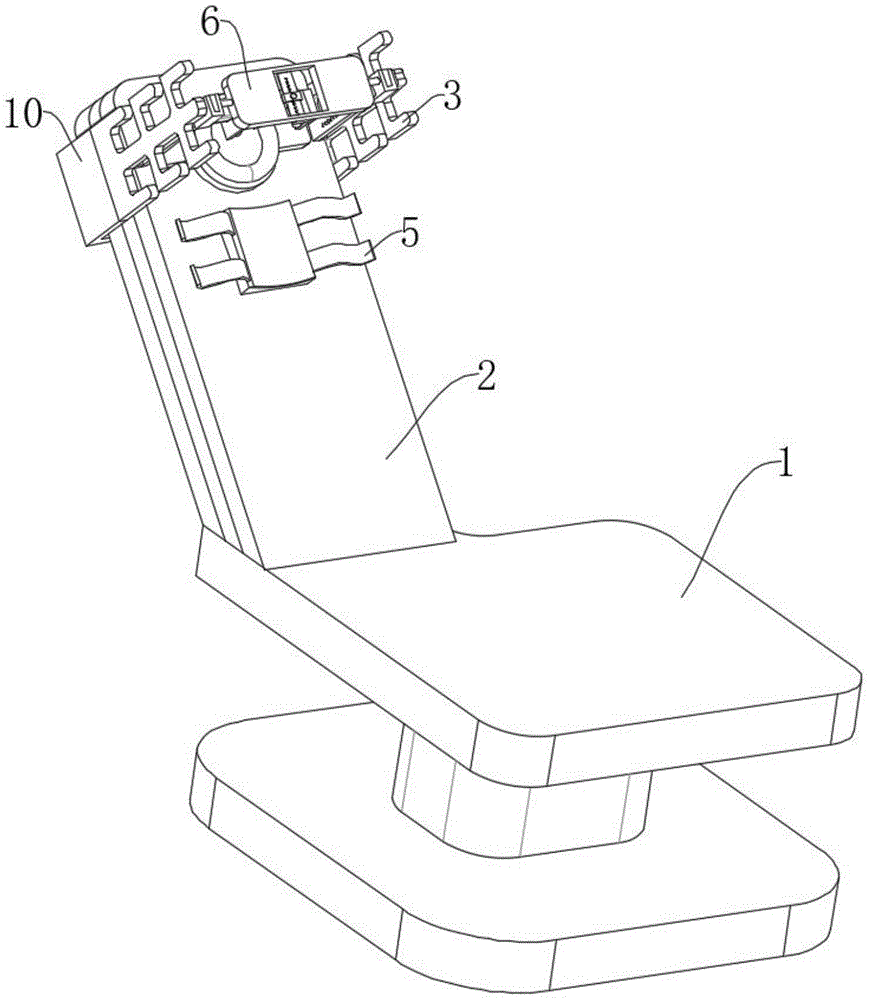

1 is a schematic diagram of the overall structure of a head and neck fixator in a reverse shoulder replacement operation proposed by the present utility model;

FIG. 2 is a schematic diagram of the connection structure of the mattress and the head ring in FIG. 1 proposed by the utility model;

3 is a schematic diagram of the connection structure of the U-shaped plate and the vertical plate in FIG. 2 proposed by the utility model;

FIG. 4 is a schematic diagram of the connection structure of the support plate and the airbag in FIG. 3 proposed by the utility model;

Fig. 5 is the sectional structure schematic diagram of the fixing box in Fig. 3 proposed by the utility model;

FIG. 6 is a schematic diagram of the connection mechanism of the baffle plate and the vertical plate in FIG. 2 proposed by the utility model;

In the figure: 1, surgical chair; 2, mattress; 3, baffle; 4, head ring; 5, neck brace; 6, fixing mechanism; 601, mounting plate; 602, support rod; 603, positioning block; 604, Silicone pad; 605, support plate; 606, air bag; 607, positioning assembly; 6071, U-shaped plate; 6072, fixed box; 6073, fixed rod; 6074, slide plate; 6075, first spring; 6076, plunger; 6077 , the second spring; 7, the adjustment plate; 8, the return frame; 9, the vertical plate; 10, the clamping part.

Detailed ways

The specific embodiments of the present utility model are described below in conjunction with the accompanying drawings.

Example 1

As shown in Figures 1-6, an intraoperative head and neck immobilizer for reverse shoulder replacement surgery includes an operating chair 1, and a mattress 2 is connected to one side of the top of the operating chair 1 through a first plate body, and both sides of the mattress 2 are There is a baffle 3, and one side of the baffle 3 is in the shape of three mountains, so that it is convenient for medical staff to place the corresponding infusion tube, breathing tube, anesthesia tube and other pipelines, and the top side of the mattress 2 is connected with a head through Velcro. Ring 4 and neck brace 5, the tops of both sides of neck brace 5 are fixedly connected with two Velcro, the patient's neck can be bound to a certain extent through the Velcro, so as to strengthen the limit of the patient's head and neck, baffle 3 An L-shaped vertical plate 9 is fixedly connected to the bottom of one side, and a fixing mechanism 6 is arranged above the top of the mattress 2. The fixing mechanism 6 includes a mounting plate 601, and a support rod 602 is arranged under the mounting plate 601, and the bottom end of the support rod 602 is fixedly connected There is an arc-shaped positioning block 603 , and the bottom of the positioning block 603 is fixedly connected with an arc-shaped silicone cushion block 604 .

Both sides of the positioning block 603 are fixedly connected with a support plate 605 , and one side of the support plate 605 is fixedly connected with an air bag 606 .

Let the patient lie on the mattress 2, so that the patient's head is on the head ring 4, and the neck is on the neck brace 5, and then by releasing the positioning of the positioning assembly 607, the U-shaped plate 6071 can be quickly lowered, and the U-shaped plate 6071 The lowering can drive the cross bar to lower, the lowering of the horizontal bar can drive the mounting plate 601 to lower, the lowering of the mounting plate 601 can drive the adjusting plate 7 and the return frame 8 to lower, the lowering of the return frame 8 can drive the support rod 602 to fall, and the support rod 602 to fall can The positioning block 603 is driven to descend, and the positioning block 603 can be lowered to drive the support plate 605 and the silicone pad 604 to descend. When the silicone pad 604 is lowered to be in contact with the patient's forehead, the positioning assembly 607 stops the mounting plate 601 from descending, and then The air bag 606 is inflated by connecting the external air source to the air bag 606, so that the air bag 606 expands to contact both sides of the patient's head, and then stops inflating the air bag 606. At this time, there is no need for the medical staff to hold the patient's head and neck all the time. Make sure that the patient's head does not swing.

Example 2

As shown in Figures 1-6, an intraoperative head and neck immobilizer for reverse shoulder replacement surgery includes an operating chair 1, and a mattress 2 is connected to one side of the top of the operating chair 1 through a first plate body, and both sides of the mattress 2 are A baffle 3 is provided, the baffle 3 is L-shaped, and the bottom of the baffle 3 is located between the mattress 2 and the first board body, and a Velcro is also set on the first board body and the bottom of the baffle 3, so that the The baffle 3 is limited, and the bottom of the baffle 3 can also be pressed when the patient's head and upper body lie on the mattress 2, so as to ensure that the baffle 3 will not be displaced at will, and it is also convenient to disassemble the baffle 3 Down, the top side of the mattress 2 is respectively connected with the head loop 4 and the neck support 5 through the Velcro. The head loop 4 and the neck support 5 can be removed through the Velcro, and at the same time, it is convenient to move the position of the head loop 4 and the neck support 5. An L-shaped vertical plate 9 is fixedly connected to the bottom of one side of the baffle 3, and a fixing mechanism 6 is arranged above the top of the mattress 2. The fixing mechanism 6 includes a mounting plate 601, and a support rod 602 is arranged below the mounting plate 601. The bottom of the support rod 602 An arc-shaped positioning block 603 is fixedly connected to the end, and an arc-shaped silicone pad 604 is fixedly connected to the bottom of the positioning block 603 .

The positioning assembly 607 includes a U-shaped plate 6071 slidably connected to the top of the vertical plate 9 , and a cross bar fixedly connected to the mounting plate 601 is fixedly connected to the top of one side of the U-shaped plate 6071 .

A fixing box 6072 is fixedly connected to the bottom of one side of the U-shaped plate 6071. The four corners of the inner wall of the fixing box 6072 are fixedly connected with fixing rods 6073. The fixing box 6072 is provided with a sliding plate 6074 which is slidably sleeved on the outer surface of the fixing rod 6073. A insertion rod 6076 is fixedly connected through one side of the 6074.

The four corners of the inner wall of the fixing box 6072 are fixedly connected with first springs 6075 sleeved on the outer surface of the fixing rod 6073 and fixedly connected with one side of the sliding plate 6074 .

The other side of the inner wall of the fixing box 6072 is fixedly connected with a second spring 6077 sleeved on the outer surface of the insertion rod 6076 and fixedly connected to the other side of the slide plate 6074, and one end of the insertion rod 6076 is fixedly connected with a handle.

Both sides of the U-shaped plate 6071 are provided with first insertion holes, one side of the vertical plate 9 is formed with an equidistant linear array and a plurality of second insertion holes are formed therethrough, and the other end of the insertion rod 6076 is located between the first insertion holes and the second insertion holes Inside, the two ends of the insertion rod 6076 penetrate through the two sides of the fixing box 6072 respectively and are slidably connected with it.

When the handle is pulled, it can drive the insertion rod 6076 to move, and the movement of the insertion rod 6076 can drive the slide plate 6074 to move along the direction of the fixed rod 6073 and pull the first spring 6075. At this time, the movement of the slide plate 6074 can squeeze the second spring 6077. The rod 6076 moves out from the first jack and the second jack. At this time, the handle is moved upward, and the handle can move through the insertion rod 6076 to drive the fixed box 6072 to move, and the fixed box 6072 can move with the U-shaped plate 6071 along the vertical plate 9 Move in the direction until the U-shaped plate 6071 is separated from the vertical plate 9. When the U-shaped plate 6071 is separated from the vertical plate 9, the U-shaped plate 6071 can drive the horizontal bar and the mounting plate 601 to move to the top of the vertical plate 9. Therefore, the entire fixing mechanism 6 can be removed, thereby facilitating the patient to place the head on the headband 4 and the neck brace 5 .

A U-shaped adjusting plate 7 is fixedly connected at the middle position of the bottom of the mounting plate 601 . The top of the adjusting plate 7 is slidably connected with a return frame 8 , and the bottom of the return frame 8 is fixedly connected to the top of the support rod 602 . A threaded groove, the top of the return frame 8 is threadedly connected with a threaded rod located in the threaded groove, the bottom of the baffle 3 is fixedly connected with a clamping member 10, and the clamping member 10 includes a U-shaped clip that is fixedly connected to the bottom of the baffle 3 Holding the plate, the inner wall of the top of the clamping plate is in contact with the top of the first plate body, the bottom of the clamping plate is threadedly connected with a clamping screw, and the top of the screw is fixedly connected with a clamping block, which is made of rubber. The clamping block is raised to abut against the bottom of the first plate body, thereby further improving the stability of the baffle 3 .

By unscrewing the threaded rod, the return frame 8 can be moved, and the movement of the return frame 8 can drive the support rod 602 and the positioning block 603 to move, so that the positioning block 603 can move back and forth. The rod is screwed into the threaded groove, so that the return frame 8 and the adjustment plate 7 are connected by the threaded rod, thereby facilitating the adjustment of the position of the positioning block 603 for different patients.

Working principle: when the handle is pulled, it can drive the insertion rod 6076 to move, and the movement of the insertion rod 6076 can drive the slide plate 6074 to move along the direction of the fixed rod 6073 and pull the first spring 6075. At this time, the movement of the slide plate 6074 can squeeze the second spring 6077. When the insertion rod 6076 moves out from the first jack and the second jack, the handle is moved upward, the handle movement can drive the fixed box 6072 to move through the insertion rod 6076, and the fixed box 6072 can move with the U-shaped plate 6071 along the vertical direction. The direction of the plate 9 is moved until the U-shaped plate 6071 is separated from the vertical plate 9. When the U-shaped plate 6071 is separated from the vertical plate 9, the U-shaped plate 6071 can drive the cross bar and the mounting plate 601 to move to the vertical plate 9. At the top, the entire fixing mechanism 6 can be removed, so that the patient can place the head on the head ring 4 and the neck brace 5. After the patient's head and neck are placed, the U-shaped plate 6071 and the vertical plate 9 are placed together. Connect, and then move the handle downward, the handle can drive the insertion rod 6076 to move, the insertion rod 6076 can move the fixed box 6072 and the U-shaped plate 6071 to descend, the U-shaped plate 6071 can fall to drive the crossbar to fall, and the fall of the crossbar can drive the installation. The lowering of the plate 601, the lowering of the mounting plate 601 can drive the adjusting plate 7 and the return frame 8 to lower, the lowering of the return frame 8 can drive the support rod 602 to fall, the support rod 602 to fall can drive the positioning block 603 to fall, and the positioning block 603 to fall can drive the support The plate 605 and the silicone cushion block 604 are lowered. When the silicone cushion block 604 is lowered to be in contact with the patient's forehead, the mounting plate 601 stops falling through the positioning assembly 607, and then the air bag 606 is connected to the air bag 606 through the external air source. Inflate the airbag 606 so that the airbag 606 expands and abuts on both sides of the patient's head, and then stops inflating the airbag 606. At this time, the medical staff does not need to hold the patient's head and neck all the time to ensure that the patient's head does not swing.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (8)

1. A head and neck fixator in a reverse shoulder replacement surgery comprises a surgery chair (1) and is characterized in that, one side of the top of the operation chair (1) is connected with a mattress (2) through a first plate body, the two sides of the mattress (2) are both provided with a baffle (3), one side of the top of the mattress (2) is respectively connected with a head ring (4) and a neck support (5) through magic tapes, the bottom of one side of the baffle (3) is fixedly connected with an L-shaped vertical plate (9), a fixing mechanism (6) is arranged above the top of the mattress (2), the fixing mechanism (6) comprises a mounting plate (601), a support rod (602) is arranged below the mounting plate (601), the bottom end of the support rod (602) is fixedly connected with an arc-shaped positioning block (603), the bottom of the positioning block (603) is fixedly connected with an arc-shaped silica gel cushion block (604), and positioning components (607) connected with the vertical plate (9) are arranged on two sides of the mounting plate (601).

2. The head and neck fixator in the reverse shoulder replacement surgery according to claim 1, wherein supporting plates (605) are fixedly connected to both sides of the positioning block (603), and air bags (606) are fixedly connected to one side of the supporting plates (605).

3. The head and neck fixator in reverse shoulder replacement surgery according to claim 1, wherein the positioning component (607) comprises a U-shaped plate (6071) connected with the top of the vertical plate (9) in a sliding manner, and a cross rod fixedly connected with the mounting plate (601) is fixedly connected with the top of one side of the U-shaped plate (6071).

4. The head and neck fixator in reverse shoulder replacement surgery according to claim 3, wherein a fixing box (6072) is fixedly connected to the bottom of one side of the U-shaped plate (6071), fixing rods (6073) are fixedly connected to four corners of one side of the inner wall of the fixing box (6072), a sliding plate (6074) which is sleeved on the outer surface of each fixing rod (6073) in a sliding manner is arranged in the fixing box (6072), and an inserting rod (6076) penetrates through and is fixedly connected to one side of the sliding plate (6074).

5. The head and neck fixator in the reverse shoulder replacement surgery according to claim 4, wherein four corners of one side of an inner wall of the fixing box (6072) are fixedly connected with first springs (6075) which are sleeved on the outer surface of the fixing rod (6073) and fixedly connected with one side of the sliding plate (6074).

6. The head and neck fixator in the reverse shoulder replacement surgery according to claim 5, wherein a second spring (6077) sleeved on the outer surface of the insert rod (6076) and fixedly connected with the other side of the sliding plate (6074) is fixedly connected to the other side of the inner wall of the fixing box (6072), and a handle is fixedly connected to one end of the insert rod (6076).

7. The head and neck fixator in the reverse shoulder replacement surgery according to claim 4, wherein a first jack is formed through both sides of the U-shaped plate (6071), a plurality of second jacks are formed through one side of the vertical plate (9) in an equidistant linear array, the other end of the insert rod (6076) is located in the first jack and the second jack, and both ends of the insert rod (6076) respectively penetrate through both sides of the fixing box (6072) and are in sliding connection with the fixing box.

8. The head and neck fixator in the reverse shoulder replacement surgery according to claim 1, wherein a U-shaped adjusting plate (7) is fixedly connected to a middle position of the bottom of the mounting plate (601), a shape-returning frame (8) is slidably connected to the top of the adjusting plate (7), the bottom of the shape-returning frame (8) is fixedly connected to the top end of the supporting rod (602), a plurality of thread grooves are formed in the top of the adjusting plate (7), a threaded rod located in the thread grooves is in threaded connection to the top of the shape-returning frame (8), and a clamping piece (10) is fixedly connected to the bottom of the baffle plate (3).
