CN217277960U

CN217277960U - Intelligence thing allies oneself with tool to lock parameter and issues test fixture

Info

Publication number: CN217277960U
Application number: CN202220200575.8U
Authority: CN
Inventors: 周劲鹰
Original assignee: Shengjiuderui Intelligent Technology Jiangsu Co Ltd
Current assignee: Shengjiuderui Intelligent Technology Jiangsu Co Ltd
Priority date: 2022-01-25
Filing date: 2022-01-25
Publication date: 2022-08-23
Anticipated expiration: 2032-01-25

Abstract

The utility model discloses a test tool for issuing parameters of an intelligent object interlock, which relates to the technical field of manufacturing of intelligent locks. In order to solve the problem that when testing the chips in the existing intelligent locks, it is often necessary to manually perform testing and screening one by one. The efficiency is not high, and working for a long time will also affect the operation accuracy of the staff and reduce the accuracy of test screening. The upper end of the operation box is provided with an operation table, and the operation table is fixedly connected with the operation box, the middle part of the operation table is provided with a transmission rotating rod, the upper end of the transmission rotating rod is provided with a connecting block, and the connecting block is fixedly connected with the transmission rotating rod , the outer wall array of the connecting block is provided with a connecting rod, and the connecting rod is fixedly connected with the connecting block, the other end of the connecting rod is provided with a supporting plate, and the supporting plate is fixedly connected with the connecting rod, and the middle part of the upper end of the supporting plate is provided with a sliding plate A splint is slidably connected to both ends of the chute.

Description

Intelligence thing allies oneself with tool to lock parameter and issues test fixture

Technical Field

The utility model relates to an intelligence tool to lock makes technical field, specifically is a test fixture is issued to intelligence thing allies oneself with tool to lock parameter.

Background

The internet of things is a lock which is improved on the basis of being different from a traditional mechanical lock, is more intelligent and simple in the aspects of user safety, identification and managerial performance, and is an execution part of a lock door in an access control system, and the intelligent lock door comprises a lock body, a chip and a fingerprint identification structure.

However, when testing the chip in the existing intelligent lockset, the chip is often required to be manually tested and screened, the working efficiency is not high, the operation accuracy of workers can be influenced by long-time work, the test screening accuracy is reduced, and therefore the market urgently needs to develop an intelligent internet of things lockset parameter issuing test tool to help people solve the existing problem.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a test fixture is issued to intelligence thing allies oneself with tool to lock parameter to when solving the current chip to in the intelligent tool to lock that proposes among the above-mentioned background art and testing, often need artifical one to test the examination, work efficiency is not high, long-time work also can influence staff's operation precision, has reduced the problem of the precision of test examination.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a test fixture is issued to intelligence thing allies oneself with tool to lock parameter, includes the control box, the control box upper end is provided with the operation panel, and operation panel and control box fixed connection, the operation panel middle part is provided with the transmission bull stick, transmission bull stick upper end is provided with the connecting block, and connecting block and transmission bull stick fixed connection, connecting block outer wall array is provided with the connecting rod, and connecting rod and connecting block fixed connection, the connecting rod other end is provided with the backup pad, and backup pad and connecting rod fixed connection, the spout has been seted up at backup pad upper end middle part, spout both ends sliding connection has splint, operation panel one side is fixed with the curb plate, the curb plate upper end is fixed with the roof, the visual detection camera is installed to the roof lower extreme, visual detection camera electric connection has external computer.

Preferably, the transmission rotating rod longitudinally penetrates through the operating platform, and the transmission rotating rod is rotatably connected with the operating platform through a bearing.

Preferably, the lower end of the transmission rotating rod is connected with four-corner driven gears through key slots, the inner wall of the operating box is provided with a driving motor, the output end of the driving motor is connected with four-corner driving gears through key slots, and the four-corner driving gears are meshed with the four-corner driven gears.

Preferably, the annular slide has been seted up to the operation panel upper end, the inside array of annular slide is provided with trapezoidal slider, and trapezoidal slider and annular slide sliding connection, trapezoidal slider upper end and backup pad bottom fixed connection.

Preferably, both ends are provided with the swivel mount around the backup pad top opposite side, and swivel mount and backup pad fixed connection, two be provided with positive and negative lead screw between the swivel mount, and positive and negative lead screw rotates with the swivel mount to be connected, bearing thread bush has been cup jointed at positive and negative lead screw both ends, and bearing thread bush passes through the thread engagement with positive and negative lead screw and is connected, bearing thread bush outer wall one side is fixed with the horizontal pole, the horizontal pole other end and splint fixed connection.

Preferably, the driving plate is sleeved in the middle of the positive and negative screw rods and is fixedly connected with the positive and negative screw rods.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses an in, through setting up the backup pad, splint, transmission bull stick and visual detection camera, the backup pad can be used to support the chip of waiting to detect the intelligent tool to lock, the splint of setting can carry out the centre gripping to the chip, the array can be under the drive of transmission bull stick at connecting block four backup pads all around, the detection range of visual detection camera is entered into to the primary, can examine time measuring at the chip of visual detection camera in one of them backup pad, it changes to the chip with having detected to provide sufficient time for the operator, carry out reasonable distribution with whole testing process required time, reuse visual detection camera detects the outward appearance of chip, its precision is higher than artifical the detection, consequently, can optimize and innovate the detection flow of chip on time division and detection precision.

2. The utility model discloses an in, through setting up positive and negative lead screw and bearing thread cover, positive and negative lead screw and bearing thread cover's collocation can be adjusted the position between two splint, drives positive and negative lead screw through stirring the driver plate and rotates, and bearing thread cover drives two splint through intermeshing with positive and negative lead screw and rotation and is close to each other or keep away from, both can guarantee that splint have sufficient clamping action to the chip, also can avoid the excessive centre gripping of splint to the chip.

Drawings

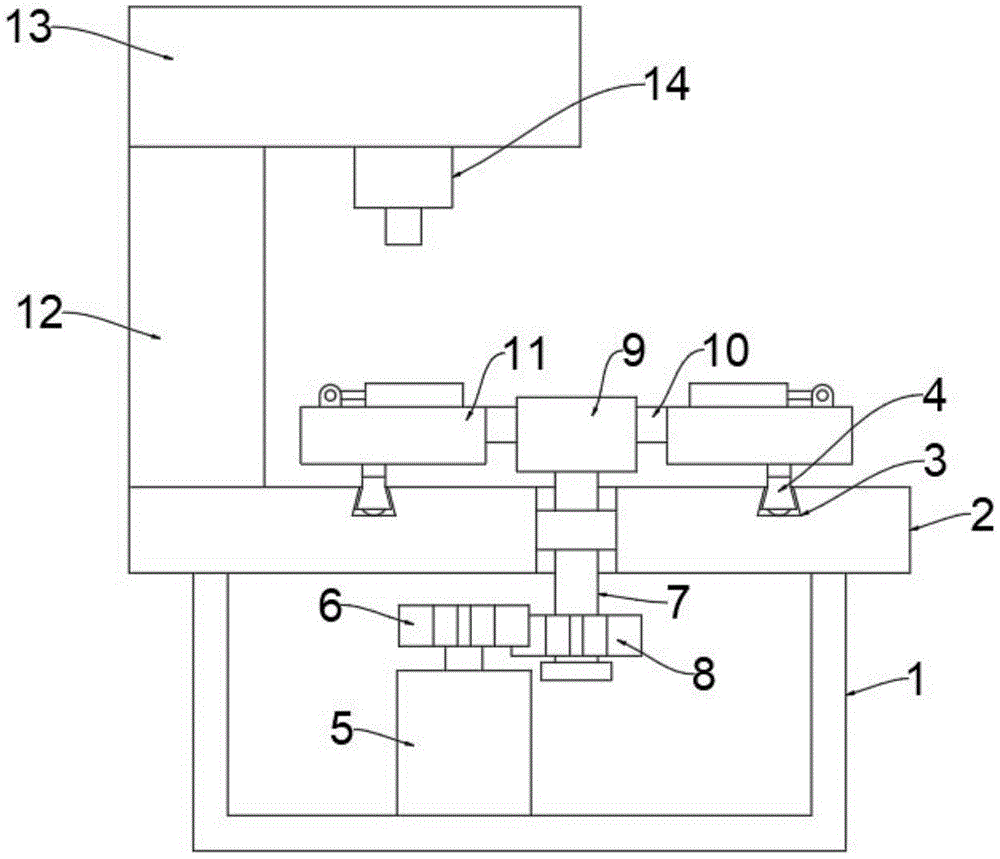

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a cross-sectional top view of the present invention;

fig. 3 is a perspective view of the connection relationship of the support plates of the present invention.

In the figure: 1. an operation box; 2. an operation table; 3. an annular chute; 4. a trapezoidal slider; 5. a drive motor; 6. driving gears at four corners; 7. a transmission rotating rod; 8. four-corner driven gears; 9. connecting blocks; 10. a connecting rod; 11. a support plate; 12. a side plate; 13. a top plate; 14. a visual inspection camera; 15. a chute; 16. a splint; 17. a cross bar; 18. rotating; 19. a positive and negative screw rod; 20. a bearing thread bushing; 21. a dial.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, the present invention provides an embodiment: the utility model provides a test fixture is issued to intelligence thing allies oneself with tool to lock parameter, including control box 1, control box 1 upper end is provided with operation panel 2, and operation panel 2 and control box 1 fixed connection, operation panel 2 middle part is provided with transmission bull stick 7, transmission bull stick 7 upper end is provided with connecting block 9, and connecting block 9 and transmission bull stick 7 fixed connection, connecting block 9 outer wall array is provided with connecting rod 10, and connecting rod 10 and connecting block 9 fixed connection, the connecting rod 10 other end is provided with backup pad 11, and backup pad 11 and connecting rod 10 fixed connection, spout 15 has been seted up at backup pad 11 upper end middle part, spout 15 both ends sliding connection has splint 16, operation panel 2 one side is fixed with curb plate 12, curb plate 12 upper end is fixed with roof 13, visual detection camera 14 is installed to roof 13 lower extreme, visual detection camera 14 electric connection has external computer, through setting up backup pad 11, Splint 16, transmission bull stick 7 and visual detection camera 14, backup pad 11 can be used to support the chip of waiting to detect the intelligent tool to lock, the splint 16 that sets up can carry out the centre gripping to the chip, the array can be under the drive of transmission bull stick 7 at connecting block 9 four backup pads 11 all around, enter into the detection range of visual detection camera 14 the primary and secondary, can examine time measuring at the chip of visual detection camera on one of them backup pad 11, it changes with the chip that detects to provide sufficient time for the operator, carry out reasonable distribution with whole testing process required time, reuse visual detection camera 14 detects the outward appearance of chip, its precision is higher than artifical the detection, consequently, can optimize and innovate the detection flow of chip on time division and detection precision.

Furthermore, rotary bases 18 are arranged at the front end and the rear end of the other side of the top of the supporting plate 11, the rotary bases 18 are fixedly connected with the supporting plate 11, positive and negative screw rods 19 are arranged between the two rotary bases 18, the positive and negative screw rods 19 are rotatably connected with the rotary bases 18, bearing thread sleeves 20 are sleeved at the two ends of the positive and negative screw rods 19, the bearing thread sleeves 20 are connected with the positive and negative screw rods 19 through thread meshing, a cross rod 17 is fixed at one side of the outer wall of each bearing thread sleeve 20, the other end of the cross rod 17 is fixedly connected with the clamping plates 16, a drive plate 21 is sleeved in the middle of the positive and negative screw rods 19, the drive plate 21 is fixedly connected with the positive and negative screw rods 19, the matching of the positive and negative screw rods 19 and the bearing thread sleeves 20 can adjust the position between the two clamping plates 16 through stirring the drive plate 21 to drive the positive and negative screw rods 19 to rotate, the bearing thread sleeves 20 drive the two clamping plates 16 to approach or separate from each other through mutual meshing and rotation with the positive and the negative screw rods 19, both a sufficient clamping action of the clamping plate 16 on the chip is ensured and an excessive clamping of the chip by the clamping plate 16 is avoided.

The working principle is as follows: when the device is used, a worker firstly places a chip in an intelligent lock to be detected on the supporting plate 11, then dials 21 to drive the positive and negative screw rods 19 to rotate, the bearing threaded sleeve 20 drives the two clamping plates 16 to approach each other through the mutual meshing and the rotation with the positive and negative screw rods 19, the clamping plates 16 are utilized to clamp the chip, when the clamping plates 16 move, the sliding grooves 15 play a role in guiding, the cross rods 17 can play a role in connecting the clamping plates 16 with the bearing threaded sleeve 20 and also play a role in limiting the bearing threaded sleeve 20, so that the internal structure of the bearing threaded sleeve 20 is meshed with the positive and negative screw rods 19 through threads, the external structure and the internal structure rotate relatively, the smooth movement of the bearing threaded sleeve 20 is ensured, the periphery of the connecting block 9 is connected with the four supporting plates 11 through the connecting rods 10, when the output end of the driving motor 5 drives the four-corner driving gear 6 to rotate, four corners driving gear 6 drives transmission bull stick 7 through the intermeshing with four corners driven gear 8 and rotates, every another angle intermeshing of changing a angle and four corners driven gear 8 of four corners driving gear 6, then backup pad 11 of visual detection camera 14 below changes one, thereby make the change of backup pad 11 can initiatively cross the operating time of cooperation visual detection camera 14 and change, can also provide sufficient time for the operator and change the chip with detecting, carry out reasonable distribution with whole testing process required time, and utilize visual detection camera 14 to detect the outward appearance of chip, its precision is higher than manual detection, consequently, can optimize and innovate the detection flow of chip on time division and detection precision.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A test tool for issuing parameters of an intelligent interlocking tool, comprising an operation box (1), characterized in that: the upper end of the operation box (1) is provided with an operation table (2), and the operation table (2) and the operation box are provided with an operation table (2). (1) Fixed connection, the middle of the operating table (2) is provided with a transmission lever (7), the upper end of the transmission lever (7) is provided with a connection block (9), and the connection block (9) and the transmission lever (7) Fixed connection, the outer wall array of the connection block (9) is provided with a connection rod (10), and the connection rod (10) is fixedly connected with the connection block (9), and the other end of the connection rod (10) is provided with a support A plate (11), and the support plate (11) is fixedly connected with the connecting rod (10), a chute (15) is provided in the middle of the upper end of the support plate (11), and a splint is slidably connected to both ends of the chute (15). (16), a side plate (12) is fixed on one side of the operating table (2), a top plate (13) is fixed on the upper end of the side plate (12), and a visual inspection camera (14) is installed on the lower end of the top plate (13). ), the visual inspection camera (14) is electrically connected with an external computer.

2. A smart object interlocking tool parameter issuing test tool according to claim 1, characterized in that: the transmission lever (7) runs through the operating table (2) longitudinally, and the transmission lever (7) is connected to the operation table (2). The stage (2) is rotatably connected by bearings.

3. A kind of intelligent object interlock parameter issuing test tool according to claim 1, characterized in that: the lower end of the transmission lever (7) is connected with a four-corner driven gear (8) through a keyway, and the operation box (1) A drive motor (5) is installed on the inner wall, the output end of the drive motor (5) is connected with a four-corner driving gear (6) through a keyway, and the four-corner driving gear (6) and the four-corner driven gear (8) are meshed with each other. .

4. A test tool for issuing parameters of an intelligent object interlock according to claim 1, characterized in that: an annular slideway (3) is provided on the upper end of the operating table (2), and the annular slideway (3) The inner array is provided with a trapezoidal slider (4), the trapezoidal slider (4) is slidably connected with the annular slideway (3), and the upper end of the trapezoidal slider (4) is fixedly connected with the bottom of the support plate (11).

5. A smart object interlocking tool parameter distribution test tool according to claim 1, characterized in that: the front and rear ends of the other side of the top of the support plate (11) are provided with a turntable (18), and the turntable is provided with a turntable (18). (18) is fixedly connected with the support plate (11), the front and back screw rods (19) are arranged between the two turntables (18), and the front and back screw rods (19) are rotatably connected with the turntable (18), Both ends of the front and back screw rods (19) are sleeved with bearing threaded sleeves (20), and the bearing threaded sleeves (20) are connected with the front and back screw rods (19) through threaded engagement, and the outer wall of the bearing threaded sleeves (20) A transverse rod (17) is fixed on one side, and the other end of the transverse rod (17) is fixedly connected with the splint (16).

6. A smart object interlocking tool parameter delivery test tool according to claim 5, characterized in that: a dial (21) is sleeved in the middle of the front and back screw rods (19), and the dial (21) It is fixedly connected with the positive and negative screw rods (19).
