CN217263970U

CN217263970U - Fiber silk thread winding drum

Info

Publication number: CN217263970U
Application number: CN202123397366.1U
Authority: CN
Inventors: 徐仁荣
Original assignee: Yancheng Zhongming New Material Co ltd
Current assignee: Yancheng Zhongming New Material Co ltd
Priority date: 2021-12-30
Filing date: 2021-12-30
Publication date: 2022-08-23
Anticipated expiration: 2031-12-30

Abstract

The utility model discloses a fiber yarn reel, which relates to the technical field of fiber yarn winding. In order to solve the problem that the existing reel has a single structure and does not have a dustproof mechanism that can be reused, both practicability and functionality need to be improved . The outer surface of the winding roller is sleeved with a plurality of partition plates, the outer surface of the partition plate is provided with grooves, and the symmetrical ends of the winding roller are respectively fixed with a limit baffle. , the side surface of the limit baffle is integrally connected with buckle fixing ears, and a dust-proof curtain winding shell is buckled between the two buckle fixing ears, and the dust-proof curtain winding shell is There is a dust-proof curtain reeled inside the dust-proof curtain, a fixed shaft runs through the central axis of the dust-proof curtain rewinding shell, the fixed shaft is fixedly connected with the dust-proof curtain reeling shell, and the outer sleeve of the fixed shaft is Attached to the inner reel.

Description

Fiber silk thread winding drum

Technical Field

The utility model relates to a fibre silk thread rolling technical field specifically is a fibre silk thread reel.

Background

The fiber silk thread is a filamentous fiber, and the fiber silk thread can be used for sewing flexible articles, weaving fiber products and the like, so that the market demand is large, a factory needs to perform various process operations including drawing, winding and the like when producing the fiber silk thread, and a winding drum is needed when winding.

The existing winding drum has a single structure, does not have a dustproof mechanism which can be repeatedly used, and needs to be improved in practicability and functionality; therefore, the market is urgently needed to develop a fiber silk thread winding drum to help people to solve the existing problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a fiber silk thread reel to current reel single structure in solving above-mentioned background art does not possess ability used repeatedly's dustproof mechanism, and practicality and functionality all remain the problem that improves.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a fiber silk thread reel, includes the winding roller, a plurality of division boards have been cup jointed on the surface of winding roller, be provided with the recess on the surface of division board, limit baffle of fixedly connected with is distinguished at the symmetry both ends of winding roller, an organic whole is connected with the fixed ear of buckle on limit baffle's the side surface, two dustproof curtain rolling casing is installed to the buckle between the fixed ear of buckle, the inside rolling of dustproof curtain rolling casing has dustproof curtain.

Preferably, a fixed shaft penetrates through the middle shaft of the dustproof curtain rolling shell, and the fixed shaft is fixedly connected with the dustproof curtain rolling shell.

Preferably, an inner winding drum is sleeved outside the fixed shaft, the inner winding drum is located inside the dustproof curtain winding shell, a torsion spring is sleeved outside the fixed shaft, one end of the torsion spring is fixedly connected to the side surface of the fixed shaft, and the other end of the torsion spring is fixedly connected to the inner wall of the inner winding drum.

Preferably, one side edge of the dustproof curtain is adhered to the side surface of the inner winding drum, and the other side edge of the dustproof curtain is buckled with a limiting hanging rod.

Preferably, a mounting through hole is formed in the middle shaft of the winding roller, and two limiting strips are integrally connected to the inner wall of the mounting through hole.

Preferably, a through hole is formed in the middle shaft of the limiting baffle and corresponds to the through hole in the middle shaft of the winding roller.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model has the advantages that a plurality of division plates are sleeved on the outer surface of the winding roller, grooves are arranged on the outer surface of the division plates, two symmetrical ends of the winding roller are respectively and fixedly connected with a limit baffle, the side surface of the limit baffle is integrally connected with the buckle fixing lugs, the dustproof curtain winding shell is arranged between the two buckle fixing lugs in a buckling way, the dustproof curtain winding shell is wound inside, the dustproof curtain can be used for separating fiber silk threads wound on the outer surface of the winding roller by utilizing the division plates, meanwhile, the fiber silk threads inside two adjacent separation areas are buckled in the grooves on the outer surface of the division plates, and further, when one end of the fiber silk thread wound outside the winding roller is loosened, the fiber silk threads on the whole winding roller are all loosened, the loosening condition in a large range can be effectively avoided, and the practicability of the winding roller is effectively improved, simultaneously the inside dustproof shade of dustproof shade rolling casing can be pulled out and the parcel is outside at this winding fibre silk thread, carries out effectual dustproof operation to and the installation is dismantled with the fixed ear of buckle to dustproof shade rolling casing can be convenient, can replace traditional disposable packing when the simple operation, and the environmental protection coefficient is high.

Drawings

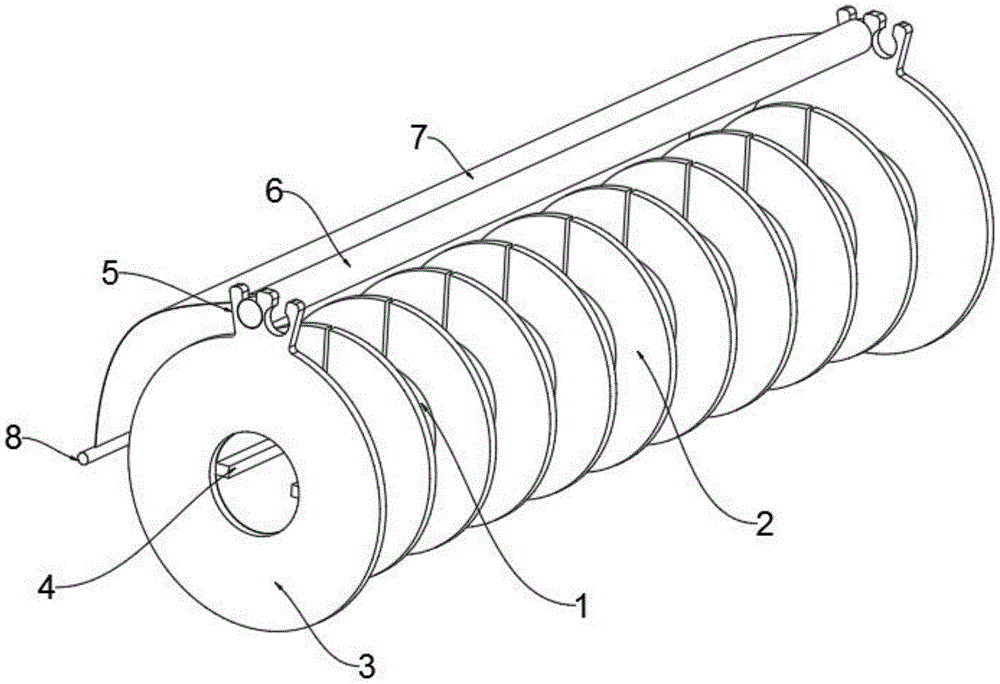

Fig. 1 is an overall schematic view of the present invention;

FIG. 2 is a front view of the present invention;

fig. 3 is the internal structure diagram of the dust-proof curtain rolling shell of the utility model.

In the figure: 1. winding the roller; 2. a partition plate; 3. a limiting baffle; 4. a limiting strip; 5. the lug is fixed by a buckle; 6. the dustproof curtain rolling shell; 7. a dust curtain; 8. a limiting hanging rod; 9. an inner drum; 10. a torsion spring; 11. and fixing the shaft.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, the present invention provides an embodiment: a fiber silk thread winding drum comprises a winding drum 1, wherein a plurality of partition plates 2 are sleeved on the outer surface of the winding drum 1, grooves are formed in the outer surface of each partition plate 2, two symmetrical ends of the winding drum 1 are fixedly connected with a limit baffle 3 respectively, the side surface of each limit baffle 3 is integrally connected with a buckle fixing lug 5, a dustproof curtain winding shell 6 is installed between the two buckle fixing lugs 5 in a buckling mode, a dustproof curtain 7 is wound in the dustproof curtain winding shell 6, the fiber silk threads wound on the outer surface of the winding drum 1 can be separated by the aid of the plurality of partition plates 2, the fiber silk threads in two adjacent separation areas are buckled in the grooves in the outer surface of the partition plates 2, and therefore the situation that the fiber silk threads on the whole winding drum are loosened when one end of the fiber silk threads wound outside the winding drum is loosened can be effectively avoided, can effectually avoid appearing loose condition on a large scale, the effectual practicality that improves this reel, dustproof curtain 7 inside dustproof curtain rolling casing 6 can pull out and wrap up in this winding fibre silk thread outside simultaneously, carries out effectual dustproof operation to and the installation is dismantled with fixed ear 5 of buckle to dustproof curtain rolling casing 6 can be convenient, can replace traditional disposable packing when the simple operation, and the environmental protection coefficient is high.

Further, fixed axle 11 has been run through to the axis position department of dustproof curtain rolling casing 6, fixed axle 11 and dustproof curtain rolling casing 6 fixed connection, interior reel 9 has been cup jointed to the outside of fixed axle 11, interior reel 9 is located the inside of dustproof curtain rolling casing 6, torque spring 10 has been cup jointed to the outside of fixed axle 11, torque spring 10's one end fixed connection is on the side surface of fixed axle 11, torque spring 10's the other end fixed connection is on the inner wall of interior reel 9, the side of dustproof curtain 7 is on the side surface of interior reel 9 of side adhesion, spacing peg 8 is installed to the opposite side buckle of dustproof curtain 7.

Furthermore, a mounting through hole is formed in the middle shaft position of the winding roller 1, two limiting strips 4 are integrally connected to the inner wall of the mounting through hole, and a through hole is formed in the middle shaft position of the limiting baffle 3 and corresponds to the through hole in the middle shaft position of the winding roller 1.

The working principle is as follows: when the dustproof curtain winding device is used, the winding roller 1 is firstly sleeved on an external winding roller shaft, the winding roller 1 is driven to rotate by external winding equipment, fiber silk threads can be wound on the outer surface of the winding roller 1, the fiber silk threads are sequentially wound in adjacent partitioned areas when being wound, the fiber silk threads between the two adjacent partitioned areas are clamped in grooves on the outer surface of the partition plate 2, after the winding is finished, the fixing shaft 11 penetrating through the shaft position of the dustproof curtain winding shell 6 is clamped in clamping grooves on the outer surfaces of the two clamping fixing lugs 5, after the clamping is finished, the limiting hanging rod 8 is pulled, the torsion spring 10 is compressed at the moment, the dustproof curtain 7 wound on the outer surface of the inner winding drum 9 is released and further wrapped outside the fiber silk threads, after one circle of wrapping, the limiting hanging rod 8 is clamped in the clamping grooves on the outer surfaces of the clamping fixing lugs 5, when the dustproof curtain winding device is used, the limiting hanging rod 8 is moved out of the clamping groove, the compression amount of the torsion spring 10 is released, the inner winding drum 9 is further enabled to rotate, and the dustproof curtain 7 is wound into the dustproof curtain winding shell 6 again.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A fiber thread spool comprising a winding roller (1), characterized in that: the dustproof curtain winding device is characterized in that a plurality of partition plates (2) are sleeved on the outer surface of the winding roller (1), grooves are formed in the outer surface of the partition plates (2), two limiting baffle plates (3) are fixedly connected to two ends of the winding roller (1) respectively, buckle fixing lugs (5) are integrally connected to the side surfaces of the limiting baffle plates (3) respectively, a dustproof curtain winding shell (6) is installed between the buckle fixing lugs (5) in a buckling mode, and a dustproof curtain (7) is wound inside the dustproof curtain winding shell (6).

2. A spool of fiber yarn as claimed in claim 1, wherein: a fixed shaft (11) penetrates through the middle shaft of the dustproof curtain rolling shell (6), and the fixed shaft (11) is fixedly connected with the dustproof curtain rolling shell (6).

3. A spool of fiber yarn as claimed in claim 2 wherein: the utility model discloses a dustproof curtain winding device, including fixed axle (11), interior reel (9) have been cup jointed to the outside of fixed axle (11), interior reel (9) are located the inside of dustproof curtain rolling casing (6), torque spring (10) have been cup jointed to the outside of fixed axle (11), the one end fixed connection of torque spring (10) is on the side surface of fixed axle (11), the other end fixed connection of torque spring (10) is on the inner wall of interior reel (9).

4. A spool of fiber yarn as claimed in claim 3 wherein: one side edge of the dustproof curtain (7) is adhered to the side surface of the inner winding drum (9), and a limiting hanging rod (8) is installed on the other side edge of the dustproof curtain (7) in a buckled mode.

5. A spool of fiber yarn as claimed in claim 1 wherein: the middle shaft of the winding roller (1) is provided with a mounting through hole, and the inner wall of the mounting through hole is integrally connected with two limiting strips (4).

6. A spool of fiber yarn as claimed in claim 5, wherein: the middle shaft of the limiting baffle (3) is provided with a through hole corresponding to the through hole at the middle shaft of the winding roller (1).
