Abstract

The utility model relates to the field of drug winnowing, and discloses a cloth rolling device, which comprises a support seat and a cloth rolling roller. A first support plate and a second support plate are fixedly arranged on the top of the support seat, and the first support plate and the second support plate are arranged on the top. The top is contacted with a square frame, the side of the square frame is rotatably connected with a concentric shaft, the end of the concentric shaft is fixedly connected with the cloth rolling roller, the bottom of the square frame is provided with a T-shaped groove, and the first support plate and the support plate Both tops are fixed with a T-shaped frame that is clamped with the T-shaped groove, and side frames are fixed on the two sides of the support plate. The output shaft of the driving motor is fixedly provided with a rectangular block which is clamped with the rectangular groove, and a through groove is provided on the side of the second support plate and the side frame which are close to each other. The utility model has the following advantages and effects: the cloth winding roller can be easily and quickly removed and replaced.

Description

A cloth rolling device

technical field

The utility model relates to the technical field of drug winnowing, in particular to a cloth rolling device.

Background technique

Non-woven fabrics, also known as non-woven fabrics, needle-punched cotton, needle-punched non-woven fabrics, etc., are made of polyester fiber, polyester fiber (referred to as: PET) material, and are made by acupuncture process. hardness, etc.

In the prior art, non-woven fabrics need to be rolled and stored during the production process, and more non-woven fabrics are stored to save the floor space in the production process. The roller is fixed on the drive assembly by bolts. After the non-woven fabric in the cloth winding roller is full, it is not convenient to quickly remove the cloth winding roller to replace it. Therefore, it is necessary to design a method that can be easily and quickly removed. A cloth winding device that replaces the cloth winding roller.

Utility model content

The purpose of the utility model is to provide a cloth winding device, which has the effect of being able to easily and quickly remove the cloth winding roller to replace it.

The above technical purpose of the present utility model is achieved through the following technical solutions: including a support seat and a cloth rolling roller, the top of the support seat is fixedly provided with a supporting plate 1 and a supporting plate 2, and the tops of the supporting plate 1 and the supporting plate 2 are fixed Both are in contact with a square frame, the side of the square frame is rotatably connected with a concentric shaft, the end of the concentric shaft is fixedly connected with the cloth roll, the bottom of the square frame is provided with a T-shaped groove, and the first and second support plates The top is fixedly provided with a T-shaped frame that is clamped with the T-shaped groove, the two sides of the support plate are fixedly provided with a side frame, the side of the side frame is fixedly provided with a driving motor, and the end of the right concentric shaft is provided with a rectangular groove. , the output shaft of the drive motor is fixedly provided with a rectangular block that is clamped with the rectangular slot, the side of the second support plate and the side frame that are close to each other is provided with a through slot, and a transverse slot is fixed in the two through slots. The top of the horizontal plate is provided with a stabilizing hole, and a T-shaped abutting block which is in sliding contact with the side wall of the T-shaped groove is in sliding contact with the stabilizing hole, and a spring is welded between the T-shaped abutting block and the inner wall of the top of the through groove. , the bottom of the T-shaped abutting block is fixedly provided with a pull rod.

The utility model is further provided as follows: the bottom of the horizontal plate is provided with a tie rod hole, and the tie rod is slidably installed in the tie rod hole.

The utility model is further arranged as follows: the side surface of the right square frame is in contact with the side frame.

The utility model is further provided as follows: the pull rod is located in the through groove.

By adopting the above technical solution, the tie rod is hidden.

The utility model is further configured as follows: the first bearing is fixedly arranged in the square frame, and the concentric shaft is fixedly installed on the inner ring of the first bearing.

By adopting the above technical solution, the rotation of the concentric shaft is facilitated.

The utility model is further provided as follows: the second bearing is fixedly arranged in the side frame, and the output shaft of the driving motor is fixedly installed on the inner ring of the second bearing.

By adopting the above technical solution, the stability of the output shaft of the drive motor when rotating is improved.

The beneficial effects of the present utility model are:

1. The utility model can make the T-shaped abutment block stretch the spring and move out of the T-shaped groove by pulling down the pull rod through the provided tie rod, T-shaped block, horizontal plate, spring and T-shaped groove, and release the lateral direction of the box frame. limit;

2. The utility model pulls the cloth winding roller to the left by setting the cloth winding roller, the square frame, the concentric shaft, the rectangular block, the rectangular groove, the T-shaped frame and the T-shaped groove, so that the rectangular block is moved out of the rectangular groove, and the T-shaped The frame is released from the clamping of the T-slot, and then the cloth roll is pulled up, and the cloth roll is quickly removed and replaced.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some implementations of the present invention. For example, for those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort.

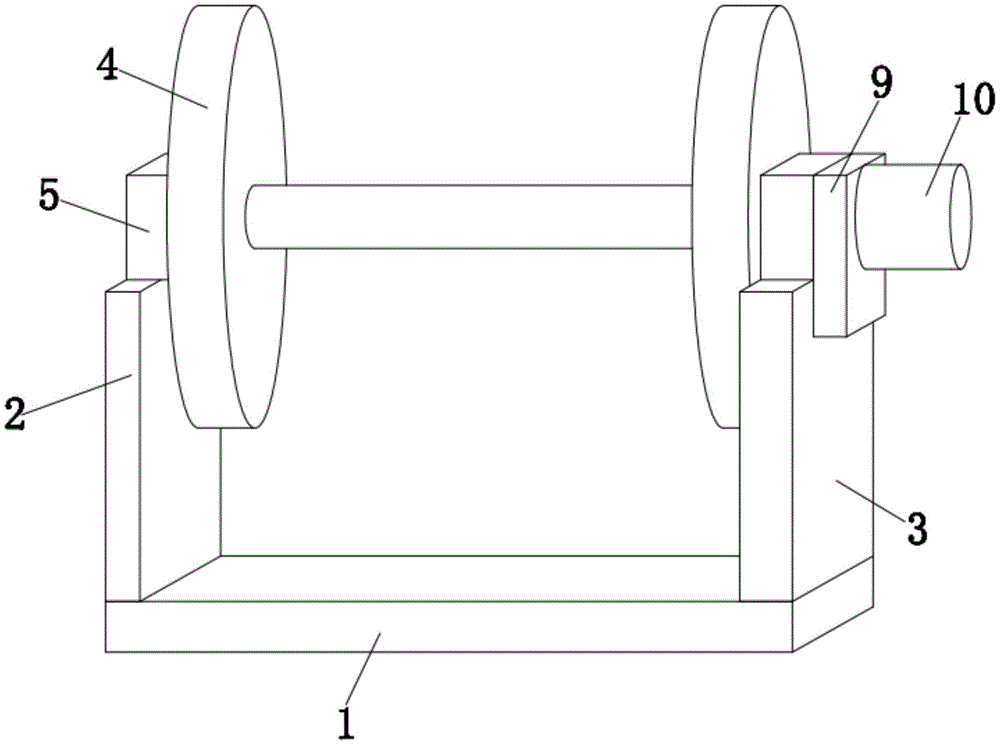

FIG. 1 is a schematic structural diagram of a cloth rolling device proposed by the present invention.

Fig. 2 is a schematic cross-sectional structure diagram of a cloth rolling device proposed by the present invention.

FIG. 3 is a schematic diagram of the structure of part A in FIG. 2 .

In the figure, 1, support base; 2, support plate one; 3, support plate two; 4, cloth rolling roller; 5, square frame; 6, concentric shaft; Side frame; 10. Drive motor; 11. Rectangular block; 12. Through slot; 13. Horizontal plate; 14. T-shaped block; 15. Spring; 16. Pull rod.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to specific embodiments. Obviously, the described embodiments are only some of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to Figure 1, Figure 2 and Figure 3, the present utility model provides a cloth rolling device, comprising a support base 1 and a cloth rolling roller 4, the top of the support base 1 is fixedly provided with a supporting plate 1 2 and a supporting plate 2 3, and a supporting plate 1 2 and the top of the support plate two 3 are all in contact with the square frame 5, the side of the square frame 5 is rotatably connected with a concentric shaft 6, the end of the concentric shaft 6 is fixedly connected with the cloth rolling roller 4, and the concentric shaft 6 can rotate synchronously with the cloth rolling roller 4, The bottom of the box frame 5 is provided with a T-shaped slot 7, the top of the support plate 1 2 and the support plate 2 3 are fixedly provided with a T-shaped frame 8 that is clamped with the T-shaped groove 7, and the side frame of the support plate 2 3 is fixedly provided with a side frame 9. , a drive motor 10 is fixedly arranged on the side of the side frame 9, a bearing 2 is fixed in the side frame 9, and the output shaft of the drive motor 10 is fixedly installed on the inner ring of the bearing 2, which is convenient for the rotation of the output shaft of the drive motor 10. The right concentric shaft The end of 6 is provided with a rectangular slot, and the output shaft of the drive motor 10 is fixedly provided with a rectangular block 11 that is clamped with the rectangular slot. Only need to start the drive motor 10, the concentric shaft 6 and the cloth winding roller 4 can be rotated, and the support The sides of the plate 2 3 and the side frame 9 that are close to each other are provided with through grooves 12, a transverse plate 13 is fixed in the two through grooves 12, and a stabilization hole is opened on the top of the transverse plate 13. The T-shaped abutment block 14 is in contact with the side wall of the groove 7. A spring 15 is welded between the T-shaped abutment block 14 and the inner wall of the top of the through slot 12. A pull rod 16 is fixed at the bottom of the T-shaped abutment block 14 to start the drive motor 10. The rectangular block 11 is stuck in the rectangular groove on the concentric shaft 6, which can make the concentric shaft 6 and the cloth rolling roller 4 rotate synchronously to complete the cloth rolling operation. The spring 15 is stretched so that the T-shaped block 14 moves down and out of the T-shaped groove 7, and then the cloth winding roller 4 is pulled to the left, so that the rectangular block 11 is moved out of the rectangular groove, and the T-shaped frame 8 is released from the T-shaped groove 7. Restriction, pull the cloth winding roller 4 upward at last, and the cloth winding roller 4 can be quickly removed for replacement.

Specifically, the side of the right square frame 5 is in contact with the side frame 9, which can limit the position of the square frame 5. The square frame 5 is fixedly provided with a bearing 1, and the concentric shaft 6 is fixedly installed on the inner ring of the bearing 1 to improve the concentricity. Stability of axis 6 rotation.

Specifically, the bottom of the horizontal plate 13 is provided with a tie rod hole, the tie rod 16 is slidably installed in the tie rod hole, and the tie rod 16 is located in the through groove 12, which improves the stability of the tie rod 16 during vertical movement, and can hide the tie rod 16.

The cloth rolling device provided by the present utility model has been described in detail above. The principles and implementations of the present utility model are described herein by using specific embodiments, and the descriptions of the above embodiments are only used to help understand the method and the core idea of the present utility model. It should be pointed out that for those of ordinary skill in the art, without departing from the principles of the present utility model, some improvements and modifications can also be made to the present utility model, and these improvements and modifications also fall into the protection of the claims of the present utility model. within the range.

Claims (6)

1. A cloth rolling device is characterized by comprising a supporting seat (1) and a cloth rolling roller (4), wherein a first supporting plate (2) and a second supporting plate (3) are fixedly arranged at the top of the supporting seat (1), square frames (5) are respectively contacted with the tops of the first supporting plate (2) and the second supporting plate (3), a concentric shaft (6) is rotatably connected to the side surfaces of the square frames (5), the end part of the concentric shaft (6) is fixedly connected with the cloth rolling roller (4), a T-shaped groove (7) is formed in the bottom of each square frame (5), T-shaped frames (8) clamped with the T-shaped grooves (7) are fixedly arranged at the tops of the first supporting plate (2) and the second supporting plate (3), a side frame (9) is fixedly arranged at the side surface of the second supporting plate (3), a driving motor (10) is fixedly arranged at the side surface of the side frame (9), a rectangular groove is formed in the end part of the right concentric shaft (6), a rectangular block (11) clamped with the rectangular groove is fixedly arranged on an output shaft of the driving motor (10), the supporting plate II (3) and the side frame (9) are close to each other, a through groove (12) is formed in one side, a transverse plate (13) is fixedly arranged in the two through grooves (12), a stable hole is formed in the top of the transverse plate (13), a T-shaped abutting block (14) which is in contact with the side wall of the T-shaped groove (7) is in sliding contact with the stable hole, a spring (15) is welded between the T-shaped abutting block (14) and the inner wall of the top of the through groove (12), and a pull rod (16) is fixedly arranged at the bottom of the T-shaped abutting block (14).

2. The cloth rolling device according to claim 1, characterized in that a pull rod hole is formed at the bottom of the transverse plate (13), and the pull rod (16) is slidably mounted in the pull rod hole.

3. A cloth winding device according to claim 1, characterized in that the right square frame (5) is in contact with the side frame (9) at its side.

4. A cloth rolling device according to claim 1, characterized in that the draw bar (16) is located in the through slot (12).

5. A cloth winding device according to claim 1, characterized in that a first bearing is fixedly arranged in the square frame (5), and the concentric shaft (6) is fixedly arranged at the inner ring of the first bearing.

6. The cloth rolling device according to claim 1, characterized in that a second bearing is fixedly arranged in the side frame (9), and an output shaft of the driving motor (10) is fixedly arranged at an inner ring of the second bearing.
