Abstract
本实用新型涉及覆膜机技术领域，且公开了一种用于家电包装底座覆膜机的下料机构，包括底座、导柱、顶板、气缸、固定板、柱套、连接柱、支撑柱、活动杆和真空吸盘；所述导柱设有两个且安装在底座的顶端，两个所述导柱的顶端与顶板连接，两个所述导柱之间安装有固定板，所述固定板上安装有气缸，且气缸的移动轴与连接柱连接。该用于家电包装底座覆膜机的下料机构，通过气缸调节连接柱的位置，使得连接柱带动柱套上的支撑柱上下调节，活动杆从支撑柱上伸出，使其上的真空吸盘吸附底座，并带动底座缩回，并在气缸的带动下，使得底座码在底座上，如此进行下料，工人只需将码好的底座转移即可，该下料机构操作方便，可代替人工。
The utility model relates to the technical field of laminating machines, and discloses a blanking mechanism for a laminating machine for a base of a home appliance packaging, comprising a base, a guide post, a top plate, an air cylinder, a fixing plate, a post sleeve, a connecting post, a supporting post, A movable rod and a vacuum suction cup; the guide posts are provided with two and are installed on the top of the base, the tops of the two guide posts are connected to the top plate, and a fixed plate is installed between the two guide posts, and the fixed plate A cylinder is installed on the cylinder, and the moving shaft of the cylinder is connected with the connecting column. The unloading mechanism of the laminating machine for the base of home appliance packaging adjusts the position of the connecting column through the air cylinder, so that the connecting column drives the supporting column on the column sleeve to adjust up and down, and the movable rod protrudes from the supporting column to make the vacuum suction cup on it. The base is adsorbed, and the base is retracted, and driven by the cylinder, the base is coded on the base. In this way, workers only need to transfer the coded base. The unloading mechanism is easy to operate and can replace manual work. .
Description
Technical Field
The utility model relates to a laminating machine technical field specifically is an unloading mechanism for household electrical appliances packing base laminating machine.
Background
Household electrical appliances base generally adopts foam to make, and foam is when packing, needs the laminating machine to pack it, utilizes the laminating machine to cover the film on foam, accomplishes the packing, but current laminating machine lacks unloading mechanism, consequently needs the manual work to collect it, in order to solve this problem, we have provided an unloading mechanism that is used for household electrical appliances packing base laminating machine.
SUMMERY OF THE UTILITY MODEL
Not enough to the above-mentioned that prior art exists, the utility model provides an unloading mechanism for household electrical appliances packing base laminating machine.
The utility model provides a following technical scheme: a blanking mechanism for a household appliance packaging base film laminating machine comprises a base, a guide pillar, a top plate, a cylinder, a fixing plate, a pillar sleeve, a connecting pillar, a supporting pillar, a movable rod and a vacuum chuck;
the utility model discloses a vacuum chuck, including base, guide pillar, spliced pole, fixed plate, cylinder, column cover, movable rod, stand column, movable rod, vacuum chuck, guide pillar, ejector pin, support column, guide pillar is equipped with two and installs on the top of base, two the top and the roof of guide pillar are connected, two install the fixed plate between the guide pillar, install the cylinder on the fixed plate, and the removal axle and the spliced pole of cylinder are connected, the column cover is all installed at the both ends of spliced pole, and the spliced pole passes through column cover and guide pillar sliding connection, the support column is equipped with two and installs respectively on two column covers, the inboard and the movable rod sliding connection of support column, and vacuum chuck installs on the movable rod.
Preferably, the top end of the cylinder is connected with the top plate.
Preferably, sharp module is installed to the medial surface of support column, and the movable rod is installed on the slip table of sharp module.
Preferably, the movable rod is provided with a hole for installing a vacuum chuck, and the vacuum chuck penetrates through the hole in the movable rod through a screw and is connected with the nut.
Compared with the prior art, the utility model discloses possess following beneficial effect:
this an unloading mechanism for household electrical appliances packing base laminating machine adjusts the position of spliced pole through the cylinder for the spliced pole drives the support column on the column jacket and adjusts from top to bottom, and the movable rod stretches out from the support column, makes the vacuum chuck absorption base on it, and drives the base withdrawal, and under the drive of cylinder, make the base sign indicating number on the base, so carry out the unloading, the workman only need with the good base shift can, this unloading mechanism convenient operation can replace the manual work.
Drawings

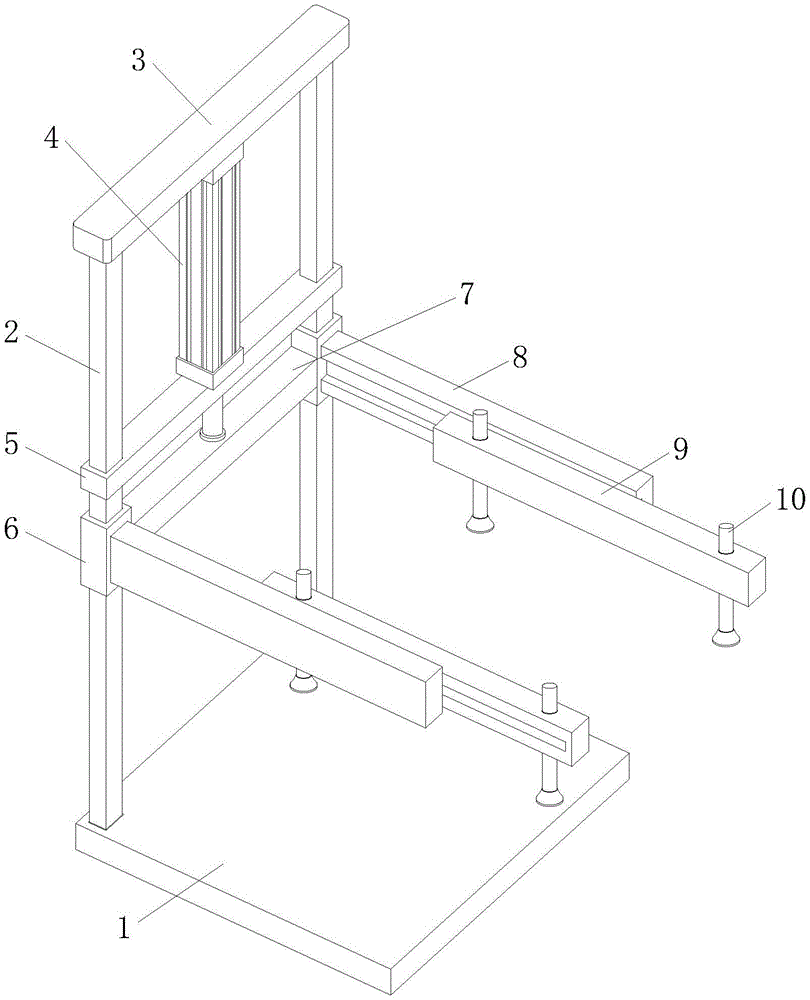

Fig. 1 is a schematic structural view of the present invention.
In the figure: 1. a base; 2. a guide post; 3. a top plate; 4. a cylinder; 5. a fixing plate; 6. a column sleeve; 7. connecting columns; 8. a support pillar; 9. a movable rod; 10. and (4) vacuum chuck.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present disclosure clearer, the technical solutions of the embodiments of the present disclosure will be clearly and completely described below with reference to the drawings of the embodiments of the present disclosure, and in order to keep the following description of the embodiments of the present disclosure clear and concise, a detailed description of known functions and known parts of the disclosure is omitted to avoid unnecessarily obscuring the concepts of the present disclosure.
Referring to fig. 1, a blanking mechanism for a film laminating machine for a base of a household appliance package comprises a base 1, a guide pillar 2, a top plate 3, a cylinder 4, a fixing plate 5, a pillar sleeve 6, a connecting pillar 7, a supporting pillar 8, a movable rod 9 and a vacuum chuck 10;
the two guide columns 2 are arranged on the top end of the base 1, the top ends of the two guide columns 2 are connected with the top plate 3, the fixing plate 5 is arranged between the two guide columns 2, the air cylinders 4 are arranged on the fixing plate 5, the moving shafts of the air cylinders 4 are connected with the connecting column 7, the two ends of the connecting column 7 are both provided with column sleeves 6, the connecting column 7 is in sliding connection with the guide columns 2 through the column sleeves 6, the two support columns 8 are arranged on the two column sleeves 6 respectively, the inner sides of the support columns 8 are in sliding connection with the movable rods, the vacuum chucks 10 are arranged on the movable rods 9, the positions of the connecting columns 7 are adjusted through the air cylinders 4, the connecting columns 7 drive the support columns 8 on the column sleeves 6 to be adjusted up and down, the movable rods 9 extend out of the support columns 8, the vacuum chucks 10 on the movable rods adsorb the bases and drive the bases to retract under the driving of the air cylinders 4, make the base sign indicating number on base 1, so carry out the unloading, the workman only need with the good base of sign indicating number shift can, this unloading mechanism convenient operation can replace the manual work.
The top end of the cylinder 4 is connected with the top plate 3, so that the position of the cylinder 4 is further stabilized.
Sharp module is installed to the medial surface of support column 8, and movable rod 9 installs on the slip table of sharp module, utilizes sharp module to drive movable rod 9 and removes on support column 8, so makes movable rod 9 flexible on support column 8.
The movable rod 9 is provided with a hole for installing the vacuum chuck 10, and the vacuum chuck 10 penetrates through the hole in the movable rod 9 through a screw rod and is connected with a nut, so that the vacuum chuck 10 is convenient to install.
The above embodiments are only exemplary embodiments of the present invention, and are not intended to limit the present invention, and the protection scope of the present invention is defined by the claims. Various modifications and equivalents of the invention can be made by those skilled in the art within the spirit and scope of the invention, and such modifications and equivalents should also be considered as falling within the scope of the invention.
