Abstract

The utility model discloses a PA66 nylon production equipment, which comprises a processing box, a feeding pipe is connected with the top of the processing box, a regulating box is fixedly connected to the top of the rear side of the feeding pipe, and the inner cavity of the regulating box is The top is fixedly connected with a first motor, and the output end of the first motor is fixedly connected with a threaded rod. The utility model adopts the processing box, the feeding pipe, the adjusting box, the first motor, the threaded rod, the threaded sleeve, the moving rod, the horizontal plate, the second motor, the stirring rod, the material storage shell, the electric push rod, the horizontal rod and the supporting plate. , The use of the third motor, cam, screening frame, screen mesh, connecting block, spring and strut has the advantage of good screening effect, which solves the poor screening effect of the existing screening equipment for PA66 nylon production. In addition, the agglomeration of nylon raw materials cannot be broken during the screening process, and the agglomeration of nylon raw materials will reduce the screening effect, thus failing to meet the actual use requirements.

Description

A PA66 nylon production equipment

technical field

The utility model relates to the technical field of PA66 nylon processing equipment, in particular to a PA66 nylon production equipment.

Background technique

PA66 nylon has a higher melting point in polyamide materials. It is a semi-crystalline-crystalline material. PA66 can maintain strong strength and stiffness at higher temperatures. PA66 plastic still has hygroscopicity after molding. It mainly depends on the composition of the material, wall thickness and environmental conditions. In product design, the influence of hygroscopicity on geometric stability must be considered. The viscosity of PA66 plastic is low, so the fluidity is very good (but not as good as PA6). This property It can be used to process very thin components. In the production and processing of PA66 nylon, screening equipment is required to screen nylon raw materials. However, the screening effect of the existing screening equipment for PA66 nylon production is poor, and it cannot be used in the production of PA66 nylon. In the process of screening, the agglomeration of nylon raw materials is broken, and the agglomeration of nylon raw materials will reduce the screening effect, so that it cannot meet the actual use requirements.

Utility model content

The purpose of the utility model is to provide a PA66 nylon production equipment, which has the advantages of good screening effect, and solves the problem that the screening effect of the existing screening equipment for PA66 nylon production is poor, and the screening process cannot The agglomeration of nylon raw materials is broken, and the agglomeration of nylon raw materials will reduce the screening effect, so that it cannot meet the actual needs of use.

In order to achieve the above purpose, the utility model provides the following technical solutions: a PA66 nylon production equipment, including a processing box, the top of the processing box is connected with a feeding pipe, and the top of the rear side of the feeding pipe is fixedly connected with a regulating box , the top of the inner cavity of the adjustment box is fixedly connected with a first motor, the output end of the first motor is fixedly connected with a threaded rod, the surface of the threaded rod is threadedly connected with a threaded sleeve, and the front of the threaded sleeve is fixedly connected There is a moving rod, the front side of the moving rod penetrates the adjustment box and is fixedly connected with a horizontal plate, the front side of the top of the horizontal plate is fixedly connected with a second motor, and the output end of the second motor is fixedly connected with a stirring rod, The bottom of the stirring rod penetrates to the bottom of the horizontal plate, both sides of the bottom of the feed pipe are movably connected with a storage shell, and the tops of both sides of the inner cavity of the treatment box are movably connected with an electric push rod. The output end of the electric push rod is movably connected with the storage shell, the bottom of the inner cavity of the processing box is fixedly connected with a cross bar, the surface of the cross bar is sleeved with a support plate, and the bottom of the support plate is fixedly connected with a cross bar. The third motor, the output end of the third motor penetrates into the inner cavity of the support plate and is fixedly connected with a cam, the right side of the support plate is fixedly connected with a screening frame, and the bottom of the screening frame is fixedly connected with a screen The top of the right side of the screening frame is fixedly connected with a connecting block, the left side of the inner cavity of the connecting block is fixedly connected with a spring, the right end of the spring is fixedly connected with a strut, and the right side of the strut penetrates the connecting block And it is fixedly connected with the inner wall of the processing box.

Preferably, a brush plate is provided in the inner cavity of the screening frame and located on the top of the screen, the top of the brush plate penetrates to the top of the screening frame and is fixedly connected with a connecting rod, and the rear side of the connecting rod is connected to the top of the screen. The inner wall of the processing box is fixedly connected.

Preferably, a discharge pipe is communicated with the bottom of the right side of the treatment box, and a solenoid valve is sleeved on the surface of the discharge pipe.

Preferably, the rear side of the threaded sleeve is fixedly connected with a slider, and the rear side of the inner cavity of the adjustment box is provided with a chute for use with the slider.

Preferably, a filter box is connected to the right side of the top of the horizontal plate, a filter screen is fixedly connected between the top and the bottom of the inner cavity of the filter box, and a suction fan is connected to the right side of the filter box.

Preferably, a material guide plate is fixedly connected to the bottom of the inner cavity of the processing box, and legs are fixedly connected to the bottoms of both sides of the processing box.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model adopts the processing box, the feeding pipe, the regulating box, the first motor, the threaded rod, the threaded sleeve, the moving rod, the horizontal plate, the second motor, the stirring rod, the material storage shell, the electric push rod, the horizontal rod, The support plate, the third motor, the cam, the screening frame, the screen mesh, the connecting block, the spring and the prop are used together, which has the advantages of good screening effect and solves the screening effect of the existing screening equipment for PA66 nylon production. It is poor, and the agglomeration of nylon raw materials cannot be broken during the screening process. The agglomeration of nylon raw materials will reduce the screening effect, thus failing to meet the actual needs of use.

2. The utility model can clean the surface of the screen by setting the brush plate, and improve the screening effect. By setting the solenoid valve, the opening and closing of the discharge pipe can be controlled, so that the screened raw materials can be discharged easily. A suction fan is provided to suck the smoke and dust generated during the crushing process into the filter box to improve the filtering effect. By setting the material guide plate, the screened raw materials can be introduced into the discharge pipe to improve the conveying effect.

Description of drawings

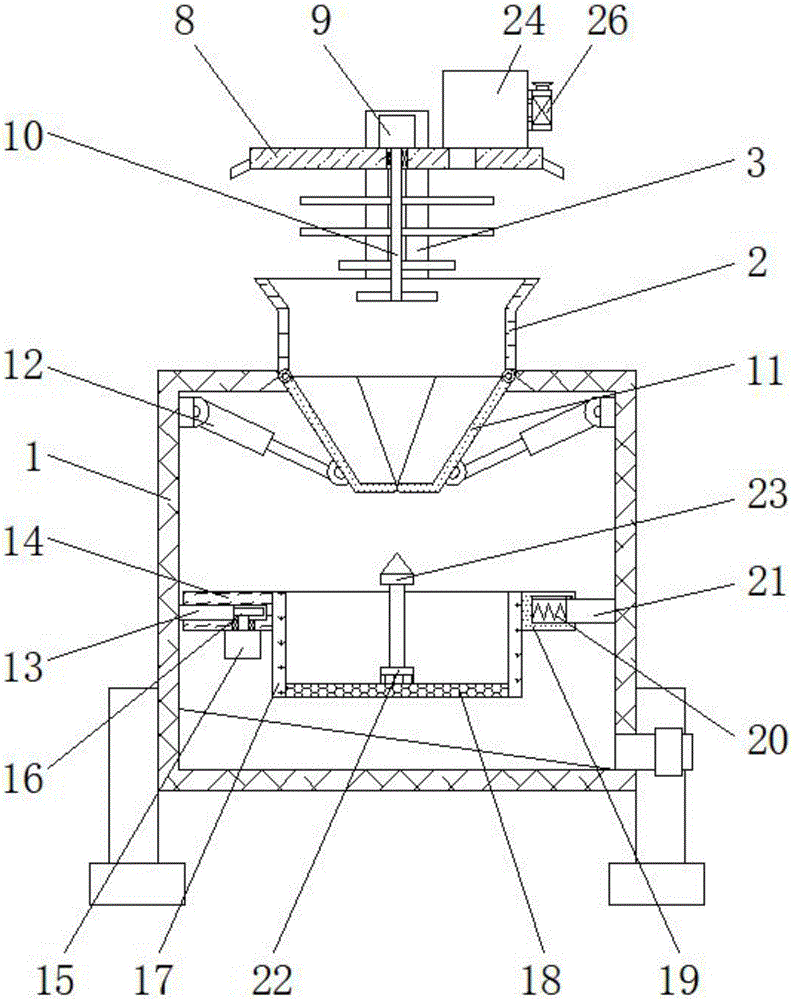

Fig. 1 is the structural representation of the utility model;

Figure 2 is a side sectional view of the structural adjustment box of the present utility model;

FIG. 3 is a cross-sectional view of the filter box with the structure of the present invention.

In the figure: 1. Processing box; 2. Feeding pipe; 3. Adjusting box; 4. First motor; 5. Threaded rod; 6. Threaded sleeve; 7. Moving rod; 8. Horizontal plate; 9. Second motor ;10, stirring rod; 11, storage shell; 12, electric push rod; 13, cross bar; 14, support plate; 15, third motor; 16, cam; 17, screening frame; 18, screen mesh; 19 , connecting block; 20, spring; 21, pillar; 22, brush plate; 23, connecting rod; 24, filter box; 25, filter screen; 26, suction fan.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-3, a PA66 nylon production equipment, including a processing box 1, the top of the processing box 1 is connected with a feeding pipe 2, and the top of the rear side of the feeding pipe 2 is fixedly connected with a regulating box 3, inside the regulating box 3 The top of the cavity is fixedly connected with the first motor 4, the output end of the first motor 4 is fixedly connected with a threaded rod 5, the surface of the threaded rod 5 is threadedly connected with a threaded sleeve 6, and the front of the threaded sleeve 6 is fixedly connected with a moving rod 7. The front side of the rod 7 penetrates through the adjustment box 3 and is fixedly connected with the horizontal plate 8. The front side of the top of the horizontal plate 8 is fixedly connected with the second motor 9, and the output end of the second motor 9 is fixedly connected with the stirring rod 10. The bottom penetrates to the bottom of the horizontal plate 8, the two sides of the bottom of the feeding pipe 2 are movably connected with the storage shell 11, and the tops of both sides of the inner cavity of the processing box 1 are movably connected with an electric push rod 12, and the output of the electric push rod 12 is movably connected. The end is movably connected with the material storage shell 11, the bottom of the inner cavity of the processing box 1 is fixedly connected with a cross bar 13, the surface of the cross bar 13 is sleeved with a support plate 14, and the bottom of the support plate 14 is fixedly connected with a third motor 15. The output end of the third motor 15 penetrates into the inner cavity of the support plate 14 and is fixedly connected with the cam 16 . The right side of the support plate 14 is fixedly connected with a screening frame 17 , and the bottom of the screening frame 17 is fixedly connected with a screen mesh 18 . A connecting block 19 is fixedly connected to the top of the right side of the sub-frame 17 , a spring 20 is fixedly connected to the left side of the inner cavity of the connecting block 19 , and a pillar 21 is fixedly connected to the right end of the spring 20 . The inner wall of the box 1 is fixedly connected, and the inner cavity of the screening frame 17 is provided with a brush plate 22 at the top of the screen mesh 18. By setting the brush plate 22, the surface of the screen mesh 18 can be cleaned, and the screening effect can be improved. The brush plate The top of 22 penetrates to the top of the screening frame 17 and is fixedly connected with a connecting rod 23. The rear side of the connecting rod 23 is fixedly connected with the inner wall of the processing box 1, and the bottom of the right side of the processing box 1 is connected with a discharge pipe. The discharge pipe A solenoid valve is set on the surface of the threaded sleeve 6. By setting the solenoid valve, the opening and closing of the discharge pipe can be controlled to facilitate the discharge of the screened raw materials. The rear side is provided with a chute for use with the slider, the right side of the top of the horizontal plate 8 is connected with a filter box 24, a filter screen 25 is fixedly connected between the top and bottom of the inner cavity of the filter box 24, and the right side of the filter box 24 A suction fan 26 is connected to the suction fan 26. By setting the suction fan 26, the smoke and dust generated during the crushing process can be sucked into the filter box 24 to improve the filtering effect. The bottom of the inner cavity of the treatment box 1 is fixedly connected with a material guide plate. The screened raw materials can be introduced into the discharge pipe to improve the conveying effect. The bottoms of both sides of the processing box 1 are fixedly connected with legs. Rod 5, threaded sleeve 6, moving rod 7, horizontal plate 8, second motor 9, stirring rod 10, storage shell 11, electric push rod 12, horizontal rod 13, support plate 14, third motor 15, cam 16, The combined use of the screening frame 17, the screen 18, the connecting block 19, the spring 20 and the pillar 21 has the advantage of good screening effect. It is determined that the screening effect of the existing screening equipment for PA66 nylon production is poor, and the agglomeration of nylon raw materials cannot be broken during the screening process. The agglomeration of nylon raw materials will reduce the screening effect, so it cannot meet the actual use. question of needs.

When in use, the operator transports the nylon raw material that needs to be screened to the inner cavity of the feeding pipe 2, and starts the first motor 4 through the external controller. The first motor 4 cooperates with the threaded rod 5 to drive the threaded sleeve 6 to move, and the threaded sleeve 6 moves to cooperate. The moving rod 7 drives the horizontal plate 8 to move, the horizontal plate 8 moves and drives the stirring rod 10 to move into the feeding pipe 2, and the horizontal plate 8 covers the feeding pipe 2, starts the second motor 9, and the second motor 9 drives the stirring The rod 10 rotates to crush the agglomeration of the raw material. After the crushing is completed, the electric push rod 12 is activated, and the electric push rod 12 drives the storage shell 11 to move, so that the raw material is transported into the screening frame 17, and the third motor 15 is activated, and the third motor 15 is activated. The motor 15 drives the cam 16 to push the cross bar 13, so that the support plate 14 moves to the right, the support plate 14 drives the screening frame 17 to move, the screening frame 17 moves and cooperates with the connecting block 19 to squeeze the spring 20, the cam 16 continues to rotate, and the spring 20 cooperates with the connecting block 19 to drive the screening frame 17 to reset, so that the screening frame 17 shakes from side to side, and the nylon raw material is screened through the screen 18 to improve the screening effect.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A PA66 nylon production equipment, comprising a processing box (1), characterized in that: the top of the processing box (1) is communicated with a feeding pipe (2), and the top of the rear side of the feeding pipe (2) An adjustment box (3) is fixedly connected, the top of the inner cavity of the adjustment box (3) is fixedly connected with a first motor (4), and the output end of the first motor (4) is fixedly connected with a threaded rod (5), A threaded sleeve (6) is threadedly connected to the surface of the threaded rod (5), a moving rod (7) is fixedly connected to the front of the threaded sleeve (6), and the front side of the moving rod (7) penetrates through the adjustment box ( 3) A horizontal plate (8) is fixedly connected, the front side of the top of the horizontal plate (8) is fixedly connected with a second motor (9), and the output end of the second motor (9) is fixedly connected with a stirring rod ( 10), the bottom of the stirring rod (10) penetrates to the bottom of the horizontal plate (8), the two sides of the bottom of the feeding pipe (2) are movably connected with a storage shell (11), and the processing box ( 1) An electric push rod (12) is movably connected to the tops of both sides of the inner cavity, and the output end of the electric push rod (12) is movably connected to the storage shell (11). The bottom of the side is fixedly connected with a crossbar (13), the surface of the crossbar (13) is sleeved with a support plate (14), and the bottom of the support plate (14) is fixedly connected with a third motor (15), so The output end of the third motor (15) penetrates into the inner cavity of the support plate (14) and is fixedly connected with a cam (16), and the right side of the support plate (14) is fixedly connected with a screening frame (17), so A screen mesh (18) is fixedly connected to the bottom of the screening frame (17), and a connecting block (19) is fixedly connected to the top of the right side of the screening frame (17). The side is fixedly connected with a spring (20), the right end of the spring (20) is fixedly connected with a strut (21), and the right side of the strut (21) penetrates the connecting block (19) and is fixed with the inner wall of the processing box (1). connect. 2. A PA66 nylon production equipment according to claim 1, characterized in that: a brush plate (22) is provided in the inner cavity of the screening frame (17) and located on the top of the screen (18), and the The top of the brush plate (22) penetrates to the top of the screening frame (17) and is fixedly connected with a connecting rod (23), the rear side of the connecting rod (23) is fixedly connected with the inner wall of the processing box (1). 3 . The PA66 nylon production equipment according to claim 1 , wherein a discharge pipe is connected to the bottom of the right side of the processing box ( 1 ), and a solenoid valve is sleeved on the surface of the discharge pipe. 4 . 4. A PA66 nylon production equipment according to claim 1, characterized in that: the rear side of the threaded sleeve (6) is fixedly connected with a slider, and the rear side of the inner cavity of the adjustment box (3) is provided with The chute used with the slider. 5. A PA66 nylon production equipment according to claim 1, characterized in that: a filter box (24) is connected to the right side of the top of the transverse plate (8), and the top of the inner cavity of the filter box (24) A filter screen (25) is fixedly connected with the bottom, and a suction fan (26) is connected to the right side of the filter box (24). 6. A PA66 nylon production equipment according to claim 1, characterized in that: the bottom of the inner cavity of the processing box (1) is fixedly connected with a material guide plate, and the bottoms of both sides of the processing box (1) are The fixed connection has outriggers.
