CN217255231U

CN217255231U - Low dust abrasive wheel machine

Info

Publication number: CN217255231U
Application number: CN202220166698.4U
Authority: CN
Inventors: 屈振军; 朱向伟
Original assignee: Tangshan Honghai Welding Technology Co ltd
Current assignee: Tangshan Honghai Welding Technology Co ltd
Priority date: 2022-01-21
Filing date: 2022-01-21
Publication date: 2022-08-23
Anticipated expiration: 2032-01-21

Abstract

The utility model discloses a low-dust grinding machine, comprising a fixed base plate, a support seat is installed on the upper end of the fixed base plate, two power switches are installed at the front end of the support base, and a drive motor is installed on the upper end of the support base , grinding wheels are installed on both sides of the drive motor, a grinding wheel guard is installed on the outer side of the grinding wheel, a dust removal structure is installed on the outer side of the grinding wheel guard, and a workbench structure is installed on the front end of the fixed bottom plate, The dust removal structure includes an installation bracket, an access water pipe, a water spray head and a drain pipe, the installation bracket is installed on the upper end of the grinding wheel guard, and the access water pipe is installed on the inner side of the installation bracket. The low-dust grinder of the utility model realizes dust removal during grinding, reduces the impact of dust generation during grinding on operators, realizes the positioning and precise movement of workpieces during grinding, and brings great benefits to the grinding of workpieces. convenience.

Description

Low dust abrasive wheel machine

Technical Field

The utility model relates to a grinder field, in particular to low dust grinder.

Background

The grinding machine is generally one of grinding tools, a grinding wheel is driven to rotate by a motor, and then the workpiece is ground by the rotating grinding wheel for use, so that the grinding machine is applied to various workpiece grinding occasions;

but current abrasive machine has certain weak point when using and awaits improving, at first, can produce a large amount of dust when polishing, can't get rid of the dust, and the dust when having led to polishing produces and causes the influence to operating personnel, and secondly, location and accurate removal when the work piece is polished can't be carried out, have brought the inconvenience for polishing of work piece.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a main aim at provides a low dust turbine can effectively solve the technical problem that the background art provided.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a low dust turbine, includes PMKD, the supporting seat is installed to PMKD's upper end, two switch are installed to the front end of supporting seat, driving motor is installed to the upper end of supporting seat, the emery wheel of polishing is all installed to driving motor's both sides, the emery wheel guard shield is installed in the outside of emery wheel of polishing, dust removal structure is installed in the outside of emery wheel guard shield, the workstation structure is installed to PMKD's front end.

As a further aspect of the utility model, dust removal structure is including installing support, access water pipe, sprinkler bead and drain pipe, and the installing support is installed in the upper end of emery wheel guard shield, inserts the inboard at the installing support of water pipe installation, and the inner wall at the emery wheel guard shield is installed to a plurality of sprinkler beads, and the lower extreme at the emery wheel guard shield is installed to the drain pipe.

As a further aspect of the utility model, the access water pipe runs through the emery wheel guard shield and is connected with the sprinkler bead, and the sprinkler bead is located the outside of the emery wheel of polishing, the inside through connection of drain pipe and emery wheel guard shield.

As a further scheme of the utility model, the workstation structure is including installation piece, movable rod frame, slidable mounting cover, mounting panel and installation workstation, and a plurality of installation pieces are installed in PMKD's both sides, and the movable rod frame is installed in the inside of installation piece, and the slidable mounting cover is installed in the outside of movable rod frame, and the upper end at the movable rod frame is installed to the mounting panel, and the upper end at the mounting panel is installed to the installation workstation.

As a further aspect of the present invention, the movable rod frame is inserted into the mounting block and slides around the movable rod frame, the sliding mounting sleeve slides around the movable rod frame, and the mounting table is located in front of the supporting seat.

As a further aspect of the utility model, driving motor's output and grinding wheel are connected, and two grinding wheel are around driving motor symmetrical arrangement installation.

Compared with the prior art, the utility model discloses following beneficial effect has: through the arranged dust removal structure, when the grinding wheel is protected by the grinding wheel protective cover, the water pipe can be connected with the water inlet pipe on the inner side of the mounting support, so that the water inlet pipe can convey water to the plurality of water spraying heads in the grinding wheel protective cover, the water spraying heads spray water to the outer side of the grinding wheel, the grinding wheel is kept wet and splashed with splash all the time during grinding, dust generated by grinding is adsorbed by water, then water drops carrying the dust fall into the grinding wheel protective cover and are discharged along the water discharge pipe, dust removal during grinding is realized, and the influence of the dust generated during grinding on operators is reduced;

through the workstation structure that sets up, when the work piece need be polished, the work piece can be connected fixedly with the installation work platform, then the installation work platform passes through the installation board and installs on the removal stock frame with the slip installation cover, promote the removal stock frame through the front and back, make the removal stock frame around the installation piece back-and-forth movement to drive the accurate back-and-forth movement of the work piece of polishing and polish with the contact of emery wheel of polishing, location and accurate removal when having realized the work piece and polish have brought the facility for polishing of work piece.

Drawings

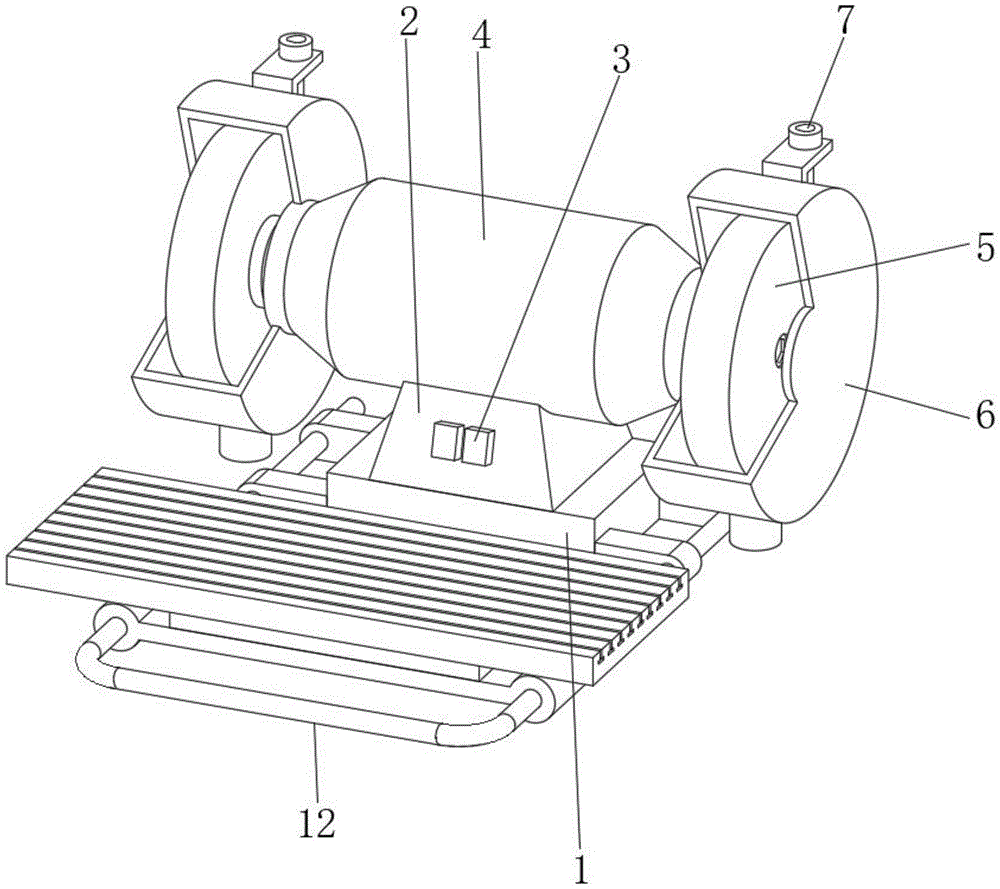

FIG. 1 is a schematic view of the overall structure of a low dust turbine according to the present invention;

FIG. 2 is a schematic view of a wheel guard of a low dust turbine according to the present invention;

fig. 3 is an enlarged view of the working table structure of the low dust turbine of the present invention.

In the figure: 1. fixing a bottom plate; 2. a supporting seat; 3. a power switch; 4. a drive motor; 5. grinding a grinding wheel; 6. a grinding wheel shield; 7. a dust removal structure; 8. mounting a bracket; 9. connecting a water pipe; 10. a sprinkler head; 11. a drain pipe; 12. a work table structure; 13. mounting a block; 14. a movable bar frame; 15. a sliding mounting sleeve; 16. mounting a plate; 17. and (7) installing a workbench.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in fig. 1-3, a low dust grinding wheel machine comprises a fixed base plate 1, a support seat 2 is installed at the upper end of the fixed base plate 1, two power switches 3 are installed at the front end of the support seat 2, a driving motor 4 is installed at the upper end of the support seat 2, grinding wheels 5 are installed on two sides of the driving motor 4, a grinding wheel shield 6 is installed on the outer side of the grinding wheel 5, a dust removing structure 7 is installed on the outer side of the grinding wheel shield 6, and a workbench structure 12 is installed at the front end of the fixed base plate 1.

In this embodiment, for the dust to polishing get rid of and set up dust removal structure 7, dust removal structure 7 is including installing support 8, insert water pipe 9, sprinkler bead 10 and drain pipe 11, and installing support 8 installs in the upper end of emery wheel guard shield 6, inserts water pipe 9 and installs the inboard at installing support 8, and a plurality of sprinkler beads 10 are installed at the inner wall of emery wheel guard shield 6, and the lower extreme at emery wheel guard shield 6 is installed to drain pipe 11.

In the present embodiment, the water inlet pipe 9 penetrates the grinding wheel guard 6 and is connected to the water jet head 10, the water jet head 10 is positioned outside the grinding wheel 5, and the water outlet pipe 11 penetrates the grinding wheel guard 6 and is connected thereto.

In the embodiment, a workbench structure 12 is provided for fixing and moving a polished workpiece, the workbench structure 12 comprises mounting blocks 13, a moving rod frame 14, a sliding mounting sleeve 15, a mounting plate 16 and a mounting workbench 17, the mounting blocks 13 are mounted on two sides of the fixed base plate 1, the moving rod frame 14 is mounted inside the mounting blocks 13, the sliding mounting sleeve 15 is mounted on the outer side of the moving rod frame 14, the mounting plate 16 is mounted on the upper end of the moving rod frame 14, and the mounting workbench 17 is mounted on the upper end of the mounting plate 16.

In this embodiment, the moving bar frame 14 is inserted into the inside of the mounting block 13 and slid back and forth therearound, the slide mounting sleeve 15 is slid back and forth around the moving bar frame 14, and the mounting table 17 is located in front of the support base 2.

In the present embodiment, the output end of the driving motor 4 is connected with the grinding wheel 5, and the two grinding wheels 5 are symmetrically arranged around the driving motor 4.

It should be noted that, the utility model relates to a low dust grinding wheel machine, when using, PMKD 1 has played the fixed effect of installation, then supporting seat 2 is installed driving motor 4, driving motor 4 is after the circular telegram, open driving motor 4 operation through switch 3, it is rotatory to make driving motor 4 drive the emery wheel 5 of polishing of both sides, 6 covers of emery wheel guard shield play the effect of protection in emery wheel 5's the outside, the use of polishing is carried out to the rotatory emery wheel 5 contact work piece of rethread.

The utility model discloses a dust removal structure 7 that sets up, when emery wheel guard shield 6 protected emery wheel 5, the water pipe can be connected with the access water pipe 9 of installing support 8 inboard, make access water pipe 9 carry out the water delivery to a plurality of sprinkler bead 10 in emery wheel guard shield 6, thereby make sprinkler bead 10 spout water to the outside of emery wheel 5 of polishing, make emery wheel 5 keep moist and throw away the splash all the time when polishing, adsorb the dust that produces through water, then the water droplet that carries the dust drops to the inside of emery wheel guard shield 6, discharge along drain pipe 11, dust removal when having realized polishing, the dust production when having reduced polishing causes the influence to operating personnel; through the workstation structure 12 that sets up, when the work piece need be polished, the work piece can be connected fixedly with installation workstation 17, then installation workstation 17 passes through mounting panel 16 and sliding installation cover 15 and installs on removal stock frame 14, promote removal stock frame 14 through the front and back, make removal stock frame 14 around the 13 back-and-forth movements of installation piece, thereby drive the accurate back-and-forth movement of work piece of polishing and polish with the contact of emery wheel 5 of polishing, location and accurate removal when having realized the work piece and polish, bring the facility for polishing of work piece.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. A low dust turbine, characterized in that: including PMKD (1), supporting seat (2) are installed to the upper end of PMKD (1), two switch (3) are installed to the front end of supporting seat (2), driving motor (4) are installed to the upper end of supporting seat (2), emery wheel (5) of polishing are all installed to driving motor's (4) both sides, emery wheel guard shield (6) are installed in the outside of emery wheel (5), dust removal structure (7) are installed in the outside of emery wheel guard shield (6), workstation structure (12) are installed to the front end of PMKD (1).

2. The low dust sand turbine of claim 1, wherein: dust removal structure (7) are including installing support (8), access water pipe (9), sprinkler bead (10) and drain pipe (11), and installing support (8) are installed in the upper end of emery wheel guard shield (6), insert water pipe (9) and install the inboard at installing support (8), and the inner wall at emery wheel guard shield (6) is installed in a plurality of sprinkler beads (10), and the lower extreme at emery wheel guard shield (6) is installed in drain pipe (11).

3. A low dust sand turbine according to claim 2, wherein: the water inlet pipe (9) penetrates through the grinding wheel shield (6) and is connected with the water spraying head (10), the water spraying head (10) is located on the outer side of the grinding wheel (5), and the water discharge pipe (11) is communicated with the interior of the grinding wheel shield (6).

4. The low dust sand turbine of claim 1, wherein: workstation structure (12) are including installation piece (13), removal pole frame (14), slip installation cover (15), mounting panel (16) and installation workstation (17), the both sides at PMKD (1) are installed in a plurality of installation pieces (13), the inside at installation piece (13) is installed in removal pole frame (14), the outside at removal pole frame (14) is installed in slip installation cover (15), the upper end at removal pole frame (14) is installed in mounting panel (16), the upper end at mounting panel (16) is installed in installation workstation (17).

5. The low dust sand turbine of claim 4, wherein: the movable rod frame (14) is inserted into the mounting block (13) and slides back and forth around the mounting block, the sliding mounting sleeve (15) slides back and forth around the movable rod frame (14), and the mounting workbench (17) is positioned in front of the supporting seat (2).

6. A low dust sand turbine according to claim 1, wherein: the output end of the driving motor (4) is connected with the grinding wheels (5), and the two grinding wheels (5) are symmetrically arranged around the driving motor (4).
