CN217249395U - A horizontal sand mill with cooling function - Google Patents

Abstract

The utility model discloses a horizontal sand mill with cooling function in the technical field of sand mills, comprising a bottom plate and a sand mill main body. A drive motor is connected, the output end of the drive motor is connected with a transmission belt, and the transmission belt is connected with the main body of the sand mill. hot barrel. In the utility model, a plurality of heat-conducting fins are connected to the main body of the sand mill, and heat is transferred through the heat-conducting fins. Then, the main body of the sand mill is cooled, and the heat-exchanged medium is returned to the water tank through the liquid outlet pipe for circulating cooling. At the same time, an air duct is formed between the plurality of heat-conducting fins, and the auxiliary cooling is performed by the flow of natural gas.

Description

A horizontal sand mill with cooling function

technical field

The utility model relates to the technical field of sand mills, in particular to a horizontal sand mill with a cooling function.

Background technique

Sand mill is currently the most widely adaptable, most advanced and most efficient grinding equipment. Sand mill, also known as bead mill, is mainly used for wet grinding of chemical liquid products. Mills, Basket Sand Mills, Vertical Sand Mills, etc.

However, the existing horizontal sand mill generates a lot of heat during use, which cannot be quickly exported, and easily forms heat accumulation in the machine body, which affects the use of the machine body. Based on this, the utility model designs a horizontal sand mill with cooling function. mill to solve the above problems.

Utility model content

The purpose of the present invention is to provide a horizontal sand mill with a cooling function to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a horizontal sand mill with cooling function, comprising a bottom plate and a sand mill main body, the sand mill main body is installed on the bottom plate, and the upper end of the bottom plate is a The side is fixedly connected with a drive motor, the output end of the drive motor is connected with a transmission belt, the transmission belt is connected with the main body of the sand mill, the main body of the sand mill is connected with a plurality of heat conduction fins, and the heat conduction fins are connected with annular The heat exchange cylinder is hollow, a water tank is fixedly connected to one side of the bottom plate, a water pump is connected to the upper end of the water tank, and a liquid conduit is connected to the liquid outlet end of the water pump. The other end of the liquid pipe is connected to the upper end of the heat exchange cylinder, one side of the water tank is connected with a liquid outlet pipe, and the other end of the liquid outlet pipe is connected to the bottom of the heat exchange cylinder.

Preferably, a plurality of heat-conducting fins are annularly distributed on the main body of the sand mill, and the length of the plurality of heat-conducting fins is greater than the length of the heat exchange cylinder.

Preferably, both ends of the heat-conducting fins are arc-shaped, and the heat-conducting fins are made of copper material.

Preferably, a perspective window is connected to one side of the water tank, and the height of the perspective window matches that of the water tank.

Preferably, an air plate is fixedly connected to one side of the main body of the sand mill, a blower is fixedly connected to one side of the bottom plate, an air duct is connected to an air outlet end of the blower, and the other end of the air duct is connected to an air blower. plate.

Preferably, the diameter of the air plate is larger than the diameter of the heat exchange cylinder, and the air plate is bowl-shaped.

Preferably, a plurality of backing plates are fixedly connected to the bottom of the bottom plate, and two adjusting screws are connected to each of the four backing plates.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) In the present invention, a plurality of heat-conducting fins are connected to the main body of the sand mill, and heat is transferred through the heat-conducting fins, and the heat is transferred to the heat exchange cylinder. The heat exchange is used to cool the main body of the sand mill. The heat-exchanged medium is returned to the water tank through the liquid outlet pipe for circulating cooling. At the same time, an air duct is formed between the plurality of heat-conducting fins, and the auxiliary cooling is carried out by the flow of natural gas. High cooling efficiency;

(2) The utility model is fixedly connected with an air plate on one side of the main body of the sand mill, and the bowl-shaped air plate can guide the air flow introduced by the air duct on one side, and drive the air flow to penetrate through the air duct formed by a plurality of heat-conducting fins. , to speed up the airflow and increase the heat dissipation efficiency. There are several backing plates fixedly connected to the bottom of the bottom plate. The height is adjusted by the backing plate and the threaded adjustment screw, and then the device can be adjusted and installed, which is suitable for various placement bases.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

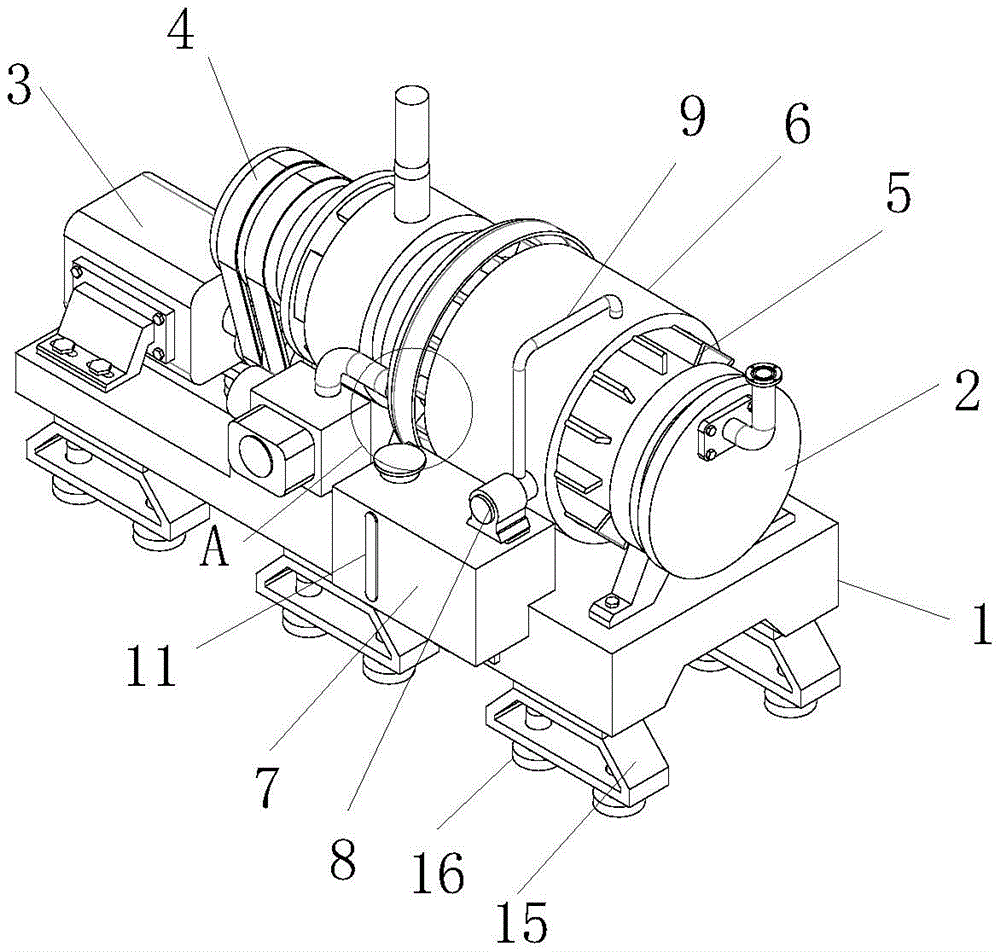

Fig. 1 is the three-dimensional structure diagram of the horizontal sand mill with cooling function of the present invention;

Fig. 2 is the enlarged structural view of the horizontal sand mill with cooling function in Fig. 1 of the present invention;

Fig. 3 is the rear perspective structural view of the horizontal sand mill with cooling function of the present invention;

FIG. 4 is a bottom perspective structural view of the horizontal sand mill with cooling function of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1. Bottom plate; 2. Main body of sand mill; 3. Drive motor; 4. Transmission belt; 5. Thermal conduction fin; 6. Heat exchange cylinder; 7. Water tank; 8. Water pump; 9. Liquid conduit; 10. Liquid outlet pipe; 11, perspective window; 12, air plate; 13, blower; 14, air duct; 15, backing plate; 16, adjusting screw.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1-FIG. 4, the utility model provides a technical solution: a horizontal sand mill with cooling function, comprising a bottom plate 1 and a sand mill main body 2, and the sand mill main body 2 is installed on the bottom plate 1, A drive motor 3 is fixedly connected to the upper end side of the bottom plate 1, the output end of the drive motor 3 is connected to a transmission belt 4, the transmission belt 4 is connected to the main body 2 of the sand mill, and the main body 2 of the sand mill is connected with a plurality of heat-conducting fins 5, A ring-shaped heat exchange cylinder 6 is connected to the sheet 5, the heat exchange cylinder 6 is hollow, a water tank 7 is fixedly connected to one side of the bottom plate 1, the upper end of the water tank 7 is connected to a water pump 8, and the liquid outlet end of the water pump 8 is connected to a liquid guide Pipe 9, the other end of the liquid conduit 9 is connected to the upper end of the heat exchange cylinder 6, one side of the water tank 7 is connected with a liquid outlet pipe 10, and the other end of the liquid outlet pipe 10 is connected to the bottom of the heat exchange cylinder 6. A plurality of heat-conducting fins 5 are distributed in a ring shape on the main body 2. The length of the plurality of heat-conducting fins 5 is greater than the length of the heat exchange cylinder 6. Both ends of the heat-conducting fins 5 are arc-shaped. The heat-conducting fins 5 are made of copper material. A see-through window 11 is connected to one side of the see-through window 11 , and the height of the see-through window 11 matches the height of the water tank 7 .

Among them, the sand mill main body 2 on the bottom plate 1 is subjected to sanding treatment, the drive motor 3 on one side drives the sand mill main body 2 through the transmission belt 4, and a plurality of heat conduction fins 5 are connected to the sand mill main body 2. The sheet 5 conducts heat transfer, and the heat is transferred to the heat exchange cylinder 6. The hollow heat exchange cylinder 6 introduces a cold medium through the liquid conduit 9 to conduct heat exchange, and then cools the main body 2 of the sand mill. After the heat exchange, the medium Through the liquid outlet pipe 10, it is returned to the water tank 7 for circulating cooling. At the same time, an air duct is formed between the plurality of heat-conducting fins 5, and the auxiliary cooling is performed by the flow of natural gas. The cooling efficiency is high and the use effect is good.

Please refer to FIGS. 1-4 , an air plate 12 is fixedly connected to one side of the main body 2 of the sand mill, a blower 13 is fixedly connected to one side of the bottom plate 1 , and an air duct 14 is connected to the air outlet end of the air duct 14 . The other end is connected to the air plate 12, the diameter of the air plate 12 is larger than the diameter of the heat exchange cylinder 6, the air plate 12 is bowl-shaped, a plurality of backing plates 15 are fixedly connected to the bottom of the bottom plate 1, and two backing plates 15 are connected to each other. Adjusting screw 16.

Among them, an air plate 12 is fixedly connected to one side of the main body 2 of the sand mill. The bowl-shaped air plate 12 can guide the air flow introduced by the air duct 14 on one side, and drive the air flow through the air formed by the plurality of heat-conducting fins 5 . In the channel, the air flow is accelerated and the heat dissipation efficiency is increased. A plurality of backing plates 15 are fixedly connected to the bottom of the bottom plate 1. The backing plates 15 cooperate with the threaded adjustment screw 16 to adjust the height, and then the device can be adjusted and installed, which is suitable for various Place the base surface.

The overall working principle is that the electrical equipment of the device is connected to the external power supply, the sand mill main body 2 on the bottom plate 1 is sanded, and the drive motor 3 on one side drives the sand mill main body 2 through the transmission belt 4. A plurality of heat-conducting fins 5 are connected to the main body 2, and heat is transferred through the heat-conducting fins 5, and the heat is transferred to the heat exchange cylinder 6. The hollow heat exchange cylinder 6 introduces a cold medium through a liquid conduit 9 to conduct heat exchange, and then The main body 2 of the sand mill is cooled, and the heat-exchanged medium flows back into the water tank 7 through the liquid outlet pipe 10 for circulating cooling. At the same time, an air duct is formed between the plurality of heat-conducting fins 5, and the auxiliary cooling is performed by the flow of natural gas. The cooling efficiency is high, and an air plate 12 is fixedly connected to one side of the main body 2 of the sand mill. The bowl-shaped air plate 12 can guide the air flow introduced by the air duct 14 on one side, and drive the air flow through the plurality of heat conduction fins 5 to form In the air duct, the air flow is accelerated and the heat dissipation efficiency is increased. A plurality of backing plates 15 are fixedly connected to the bottom of the bottom plate 1. The backing plates 15 cooperate with the threaded adjustment screw 16 to adjust the height, and then the device can be adjusted and installed, suitable for Various placement bases.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (7)

1. The utility model provides a horizontal sand mill with cooling function, includes bottom plate (1) and sand mill main part (2), install on bottom plate (1) sand mill main part (2), its characterized in that: one side of the upper end of the bottom plate (1) is fixedly connected with a driving motor (3), the output end of the driving motor (3) is connected with a driving belt (4), the transmission belt (4) is connected with the sand mill main body (2), the sand mill main body (2) is connected with a plurality of heat conduction fins (5), the heat-conducting fins (5) are connected with an annular heat exchange cylinder (6), the heat exchange cylinder (6) is arranged in a hollow way, one side of the bottom plate (1) is fixedly connected with a water tank (7), the upper end of the water tank (7) is connected with a water pump (8), the liquid outlet end of the water pump (8) is connected with a liquid guide pipe (9), the other end of the liquid guide pipe (9) is connected with the upper end of the heat exchange cylinder (6), one side of the water tank (7) is connected with a liquid outlet pipe (10), and the other end of the liquid outlet pipe (10) is connected to the bottom of the heat exchange cylinder (6).

2. The horizontal sand mill with the cooling function according to claim 1, characterized in that: a plurality of heat conduction fins (5) are annularly distributed on the sand mill main body (2), and the length of the plurality of heat conduction fins (5) is larger than that of the heat exchange cylinder (6).

3. The horizontal sand mill with the cooling function according to claim 2, characterized in that: the two ends of the heat conduction fins (5) are arc-shaped, and the heat conduction fins (5) are made of copper materials.

4. The horizontal sand mill with the cooling function according to claim 1, characterized in that: one side of the water tank (7) is connected with a perspective window (11), and the height of the perspective window (11) is matched with the height of the water tank (7).

5. The horizontal sand mill with the cooling function according to claim 1, characterized in that: one side fixedly connected with aerofoil (12) of sand mill main part (2), one side fixedly connected with air-blower (13) of bottom plate (1), the air-out end of air-blower (13) is connected with tuber pipe (14), aerofoil (12) are connected to the other end of tuber pipe (14).

6. The horizontal sand mill with the cooling function according to claim 5, characterized in that: the diameter of the air plate (12) is larger than that of the heat exchange cylinder (6), and the air plate (12) is bowl-shaped.

7. The horizontal sand mill with the cooling function according to claim 1, characterized in that: the bottom fixedly connected with of bottom plate (1) is a plurality of backing plates (15), four all connect two adjusting screw (16) on backing plate (15).
