CN217242993U - Multifunctional stationery box for pupils

Info

Publication number: CN217242993U
Application number: CN202220391690.8U
Authority: CN
Inventors: 周姿蓉
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-02-24
Filing date: 2022-02-24
Publication date: 2022-08-23
Anticipated expiration: 2032-02-24

Abstract

The utility model discloses a multifunctional stationery box for primary school students, which relates to the technical field of stationery boxes. A multi-function component is installed inside, and a replacement pattern component is installed on the outside of the first box cover. The pen in the stationery box can be fixed by the first Velcro and the second Velcro to prevent the breakage of the pencil head, thus protecting the pencil It has a long service life, and the fixing method is also convenient. There is a ruler on the edge of the box body, which is convenient for students to use. By unscrewing the bolt and taking out the connecting rod, the pattern board can be replaced, so that it will not be replaced by the stationery box. There are a variety of patterns to keep the students' love for the stationery box, so as to take more care and prolong the service life. Insert the new pattern board into the card slot, and then use the bolt to extend through the connecting rod to the first box cover. Fix it to make the connection more stable.

Description

Multifunctional stationery box for pupils

Technical Field

The utility model relates to a writing case technical field specifically is a pupil uses multi-functional writing case.

Background

When a pencil is placed in the existing writing case, the existing writing case does not have a function of fixing the pencil, so that the nose end of the pencil is broken frequently, the functionality is low, the existing writing case does not have a function of changing patterns, the existing writing case is not novel after being used for a long time, and the love of the existing writing case on the writing case is reduced, so that the multifunctional writing case for pupils is provided.

SUMMERY OF THE UTILITY MODEL

The utility model provides a student uses multi-functional stationery box to the not enough of prior art, has solved the problem that above background art provided.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a multifunctional writing case and writing case for pupils comprises a case body, wherein a first case cover is connected to the back of the case body, a second case cover is connected to the bottom of the front of the case body, a multifunctional assembly is installed inside the case body, and a pattern replacing assembly is installed outside the first case cover;

the multifunctional component comprises a first magic tape and a second magic tape which are respectively connected with the inner side surface of the box body, a limiting groove is formed in the edge of the box body, a ruler is arranged in the limiting groove, and an arc-shaped groove is formed in the middle of the limiting groove;

the pattern replacing assembly comprises a pattern plate arranged outside the first box cover, the two ends of the pattern plate are connected with clamping strips, and one end of the pattern plate is provided with a connecting rod.

As a further technical scheme of the utility model, the bottom of box body just is located multifunctional component and is provided with down the storing box under, the front of box body is connected with two sets of first magnetite, the top of first lid and the top of second lid all correspond first magnetite department and are connected with two sets of second magnetite.

As a further technical scheme of the utility model, the second magnetite of the top of first lid and the top setting of second lid all is connected for magnetism with first magnetite.

As a further technical scheme of the utility model, the upper surface that first magic was pasted and the lower surface that the second magic was pasted are adhesive connection, the size of a dimension looks adaptation of spacing groove and ruler.

As a further technical scheme of the utility model, a case board groove has been seted up to the corresponding pattern board department in surface of first lid, the draw-in groove has all been seted up to the inside in case board groove and the side of connecting rod, the upper and lower both ends of connecting rod all are connected with the bolt.

As a further technical scheme of the utility model, every group card strip and draw-in groove size phase-match, every group the inside that bolt through connection pole extended to first lid forms threaded connection.

Advantageous effects

The utility model provides a multifunctional writing case for pupils. Compared with the prior art, the method has the following beneficial effects:

1. the utility model provides a pupil is with multi-functional stationery box, can fix the pen in the stationery box through first magic subsides and second magic subsides, prevents the fracture of pencil stub to the life of the pencil of protection, fixed mode is also convenient moreover, is provided with the ruler at the edge of box body, makes things convenient for student's use, and the functionality is stronger.

2. The utility model provides a pupil is with multi-functional stationery box, through twisting out the bolt, takes out the connecting rod, changes the pattern board, makes it can not change the stationery box have multiple pattern, keeps the student like the stationery box to more love, increase of service life, with the insert draw-in groove of new pattern board, recycle the bolt and pass the connecting rod and extend to first lid in, fix the pattern board, make its connection more stable.

Drawings

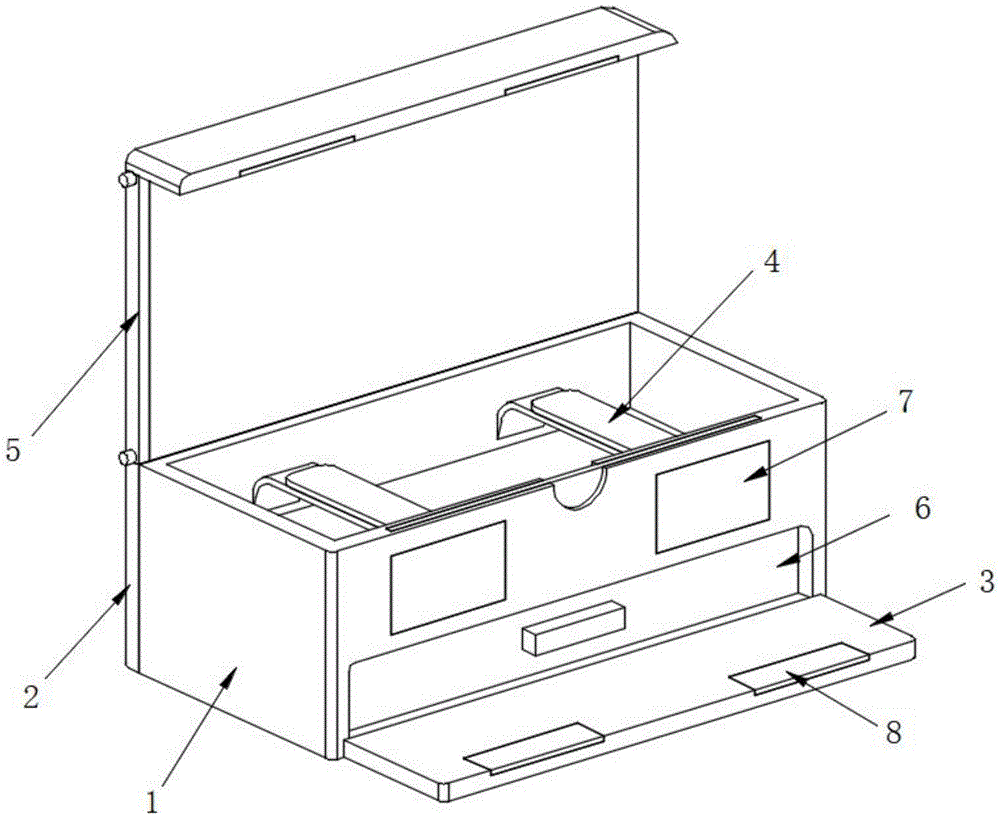

FIG. 1 is a schematic view of a novel structure of a multifunctional writing case for pupils;

FIG. 2 is a schematic view of a novel detachable structure of a multifunctional writing case for pupils;

FIG. 3 is a schematic view of a multifunctional writing case for pupils with detachable multifunctional components;

fig. 4 is a schematic structural diagram of the pattern-replacing component in the multifunctional writing case for pupils.

In the figure: 1. a box body; 2. a first box cover; 3. a second cover; 4. a multifunctional component; 41. a first magic tape; 42. a second magic tape; 43. a limiting groove; 44. a straightedge; 45. an arc-shaped slot; 5. replacing the pattern assembly; 51. a pattern plate; 52. clamping the strip; 53. a connecting rod; 54. a card slot; 55. a desk board groove; 56. a bolt; 6. a lower storage box; 7. a first magnet; 8. a second magnet.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, the present invention provides a technical solution of a multifunctional writing case for pupils: the utility model provides a pupil uses multi-functional stationery box, comprises a box bod 1, the back connection of box body 1 has first lid 2, the positive bottom of box body 1 is connected with second lid 3, the internally mounted of box body 1 has multi-functional component 4, the externally mounted of first lid 2 has change pattern subassembly 5, the bottom of box body 1 just is located multi-functional component 4 and is provided with down storing box 6 under, the front of box body 1 is connected with two sets of first magnetite 7, the top of first lid 2 all corresponds first magnetite 7 department with the top of second lid 3 and is connected with two sets of second magnetite 8, the second magnetite 8 that the top of first lid 2 and the top of second lid 3 set up all is connected for magnetism with first magnetite 7.

Referring to fig. 3, the multifunctional component 4 includes a first magic tape 41 and a second magic tape 42 respectively connected to the inner side of the box body 1, a limit groove 43 is formed at the edge of the box body 1, a straight ruler 44 is arranged inside the limit groove 43, an arc-shaped groove 45 is formed in the middle of the limit groove 43, the upper surface of the first magic tape 41 is in adhesive connection with the lower surface of the second magic tape 42, and the limit groove 43 is matched with the straight ruler 44 in size.

When the in-service use of multi-functional component 4, through uncovering first magic subsides 41 and second magic subsides 42, put into the inside of box body 1 with the pencil, recycle first magic subsides 41 and second magic subsides 42 parcel pencil, make second magic subsides 42 bond at the upper surface of first magic subsides 41 to fix the pencil, ruler 44 is placed at the edge of box body 1, and ruler 44 is directly taken out to the convenience when using the pencil.

Referring to fig. 4, the pattern replacing assembly 5 includes a pattern plate 51 disposed outside the first box cover 2, two ends of the pattern plate 51 are connected with clamp strips 52, one end of the pattern plate 51 is provided with a connecting rod 53, a pattern plate groove 55 is disposed on the surface of the first box cover 2 corresponding to the pattern plate 51, clamp grooves 54 are disposed inside the pattern plate groove 55 and on the side surfaces of the connecting rod 53, bolts 56 are connected to the upper and lower ends of the connecting rod 53, each set of clamp strips 52 is matched with the clamp grooves 54 in size, and each set of bolts 56 penetrates through the connecting rod 53 and extends to the inside of the first box cover 2 to form a threaded connection.

When changing the in-service use of pattern subassembly 5, through unscrewing bolt 56, pull out connecting rod 53, change pattern board 51, make it can not change stationery box and have multiple pattern, keep the student like the stationery box, thereby more love, increase of service life, align case board slot 55 department draw-in groove 54 with card strip 52 of new pattern board 51 and insert, card strip 52 of the other end is blocked to the draw-in groove 54 that connecting rod 53 side was seted up again, pass the inside that connecting rod 53 extended to first lid 2 through bolt 56, fix pattern board 51.

The utility model discloses a theory of operation: when the pencil box is used, the first box cover 2 is firstly opened to separate the second magnet 8 from the first magnet 7, the first magic tape 41 and the second magic tape 42 are uncovered, a pencil is placed in the box body 1, the pencil is wrapped by the first magic tape 41 and the second magic tape 42, the second magic tape 42 is adhered to the upper surface of the first magic tape 41, the pencil is fixed, the ruler 44 is placed at the edge of the box body 1, the ruler 44 can be directly taken out when the pencil is used conveniently, the storage box 6 below the bottom of the box body 1 can be used for placing other tools such as an eraser and the like, the pencil is classified clearly and is convenient to search, when the end of the pattern of the pencil box is watched for a while, the bolt 56 is screwed out, the connecting rod 53 is pulled out, the pattern plate 51 is replaced, the pencil box can not be replaced by various patterns, the favorite of students can be kept, and the protection is better, the service life is prolonged, the clamping strip 52 of the new pattern plate 51 is inserted into the clamping groove 54 at the pattern plate groove 55, the clamping groove 54 formed at the side surface of the connecting rod 53 clamps the clamping strip 52 at the other end, and the bolt 56 penetrates through the connecting rod 53 and extends to the inside of the first box cover 2 to fix the pattern plate 51.

Claims

1. The multifunctional writing case for the pupils comprises a case body (1) and is characterized in that a first case cover (2) is connected to the back of the case body (1), a second case cover (3) is connected to the bottom of the front of the case body (1), a multifunctional component (4) is installed inside the case body (1), and a pattern replacing component (5) is installed outside the first case cover (2);

the multifunctional component (4) comprises a first magic tape (41) and a second magic tape (42) which are respectively connected with the inner side surface of the box body (1), the edge of the box body (1) is provided with a limiting groove (43), a ruler (44) is arranged inside the limiting groove (43), and the middle of the limiting groove (43) is provided with an arc-shaped groove (45);

the pattern replacing assembly (5) comprises a pattern plate (51) arranged outside the first box cover (2), clamping strips (52) are connected to two ends of the pattern plate (51), and a connecting rod (53) is arranged at one end of the pattern plate (51).

2. The multifunctional writing case for the pupils according to claim 1, wherein a lower storage box (6) is arranged at the bottom end of the case body (1) and under the multifunctional component (4), two groups of first magnets (7) are connected to the front side of the case body (1), and two groups of second magnets (8) are connected to the top of the first case cover (2) and the top of the second case cover (3) corresponding to the first magnets (7).

3. The multifunctional writing case for pupils according to claim 2, wherein the second magnets (8) arranged at the top of the first case cover (2) and the top of the second case cover (3) are magnetically connected with the first magnets (7).

4. The multifunctional writing case for the pupils as claimed in claim 1, wherein the upper surface of the first magic tape (41) is adhesively connected with the lower surface of the second magic tape (42), and the limiting groove (43) is matched with the ruler (44) in size.

5. The multifunctional writing case for the pupils as in claim 1, wherein a case plate groove (55) is formed on the surface of the first case cover (2) at a position corresponding to the case plate (51), clamping grooves (54) are formed in the case plate groove (55) and the side surface of the connecting rod (53), and bolts (56) are connected to the upper end and the lower end of the connecting rod (53).

6. The multifunctional writing case for pupils as in claim 5, wherein each set of the fastening strips (52) is matched with the fastening slots (54) in size, and each set of the bolts (56) extends through the connecting rod (53) to the inside of the first case cover (2) to form a threaded connection.
