A disinfection supply center instrument cleaner

technical field

The utility model belongs to the technical field of instrument cleaning, in particular to an instrument cleaner for a disinfection supply center.

Background technique

Medical devices need to be disinfected before and after use. Disinfection refers to the application of disinfectants and other methods to kill the vegetative body of pathogenic bacteria on the surface and inside of objects. Sterilization refers to the use of physical and chemical methods to kill all microorganisms on the surface and inside of objects. Make it sterile. The sterilization supply center is the supply unit of various sterile items in the hospital. It is responsible for the cleaning, packaging, disinfection and supply of medical equipment. Modern hospitals have a wide variety of supplies, involving a wide range of departments and fast turnover. , Every work is related to the quality of medical treatment, teaching and scientific research. If the disinfection is not thorough, it will cause hospital-wide infection. Incomplete supply items can affect diagnosis and treatment. Therefore, it is very important to do a good job in the supply room, which is also a hospital An integral part of work.

Utility model content

When the existing equipment cleaning device is cleaning the tubular equipment, the interior of the tubular equipment is easy to be unclean, resulting in a dead corner of disinfection, and after the equipment cleaning is completed, the equipment needs to be transferred to a drying box for drying, which is troublesome to operate. It is easy to cause the cleaned instruments to be polluted again during the transfer process. The utility model provides an instrument cleaner for a disinfection supply center. , cleaning cotton, drying cavity, drying box, draining board and ultraviolet disinfection lamp and other components, can facilitate the cleaning of tubular instruments and common instruments with different diameters, improve the practicability of the cleaning device, and the cleaned instruments can be directly placed in the oven. The drying chamber is drained and dried, and the instruments can be sterilized again while drying to ensure the cleaning effect of the instruments.

The utility model provides the following technical solutions: a device cleaner for a disinfection supply center, comprising a cleaning table, a cavity is opened inside the cleaning table, a liquid storage tank is arranged inside the cavity, and the liquid storage tank is The back side is provided with a liquid supply pump, the left side of the liquid supply pump is provided with a liquid outlet pipe, the front side of the liquid supply pump is provided with a liquid suction pipe, the top of the cleaning table is provided with a support frame, and the The top of the liquid pipe extends to the top of the support frame, the bottom of the liquid outlet pipe is provided with a spray head, the bottom of the spray head penetrates the support frame, the top of the cleaning table is provided with a cleaning cavity, and the interior of the cleaning cavity is provided with a A storage board, the outer wall of the storage board is provided with a water leakage hole, the right side wall of the cleaning chamber is provided with a support plate, and the top of the support plate is sequentially provided with a first fixing rod, a second fixing rod and a third fixing rod , the outer walls of the first fixing rod, the second fixing rod and the third fixing rod are all covered with rubber sleeves, the outer walls of the rubber sleeves are equipped with cleaning brushes, and the top of the cleaning table is located on the left side of the cleaning cavity A drying cavity is opened, the interior of the drying cavity is provided with a drain board, the outer wall of the drying cavity is provided with a drying box, the interior of the drying box is provided with a fan, and the drying box is close to the drying box. One side of the cavity is provided with a heating wire, the side of the drying box close to the drying cavity is provided with ventilation holes, and the bottoms of the drying cavity and the cleaning cavity are provided with water leakage ports, and the two water leakage ports are provided with water leakage holes. A U-shaped pipe is connected to the bottom, and a drain pipe is arranged in the middle of the U-shaped pipe, and the drain pipe penetrates the rear side wall of the cleaning table and extends to the outside of the cleaning table.

Wherein, an installation frame is arranged on the top of the cleaning table and above the drying cavity, and an ultraviolet disinfection lamp is arranged in the middle of the installation frame; Drain water in the drying chamber, while the ultraviolet disinfection lamp above can sterilize the instruments.

Wherein, the top of the rubber sleeve is provided with a cleaning cotton; by arranging the cleaning cotton on the top of the rubber sleeve, when the tubular instrument is placed on the fixed rod for cleaning, the cleaning cotton can clean the depth of the tubular instrument, and at the same time The tubular instrument can be prevented from being damaged.

Wherein, the diameters of the first fixing rod, the second fixing rod and the third fixing rod are gradually reduced; by arranging three fixing rods with different diameters, the tubular instruments with different thicknesses can be cleaned, thereby improving the practicability of the cleaning device .

Wherein, the inside of the cleaning cavity is provided with a first water guide groove, and the first water guide groove is set at the bottom of the storage board; by arranging the first water guide groove in the interior of the cleaning cavity, the disinfectant liquid of the cleaned equipment passes through the storage board The water leakage hole on the upper part flows to the first water guide groove, and is led to the water leakage port through the first water guide groove for discharge.

Wherein, the inside of the drying cavity is provided with a second water guide groove, and the second water guide groove is arranged at the bottom of the drain board; the cleaned equipment has water droplets on it, and the cleaned equipment is placed on the drain board to drain water. The water droplets fall onto the second water guide groove through the drain plate, and slide down the second water guide groove to the water leakage port in the drying cavity for discharge.

Wherein, the number of the drying boxes is set to two, and the two drying boxes are respectively arranged on the left side wall and the front side wall of the drying cavity.

Wherein, the number of the nozzles is set to three; by arranging three nozzles at the bottom of the liquid outlet pipe, the three nozzles can simultaneously clean the instruments in the cleaning cavity and improve the cleaning speed of the instruments.

The beneficial effect of the utility model is: when using the cleaning device, put an appropriate amount of equipment on the storage board in the cleaning cavity, turn on the liquid supply pump, and pump the disinfectant in the liquid storage tank to the discharge liquid through the liquid suction pipe Inside the tube, it is sprayed into the cleaning cavity through the nozzle to clean the equipment. The disinfectant from the cleaned equipment flows to the first water guide tank through the leak hole on the storage board, and is led to the water leakage port through the first water guide groove. The mouth flows into the U-shaped pipe and is discharged through the drain pipe. According to the diameter of the tubular instrument, the tubular instrument is sleeved on three different fixed rods, and the tubular instrument is rotated along the fixed rod, so that the cleaning brush and cleaning cotton The inside of the equipment is cleaned, and then the cleaned equipment is placed on the drain board in the drying cavity for draining, and the water droplets fall through the drain board to the second water guide groove and slide down the second water guide groove to the drying cavity. At the leaking port in the interior, it flows into the U-shaped pipe through the leaking port, and discharges through the drain pipe. Turn on the ultraviolet disinfection lamp to disinfect and sterilize the instruments on the drain board. The instruments are dried, and after the instruments are dried and sterilized, the instruments are taken out to complete the cleaning of the instruments;

When the cleaning brush and cleaning cotton have been used for a period of time, remove the rubber covers on the first fixing rod, the second fixing rod and the third fixing rod, and replace with new rubber covers, cleaning brushes and cleaning cottons to ensure the cleaning of the tubular instruments. Effect.

The parts not involved in the device are the same as the prior art or can be implemented by using the prior art.

Description of drawings

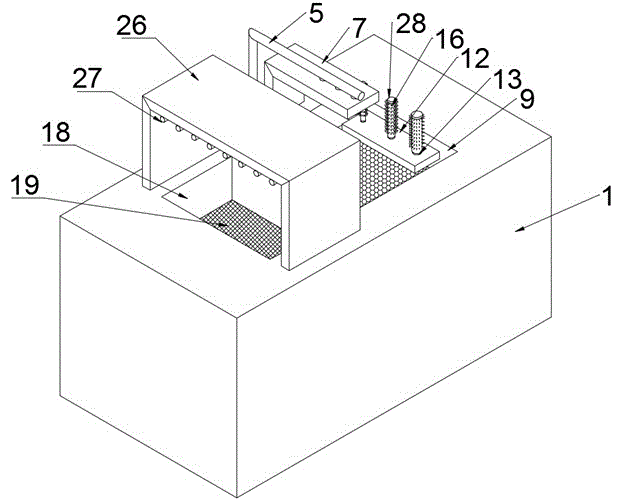

Fig. 1 is the left-view three-dimensional structure schematic diagram of the present utility model;

Fig. 2 is the right-side three-dimensional structure schematic diagram of the present utility model;

Fig. 3 is the right side sectional structure schematic diagram of the present utility model;

Fig. 4 is the top view sectional structure schematic diagram of the utility model;

FIG. 5 is a schematic view of the front sectional structure of the utility model.

In the figure: 1. Cleaning table; 2. Cavity; 3. Liquid storage tank; 4. Liquid supply pump; 5. Liquid outlet pipe; 6. Liquid suction pipe; 7. Support frame; 8. Nozzle; 9. Cleaning cavity ; 10, storage board; 11, leak hole; 12, support plate; 13, the first fixed rod; 14, the second fixed rod; 15, the third fixed rod; 16, rubber sleeve; 17, cleaning brush; 18, drying Dry cavity; 19. Draining board; 20. Drying box; 21. Fan; 22. Ventilation hole; 23. Water leak; 24. U-shaped pipe; 25. Drain pipe; 26. Mounting frame; 27. Ultraviolet disinfection lamp; 28. Cleaning cotton; 29. The first water guiding tank; 30. The second water guiding tank.

Detailed ways

Please refer to FIG. 1 to FIG. 5 , the present utility model provides the following technical solutions: a device cleaner for a disinfection supply center, comprising a cleaning table 1 , a cavity 2 is opened inside the cleaning table 1 , and the interior of the cavity 2 is A liquid storage tank 3 is provided, the rear side of the liquid storage tank 3 is provided with a liquid supply pump 4, the left side of the liquid supply pump 4 is provided with a liquid outlet pipe 5, and the front side of the liquid supply pump 4 is provided with a liquid outlet pipe 5. The suction pipe 6, the top of the cleaning table 1 is provided with a support frame 7, the top of the liquid outlet pipe 5 extends to the top of the support frame 7, the bottom of the liquid outlet pipe 5 is provided with a spray head 8, the spray head The bottom of 8 runs through the support frame 7, the top of the cleaning table 1 is provided with a cleaning cavity 9, the interior of the cleaning cavity 9 is provided with a storage board 10, and the outer wall of the storage board 10 is provided with a water leakage hole 11. The right side wall of the cavity 9 is provided with a support plate 12, and the top of the support plate 12 is provided with a first fixed rod 13, a second fixed rod 14 and a third fixed rod 15 in sequence. The first fixed rod 13, the second fixed rod 15 The outer walls of the fixing rod 14 and the third fixing rod 15 are covered with rubber sleeves 16 , and the outer walls of the rubber sleeves 16 are provided with cleaning brushes 17 . Drying cavity 18, the interior of the drying cavity 18 is provided with a drain plate 19, the outer wall of the drying cavity 18 is provided with a drying box 20, and the interior of the drying box 20 is provided with a fan 21, the drying The side of the box 20 close to the drying cavity 18 is provided with a heating wire, the side of the drying box 20 close to the drying cavity 18 is provided with ventilation holes 22, and the bottom of the drying cavity 18 and the cleaning cavity 9 are opened There are water leakage ports 23, the bottoms of the two water leakage ports 23 are connected with U-shaped pipes 24, and the middle of the U-shaped pipes 24 is provided with a drain pipe 25, the drain pipe 25 extends through the rear side wall of the cleaning table 1 to The outside of the cleaning station 1.

The top of the cleaning table 1 and above the drying cavity 18 is provided with an installation frame 26, and the middle of the installation frame 26 is provided with an ultraviolet disinfection lamp 27; The cleaned instruments are placed in the drying chamber 18 to drain water, and at the same time, the ultraviolet disinfection lamp 27 above can sterilize the instruments.

The top of the rubber cover 16 is provided with a cleaning cotton 28; by arranging the cleaning cotton 28 on the top of the rubber cover 16, when the tubular instrument is placed on the fixed rod for cleaning, the cleaning cotton 28 can be used to clean the depth of the tubular instrument , and can also prevent the damage of tubular instruments.

The diameters of the first fixing rod 13, the second fixing rod 14 and the third fixing rod 15 are gradually reduced; by setting three fixing rods with different diameters, the tubular instruments with different thicknesses can be cleaned, and the practicality of the cleaning device is improved. sex.

The inside of the cleaning cavity 9 is provided with a first water guide groove 29, and the first water guide groove 29 is arranged at the bottom of the storage board 10; by arranging the first water guide groove 29 in the interior of the cleaning cavity 9, the disinfectant liquid of the equipment has been cleaned. The water flows to the first water guide groove 29 through the water leakage hole 11 on the storage board 10 , and is led to the water leakage port 23 through the first water guide groove 29 for discharge.

The inside of the drying cavity 18 is provided with a second water guide groove 30, and the second water guide groove 30 is arranged at the bottom of the drain plate 19; the cleaned equipment has water droplets, and the cleaned equipment is placed on the drain plate 19. Drain. The water droplets fall onto the second water guide trough 30 through the drain plate 19 , and slide down along the second water guide trough 30 to the water leakage port 23 in the drying cavity 18 for discharge.

The number of the drying boxes 20 is set to two, and the two drying boxes 20 are respectively arranged on the left side wall and the front side wall of the drying cavity 18 .

The number of the nozzles 8 is set to three; by arranging three nozzles 8 at the bottom of the liquid outlet pipe 5 , the three nozzles 8 can simultaneously clean the instruments in the cleaning cavity 9 and improve the cleaning speed of the instruments.

The working principle and use process of the present utility model: when using the cleaning device, put an appropriate amount of equipment on the storage board 10 in the cleaning cavity 9, turn on the liquid supply pump 4, and drain the liquid storage tank 3 through the liquid suction pipe 6. The disinfectant is pumped into the liquid outlet pipe 5, and sprayed into the cleaning cavity 9 through the nozzle 8 to clean the equipment. , lead to the water leakage port 23 through the first water guide groove 29, flow into the U-shaped pipe 24 through the water leakage port 23, and discharge through the drain pipe 25. According to the diameter of the tubular instrument, the tubular instrument is set in three different fixed On the rod, the tubular instrument is rotated along the fixed rod, so that the cleaning brush 17 and the cleaning cotton 28 clean the interior of the tubular instrument, and then the cleaned instrument is placed on the drain plate 19 in the drying chamber 18 to drain water, water droplets It falls onto the second water guide trough 30 through the drain plate 19, slides down the second water guide trough 30 to the water leakage port 23 in the drying cavity 18, and then flows into the U-shaped pipe 24 through the water leakage port 23, and passes through the drain The tube 25 is discharged, the ultraviolet disinfection lamp 27 is turned on, and the equipment on the drain plate 19 is sterilized and sterilized. At the same time, the fan 21 is turned on, and the equipment in the drying cavity 18 is dried through the ventilation hole 22, and the drying and disinfection of the equipment is completed. After that, the instrument is taken out to complete the cleaning of the instrument.

Claims (8)

1. A device cleaner for a disinfection supply center, characterized in that it comprises a cleaning table, a cavity is provided in the interior of the cleaning table, a liquid storage tank is provided in the interior of the cavity, and the back side of the liquid storage tank is A liquid supply pump is provided, the left side of the liquid supply pump is provided with a liquid outlet pipe, the front side of the liquid supply pump is provided with a liquid suction pipe, the top of the cleaning table is provided with a support frame, and the liquid outlet pipe is provided with The top of the cleaning table extends to the top of the support frame, the bottom of the liquid outlet pipe is provided with a spray head, the bottom of the spray head penetrates the support frame, the top of the cleaning table is provided with a cleaning cavity, and the interior of the cleaning cavity is provided with a storage board , the outer wall of the storage board is provided with a water leakage hole, the right side wall of the cleaning chamber is provided with a support plate, and the top of the support plate is sequentially provided with a first fixing rod, a second fixing rod and a third fixing rod. The outer walls of the first fixing rod, the second fixing rod and the third fixing rod are all covered with rubber sleeves, the outer walls of the rubber sleeves are provided with cleaning brushes, and the top of the cleaning table is located on the left side of the cleaning cavity. A drying cavity, the interior of the drying cavity is provided with a drain plate, the outer wall of the drying cavity is provided with a drying box, the interior of the drying box is provided with a fan, and the drying box is close to the drying cavity. One side is provided with a heating wire, the side of the drying box close to the drying cavity is provided with ventilation holes, the bottoms of the drying cavity and the cleaning cavity are provided with water leakage ports, and the bottoms of the two water leakage ports are connected There is a U-shaped pipe, and a drain pipe is arranged in the middle of the U-shaped pipe, and the drain pipe extends through the rear side wall of the cleaning table to the outside of the cleaning table. 2. A device cleaner for a disinfection supply center according to claim 1, wherein the top of the cleaning table and above the drying cavity is provided with a mounting rack, and the middle of the mounting rack is provided with ultraviolet disinfection lamp. 3 . The device cleaner for a disinfection supply center according to claim 1 , wherein a cleaning cotton is provided on the top of the rubber sleeve. 4 . 4 . The instrument cleaner for a sterilization supply center according to claim 1 , wherein the diameters of the first fixing rod, the second fixing rod and the third fixing rod gradually decrease. 5 . 5 . The device cleaner of claim 1 , wherein the cleaning cavity is provided with a first water guide groove, and the first water guide groove is disposed at the bottom of the storage board. 6 . 6 . The device cleaner for a disinfection supply center according to claim 1 , wherein a second water guide groove is arranged inside the drying cavity, and the second water guide groove is arranged at the bottom of the drain plate. 7 . 7 . The device cleaner for a disinfection supply center according to claim 1 , wherein the number of the drying boxes is set to two, and the two drying boxes are respectively arranged on the left side of the drying cavity. 8 . wall and front side wall. 8 . The device cleaner for a disinfection supply center according to claim 1 , wherein the number of the spray heads is set to three. 9 .
