Abstract
本实用新型公开了一种用于膨润土粉碎的高效齿破机，所述膨润土粉碎的高效齿破机包括：箱体和所述箱体安装的下滑板，所述下滑板用于破碎后的物料滑出箱体外侧，破碎部件，所述破碎部件包括驱动辊、从动辊，所述驱动辊两端分别通过转轴转动连接在所述箱体侧壁上，所述从动辊两端分别通过支杆滑动连接在所述箱体侧壁上，所述破碎部件用于膨润土的粉碎，本实用新型通过凸块随着转轴旋转远离滑块时，在弹簧的拉动下从动辊与支杆向右移动，并通过斜杆拉动滑块向上移动进行复位，以此往复，使得从动辊左右往复移动，具有更好的进行破碎效果。
The utility model discloses a high-efficiency tooth crusher for crushing bentonite. The high-efficiency tooth crusher for crushing bentonite comprises a box body and a lower sliding plate installed on the box body, and the lower sliding plate is used for crushed materials Sliding out of the outside of the box, the crushing component includes a driving roller and a driven roller. Both ends of the driving roller are connected to the side wall of the box through a rotating shaft, and both ends of the driven roller pass through The support rod is slidably connected to the side wall of the box body, and the crushing part is used for crushing the bentonite. In the present invention, the driven roller and the support rod move toward each other under the pulling of the spring when the bump moves away from the slider along with the rotating shaft. Move to the right and reset the slider by pulling the slider upward through the inclined rod, so as to reciprocate, so that the driven roller reciprocates left and right, which has a better crushing effect.
Description
Technical Field
The utility model relates to a bentonite smashes technical field, especially relates to a be used for garrulous high-efficient tooth of bentonite to break machine.
Background
The bentonite desiccant is also called montmorillonite desiccant, has the advantages of high water absorption speed, low cost, no toxicity, no odor, no contact corrosivity and no environmental pollution, and is mainly applied to the fields of instruments, electrical equipment, medicines, foods and the like.
Add man-hour at bentonite, need use broken machine of tooth to smash it, but the broken machine of current tooth singly has crushing effect, does not have the quick exhaust structure of material after smashing, and when smashing man-hour simultaneously, two rollers of the broken machine of current tooth are fixed rotation, consequently smash the efficiency lower.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving following shortcoming among the prior art, current broken quick-witted list of tooth has crushing effect, does not have the quick exhaust structure of material after smashing, and when smashing man-hour simultaneously, two rollers of current broken quick-witted of tooth are fixed rotation, consequently smashes the efficiency lower, and the broken machine of high-efficient tooth that is used for the bentonite to smash that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a be used for kibbling high-efficient tooth of bentonite to break machine, the kibbling high-efficient tooth of bentonite breaks machine and includes:
the box body and the lower sliding plate are arranged on the box body, and the lower sliding plate is used for sliding the crushed materials out of the box body;
the crushing component comprises a driving roller and a driven roller, two ends of the driving roller are respectively and rotatably connected to the side wall of the box body through rotating shafts, two ends of the driven roller are respectively and slidably connected to the side wall of the box body through supporting rods, and the crushing component is used for crushing bentonite;
the transmission component comprises a convex block, a sliding block and an inclined rod, the convex block is fixedly connected to the rotating shaft, one end of the inclined rod is hinged to the supporting rod, and the sliding block is hinged to the other end of the inclined rod.
Preferably, crushing part still includes spring, installation cavity, two installation cavity fixed connection respectively is in on two opposite lateral walls of box, two branch is respectively and runs through on the installation cavity, spring fixed connection the installation cavity inside wall with between the branch.
Preferably, the transmission part further comprises concave clamping plates, the two concave clamping plates are respectively and fixedly connected to the outer side wall of the box body, and the sliding block is connected in the concave clamping plates in a sliding mode.
Preferably, a blanking hopper is fixedly communicated with the upper side wall of the box body and is arranged at the upper ends of the driving roller and the driven roller.
Preferably, a shifting plate used for pushing the materials is fixedly connected between the two support rods.
Preferably, the protruding blocks are arranged in a sector shape and are arranged right above the sliding block.
Preferably, the box body is provided with a sliding groove, and the two support rods respectively horizontally slide on the side wall of the box body.
Compared with the prior art, the beneficial effects of the utility model are that:
1. when the lug rotates along with the rotating shaft and extrudes the sliding block to move downwards, the inclined rod pulls the support rod and the driven roller fixed on the support rod to move leftwards and close to the driving roller, so that the distance between the driving roller and the driven roller is reduced, when the lug rotates along with the rotating shaft and is far away from the sliding block, the driven roller and the support rod move rightwards under the pulling of the spring, and the sliding block is pulled to move upwards through the inclined rod to reset, so that the reciprocating motion is realized, the driven roller moves leftwards and rightwards in a reciprocating mode, and a better crushing effect is realized;
2. when the driven roller and the supporting rod move left and right, the shifting plate can be driven to move left and right, and therefore materials on the lower sliding plate can be pushed to be discharged quickly.
Drawings

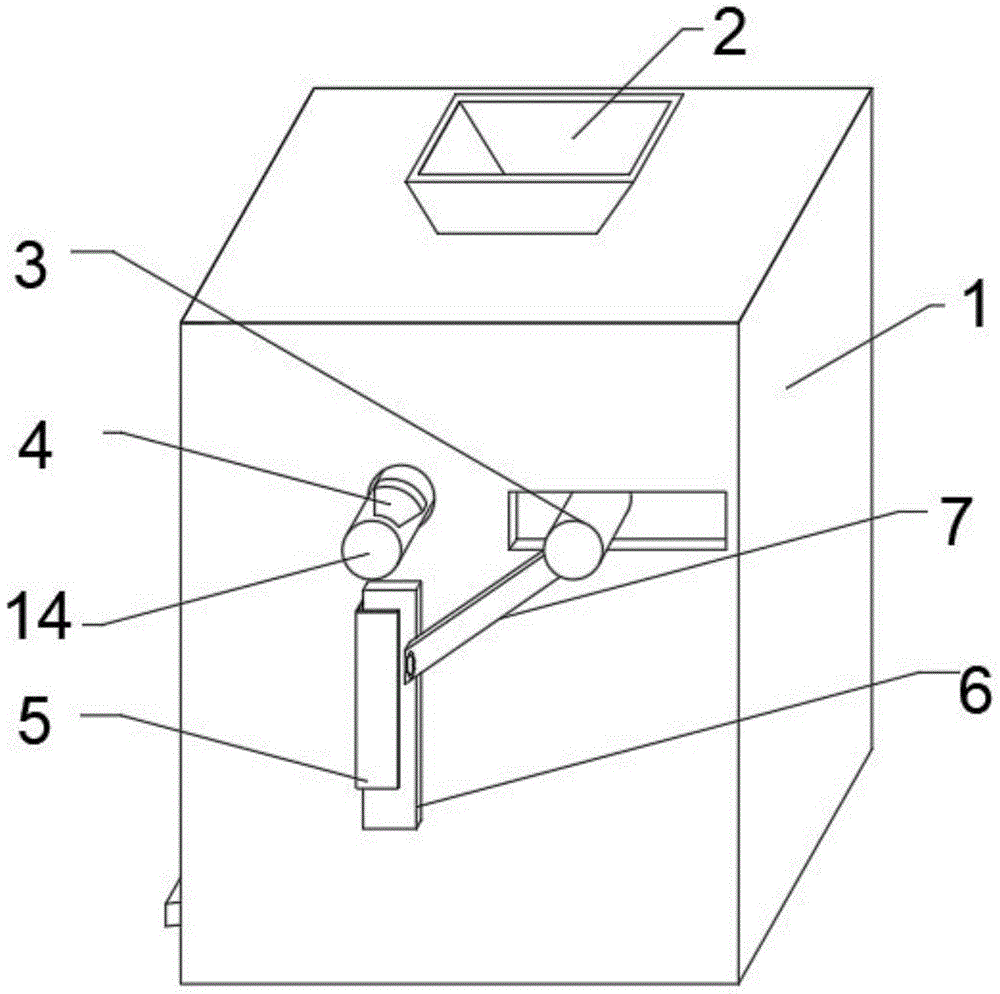

Fig. 1 is a schematic front structural view of a high-efficiency tooth crusher for crushing bentonite provided by the utility model;
fig. 2 is the utility model provides a box inner structure schematic diagram that is used for garrulous high-efficient tooth of bentonite to break machine.
In the figure: the device comprises a box body 1, a blanking hopper 2, a supporting rod 3, a convex block 4, a concave clamping plate 5, a sliding block 6, an inclined rod 7, a spring 8, a driving roller 9, a shifting plate 10, a sliding plate 11, a mounting cavity 12, a driven roller 13 and a rotating shaft 14.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the present invention, the terms "upper", "lower", "left", "right", "middle" and "one" are used for clarity of description, but not for limiting the range of the present invention, and the relative relationship changes or adjustments without substantial technical changes should be regarded as the scope of the present invention.
Referring to fig. 1-2, a high-efficiency tooth crusher for bentonite pulverization comprises:
the box body 1 and the lower sliding plate 11 arranged on the box body 1, the lower sliding plate 11 is used for sliding crushed materials out of the box body 1, the crushed materials fall on the lower sliding plate 11, the lower sliding plate 11 is obliquely arranged to facilitate the materials to slide out of the box body 1, the upper side wall of the box body 1 is fixedly communicated with a discharging hopper 2, and the discharging hopper is arranged at the upper ends of the driving roller 9 and the driven roller 13;
the crushing component comprises a driving roller 9 and a driven roller 13, two ends of the driving roller 9 are respectively rotatably connected to the side wall of the box body 1 through rotating shafts 14, one rotating shaft 14 is fixedly connected with a servo motor outside the right, two ends of the driven roller 13 are respectively slidably connected to the side wall of the box body 1 through supporting rods 3, the crushing component also comprises springs 8 and mounting cavities 12, the two mounting cavities 12 are respectively fixedly connected to two opposite side walls of the box body 1, the two supporting rods 3 respectively penetrate through the mounting cavities 12, the springs 8 are fixedly connected between the inner side wall of the mounting cavities 12 and the supporting rods 3, the box body 1 is provided with a sliding chute, the two supporting rods 3 respectively horizontally slide on the side wall of the box body 1, the supporting rods 3 horizontally slide on the side walls of the mounting cavities 12 and the box body 1, the crushing component is used for crushing bentonite, and a shifting plate 10 used for pushing materials is fixedly connected between the two supporting rods 3, when the shifting plate 10 moves left and right along with the supporting rod 3 and the driven roller 13, the material on the lower sliding plate 11 can be pushed to the outer side of the box body 1, so that the discharging is accelerated;
drive disk assembly, drive disk assembly includes lug 4, slider 6, down tube 7, 4 fixed connection of two lugs are on pivot 14, lug 4 is fan-shaped setting, and set up the upside directly at slider 6, when lug 4 rotates to the downside along with pivot 14, can extrude 6 downstream of slider, 7 wherein one end of down tube articulates on branch 3, slider 6 articulates the other end at down tube 7, move left through 7 pulling branch 3 of down tube and driven voller 13 when slider 6 downstream, drive disk assembly still includes concave splint 5, two concave splint 5 difference fixed connection are on 1 lateral wall of box, 6 sliding connection of slider are in concave splint 5.
The utility model discloses in, drive roller 9 wherein one end is through the outside servo motor of 14 fixedly connected with of pivot, and it is rotatory to drive roller 9 through the rotation of servo motor drive end, pours bentonite into box 1 in from hopper 2 down simultaneously, and flows and falls between drive roller 9 and driven voller 13, through the rotation of drive roller 9, reaches the crushing effect to the bentonite.
Meanwhile, when the driving roller 9 and the rotating shaft 14 rotate, the lug 4 rotates along with the rotating shaft 14 and presses the slide block 6 to move downwards, when the slide block 6 moves downwards, the support rod 3 and the driven roller 13 fixed on the support rod 3 are pulled by the inclined rod 7 to move leftwards and approach the driving roller 9 when the spring 8 is stretched, so that the distance between the driving roller 9 and the driven roller 13 becomes smaller, and a better crushing effect is achieved, when the projection 4 rotates away from the slider 6 along with the rotating shaft 14, driven roller 13 and support bar 3 move rightwards under the pulling of spring 8, and slide block 6 is pulled upwards by oblique rod 7 to reset, the intermittent extrusion sliding block 6 of the convex block 4 is reciprocated in this way, so that the driven roller 13 reciprocates left and right, the crushing effect is better, meanwhile, when the driven roller 13 and the support rod 3 move left and right, the shifting plate 10 can be driven to move left and right, and therefore materials on the lower sliding plate 11 can be pushed to be discharged quickly.
In the present application, the terms "mounted," "connected," and "secured" are to be construed broadly unless otherwise specifically indicated and limited.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
