CN217218957U

CN217218957U - Special sole dust removal and disinfection device for elevator

Info

Publication number: CN217218957U
Application number: CN202123138911.5U
Authority: CN
Inventors: 霍亮; 卓子俊
Original assignee: Kunshan Hanyuan Electronic Technology Co ltd
Current assignee: Kunshan Hanyuan Electronic Technology Co ltd
Priority date: 2021-12-14
Filing date: 2021-12-14
Publication date: 2022-08-19
Anticipated expiration: 2031-12-14

Abstract

The utility model discloses a special sole dust removal and disinfection device for an elevator, which comprises a disinfection device shell, a dust removal component, a disinfection component and a drying component. Inside the upper end of the sterilization device shell, the sterilization component is located in one end of the sterilization device shell, the drying component is located in the end of the sterilization device shell away from the sterilization component, and the dust removal component includes a PVA cotton roller brush, a drive motor, and a drive belt. And the driven transmission belt, the PVA collodion roller brush is rotatably arranged on the upper end of the sterilization device shell. The utility model belongs to the technical field of disinfection equipment, and specifically provides a dust removal component which is convenient for removing the dust on the sole, the disinfection component is convenient for sterilizing the sole, and the drying component is convenient for speeding up the drying speed of the sole disinfectant, and has the advantages of reasonable design, high practicability and dust removal effect. Good, simple structure, safe and reliable, function-rich special sole dust removal and disinfection device for elevators.

Description

Special sole dust removal and disinfection device for elevator

Technical Field

The utility model belongs to the technical field of disinfecting equipment, specifically indicate a special sole dust removal degassing unit of elevator.

Background

When the shoe is worn to walk and run, the sole is contacted with the ground all the time, so that a large amount of pathogenic microorganisms such as bacteria and viruses are adhered to the sole, the pathogenic microorganisms such as the bacteria and the viruses can be brought into an office, a ward or a home, the pathogenic microorganisms such as the bacteria and the viruses can be brought to hands and feet by taking off the shoe or wearing the shoe, and the shoe is an important way for spreading various diseases.

The existing sole dust removing device is mostly arranged at an indoor entrance, and the cleaning effect is poor because the existing sole dust removing device needs to be manually trodden each time for removing dust; the existing sole disinfection device is mostly arranged indoors, the shoes need to be taken off and put into a cabinet to disinfect the soles, and dust and bacteria cannot be completely isolated outdoors. Therefore, a novel special sole dust removal and disinfection device for the elevator is urgently needed to solve the problems.

SUMMERY OF THE UTILITY MODEL

For solving the above-mentioned current difficult problem, the utility model provides a dust removal component is convenient for clear away the dust of sole, and the disinfection subassembly is convenient for disinfect to the sole, and drying component is convenient for accelerate the drying rate of sole antiseptic solution, reasonable in design, practicality height, dust removal effect are good, simple structure, safe and reliable, the special sole dust removal degassing unit of elevator that the function is abundant.

The utility model adopts the following technical scheme: the utility model discloses special sole dust removal degassing unit of elevator, including degassing unit shell, dust removal subassembly, disinfection subassembly and drying subassembly, the degassing unit shell is the cavity setting of upper end opening, dust removal subassembly is located in the degassing unit shell upper end, disinfection subassembly is located in disinfection unit shell one end, drying subassembly is located in the one end that disinfection unit shell kept away from the disinfection subassembly of disinfection subassembly, dust removal subassembly includes PVA collodion round brush, driving motor, drive belt and driven drive belt, PVA collodion round brush rotates and locates the upper end of disinfection unit shell, PVA collodion round brush is equipped with the multiunit, driving motor locates PVA collodion round brush one side and locates in the degassing unit shell, the drive belt is around locating driving motor's output, PVA collodion round brush one end lateral wall, the driven drive belt locates one side that PVA collodion round brush kept away from the drive belt, the one end lateral wall of drive belt is kept away from around locating PVA glued membrane round brush to driven drive belt, and driving motor passes through the drive belt and drives PVA glued membrane round brush and rotate, and the driven drive belt of PVA glued membrane round brush other end drives other PVA glued membrane round brush synchronous rotations, and PVA glued membrane round brush rotates the dust that cleans the sole, is convenient for remove dust to the sole.

Further, the disinfection component comprises a disinfectant storage cavity, an atomization cavity, an atomizer, an atomized absorbent cotton strip, an atomization nozzle and an atomization pipe, the disinfectant storage cavity is arranged at the lower end of the disinfection device shell, the atomization cavity is arranged in the disinfection device shell, the atomizer is arranged in the atomization cavity, the atomization absorbent cotton strip is arranged below the atomizer, the lower end of the atomization absorbent cotton strip is communicated with the atomization cavity and is arranged in the disinfectant storage cavity, the atomizing nozzle is arranged on the inner side wall of the shell of the disinfection device, the atomizing pipe is arranged on one side of the atomizing nozzle, the atomizing pipe both ends are connected with atomizer, atomizing chamber roof respectively, and atomizing absorbent cotton sliver adsorbs the atomizer with the antiseptic solution of antiseptic solution storage intracavity in, and the atomizer atomizes the antiseptic solution and spouts in the atomizer, and atomizing antiseptic solution sprays the sole along the atomizing pipe from atomizer, is convenient for disinfect the sole.

Further, dry subassembly includes system wind chamber, drying fan, air outlet and goes out the tuber pipe, the one end in antiseptic solution storage chamber is kept away from in locating the degassing unit shell in system wind chamber, drying fan rotates and locates the system wind intracavity, the one end lateral wall that atomizer was kept away from to the disinfection unit shell is located to the air outlet, it locates air outlet one side to go out the tuber pipe, go out the tuber pipe both ends and be connected with air outlet, system wind chamber roof respectively, and drying fan rotates the air current that produces and flows from the air outlet along going out the tuber pipe for the air flow speed in the antiseptic unit shell, the antiseptic solution of the dry sole of being convenient for.

Further, degassing unit shell center department is equipped with the dirty chamber of collection, the dirty intracavity of collection slides and is equipped with the sewage box, the sewage box is upper end open-ended cavity setting, and the sewage box slides at the dirty intracavity of collection, is convenient for take the sewage box out the dirty chamber of collection, convenient clean sewage box.

Furthermore, a dust collecting hopper is arranged in the shell of the disinfection device, the dust collecting hopper is arranged below the dust removal assembly, the center of the dust collecting hopper is arranged above the sewage box, and dust and sewage collected by the dust collecting hopper flow into the sewage box.

Furthermore, an ultraviolet disinfection lamp is arranged above the dust collecting hopper, is arranged below the dust removing component and is arranged on the inner side wall of the shell of the disinfection device, and is convenient for sterilization and disinfection of the sole.

Furthermore, the opening end of the shell of the disinfection device is provided with a supporting fence, and the supporting fence is convenient for supporting the coming and going personnel to stand above the dust removal assembly.

Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: the special sole dust removal degassing unit of elevator that this scheme provided, driving motor passes through the drive belt and drives PVA glued membrane round brush and rotate, PVA glued membrane round brush rotates the dust that cleans the sole, the atomizer atomizes the antiseptic solution and sprays the sole, be convenient for disinfect to the sole, drying fan rotates the air current that produces and accelerates the air flow speed in the degassing unit shell, the antiseptic solution of the dry sole of being convenient for, the sole dust that the dust removal subassembly cleaned, the antiseptic solution that the sole drips together falls in the album ash bucket, dust and the sewage that the collection ash bucket was collected flow in the sewage box, conveniently clear up dust and sewage, reasonable in design, the practicality is high, dust removal effect is good, moreover, the steam generator is simple in structure, safety and reliability, and functions are abundant.

Drawings

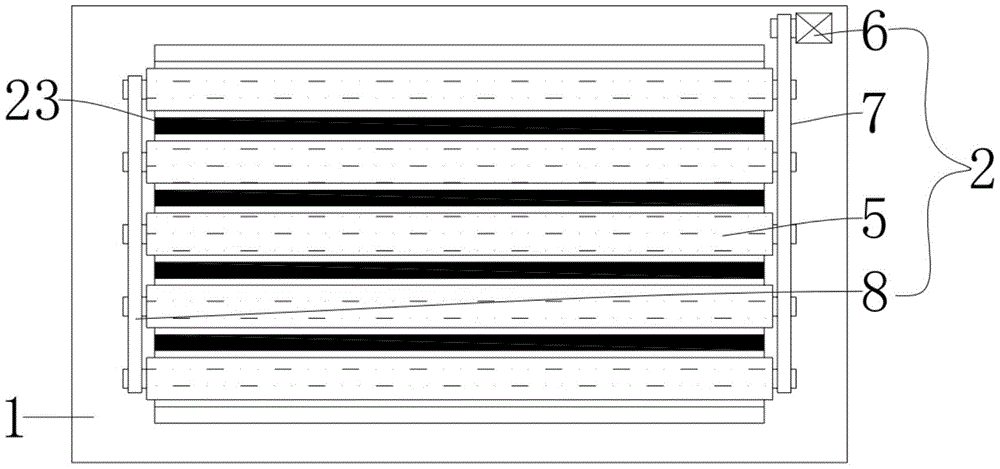

FIG. 1 is a schematic top view of the dust removing and sterilizing device for the sole of the elevator proposed in the present embodiment;

fig. 2 is a schematic side view of the special sole dust removal and disinfection device for the elevator in the scheme.

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings: 1. disinfection device shell, 2, dust removal subassembly, 3, disinfection subassembly, 4, dry subassembly, 5, PVA glued membrane round brush, 6, driving motor, 7, drive belt, 8, driven drive belt, 9, antiseptic solution storage chamber, 10, atomizing chamber, 11, atomizer, 12, atomizing cotton sliver, 13, atomizer, 14, atomizing pipe, 15, system wind chamber, 16, drying fan, 17, the air outlet, 18, play tuber pipe, 19, the dirty chamber of collection, 20, the sewage box, 21, the collection ash bucket, 22, ultraviolet disinfection lamp, 23, the support fence.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in figures 1 and 2, the special sole dust removal and disinfection device for the elevator comprises a disinfection device shell 1, a dust removal assembly 2, a disinfection assembly 3 and a drying assembly 4, wherein the disinfection device shell 1 is a hollow cavity with an open upper end, the dust removal assembly 2 is arranged in the upper end of the disinfection device shell 1, the disinfection assembly 3 is arranged in one end of the disinfection device shell 1, the drying assembly 4 is arranged in one end of the disinfection device shell 1 far away from the disinfection assembly 3, the dust removal assembly 2 comprises a PVA collodion rolling brush 5, a driving motor 6, a driving transmission belt 7 and a driven transmission belt 8, the PVA collodion rolling brush 5 is rotatably arranged at the upper end of the disinfection device shell 1, the PVA collodion rolling brush 5 is provided with a plurality of groups, the driving motor 6 is arranged at one side of the PVA collodion rolling brush 5 and is arranged in the disinfection device shell 1, and the driving transmission belt 7 is wound around an output end of the driving motor 6, 5 one end lateral walls of PVA glued membrane round brush, driven transmission belt 8 is located one side that PVA glued membrane round brush 5 kept away from drive transmission belt 7, driven transmission belt 8 is around locating one end lateral wall that PVA glued membrane round brush 5 kept away from drive transmission belt 7

Wherein, disinfection subassembly 3 includes antiseptic solution storage chamber 9, atomizing chamber 10, atomizer 11, the atomizing silver 12 that absorbs water, atomizer 13 and atomization pipe 14, antiseptic solution storage chamber 9 is located 1 lower extreme of degassing unit shell, atomizing chamber 10 is located in degassing unit shell 1, atomizer 11 is located in atomizing chamber 10, atomizing silver 12 that absorbs water is located atomizer 11 below, atomizing silver 12 lower extreme that absorbs water link up atomizing chamber 10 and is located in antiseptic solution storage chamber 9, atomizer 13 is located 1 inside wall of degassing unit shell, 13 one side of atomizer is located to atomization pipe 14, atomization pipe 14 both ends are connected with atomizing nozzle 13, atomizing chamber 10 roof respectively.

Drying assembly 4 includes system wind chamber 15, drying fan 16, air outlet 17 and goes out tuber pipe 18, system wind chamber 15 locates the one end of keeping away from antiseptic solution storage chamber 9 in the degassing unit shell 1, drying fan 16 rotates and locates system wind chamber 15 in, the one end lateral wall that atomizer 13 was kept away from to degassing unit shell 1 is located to air outlet 17, it locates air outlet 17 one side to go out tuber pipe 18, it is connected with air outlet 17, system wind chamber 15 roof respectively to go out 18 both ends of tuber pipe.

The central department of degassing unit shell 1 is equipped with dirty chamber 19 of collection, it is equipped with sewage box 20 to slide in the dirty chamber 19 of collection, sewage box 20 is upper end open-ended cavity setting, be equipped with dust collection hopper 21 in the degassing unit shell 1, dust collection hopper 21 locates dust removal component 2 below, dust collection hopper 21 central department locates above sewage box 20.

Dust collecting bucket 21 top is equipped with ultraviolet disinfection lamp 22, ultraviolet disinfection lamp 22 is located dust removal component 2 below and is located 1 inside wall of degassing unit shell, 1 open end of degassing unit shell is equipped with support bar 23.

When the dust removal and disinfection device is used in concrete, the sole dust removal and disinfection device is installed at an entrance of an elevator car, when a person enters an elevator, the person stands on the supporting fence 23 firstly, at the moment, the driving motor 6 is started, the driving motor 6 drives the PVA collodion rolling brush 5 to rotate through the driving transmission belt 7, the driven transmission belt 8 at the other end of the PVA collodion rolling brush 5 drives other PVA collodion rolling brushes 5 to synchronously rotate, the PVA collodion rolling brush 5 rotates to clean dust on the sole so as to conveniently remove dust on the sole, meanwhile, the atomizer 11 is started, the atomized water absorption sliver 12 absorbs disinfectant in the disinfectant storage cavity 9 into the atomizer 11, the atomizer 11 atomizes the disinfectant and sprays the disinfectant into the atomizing pipe 14, the atomized disinfectant is sprayed to the sole from the atomizing nozzle 13 along the atomizing pipe 14 so as to conveniently sterilize the sole, after the disinfectant is sprayed, the drying fan 16 is started, airflow generated by the rotation of the drying fan 16 flows out from the air outlet 17 along the air outlet pipe 18, accelerate the air flow speed in degassing unit shell 1, the antiseptic solution of the dry sole of being convenient for, the sole dust that dust removal subassembly 2 cleaned together falls to dust collecting hopper 21 with the antiseptic solution that the sole drips in, dust and the sewage that dust collecting hopper 21 collected flow to in the sewage box 20, conveniently clear up dust and sewage, reasonable in design, practicality height, dust removal effect are good, simple structure, safe and reliable, function are abundant.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a special sole dust removal degassing unit of elevator which characterized in that: comprises a disinfection device shell, a dust removal component, a disinfection component and a drying component, wherein the disinfection device shell is arranged in a hollow cavity with an opening at the upper end, the dust removal assembly is arranged in the upper end of the disinfection device shell, the disinfection assembly is arranged in one end of the disinfection device shell, the drying component is arranged in one end of the disinfection device shell far away from the disinfection component, the dust removal component comprises a PVA collodion rolling brush, a driving motor, a driving transmission belt and a driven transmission belt, the PVA collodion rolling brush is rotatably arranged at the upper end of the disinfection device shell and is provided with a plurality of groups, the driving motor is arranged at one side of the PVA collodion rolling brush and is arranged in the shell of the disinfection device, the driving transmission belt is wound at the output end of the driving motor and the side wall of one end of the PVA collodion rolling brush, the driven transmission belt is arranged on one side, away from the driving transmission belt, of the PVA collodion rolling brush, and the driven transmission belt is wound on one end side wall, away from the driving transmission belt, of the PVA collodion rolling brush.

2. The special sole dedusting and sterilizing device for the elevator as claimed in claim 1, wherein: the disinfection subassembly includes antiseptic solution storage chamber, atomizing chamber, atomizer, atomizing absorbent sliver, atomizer and atomizer pipe, degassing unit shell lower extreme is located in antiseptic solution storage chamber, the atomizing chamber is located in the degassing unit shell, the atomizing intracavity is located to the atomizer, the atomizer below is located to the atomizing absorbent sliver, atomizing absorbent sliver lower extreme link up the atomizing chamber and locates antiseptic solution storage intracavity, the degassing unit shell inside wall is located to the atomizer, atomizer one side is located to the atomizer pipe, the atomizer pipe both ends are connected with atomizer, atomizing chamber roof respectively.

3. The special sole dedusting and sterilizing device for the elevator as claimed in claim 2, characterized in that: the dry subassembly includes system wind chamber, drying fan, air outlet and goes out the tuber pipe, the one end in disinfectant storage chamber is kept away from in the degassing unit shell is located to system wind chamber, drying fan rotates and locates the system wind intracavity, the one end lateral wall that atomizer was kept away from to the degassing unit shell is located to the air outlet, it locates air outlet one side to go out the tuber pipe, it is connected with air outlet, system wind chamber roof respectively to go out the tuber pipe both ends.

4. The special sole dedusting and sterilizing device for the elevator as claimed in claim 1, characterized in that: the central department of degassing unit shell is equipped with the dirty chamber of collection, the dirty intracavity of collection slides and is equipped with the sewage box, the sewage box is the cavity setting of upper end open-ended.

5. The special sole dedusting and sterilizing device for the elevator as claimed in claim 4, wherein: an ash collecting hopper is arranged in the shell of the disinfection device, the ash collecting hopper is arranged below the dust removal assembly, and the center of the ash collecting hopper is arranged above the sewage box.

6. The special sole dedusting and sterilizing device for the elevator as claimed in claim 5, wherein: an ultraviolet disinfection lamp is arranged above the dust collecting hopper, and is arranged below the dust removing assembly and on the inner side wall of the shell of the disinfection device.

7. The special sole dedusting and sterilizing device for the elevator as claimed in claim 1, wherein: the opening end of the shell of the disinfection device is provided with a supporting fence.
